Product Description
Product Overview

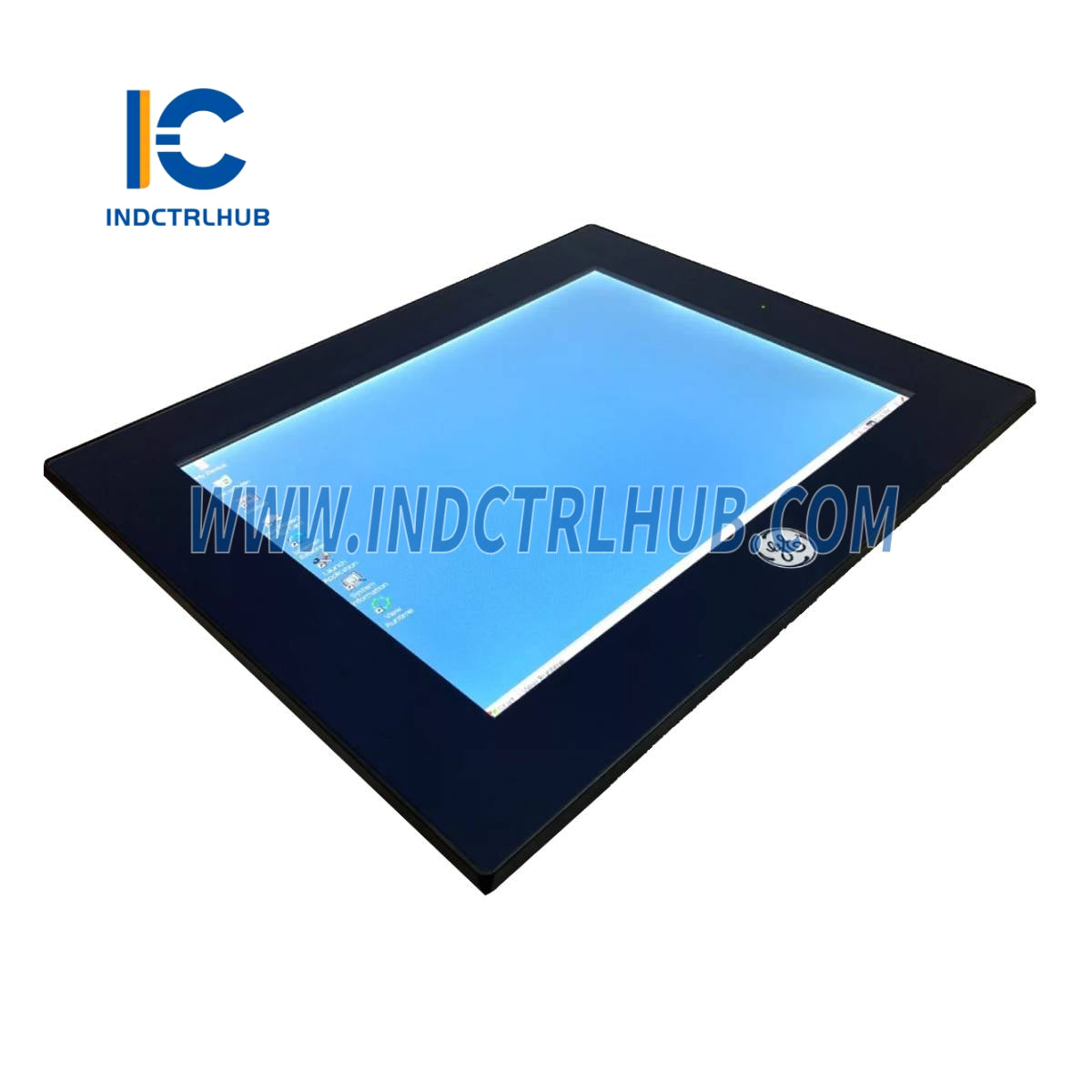

The General Electric IC755CSS15CDA is a QuickPanel+ Operator Interface (OI) designed for industrial automation applications. Manufactured by General Electric (now part of Emerson Automation following the 2019 acquisition of GE Intelligent Platforms), this all-in-one device integrates visualization, control, and data management functions. It is widely used in industries such as manufacturing, oil & gas, and power generation, offering a high-resolution touchscreen interface for real-time monitoring and control.
Technical Specifications
The IC755CSS15CDA has the following specifications based on standard characteristics for this model:
| Item | Specification |
|---|---|
| Model/Part Number | IC755CSS15CDA |
| Manufacturer | General Electric (Emerson Automation) |
| Description | QuickPanel+ Operator Interface |
| Processor | Freescale i.MX535, 1 GHz ARM Cortex A8 |
| Memory | 1 GB DDR3 SDRAM, 512 MB SLC NAND Flash, 512 KB SRAM |
| Operating System | Microsoft Windows Embedded Compact 7 |
| Display | 15-inch TFT LCD, 1024 x 768 SVGA, multi-touch capacitive |
| Power Supply | 12-24 V DC, 30 W max |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Weight | 4.5 kg (10 lbs) |
Additional Details
The IC755CSS15CDA includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Combines HMI, control, and data historian capabilities |
| Mounting | Panel mount with gasket or VESA mount |
| Connectivity | 2 Ethernet (10/100BaseT RJ-45), 1 RS-232 (5-pin), 1 RS-485 (5-pin), 2 USB (Type A/B), SD/SDHC slot |
| Features | Multi-touch screen, multimedia support (audio out), LED indicators, no battery |
| Certifications | UL, CE, RoHS, IP65F, ATEX (with enclosure) |
