Product Description
Product Overview

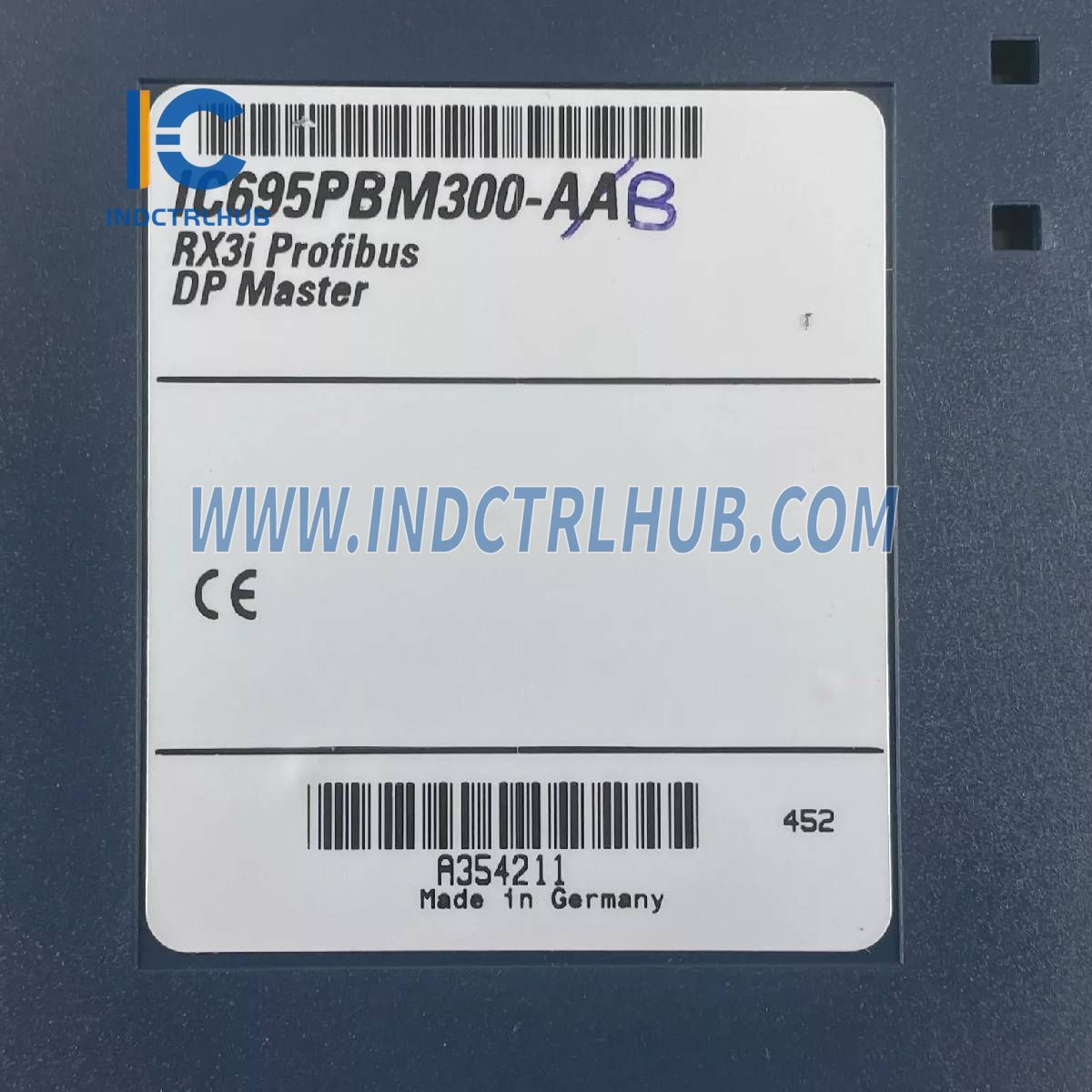

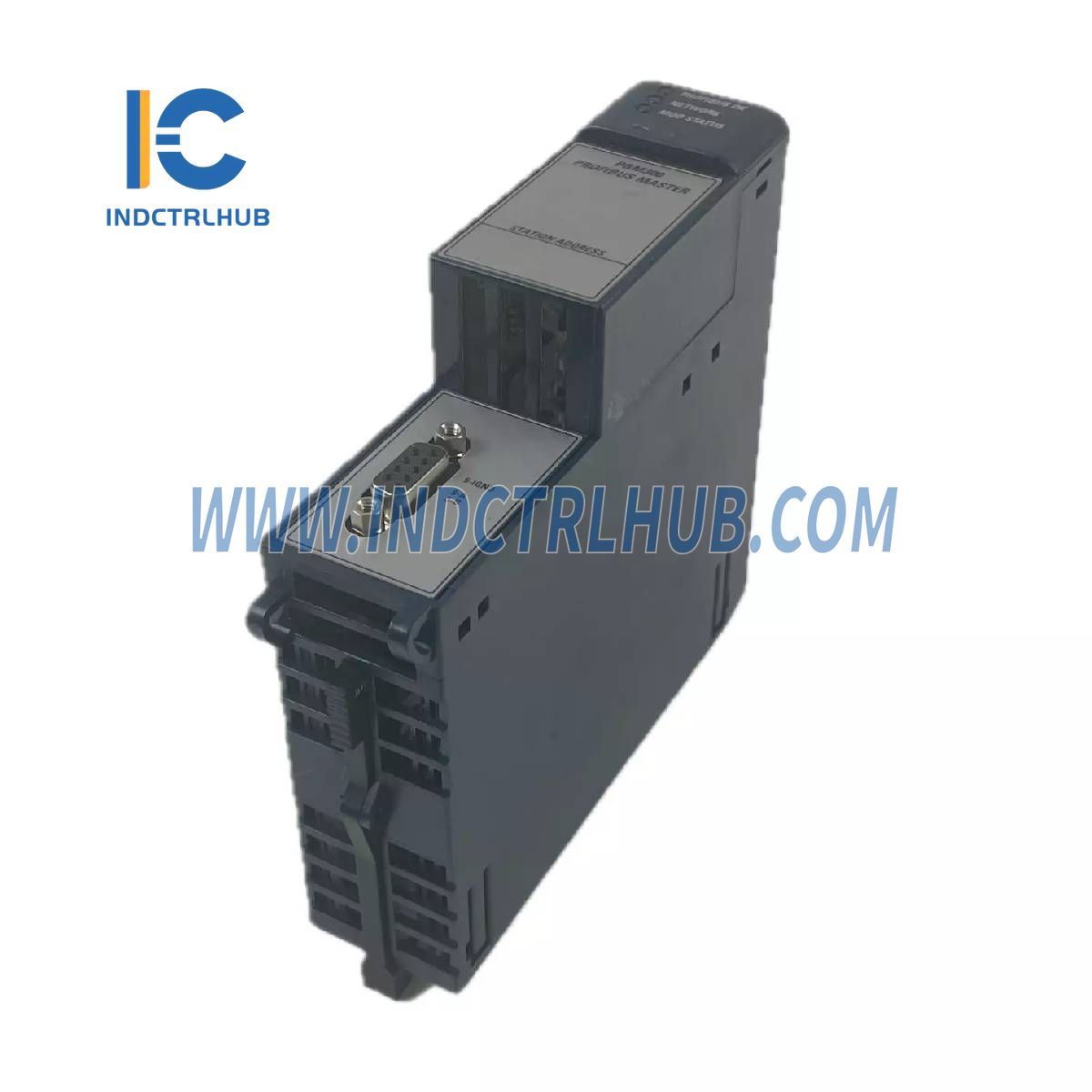

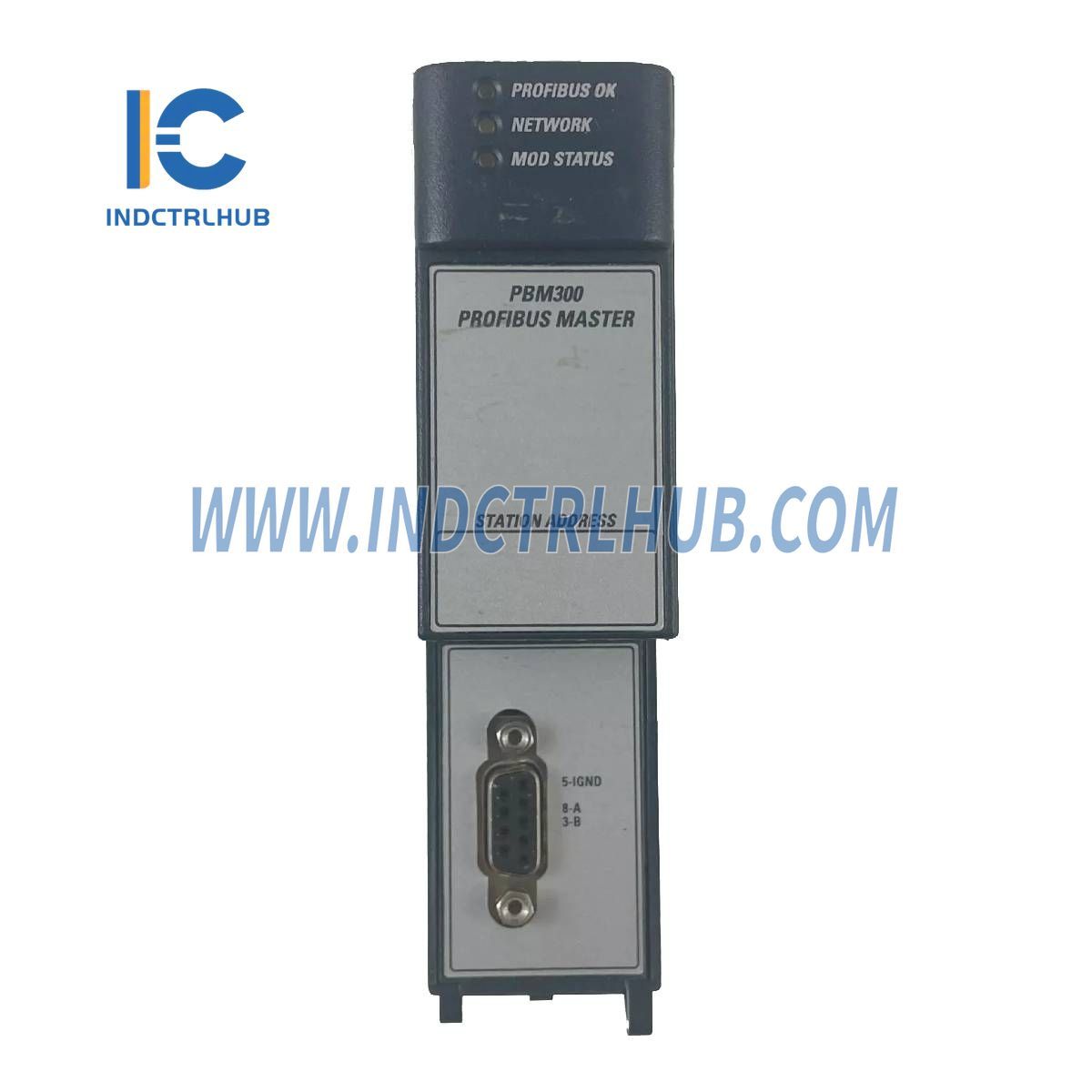

The General Electric IC695PBM300 is a PROFIBUS Master Module from the GE Fanuc RX3i PACSystems Series, designed to enable communication between an RX3i CPU and PROFIBUS-DP networks in industrial automation systems. Manufactured by GE, now under Emerson Automation Solutions following the 2019 acquisition of GE Intelligent Platforms, this module supports up to 125 PROFIBUS-DP slave devices, facilitating data exchange for control and monitoring tasks. It is suited for applications in manufacturing, power generation, and process control, offering robust features like sync and freeze modes, and compatibility with universal RX3i backplanes.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | General Electric (GE) / Emerson Automation Solutions |
| Series | RX3i PACSystems |
| Model/Part Number | IC695PBM300 |
| Description | PROFIBUS Master Module |
| Communication Port | 1 RS-485 PROFIBUS Master Port (9-pin D-sub) |
| Supported Slaves | Up to 125 PROFIBUS-DP Slave Devices |
| Data Rates | 9.6 kbps, 19.2 kbps, 93.75 kbps, 187.5 kbps, 500 kbps, 1.5 Mbps, 3 Mbps, 6 Mbps, 12 Mbps |
| Data Capacity | 244 Bytes Input, 244 Bytes Output per Slave; 3584 Bytes Total Input, 3584 Bytes Total Output |
| Power Consumption | 440 mA at 3.3 V DC |
| Operating Temperature | 0 °C to +60 °C (32 °F to +140 °F) |
| Weight | 0.28 kg (0.62 lb) |
