Product Description
Product Overview

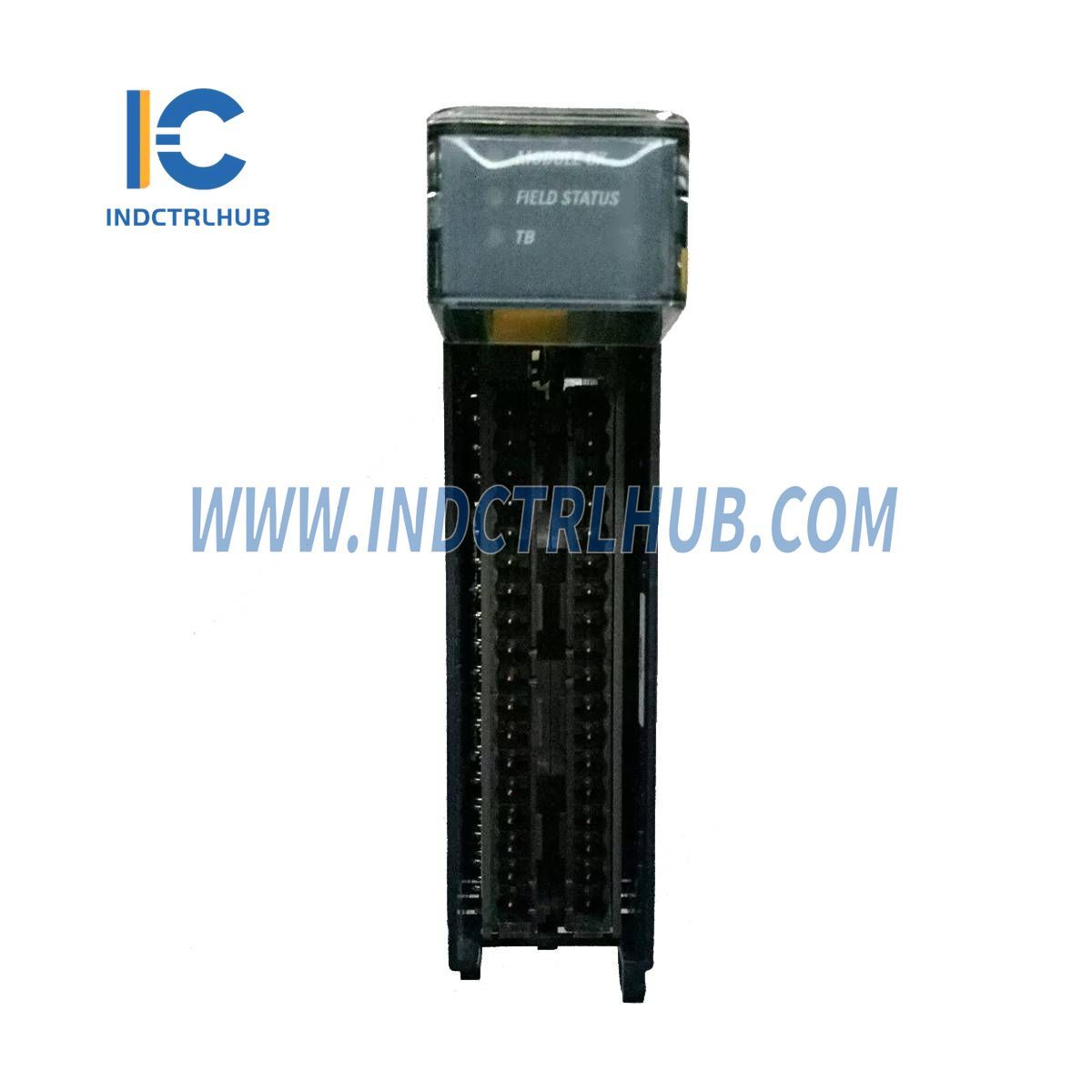

The General Electric IC695ALG626 is a Non-Isolated Differential Analog Input Module with HART Communications, part of the GE Fanuc RX3i PACSystems Series, designed for precise analog signal processing in industrial automation. Manufactured by GE, now under Emerson Automation Solutions following the 2019 acquisition of GE Intelligent Platforms, this module features 16 single-ended or 8 differential input channels, supporting a variety of voltage and current ranges, including HART 5.0 protocol for enhanced device communication. It is suited for applications in manufacturing, power generation, and process control, offering high-resolution data acquisition and seamless integration with RX3i universal backplanes.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | General Electric (GE) / Emerson Automation Solutions |
| Series | RX3i PACSystems |
| Model/Part Number | IC695ALG626 |
| Description | Non-Isolated Differential Analog Input Module with HART Communications |
| Input Channels | 16 Single-Ended or 8 Differential |
| Voltage Range | ±10 V, 0-10 V, ±5 V, 0-5 V, 1-5 V |
| Current Range | 0-20 mA, 4-20 mA, ±20 mA |
| Resolution | 24-bit ADC |
| HART Modems | 4 Internal |
| Power Consumption | 600 mA at 3.3 V DC, 450 mA at 5 V DC |
| Operating Temperature | 0 °C to +60 °C (32 °F to +140 °F) |
| Weight | 0.3 kg (0.66 lb) |
