Product Description
Product Overview

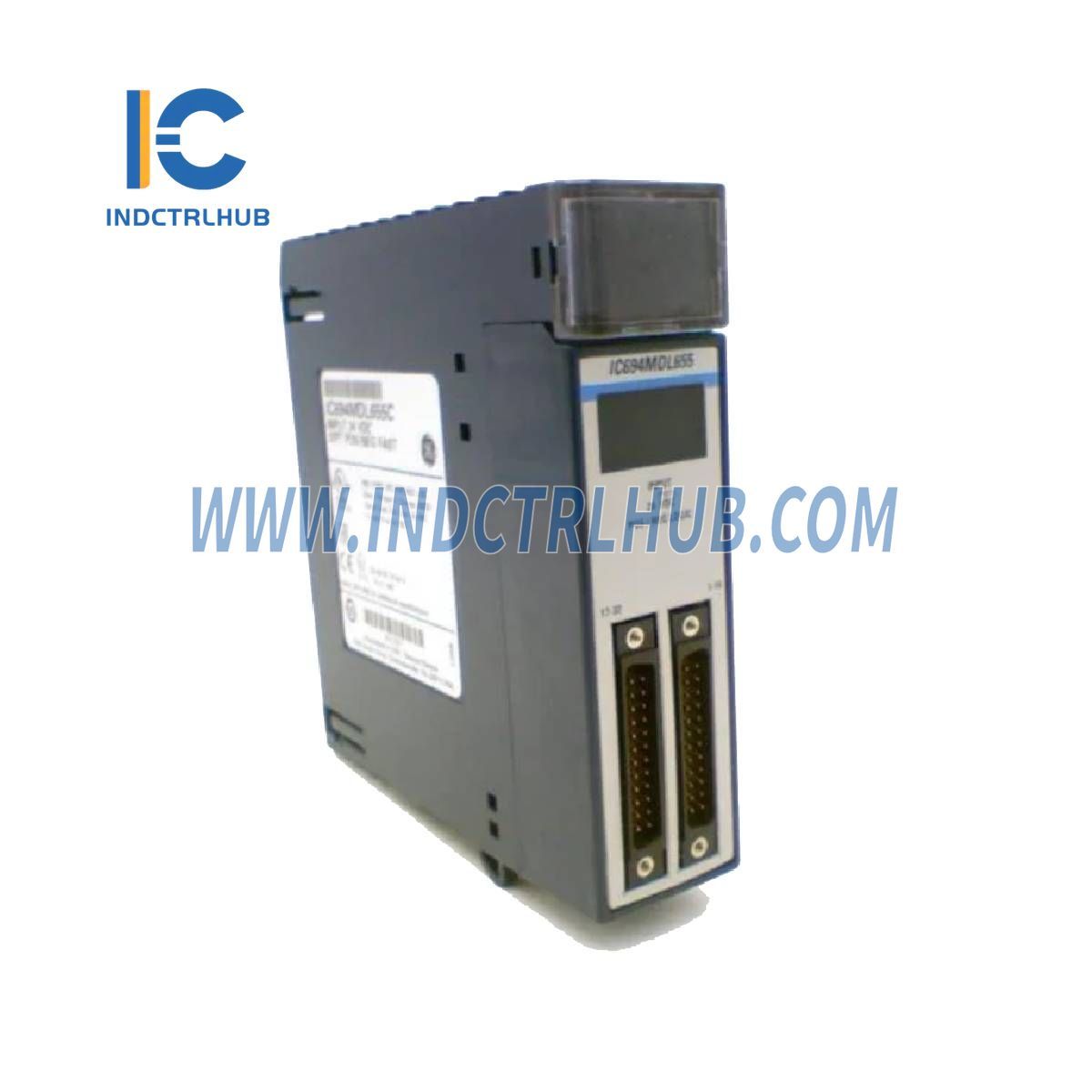

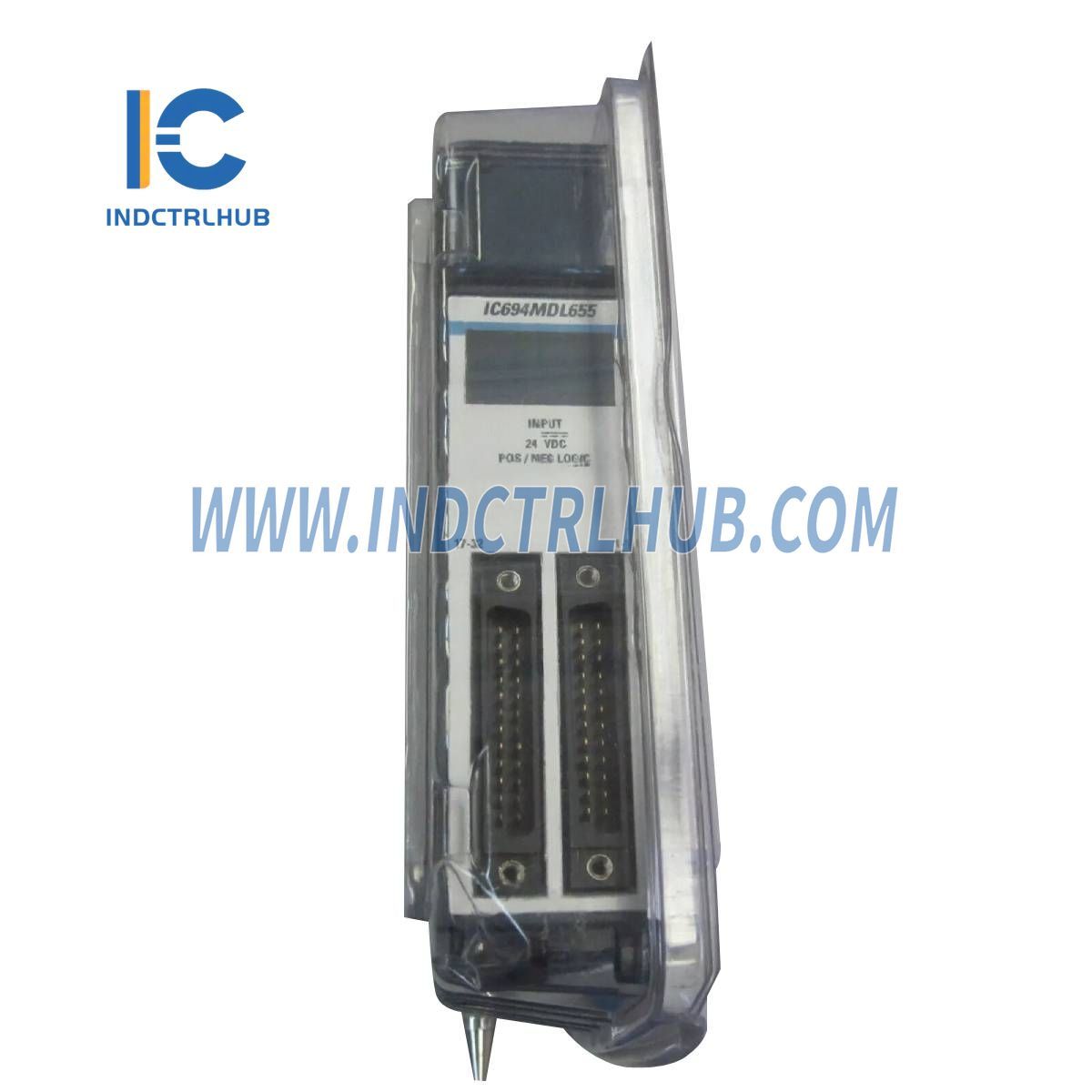

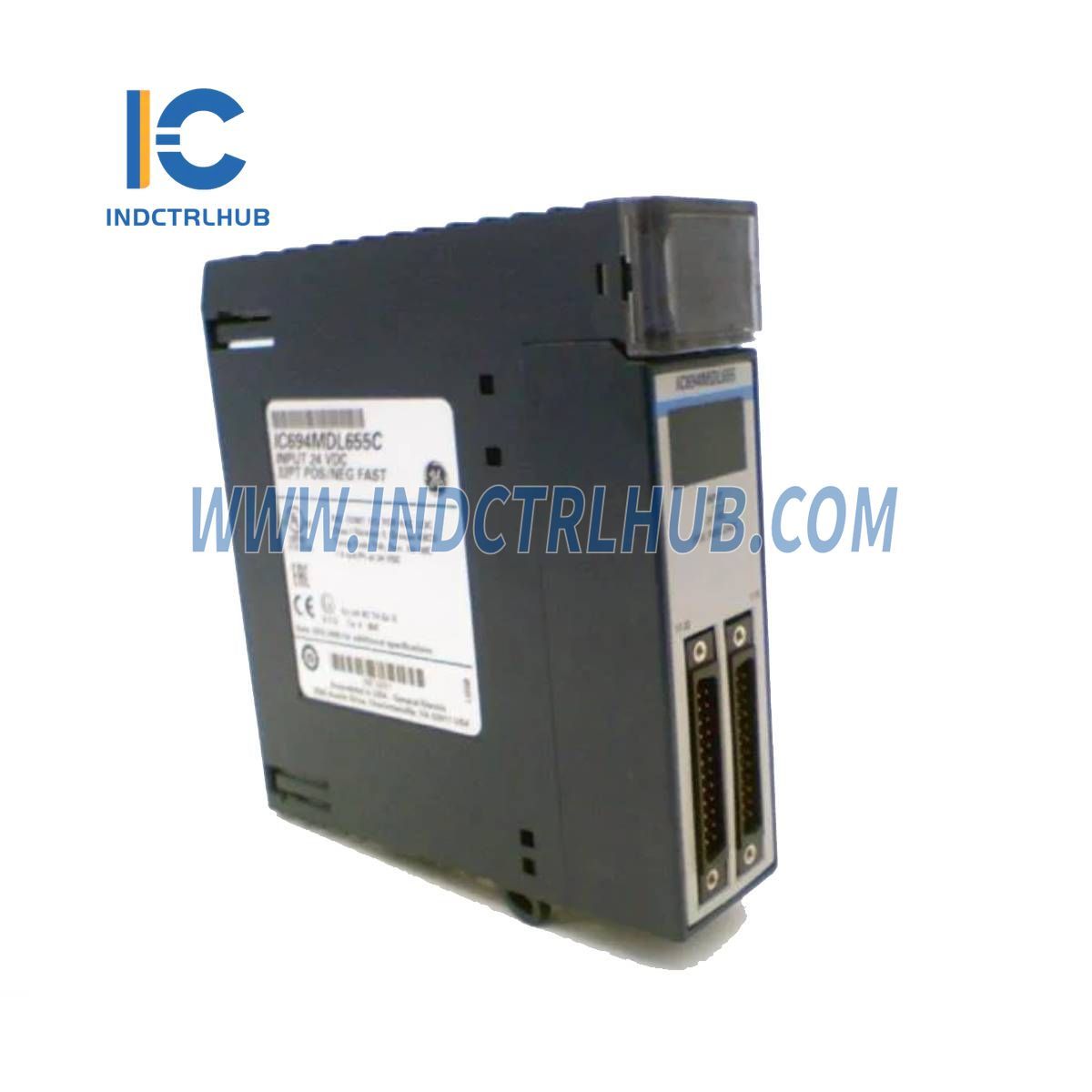

The General Electric IC694MDL655 is a Discrete Input Module from the GE Fanuc RX3i PACSystems Series, designed to interface with a variety of binary input devices such as pushbuttons, limit switches, and electronic proximity sensors in industrial automation systems. Manufactured by GE, now under Emerson Automation Solutions following the 2019 acquisition of GE Intelligent Platforms, this module provides 32 input points with positive or negative logic capabilities, operating at up to 30 V DC. It is suited for applications in manufacturing, power generation, and process control, offering high-density input integration and status monitoring via LED indicators.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | General Electric (GE) / Emerson Automation Solutions |
| Series | RX3i PACSystems |
| Model/Part Number | IC694MDL655 |
| Description | Discrete Input Module |
| Input Points | 32 (4 isolated groups of 8) |
| Input Voltage Range | 0-30 V DC |
| Nominal Input Voltage | 24 V DC |
| Input Current | 7 mA at 24 V DC |
| On-State Voltage | 11.5-30 V DC |
| Response Time | 2 ms (on), 2 ms (off) |
| Power Consumption | 195 mA at 5 V DC, 224 mA at 24 V DC |
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Weight | 0.3 kg (0.66 lb) |
