Product Description
Product Overview

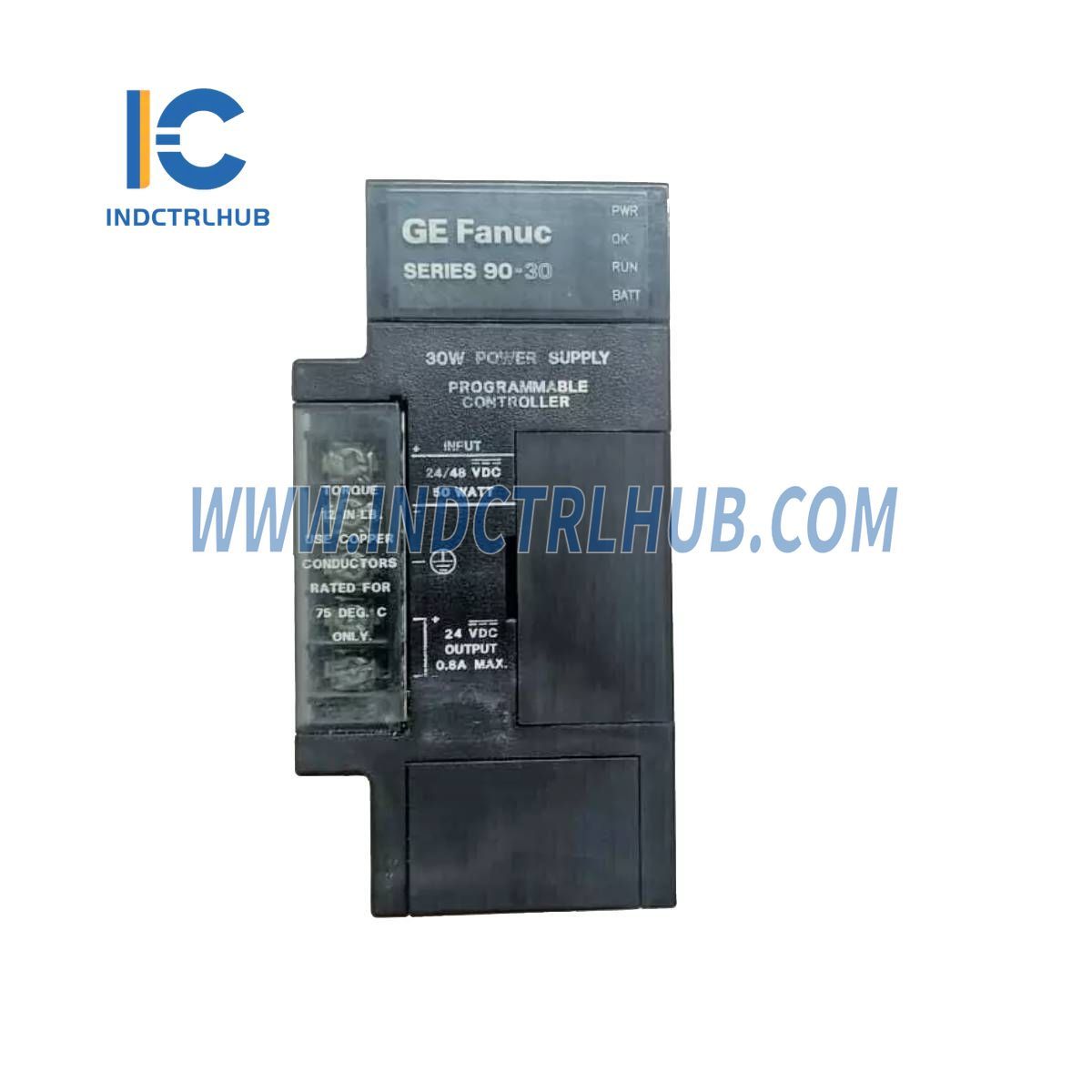

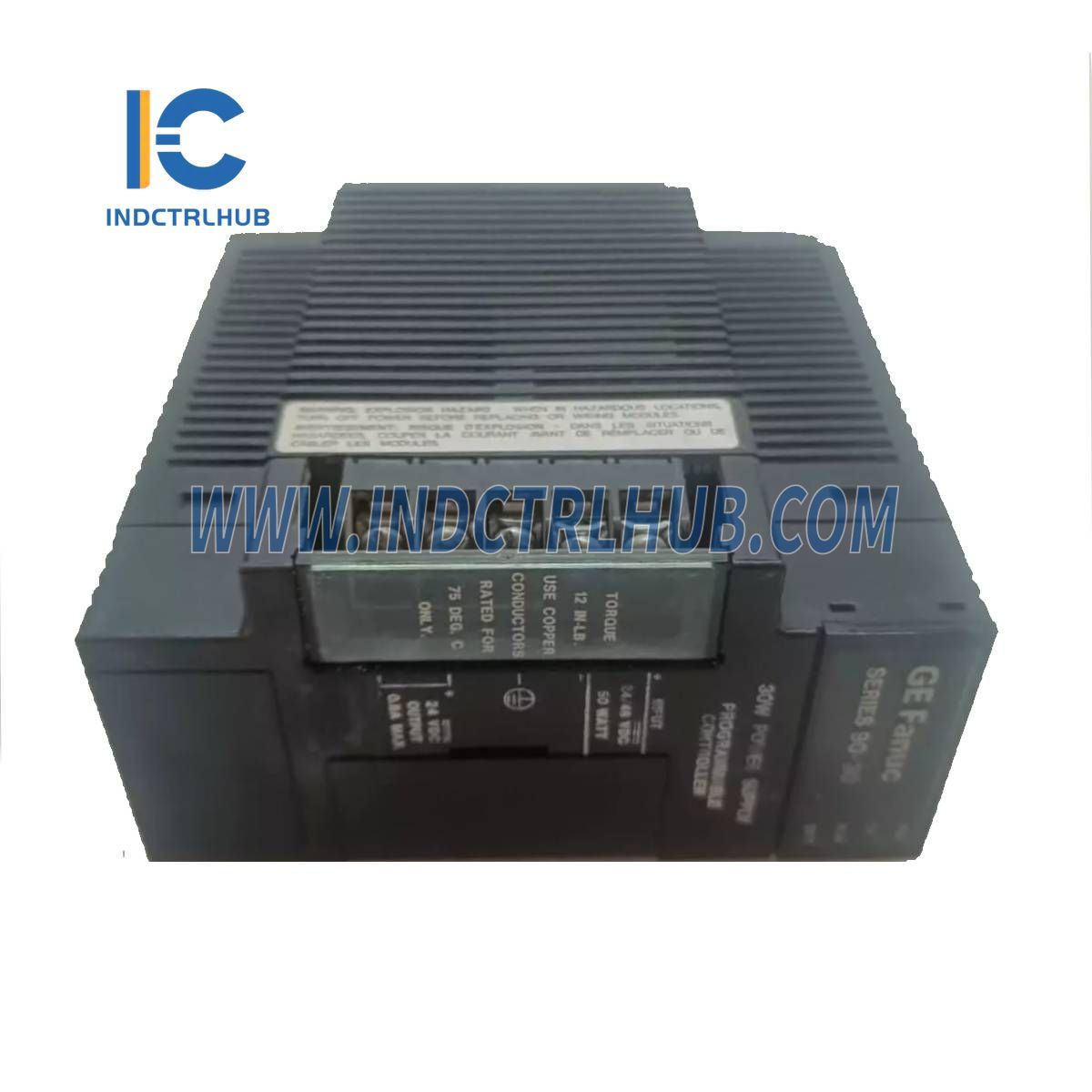

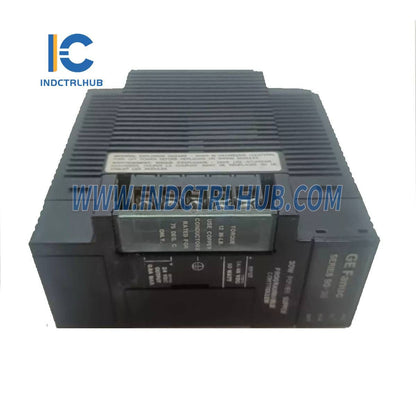

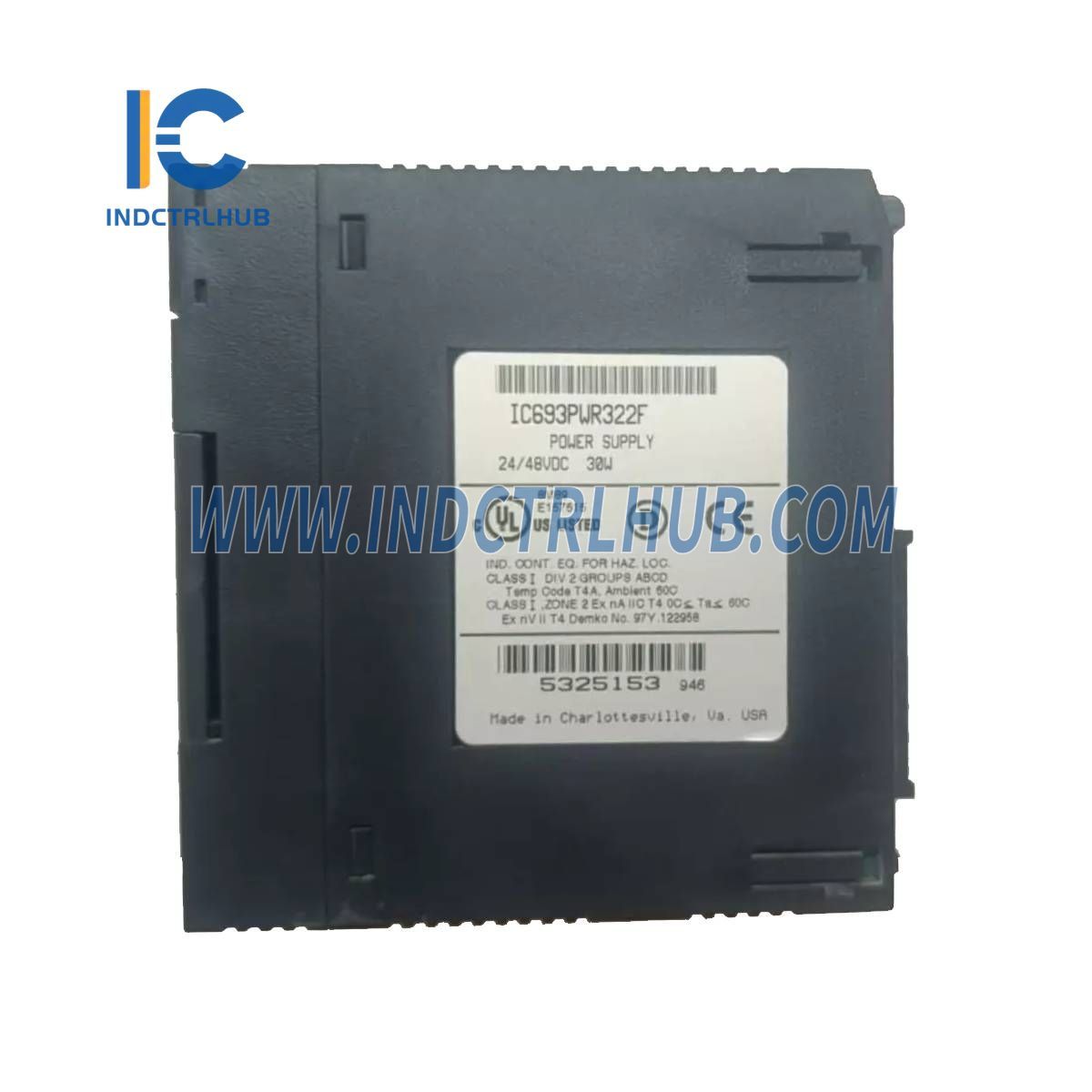

The General Electric IC693PWR322 is a Standard Power Supply designed for the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) system. Manufactured by GE, now under Emerson Automation, this 30-watt module operates on a nominal 24 or 48 V DC input, delivering three regulated outputs to power the PLC backplane, relay circuits, and input modules. It is engineered for industrial automation applications in industries such as manufacturing, power generation, and process control, offering reliable performance and easy integration into Series 90-30 baseplates.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | General Electric (GE) / Emerson Automation |
| Series | GE Fanuc Series 90-30 |
| Model/Part Number | IC693PWR322 |
| Description | Power Supply |
| Nominal Input Voltage | 24 or 48 V DC |
| Input Voltage Range | Start: 21 to 56 V DC; Run: 18 to 56 V DC |
| Input Power | 50 W maximum at full load |
| Inrush Current | 4 A peak, 100 ms maximum |
| Output Power | 30 W total maximum |
| Output Voltages | +5 V DC: 15 W max (5.0-5.2 V DC, 5.1 V nominal); +24 V DC Relay: 15 W max (24-28 V DC); +24 V DC Isolated: 20 W max (21.5-28 V DC) |
| Holdup Time | 14 ms minimum |
| Mounting Location | Leftmost slot on Series 90-30 baseplate |
