Product Overview

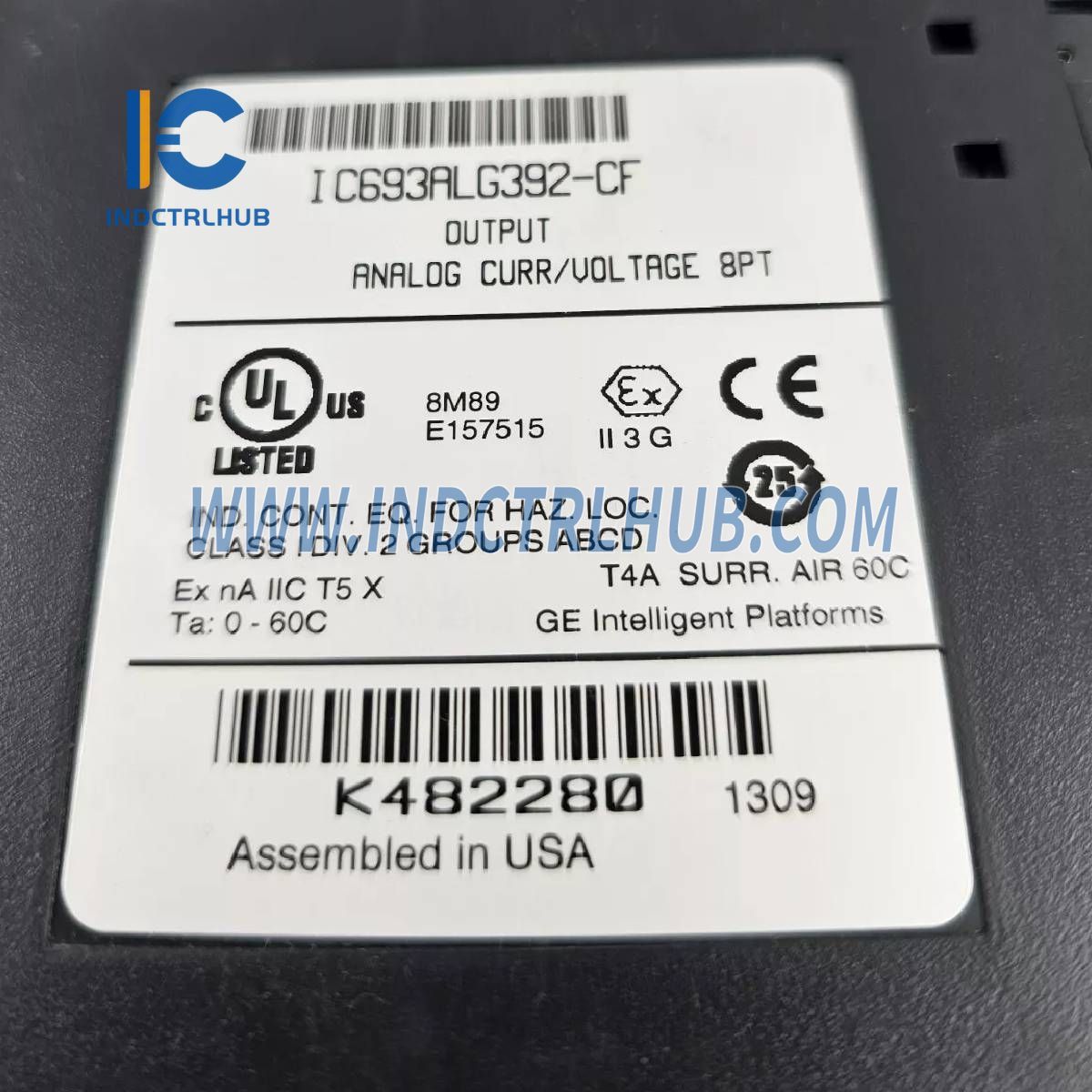

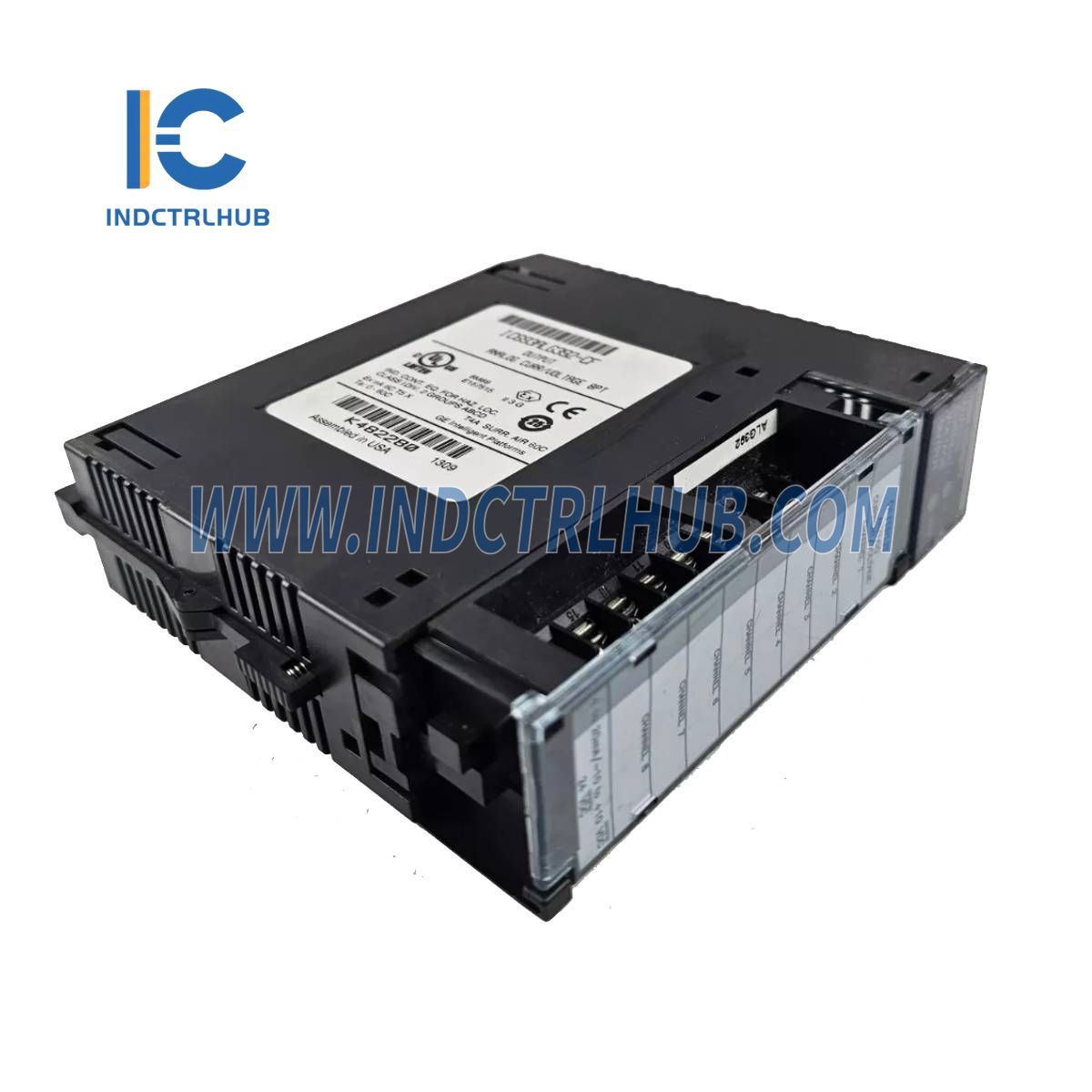

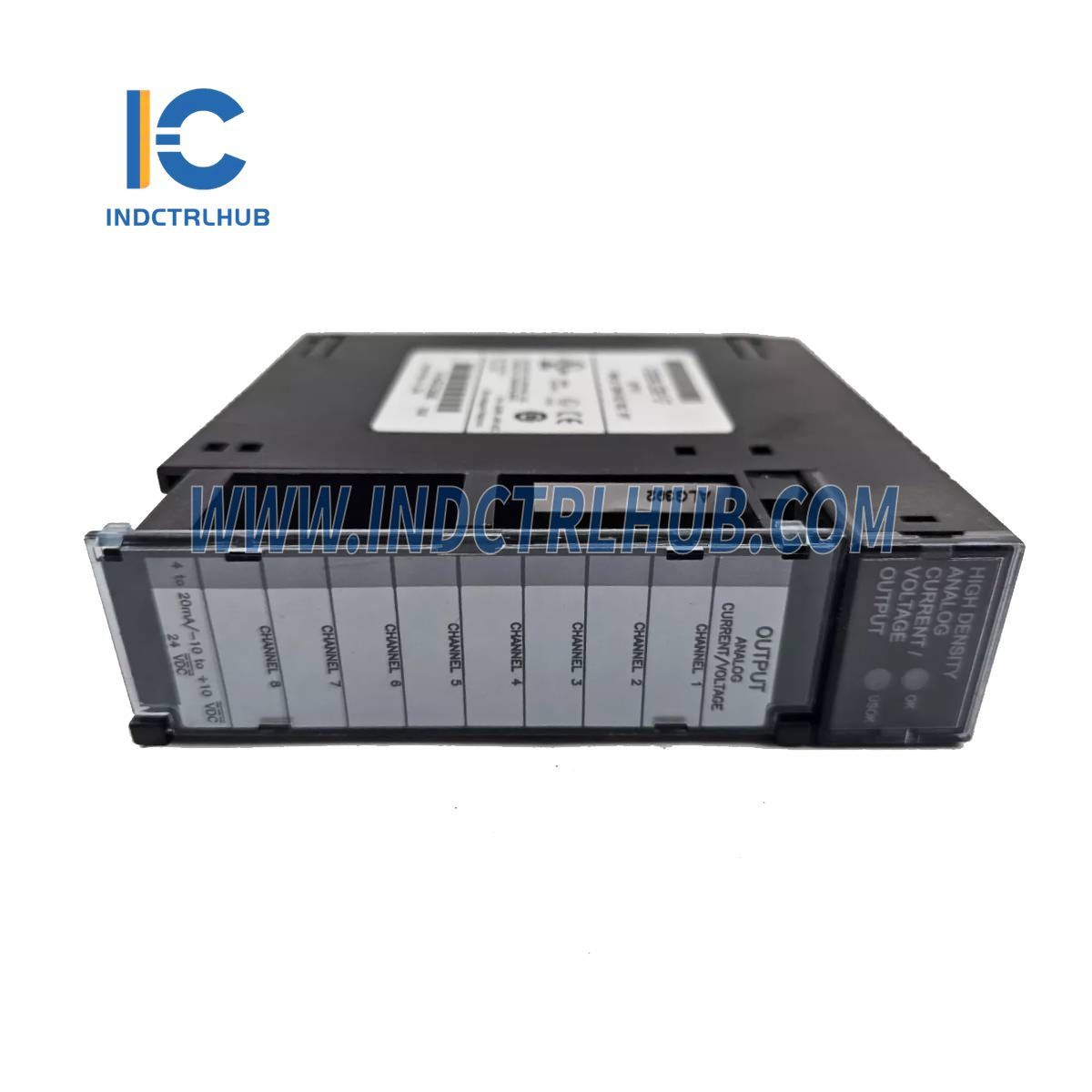

The General Electric IC693ALG392 is an 8-Channel Analog Current/Voltage Output Module from the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) platform, designed to provide high-precision analog outputs for industrial automation systems. Manufactured by GE, now under Emerson Automation Solutions following the 2019 acquisition of GE Intelligent Platforms, this module features eight single-ended output channels, configurable for voltage (0 to +10 V unipolar or -10 to +10 V bipolar) or current (0 to 20 mA or 4 to 20 mA) signals. It is suited for applications in manufacturing, power generation, and process control, such as modulating control valves, variable frequency drives, and data retransmission to recorders, offering 15 or 16-bit resolution depending on the selected range.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | General Electric (GE) / Emerson Automation Solutions |
| Series | Series 90-30 |
| Model/Part Number | IC693ALG392 |
| Description | 8-Channel Analog Current/Voltage Output Module |
| Output Channels | 8 (Single-ended) |
| Voltage Output Ranges | 0 to +10 V (unipolar), -10 to +10 V (bipolar) |
| Current Output Ranges | 0 to 20 mA, 4 to 20 mA |
| Resolution | 15 bits (current/unipolar voltage), 16 bits (bipolar voltage) |
| Update Rate | 8 ms (all channels) |
| Power Consumption | 110 mA at 5 V DC, 315 mA at 24 V DC (from backplane) |
| Operating Temperature | 0 °C to +60 °C (32 °F to +140 °F) |
| Weight | 0.3 kg (0.66 lb) |
