Product Description
🔹 Product Overview
|
Category |
Details |
|---|---|
|
Manufacturer |
General Electric (GE) |
|
Model/Part Number |
DS200TCCAG1BAA |
|
Description |

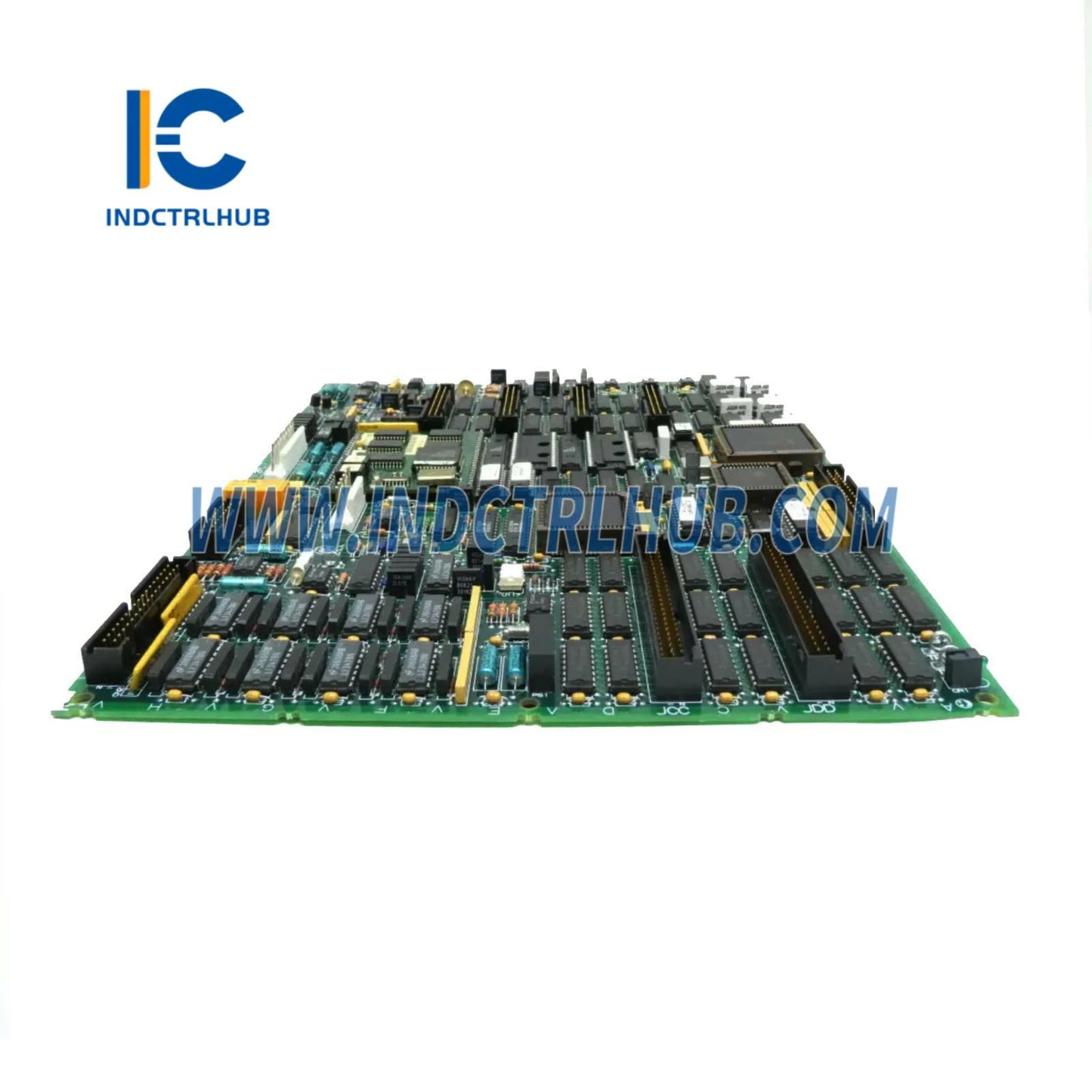

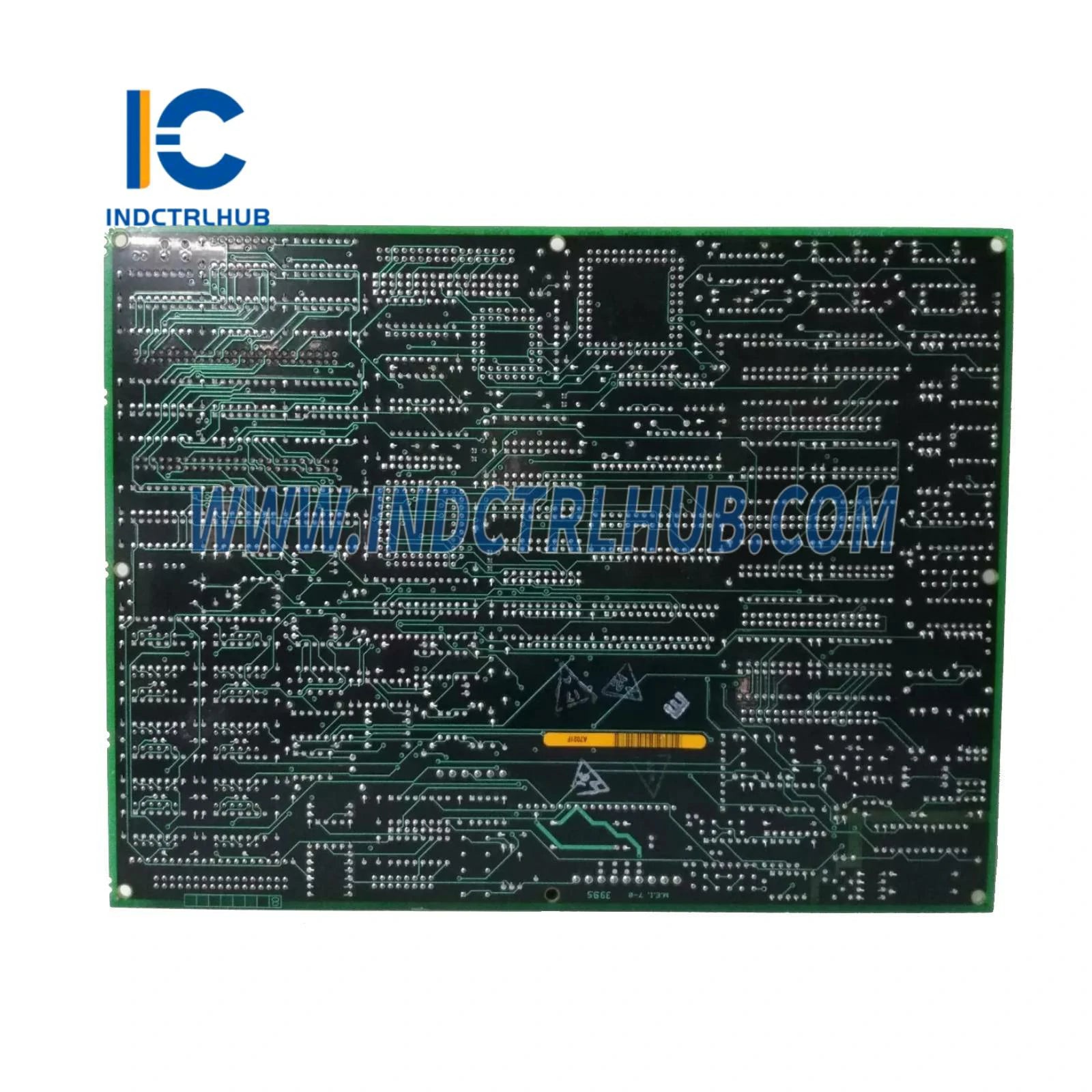

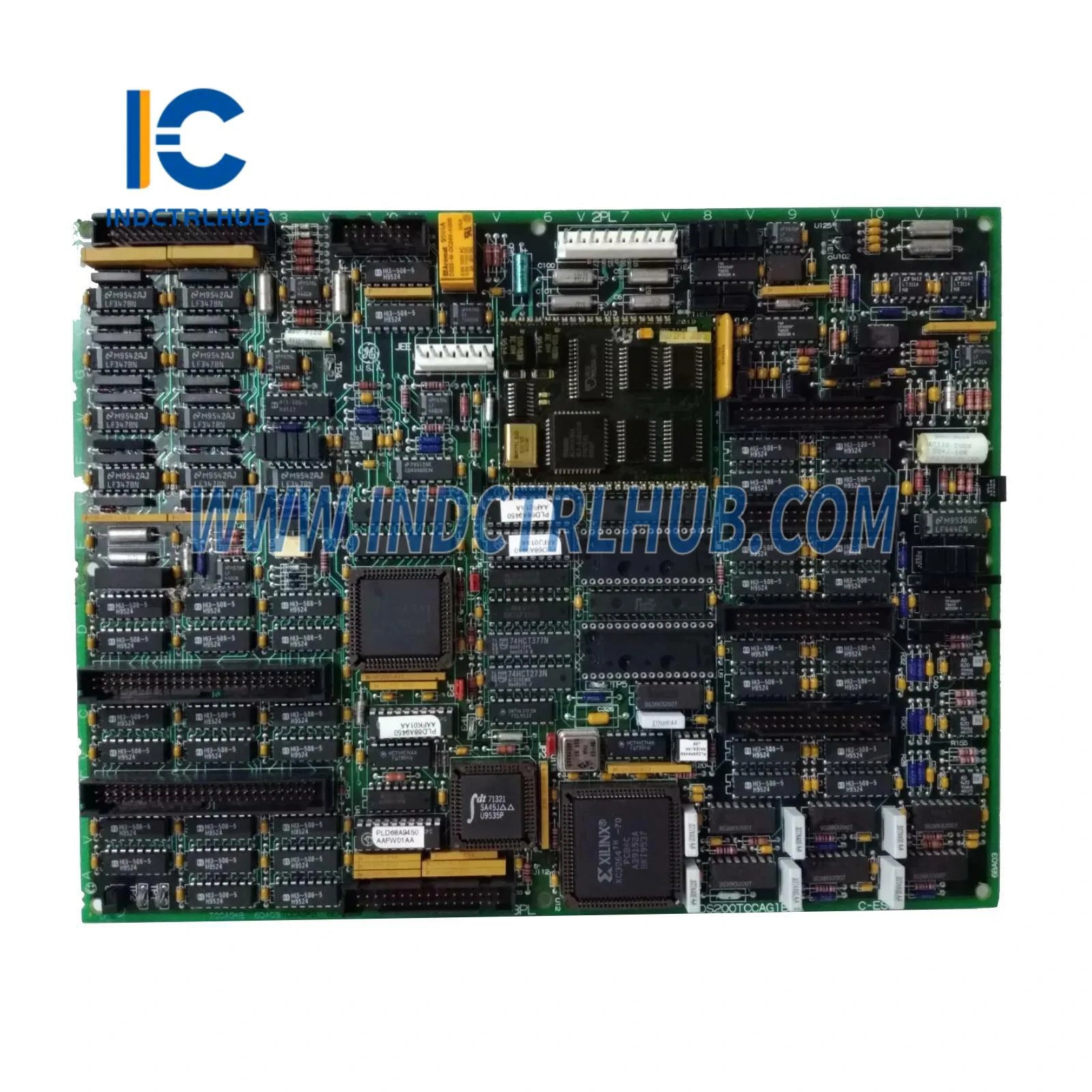

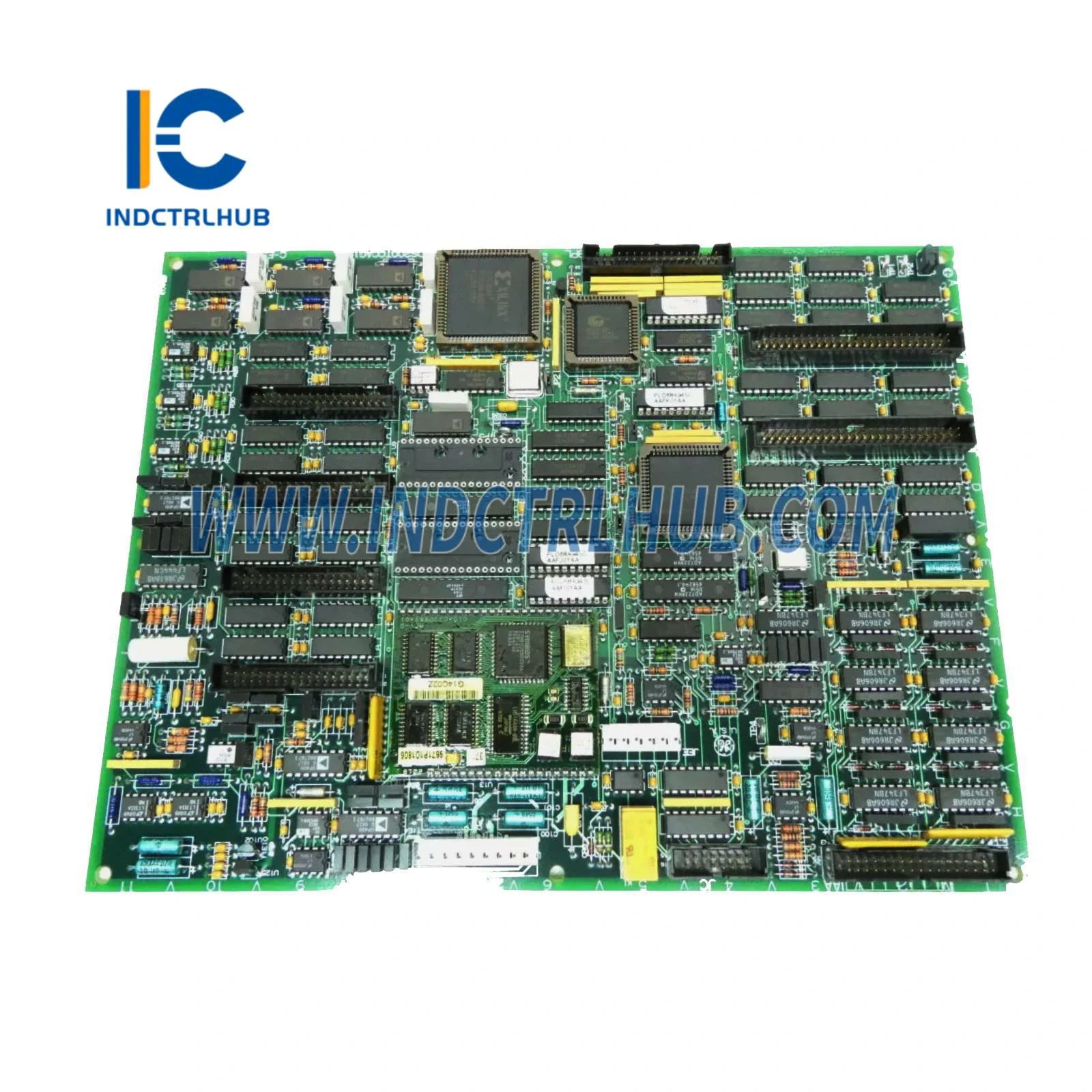

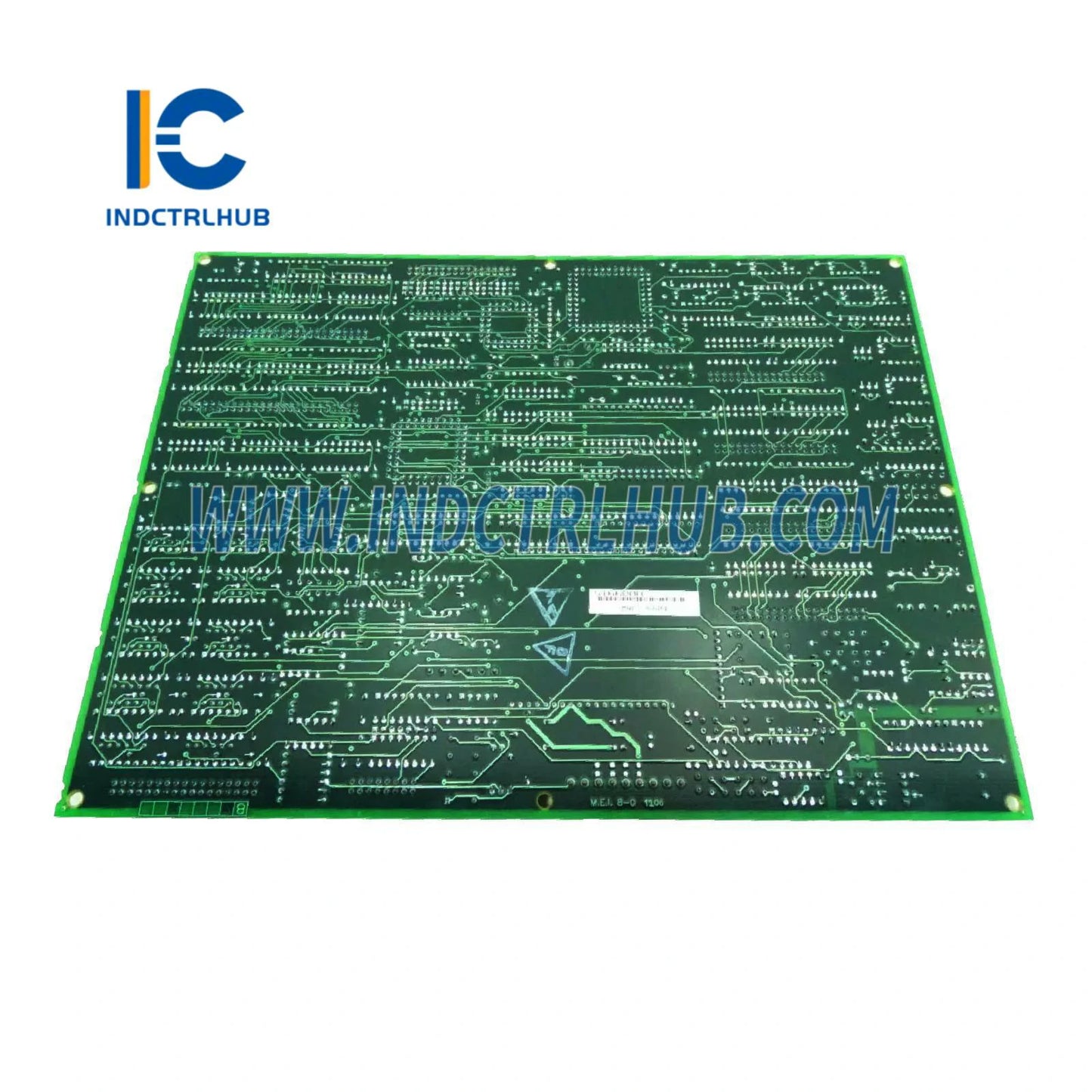

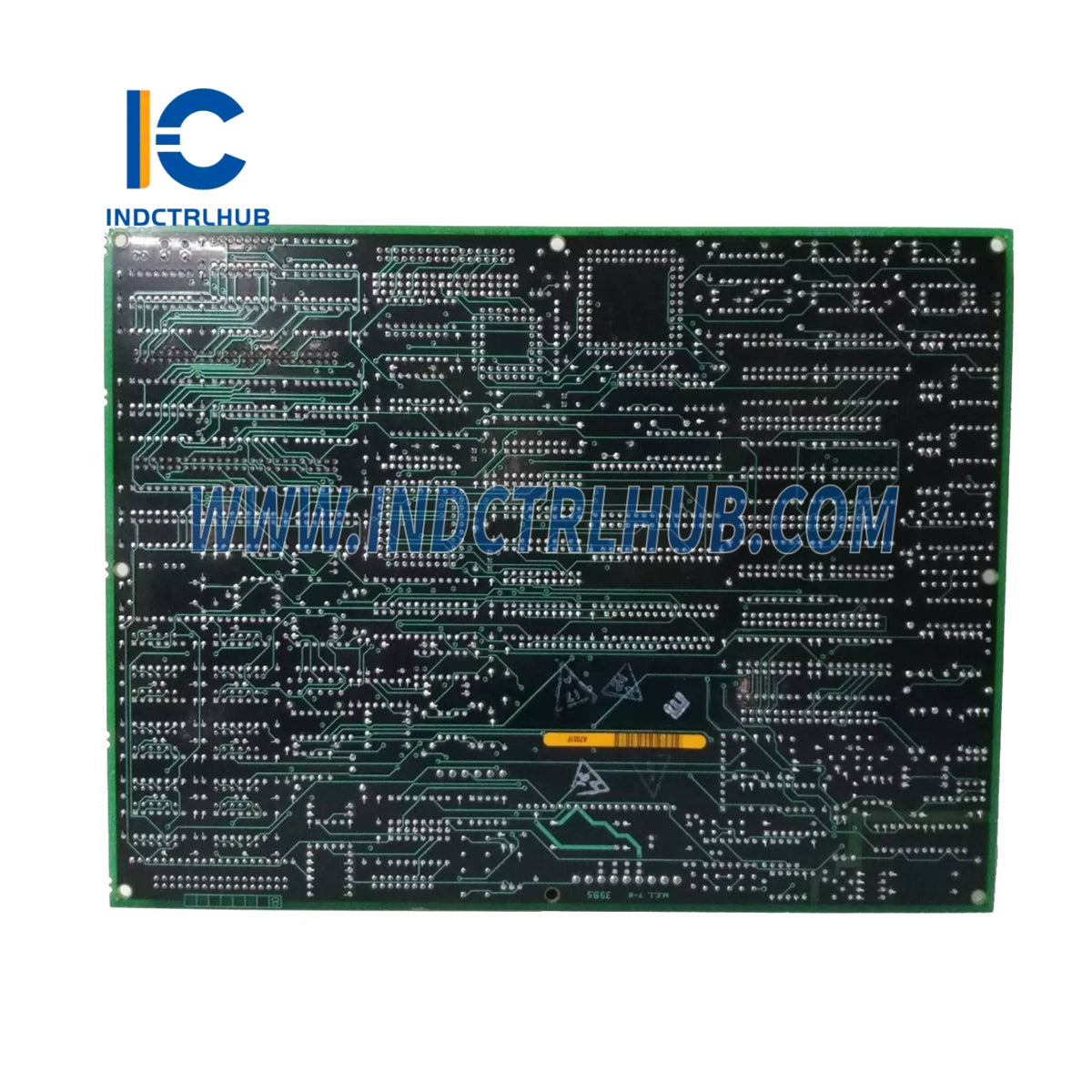

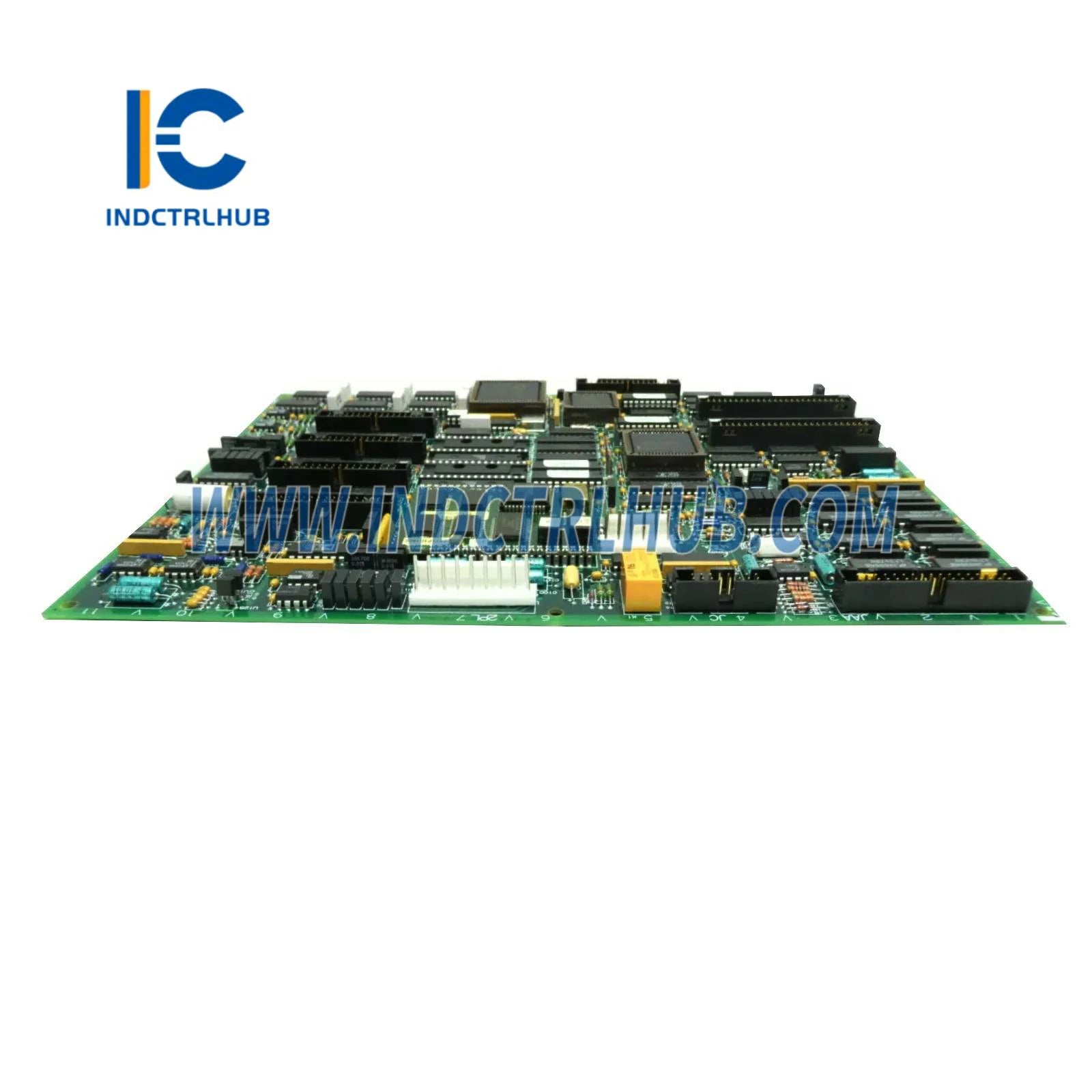

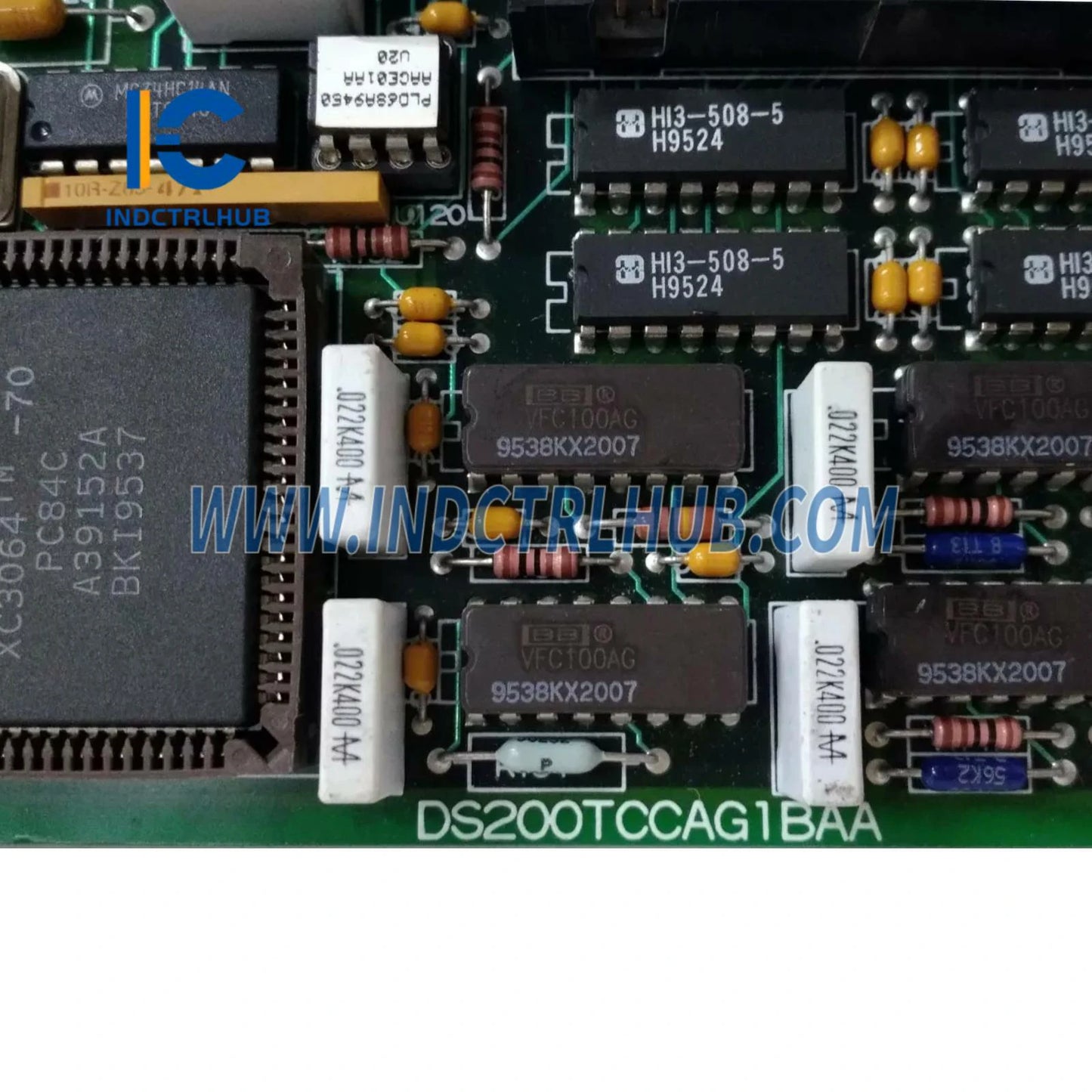

TC2000 Analog I/O Board for GE Mark V Turbine Control Systems, providing analog signal processing |
|
Key Features |
PROM modules, 1 LED indicator, 2 × 50-pin connectors, A/D and D/A conversion, Mark V compatibility |
🔹 Technical Specifications
|
Specification |
Details |
|---|---|
|
Model |
DS200TCCAG1BAA |
|
Product Type |
Analog I/O Board |
|
Series |
Mark V |
|
Functional Acronym |
TCCA |
|
Input Voltage |
24 VDC (typical for Mark V power supply) |
|
Connectors |
Two 50-pin ribbon connectors for field and system integration |
|
Indicators |
One onboard LED for board health/status |
|
PCB Coating |
Normal (non-conformal) coating |
|
Operating Temperature |
0°C to 60°C (32°F to 140°F) |
|
Weight |
Approx. 0.5 kg (1.1 lbs) |
🔹 External Connection Options
|
Connection Type |
Details |
|---|---|
|
Supported Connections |
Dual 50-pin ribbon connectors for analog input/output device interfacing |
🔹 Functional Features
|
Feature |
Details |
|---|---|
|
Signal Processing |
Converts analog input signals to digital format and vice versa |
|
Programmability |
Multiple PROM chips for custom analog signal profiles and settings |
|
Diagnostics |
LED status indicator provides operational feedback for maintenance/troubleshooting |
|
Compatibility |
Fully compatible with GE Mark V Turbine Control Systems |
🔹 Model and Configuration
|
Category |
Details |
|---|---|
|
Base Model |
DS200TCCAG1BAA |
|
Configuration |
Functional Rev 1: B, Functional Rev 2: A, Artwork Rev: A |
🔹 Applications and Benefits
|
Category |
Details |
|---|---|
|
Applications |
Power generation, oil & gas, industrial turbine control requiring analog I/O |
|
Benefits |
Reliable signal processing, improved control accuracy, robust field integration |
