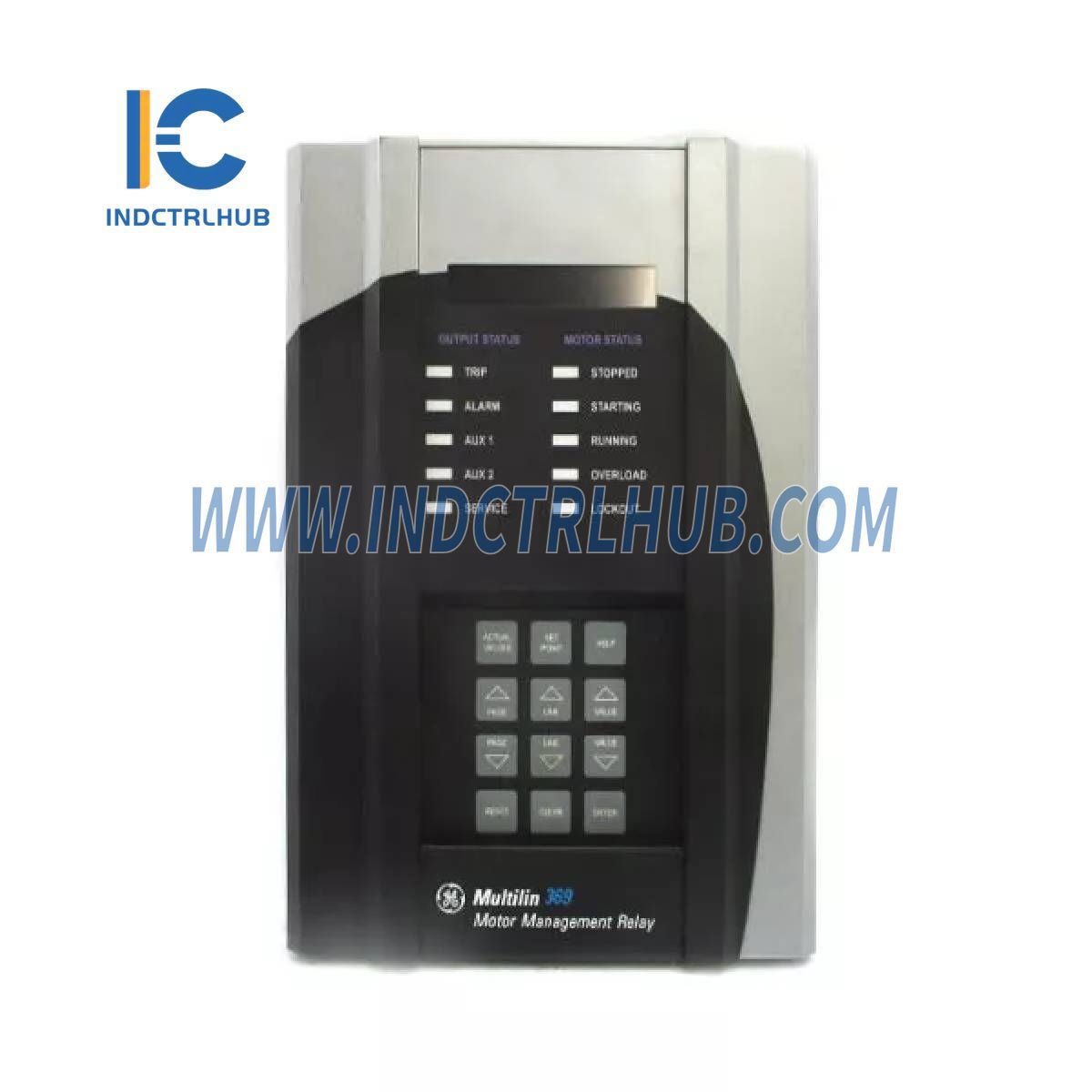

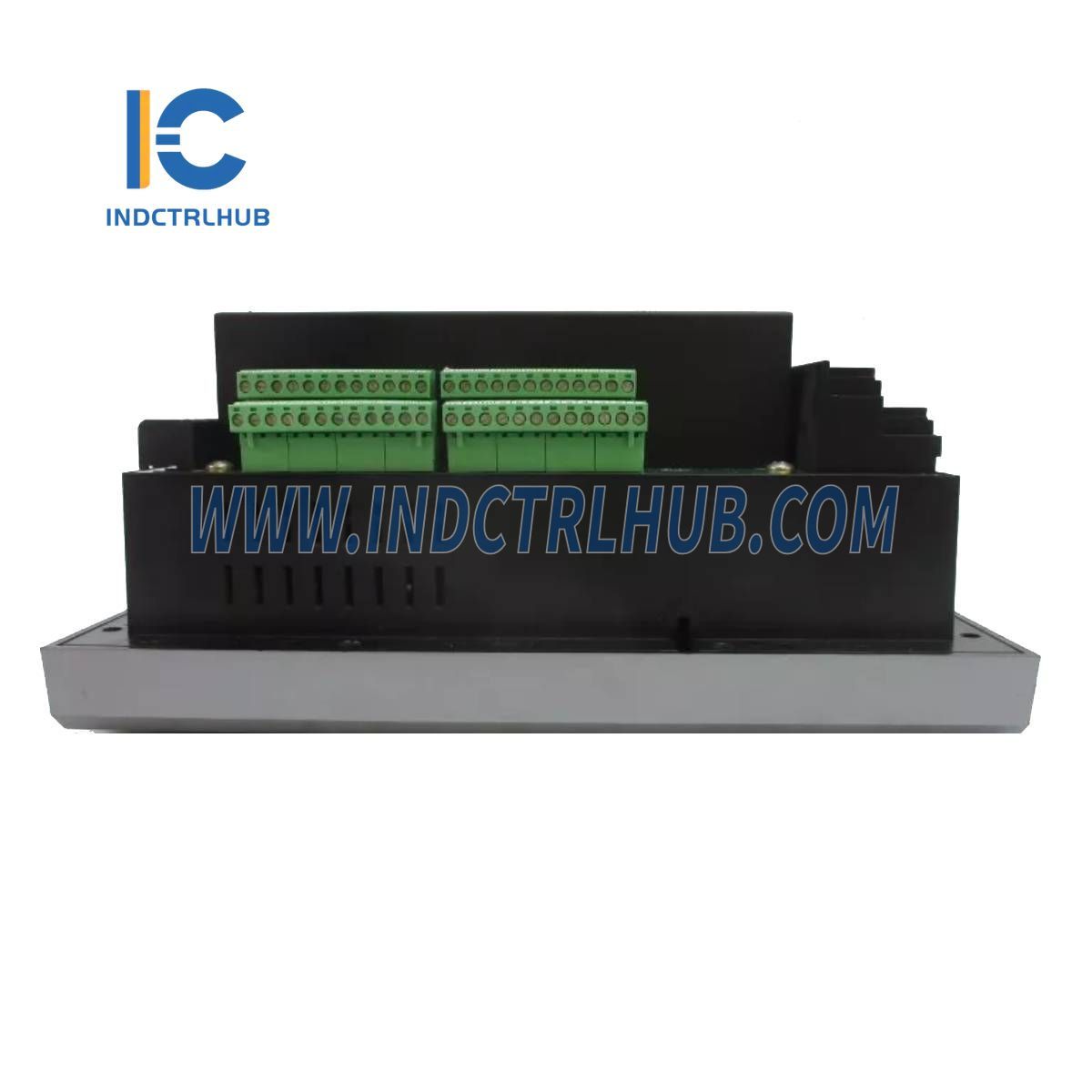

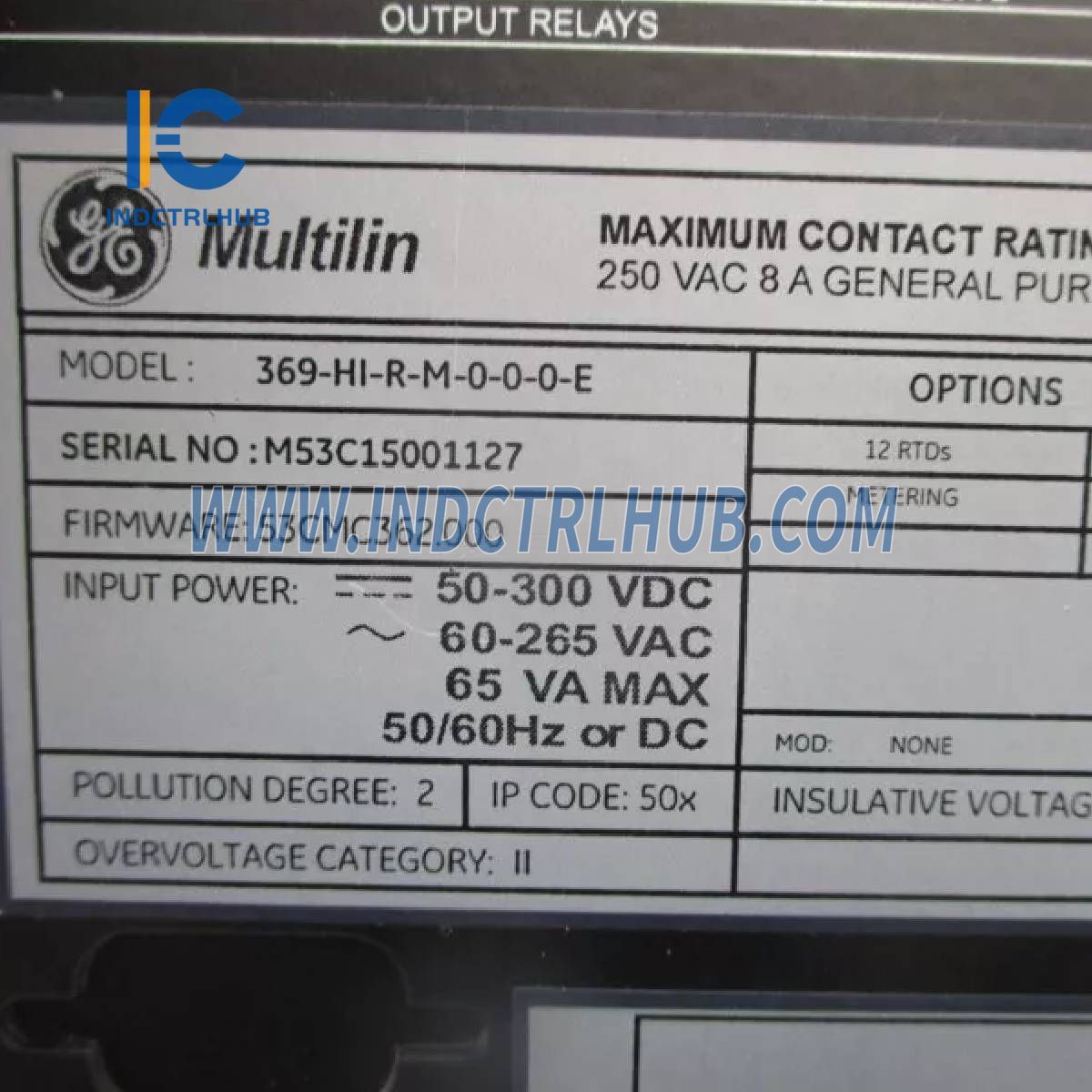

GE 369-HI-R-M-0-0-0-E Motor Management Relay

GE 369-HI-R-M-0-0-0-E Motor Management Relay

  • Manufacturer: General Electric

  • Product No.: 369-HI-R-M-0-0-0-E

  • Condition:1000 in stock

  • Product Type: Motor Management Relay

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 4500g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Overview

The General Electric 369-HI-R-M-0-0-0-E is a Motor Management Relay from the GE Multilin 369 Series, designed to protect and monitor three-phase motors and their associated components in industrial automation systems. Manufactured by GE, now under Emerson Automation Solutions following the 2019 acquisition of GE Intelligent Platforms, this relay features a high control power range (50-300 V DC / 60-265 V AC), 12 built-in RTD inputs, and an optional metering package with enhanced diagnostics and faceplate. It is suited for applications in manufacturing, power generation, and process control, offering adaptive technology to "learn" motor-specific needs, pre-trip alarms, and comprehensive event recording.

Technical Information

Item Specifications
Manufacturer General Electric (GE) / Emerson Automation Solutions
Series Multilin 369
Model/Part Number 369-HI-R-M-0-0-0-E
Description Motor Management Relay
Control Power 50-300 V DC, 60-265 V AC, 50/60 Hz
RTD Inputs 12 (Built-in, 100 Ω Platinum, 100 Ω Nickel, 120 Ω Nickel, or 10 Ω Copper)
Analog Outputs 1 (0-1 mA, 0-20 mA, or 4-20 mA, configurable)
Power Consumption 10 VA nominal, 20 VA maximum
Operating Temperature -40 °C to +60 °C (-40 °F to +140 °F)
Weight 4.5 kg (10 lb)



View full details

Product Description

Product Overview

The General Electric 369-HI-R-M-0-0-0-E is a Motor Management Relay from the GE Multilin 369 Series, designed to protect and monitor three-phase motors and their associated components in industrial automation systems. Manufactured by GE, now under Emerson Automation Solutions following the 2019 acquisition of GE Intelligent Platforms, this relay features a high control power range (50-300 V DC / 60-265 V AC), 12 built-in RTD inputs, and an optional metering package with enhanced diagnostics and faceplate. It is suited for applications in manufacturing, power generation, and process control, offering adaptive technology to "learn" motor-specific needs, pre-trip alarms, and comprehensive event recording.

Technical Information

Item Specifications
Manufacturer General Electric (GE) / Emerson Automation Solutions
Series Multilin 369
Model/Part Number 369-HI-R-M-0-0-0-E
Description Motor Management Relay
Control Power 50-300 V DC, 60-265 V AC, 50/60 Hz
RTD Inputs 12 (Built-in, 100 Ω Platinum, 100 Ω Nickel, 120 Ω Nickel, or 10 Ω Copper)
Analog Outputs 1 (0-1 mA, 0-20 mA, or 4-20 mA, configurable)
Power Consumption 10 VA nominal, 20 VA maximum
Operating Temperature -40 °C to +60 °C (-40 °F to +140 °F)
Weight 4.5 kg (10 lb)
