Product Description
Product Overview

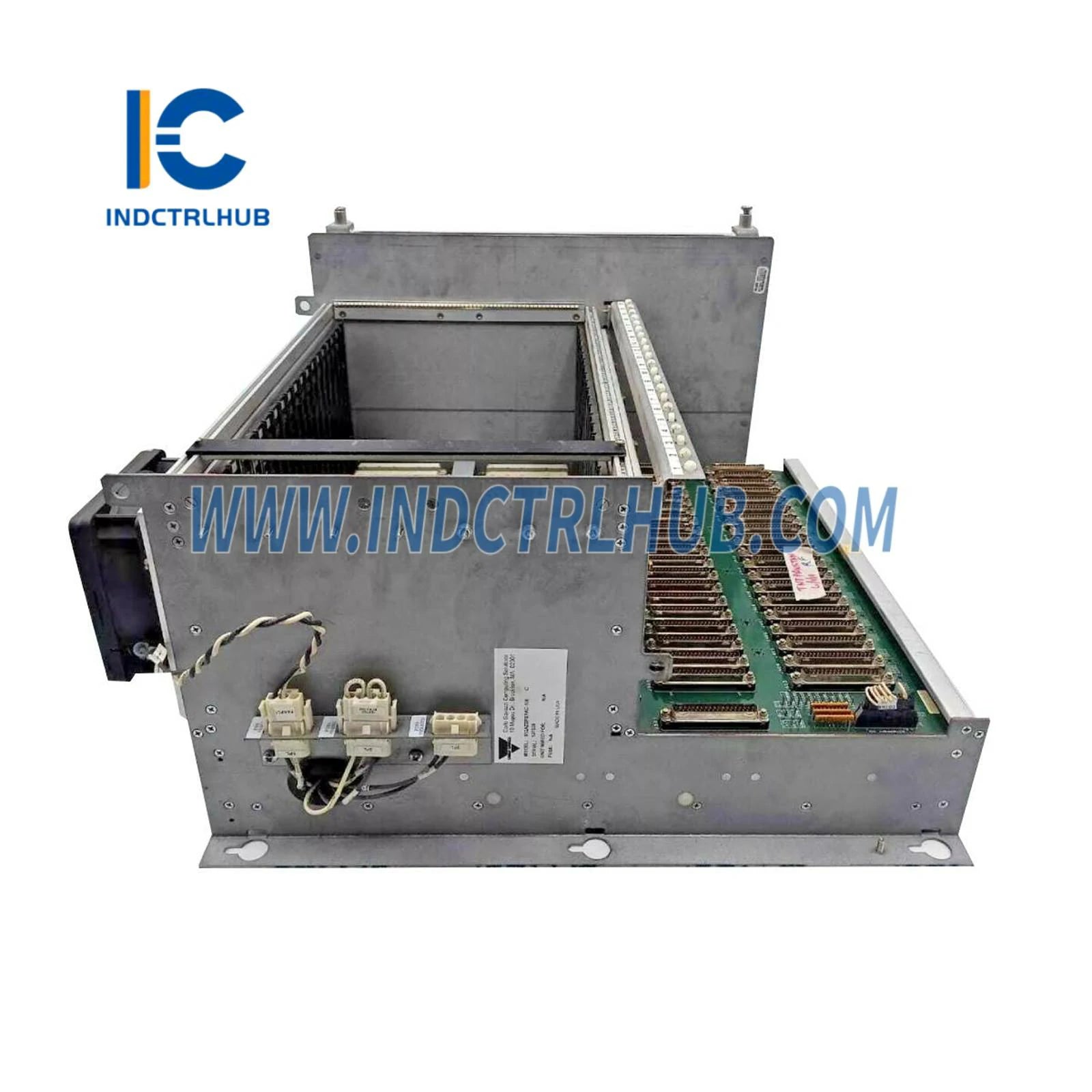

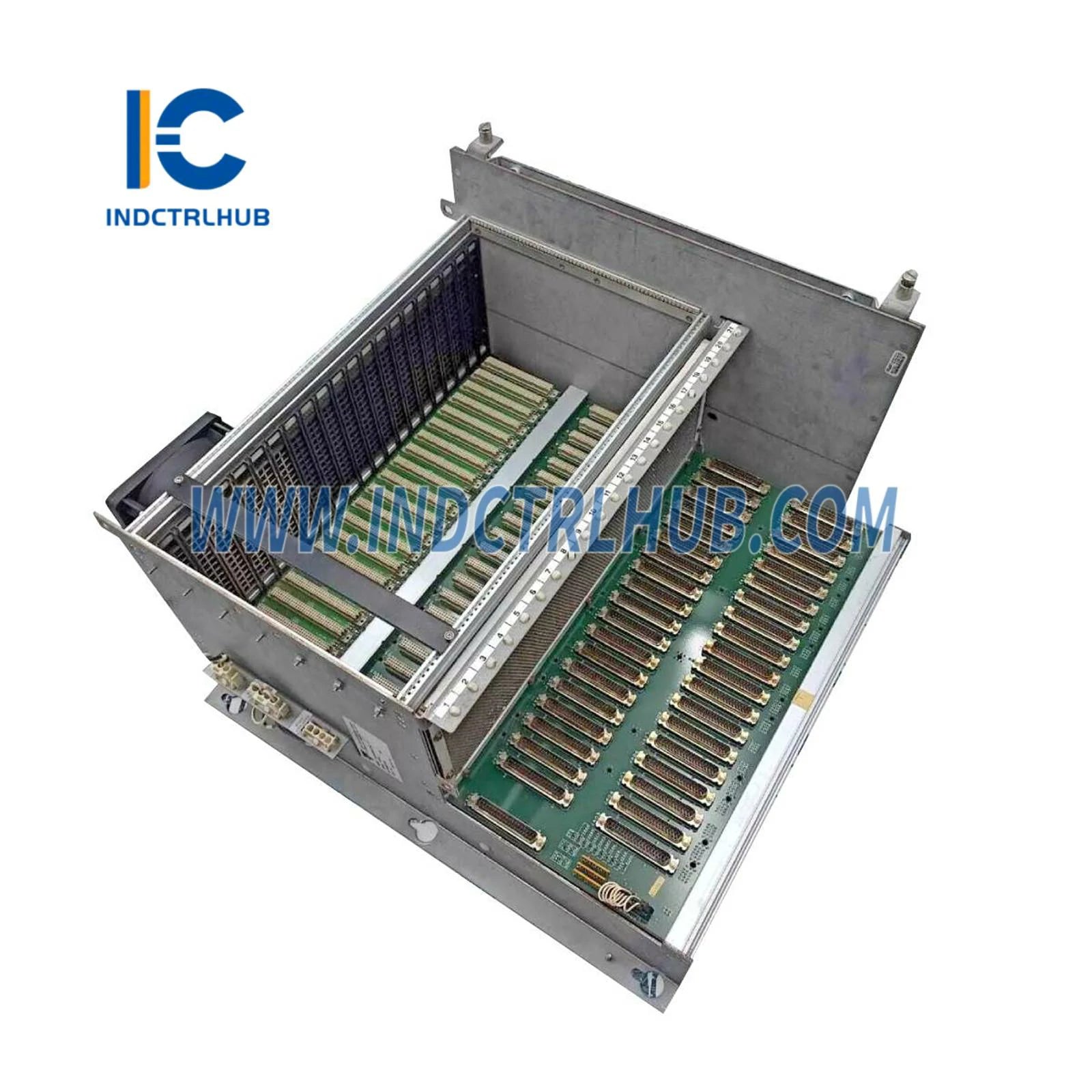

The General Electric 259B2460BTG2 512AZSPBPAC-100 is a VME Rack Assembly designed for use in the Mark VI Turbine Control System Series. Manufactured by General Electric, this rack serves as a backplane assembly for mounting and interconnecting VME (VersaModule Eurocard) controller and I/O cards, such as the IS200BPVCG1B, in turbine control applications. It is utilized in industrial settings, particularly power generation, to support gas and steam turbine operations, ensuring robust communication and power distribution within the system.
Technical Specifications
The 259B2460BTG2 512AZSPBPAC-100 has the following specifications based on standard characteristics for this model:
| Item | Specification |
|---|---|
| Model/Part Number | 259B2460BTG2 512AZSPBPAC-100 |
| Manufacturer | General Electric |
| Description | VME Rack Assembly |
| Series | Mark VI |
| Slots | 13 or 21 VME slots (configuration-dependent) |
| Power Supply | 24 V DC input, distributes 5 V DC and ±12 V DC to VME cards |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | Approximately 5 kg (11 lbs), varies with configuration |
Additional Details
The 259B2460BTG2 512AZSPBPAC-100 includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Provides backplane connectivity and power distribution for VME cards |
| Mounting | 19-inch rack mountable |
| Compatibility | Mark VI VME modules (e.g., IS200BPVCG1B, IS215VPROH2B) |
| Features | EMI shielding, high-density connectors, robust construction |
| Certifications | Designed to support SIL 3 per IEC 61508 (system-dependent) |
