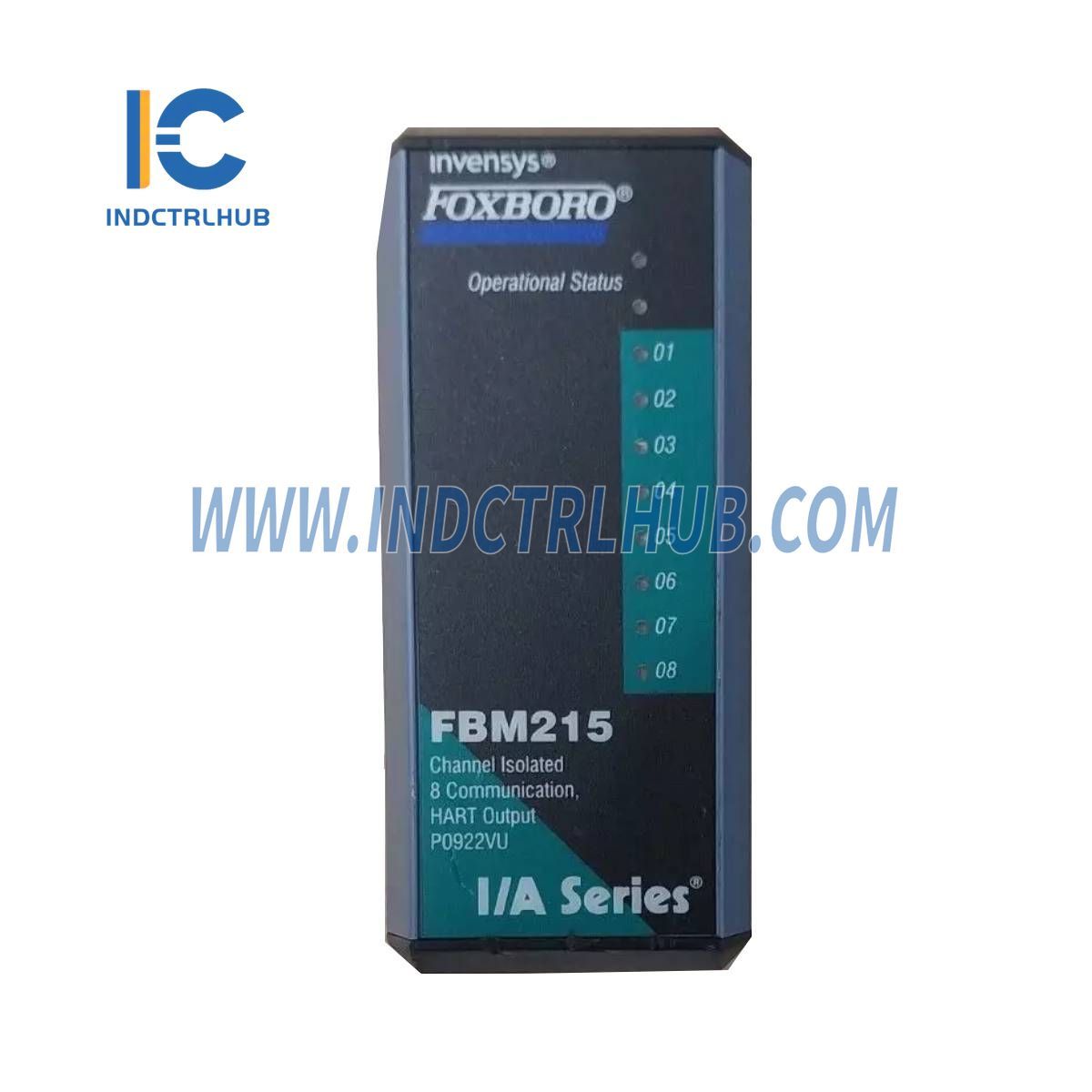

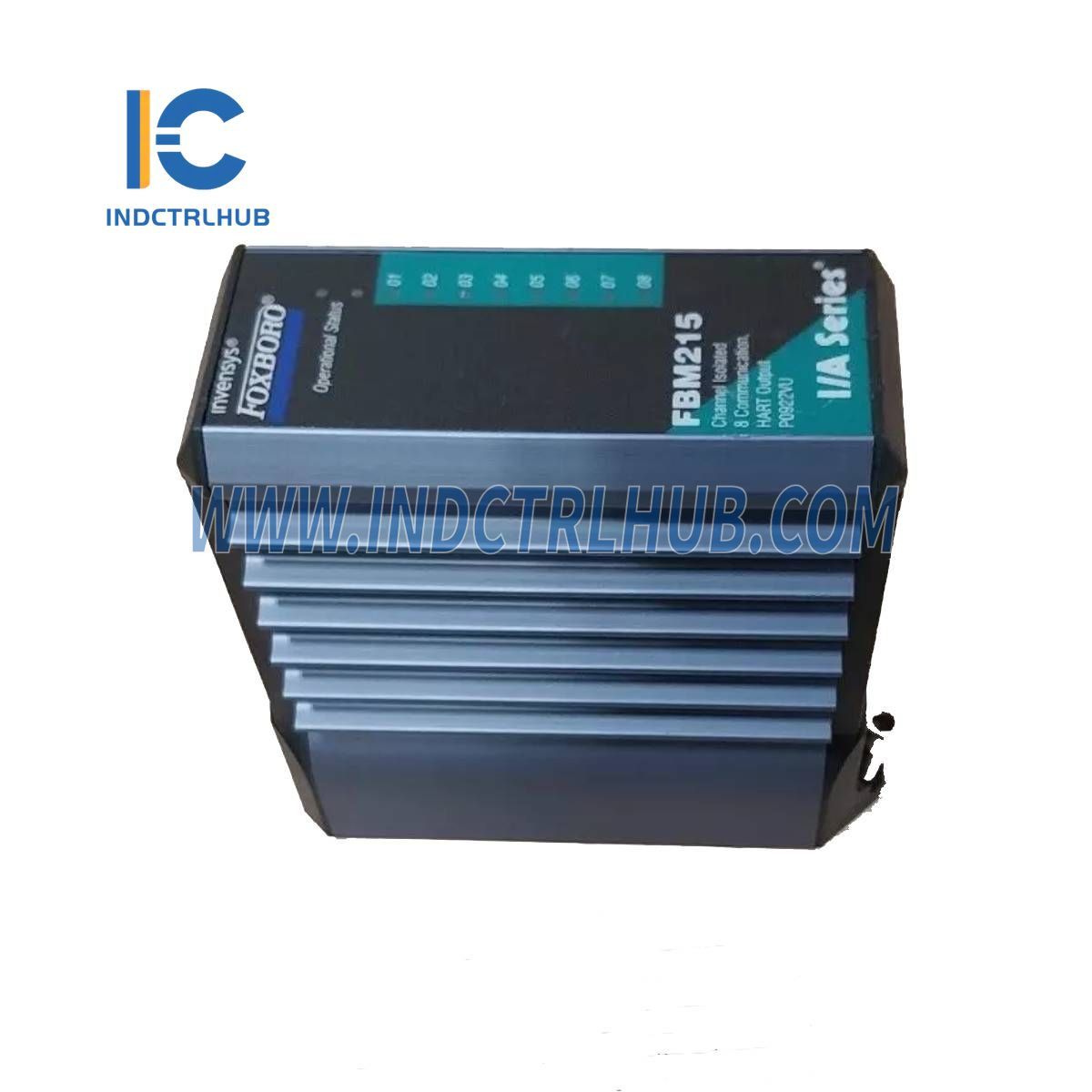

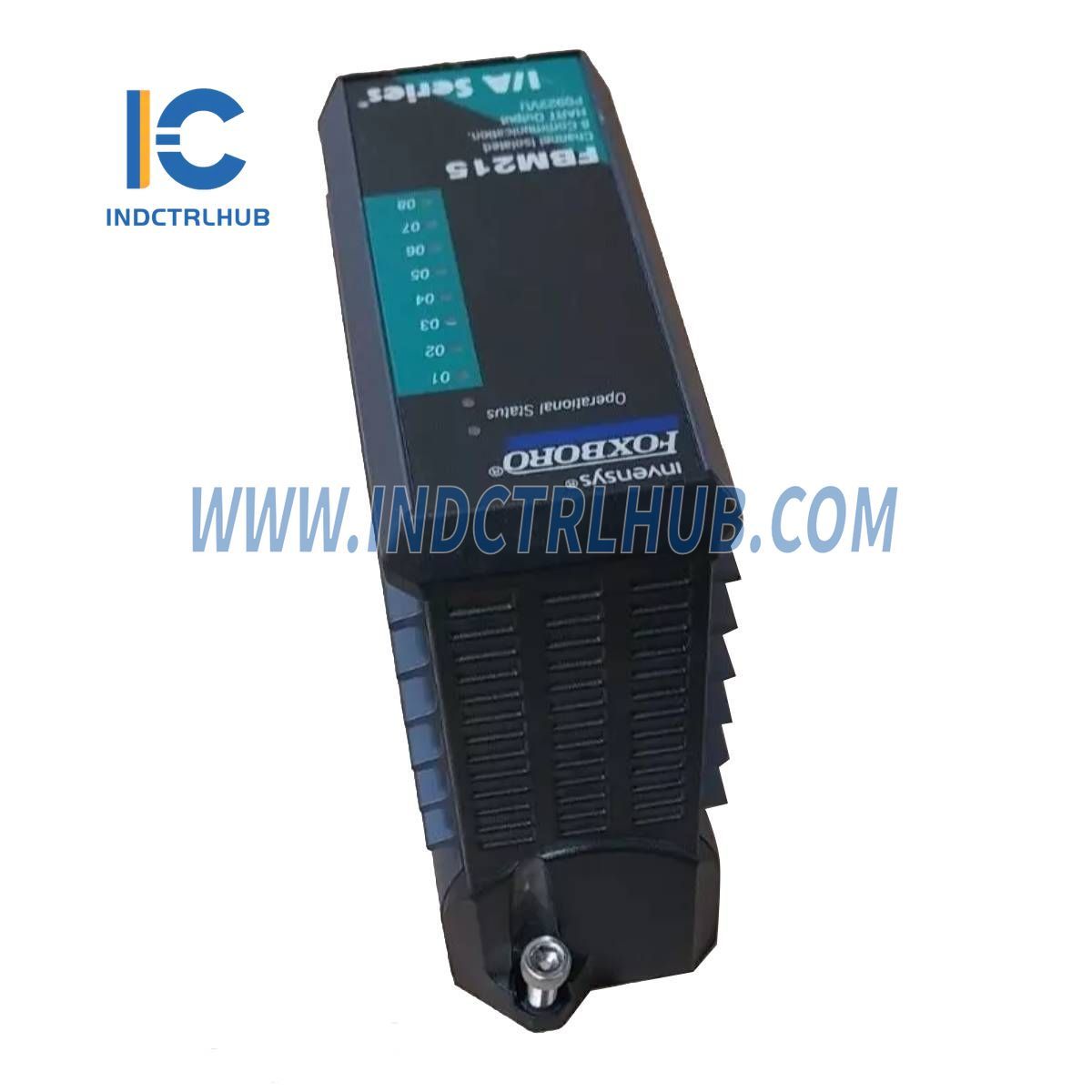

Foxboro FBM215 P0916DB HART Communication Output Module

Foxboro FBM215 P0916DB HART Communication Output Module

  • Manufacturer: Foxboro

  • Product No.: FBM215 P0916DB

  • Condition:1000 in stock

  • Product Type: HART Communication Output Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 249g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

 Manufacturer: Foxboro

 Model/Part Number: FBM215 P0916DB

Description

The Foxboro FBM215 is a HART Communication Output Module featuring eight channel-isolated outputs. It supports any mix of standard 4-20 mA devices and HART-enabled devices, providing robust and reliable communication with field instrumentation.

Functional Specifications

Parameter

Value

Field Device Channels

8 isolated output channels

Supported HART Instrument Types

HART instruments compliant with Version 5, 6, or 7

Interface

Point-to-point, master/slave, asynchronous, half-duplex, 1200 baud

Error Checking

Parity on each byte, one CRC check byte per message

Speed

2 messages per second

Fastest Allowed ECB Block Period

100 ms (Refer to sizing guidelines for optimal loading)

Maximum Distance (FBM215 to Field Device)

Up to 3030 m (10,000 ft) per HART FSK physical layer specification

Current Outputs

Analog Accuracy (Includes Linearity): ±0.05% of span (4-20 mA)  Output Load: 750 Ω maximum  Maximum Rate of Change: 20 mA in 60 milliseconds  Resolution: 13 bits

Environmental Specifications

Condition

Module

Termination Assembly

Operating Temperature

-20 to +70°C (-4 to +158°F)

PVC: -20 to +50°C (-4 to +122°F)

Relative Humidity

5 to 95% (non-condensing)

5 to 95% (non-condensing)

Altitude

-300 to +3,000 m (-1,000 to +10,000 ft)

-300 to +3,000 m (-1,000 to +10,000 ft)

Storage Temperature

-40 to +70°C (-40 to +158°F)

-40 to +70°C (-40 to +158°F)

Storage Altitude

-300 to +12,000 m (-1,000 to +40,000 ft)

-300 to +12,000 m (-1,000 to +40,000 ft)

Contamination

Suitable for Class G3 (Harsh) environments per ISA Standard S71.04


Vibration

7.5 m/s² (0.75 g) from 5 to 500 Hz


Physical Specifications

Component

Value

Weight (Module)

284 g (10 oz) approximate

Weight (Termination Assembly - Compression)

181 g (0.40 lb) approximate

Weight (Termination Assembly - Ring Lug)

249 g (0.55 lb) approximate

Dimensions (Module)

Height: 102 mm (4 in)  With Mounting Lugs: 114 mm (4.5 in)  Width: 45 mm (1.75 in)  Depth: 104 mm (4.11 in)



View full details

Product Description

General Information

 Manufacturer: Foxboro

 Model/Part Number: FBM215 P0916DB

Description

The Foxboro FBM215 is a HART Communication Output Module featuring eight channel-isolated outputs. It supports any mix of standard 4-20 mA devices and HART-enabled devices, providing robust and reliable communication with field instrumentation.

Functional Specifications

Parameter

Value

Field Device Channels

8 isolated output channels

Supported HART Instrument Types

HART instruments compliant with Version 5, 6, or 7

Interface

Point-to-point, master/slave, asynchronous, half-duplex, 1200 baud

Error Checking

Parity on each byte, one CRC check byte per message

Speed

2 messages per second

Fastest Allowed ECB Block Period

100 ms (Refer to sizing guidelines for optimal loading)

Maximum Distance (FBM215 to Field Device)

Up to 3030 m (10,000 ft) per HART FSK physical layer specification

Current Outputs

Analog Accuracy (Includes Linearity): ±0.05% of span (4-20 mA)  Output Load: 750 Ω maximum  Maximum Rate of Change: 20 mA in 60 milliseconds  Resolution: 13 bits

Environmental Specifications

Condition

Module

Termination Assembly

Operating Temperature

-20 to +70°C (-4 to +158°F)

PVC: -20 to +50°C (-4 to +122°F)

Relative Humidity

5 to 95% (non-condensing)

5 to 95% (non-condensing)

Altitude

-300 to +3,000 m (-1,000 to +10,000 ft)

-300 to +3,000 m (-1,000 to +10,000 ft)

Storage Temperature

-40 to +70°C (-40 to +158°F)

-40 to +70°C (-40 to +158°F)

Storage Altitude

-300 to +12,000 m (-1,000 to +40,000 ft)

-300 to +12,000 m (-1,000 to +40,000 ft)

Contamination

Suitable for Class G3 (Harsh) environments per ISA Standard S71.04


Vibration

7.5 m/s² (0.75 g) from 5 to 500 Hz


Physical Specifications

Component

Value

Weight (Module)

284 g (10 oz) approximate

Weight (Termination Assembly - Compression)

181 g (0.40 lb) approximate

Weight (Termination Assembly - Ring Lug)

249 g (0.55 lb) approximate

Dimensions (Module)

Height: 102 mm (4 in)  With Mounting Lugs: 114 mm (4.5 in)  Width: 45 mm (1.75 in)  Depth: 104 mm (4.11 in)
