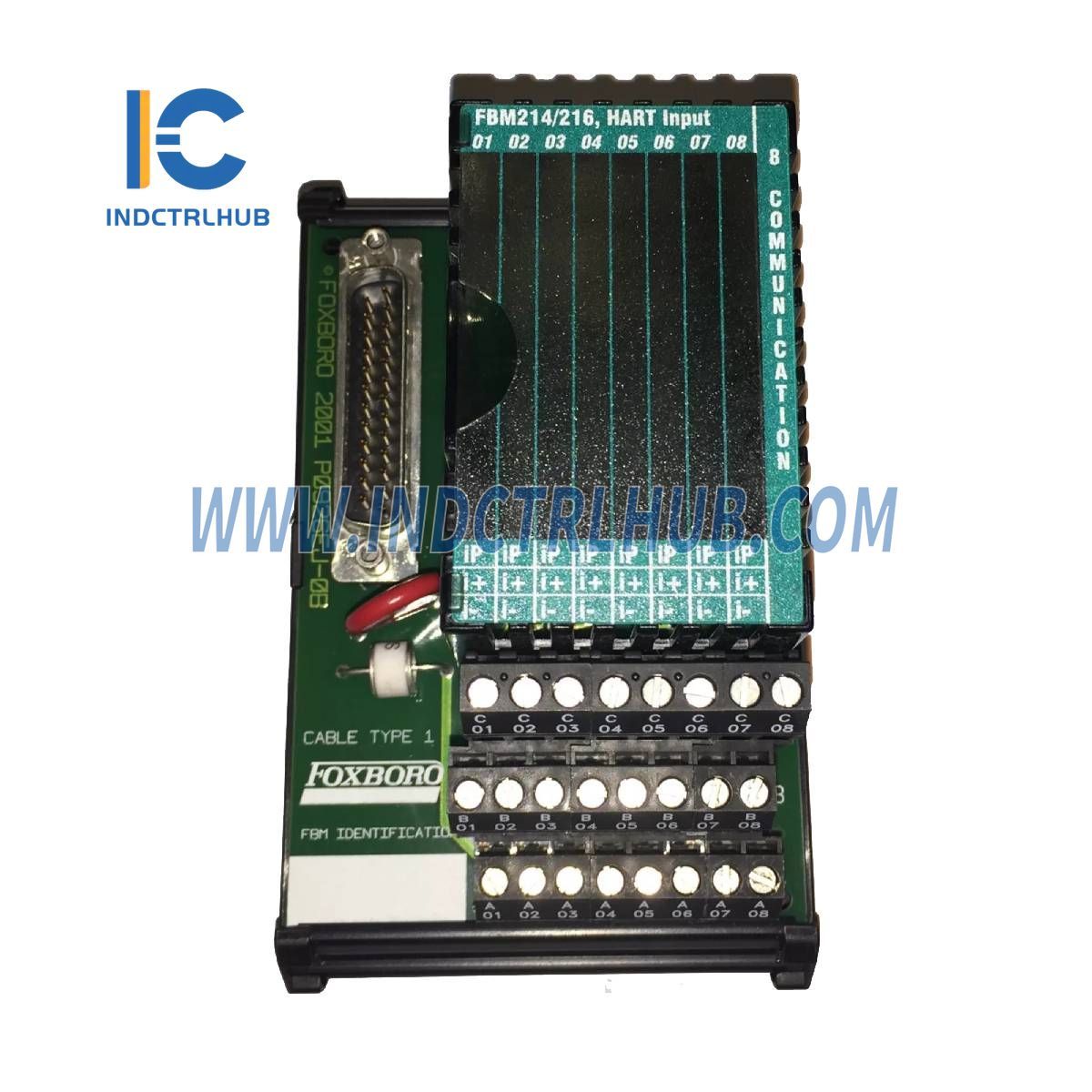

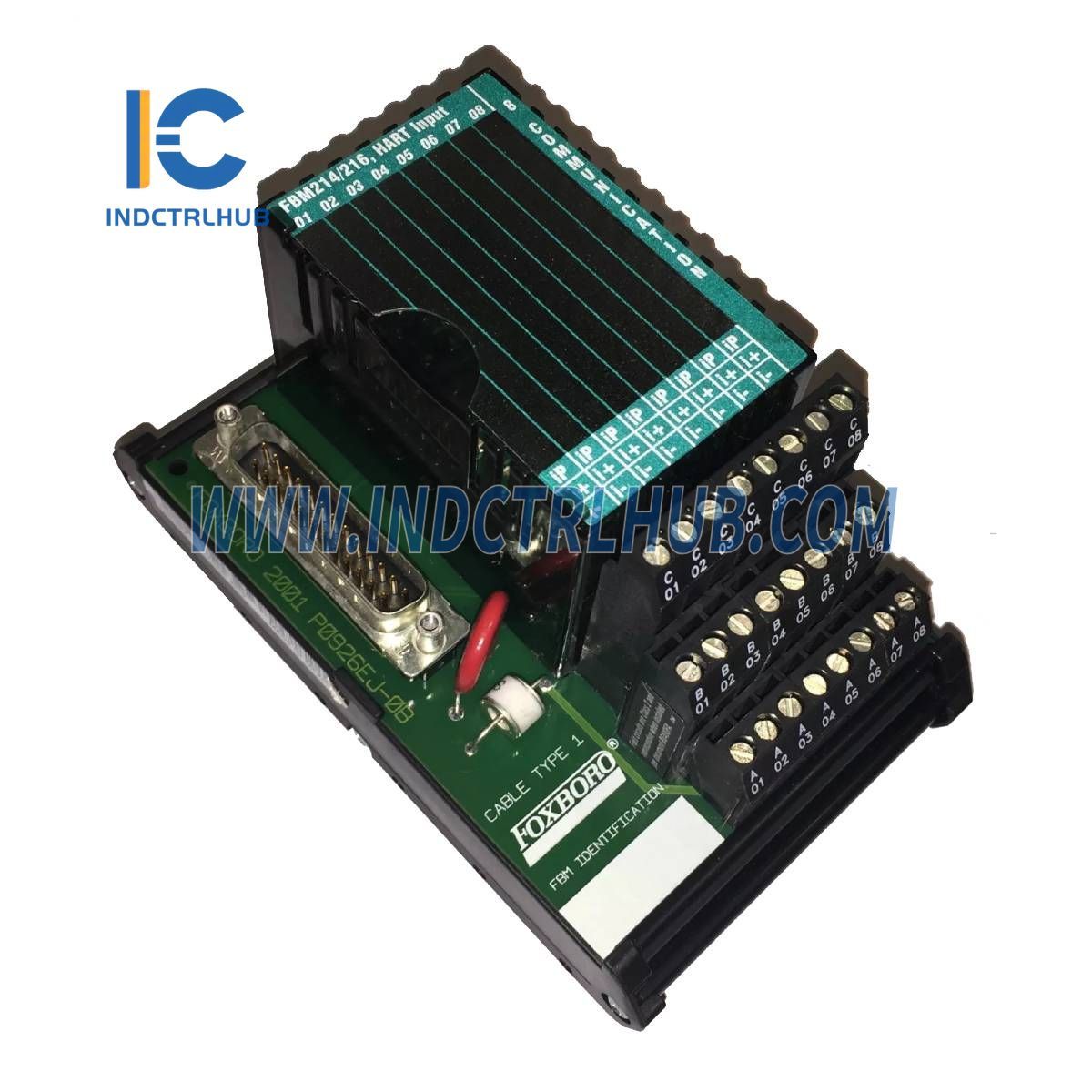

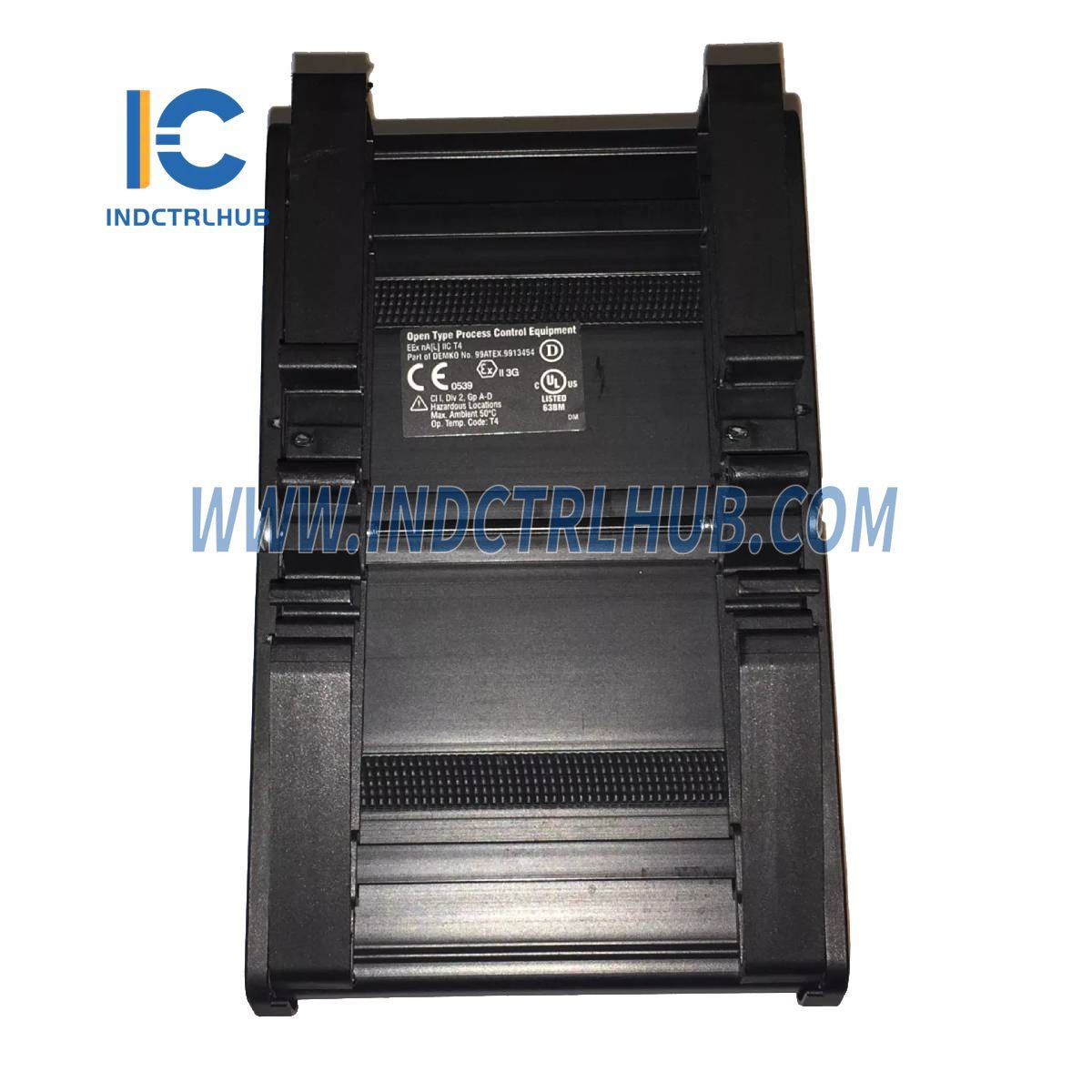

Foxboro FBM214 P0916BX HART Communication Input Module

Foxboro FBM214 P0916BX HART Communication Input Module

  • Manufacturer: Foxboro

  • Product No.: FBM214 P0916BX

  • Condition:1000 in stock

  • Product Type: HART Communication Input Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 284g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

 Manufacturer: Foxboro

 Model/Part Number: FBM214 P0916BX

Description

The FBM214b HART Communication Input Module contains eight 4 to 20 mA individually isolated analog input channels. It supports a mix of standard 4-20 mA devices and HART devices, providing point-to-point communication with error checking and optimized response rates.


Functional Specifications

Parameter

Value

Supported HART Instrument Types

HART Version 5, 6, or 7 compliant devices

Interface

8 individually isolated channels

Communication to Device

Point-to-point, master/slave, asynchronous, half-duplex, 1200 baud

Error Checking

Parity on each byte, CRC check byte

Speed

2 messages per second

Fastest Allowed ECB Block Period

100 ms (refer to sizing guidelines for optimal loading)

Maximum Distance (FBM214b to Field Device)

Up to 3030 m (10,000 ft), per HART FSK physical layer specification HCF_SPEC-54, Rev 8.1

Internal Loop Supply Compliance Voltage at Termination Assembly

18.5 V DC minimum at 20.5 mA

Current Inputs

- Sense Resistor: 61.5 Ω nominal - Total Input Resistance: 280 Ω nominal

Accuracy (Includes Nonlinearity)

±0.03% of full scale

Temperature Coefficient

50 ppm/°C

Resolution

15 bits

Update Rate

100 ms

Integration Time

500 ms

Common Mode Rejection

>100 dB at 50 or 60 Hz

Normal Mode Rejection

>35 dB at 50 or 60 Hz

Input Resistance Including Termination Assembly

- Externally Powered: 282 Ω - Internally Powered: 302 Ω

Power Requirements

Parameter

Value

Input Voltage Range (Redundant)

24 V DC +5% / -10%

Power Consumption

7 W (maximum)

Heat Dissipation

4 W (maximum)

Environmental Specifications

Condition

Operating

Storage

Temperature (Module)

-20 to +70°C (-4 to +158°F)

-40 to +70°C (-40 to +158°F)

Temperature (Termination Assembly)

-20 to +70°C (-4 to +158°F)

-40 to +70°C (-40 to +158°F)

Relative Humidity

5 to 95% (non-condensing)

5 to 95% (non-condensing)

Altitude

-300 to +3,000 m (-1,000 to +10,000 ft)

-300 to +12,000 m (-1,000 to +40,000 ft)

Contamination

Suitable for Class G3 (Harsh) environments, per ISA S71.04, tested per EIA 364-65, Class III


Vibration

7.5 m/s² (0.75 g) from 5 to 500 Hz

-

Physical Specifications

Parameter

Value

Module Weight

284 g (10 oz)

Termination Assembly Weight

Compression: 181 g (0.40 lb)

Dimensions (Module)

- Height: 102 mm (4 in), 114 mm (4.5 in) including mounting lugs - Width: 45 mm (1.75 in) - Depth: 104 mm (4.11 in)
