Product Description
Overview

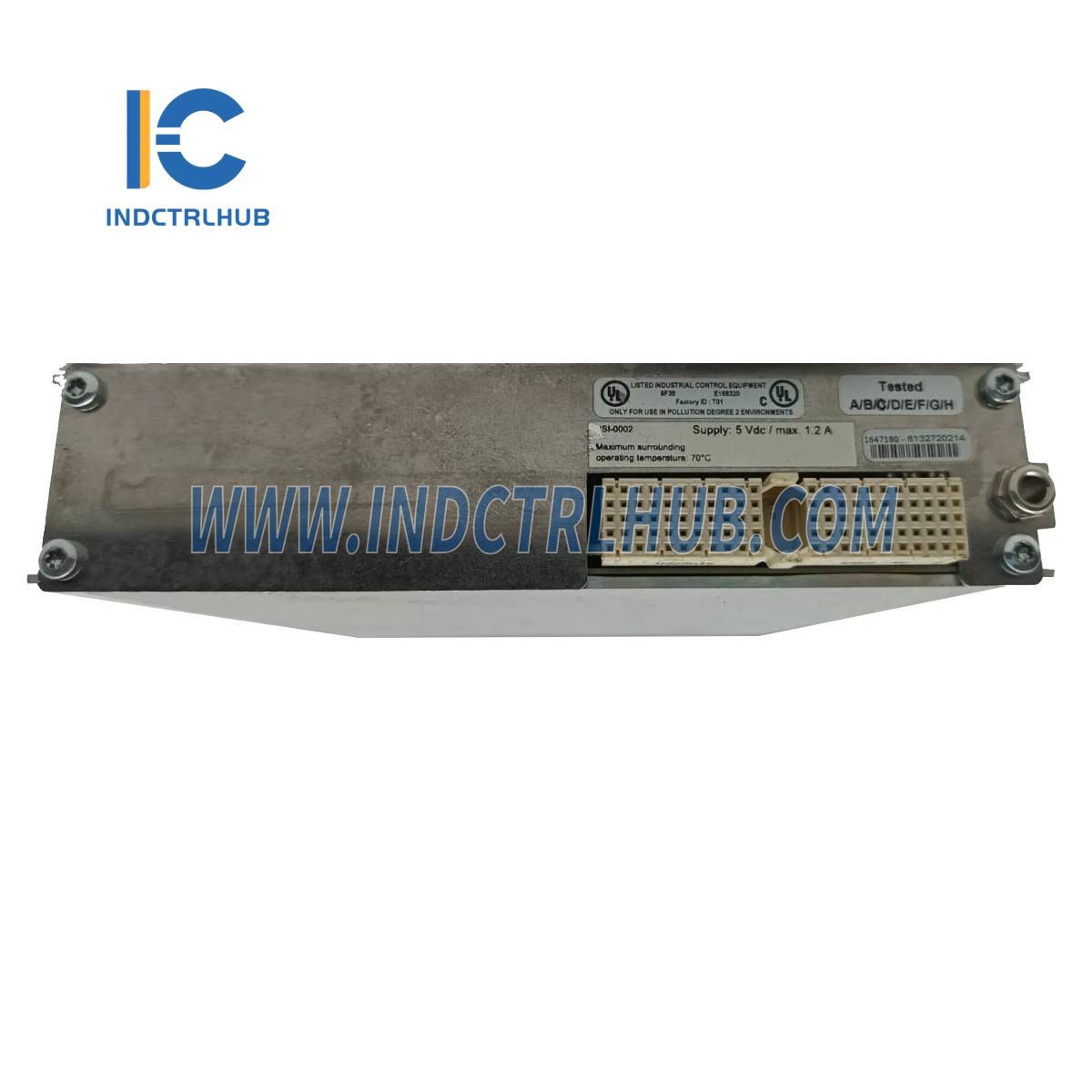

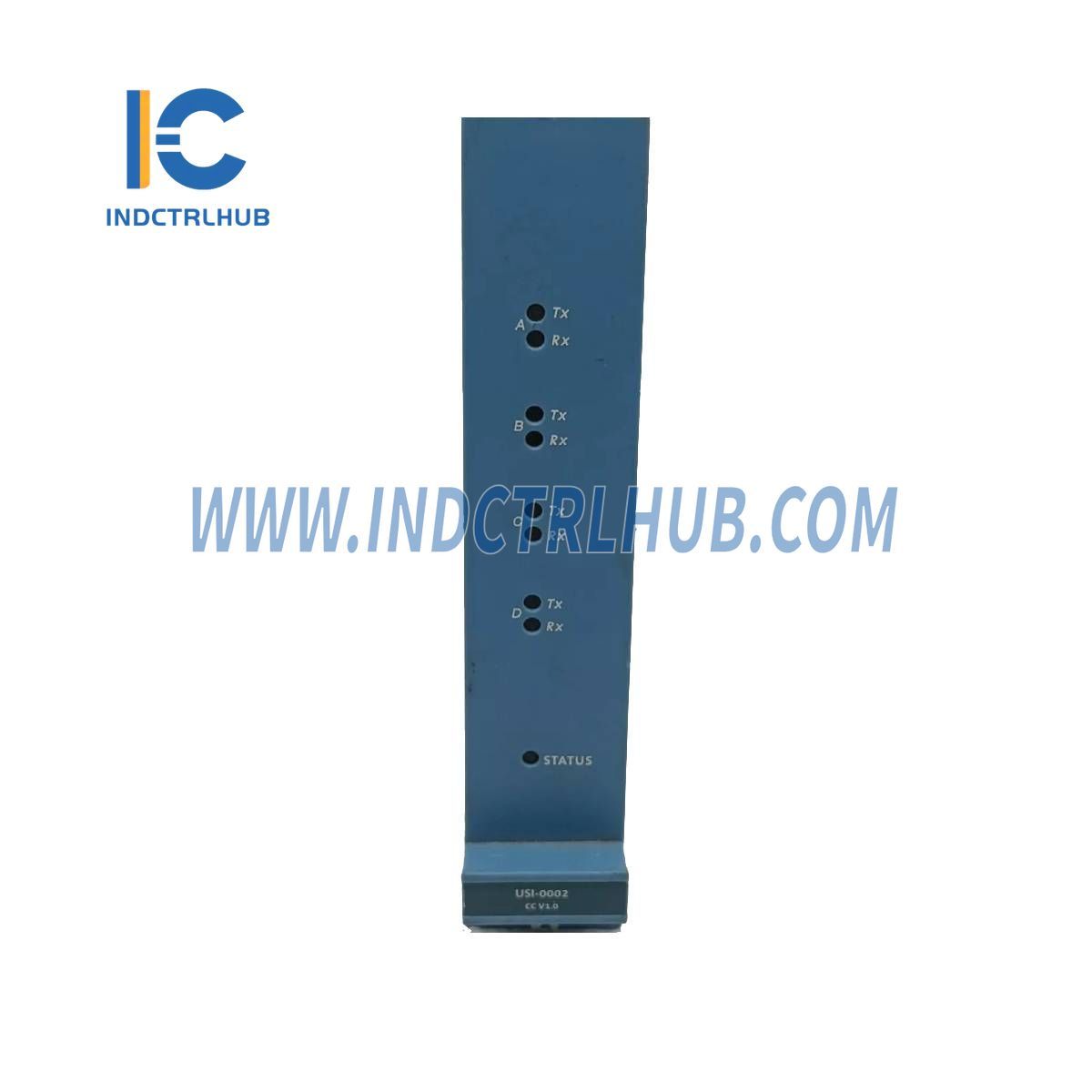

The FC-USI-0002 V1.0 is a Universal Safety Interface designed for reliable and secure communication in safety-critical applications. It features galvanic isolation, power-up self-tests, and robust diagnostics to ensure system integrity. With high-voltage isolation, interrupt signaling for memory errors, and compliance with multiple safety standards, it enhances operational safety and performance.
Additional Specifications
The USI-0002 module features galvanic isolation with the following ratings:
-
≥ 2.5 kVDC between 5 VDC and the Ethernet signal
-
≥ 1.5 kVDC between Ethernet signal and the casing
-
≥ 1.5 kVDC between 5 VDC and the casing
If a memory error occurs in the USI-0002 module, the Quad Processor Pack will receive an interrupt signal.
The USI-0002 module includes a power-up self-test (diagnostics) phase to verify the integrity of key components, reducing the risk of hardware defects or software corruption. The self-test checks:
-
Processor address and data registers
-
Local RAM
-
Shared RAM
-
Exception handling
-
Software integrity
Technical Data
General Specifications
-
Type Number: FC-USI-0002 V1.0
-
Operating Temperature: -5°C to +70°C (+23°F to +158°F)
-
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
-
Relative Humidity: 10% to 95% (non-condensing)
-
Approvals: CE, TUV, UL, CSA (FM pending)
Power Supply
-
5 V Supply Voltage: 5 VDC ± 5%
-
5 V Supply Current: Max. 1.2 A
Physical Dimensions & Weight
-
Dimensions (H × W × D): 176 × 35.2 × 212 mm (6.93 × 1.4 × 8.35 in)
-
Weight: 0.7 kg
