Product Description
Product Overview

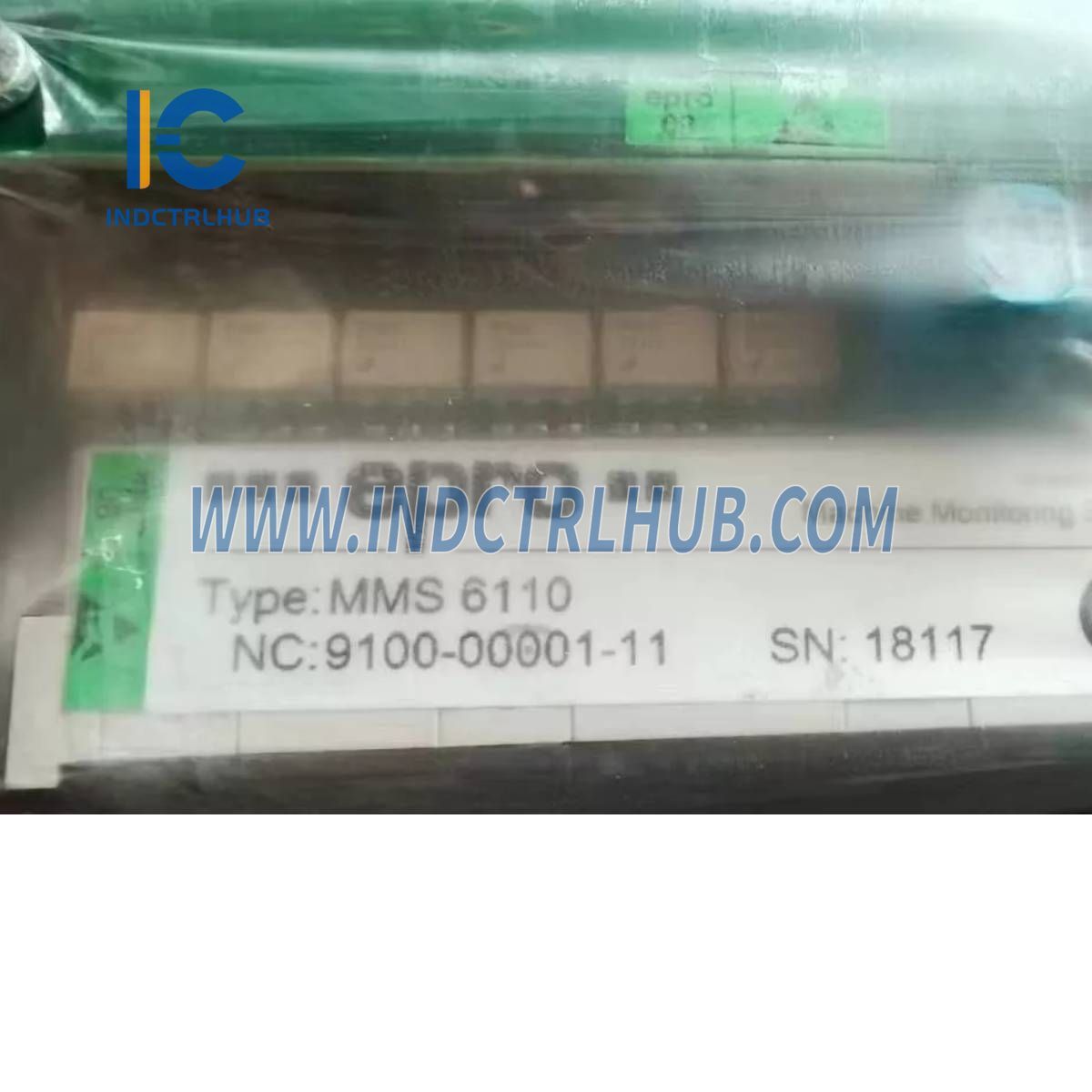

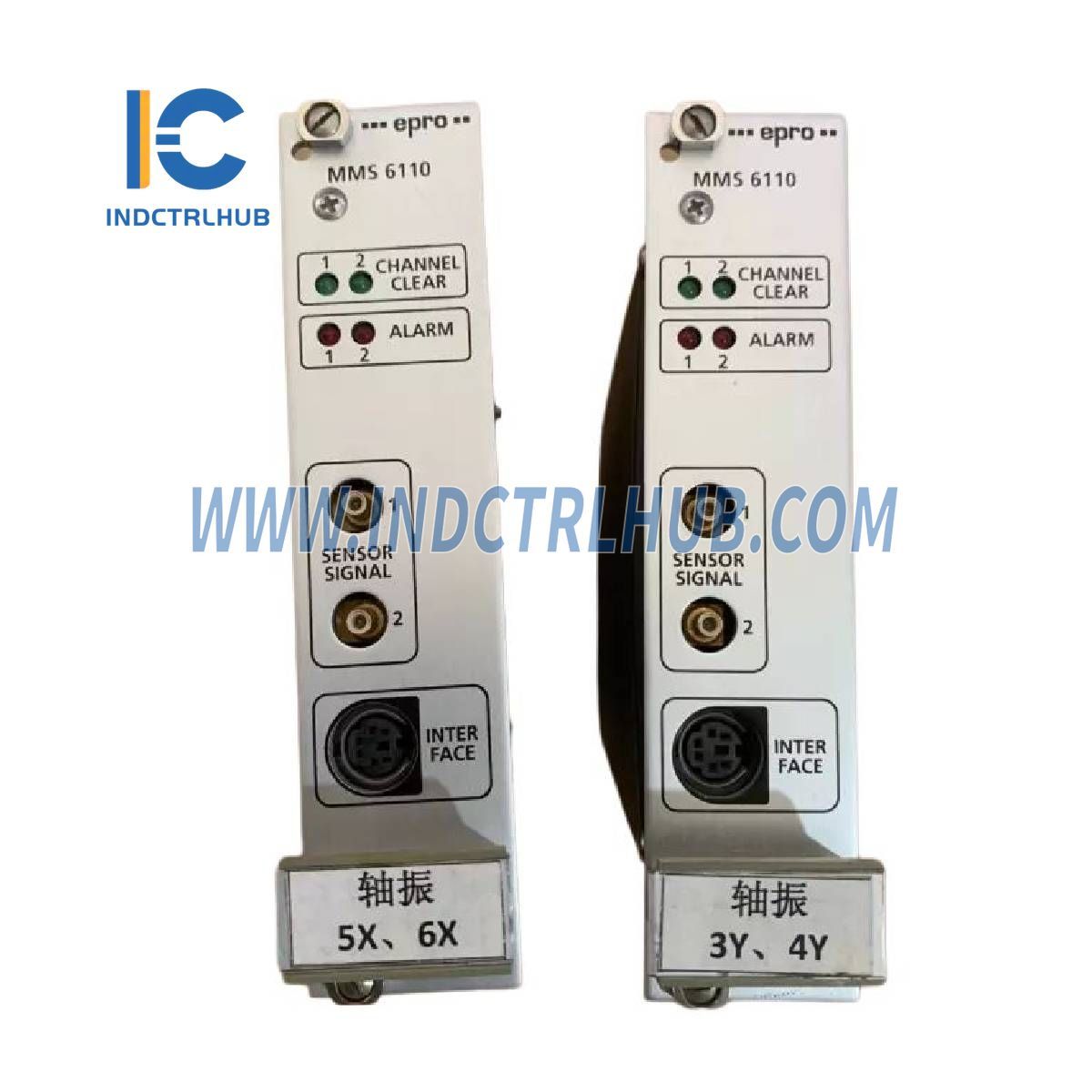

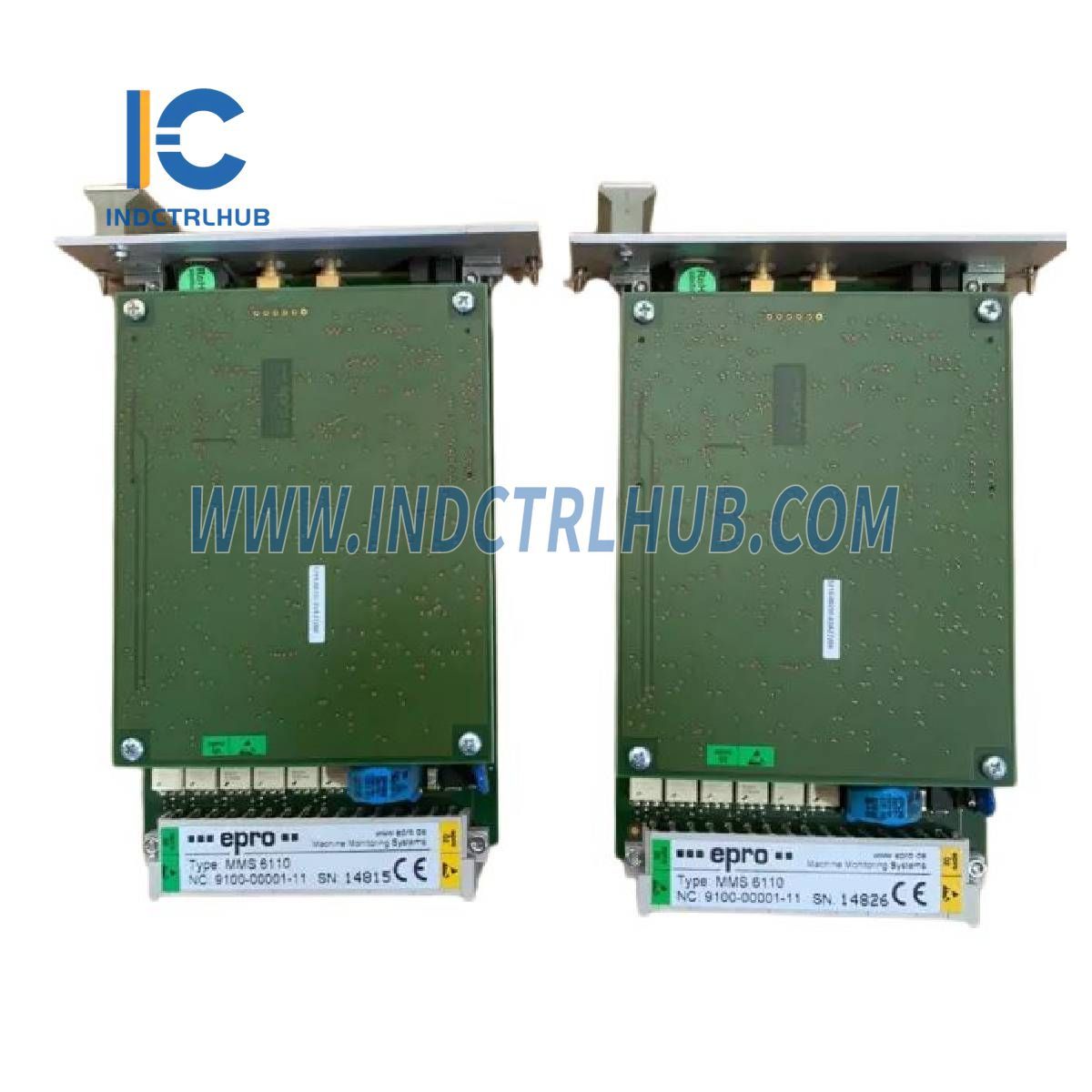

The Emerson MMS 6110 is a Dual Channel Shaft Vibration Monitor, designed to provide precise vibration monitoring for rotating machinery. It features dual independent sensor inputs, configurable measurement ranges, and advanced signal processing capabilities for critical machinery protection.
Key Features
• Two independent eddy-current sensor inputs
• Configurable measurement ranges (0–400 mV to 0–8000 mV)
• Galvanically separated sensor power supply (-28V DC)
• Advanced alarm control with adjustable factors (1.0000–4.9999)
• Redundant power supply input with low power consumption (max. 6W)
• FFT voltage inputs for advanced analysis (0–10V, 10-bit resolution)
• RS-485 bus communication (supports up to 31 modules / 62 channels)
• Wide environmental tolerance (Operating: 0°C to +65°C, Storage: -30°C to +85°C)
Technical Specifications
Sensor Inputs
|
Parameter |
Specification |
|---|---|
|
Input Type |
Two independent eddy-current sensor inputs (differential type) |
|
Input Resistance |
>100 kΩ |
|
Input Voltage Range |
0–22 V DC |
|
Input Frequency Range |
1/5…50…2000 Hz |
Measuring Ranges
|
Parameter |
Specification |
|---|---|
|
Adjustability |
Configurable via software |
|
Smallest Range |
0–400 mV |
|
Largest Range |
0–8000 mV |
Sensor Supply
|
Parameter |
Specification |
|---|---|
|
Output Type |
Buffered sensor supply (separate for each input) |
|
Galvanic Isolation |
Separated from system & supply voltages |
|
Short-Circuit Protection |
Yes |
|
Parallel Operation |
Yes, no interference |
|
Nominal Voltage |
-28 V DC |
|
Available Current |
Nominal: 20 mA / Max: 35 mA |
Control Inputs
|
Parameter |
Specification |
|---|---|
|
Logic Inputs |
Common binary inputs for both channels |
|
Functions |
Alert & Danger Modes (make or brake) Channel/Module Inhibit Measuring Range Multiplication (adjustable factor 1.0000–4.9999) |
|
Voltage |
24 V logic |
|
Input Resistance |
>10 kΩ |
Keypulse Input
|
Parameter |
Specification |
|---|---|
|
Purpose |
1 pulse per revolution input for system control (order analysis) |
|
Voltage |
24 V logic |
|
Input Resistance |
>10 kΩ |
|
Pulse Duration |
Minimum 10 µs (slope triggering) |
Voltage Inputs
|
Parameter |
Specification |
|---|---|
|
Channels |
Two (one per channel) |
|
Purpose |
FFT applications |
|
Input Voltage Range |
0–10 V |
|
Input Resistance |
>100 kΩ |
|
Resolution |
10-bit |
Power Supply
|
Parameter |
Specification |
|---|---|
|
System Design |
Redundant supply inputs (decoupled via diodes) |
|
Power Consumption |
Max. 6W (250mA at 24V) |
|
Number of Modules Supported |
31 modules / 62 channels per RS-485 bus |
|
Supply Voltage |
18–24–31.2V DC (IEC 654-2, Class DC4) |
|
Additional Modules |
If more channels are needed, an additional RS-485 bus is required |
Environmental Conditions
|
Parameter |
Specification |
|---|---|
|
Protection Class (Module) |
IP00 (DIN 40050) |
|
Protection Class (Front Plate) |
IP21 (DIN 40050) |
|
Climate Conditions |
DIN 40040, Class KTF |
|
Operating Temperature |
0°C to +65°C |
|
Storage & Transport Temperature |
-30°C to +85°C |
|
Relative Humidity |
5–95% (non-condensing) |
|
Vibration Resistance (IEC 68-2, Part 6) |
Amplitude: 0.15 mm (10–55 Hz) Acceleration: 16.6 m/s² (55–150 Hz) |
|
Shock Resistance (IEC 68-2, Part 29) |
Peak Acceleration: 98 m/s² Shock Duration: 16 ms |
|
EMC Compliance |
EN 50081-1 / EN 50082-2 |
