Product Description
Product Overview

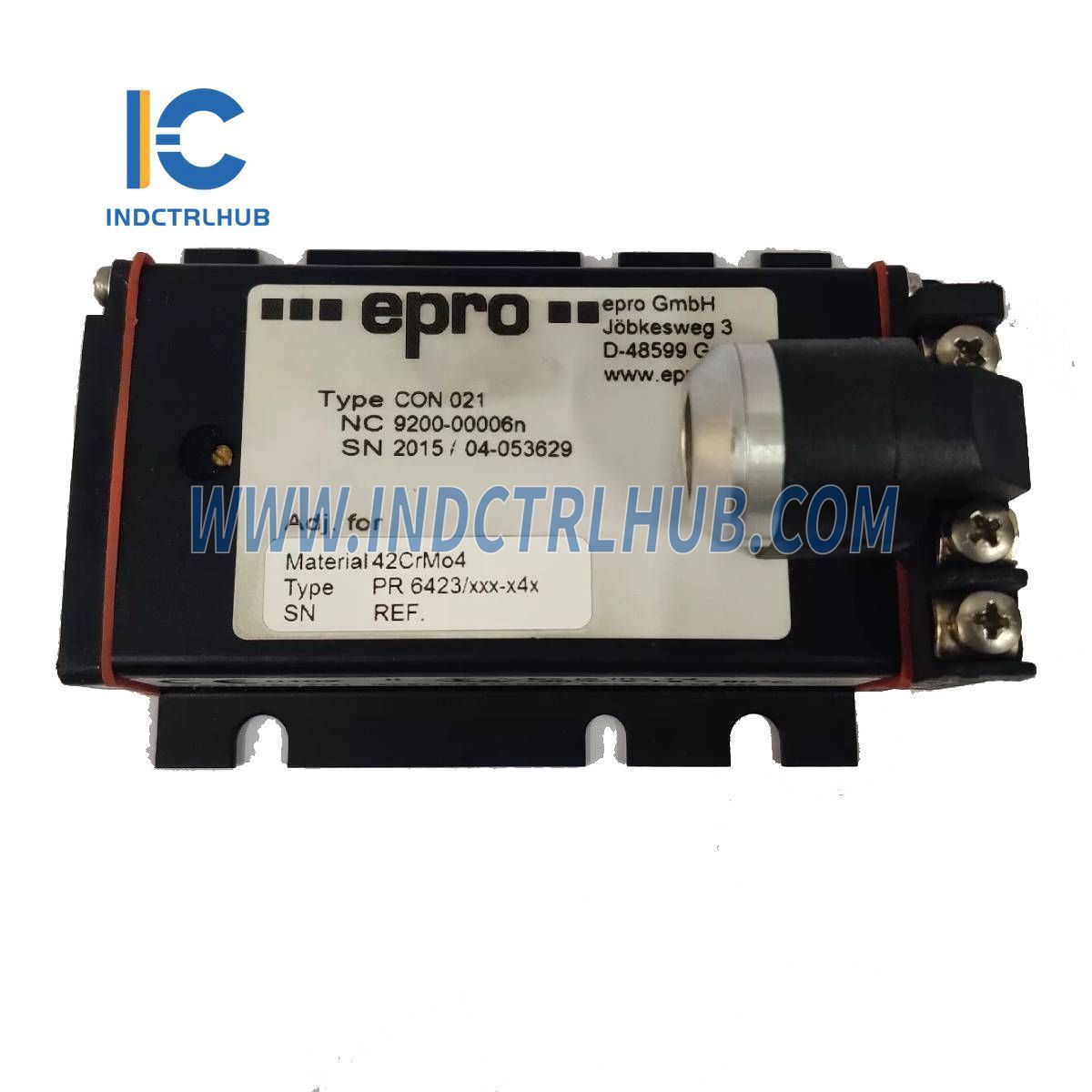

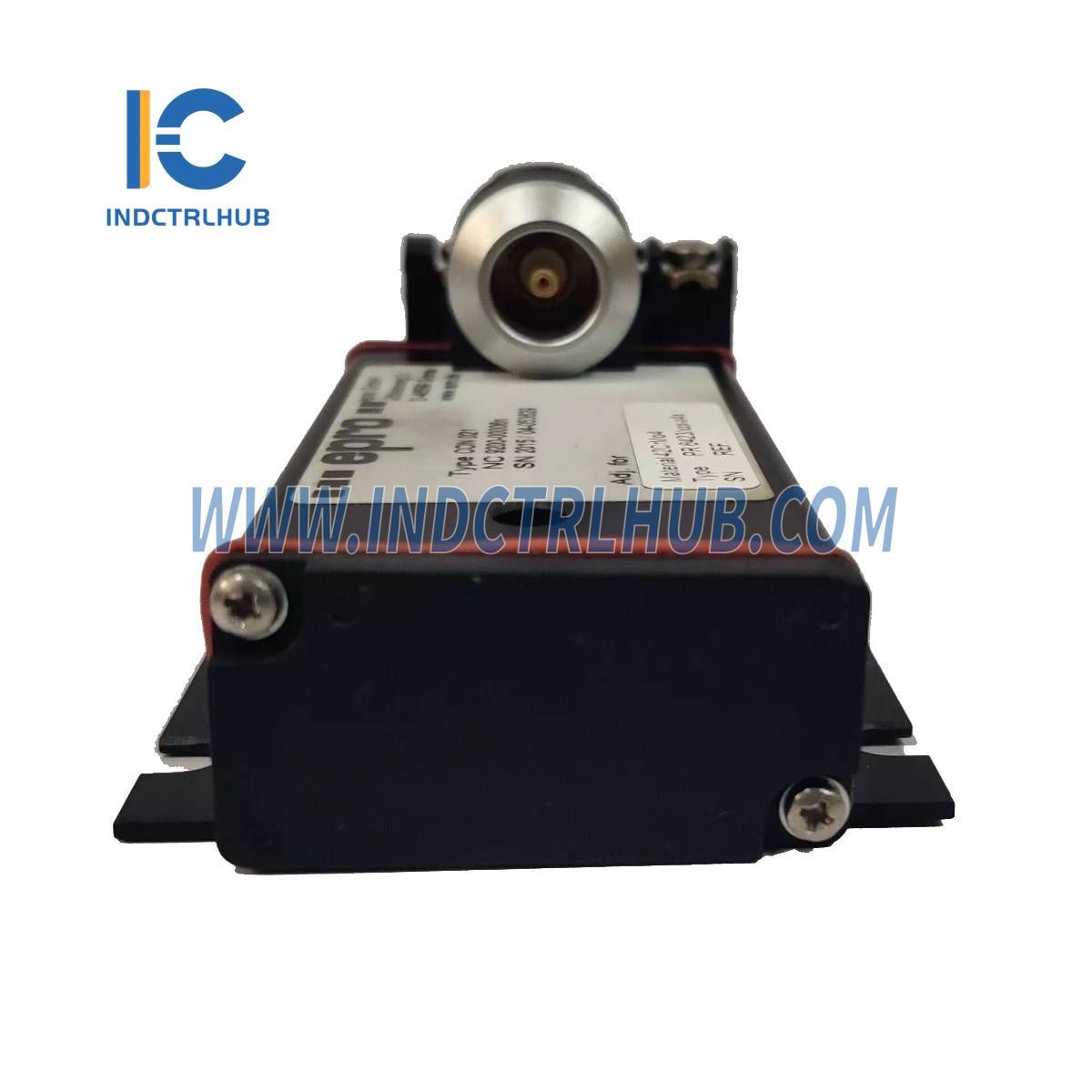

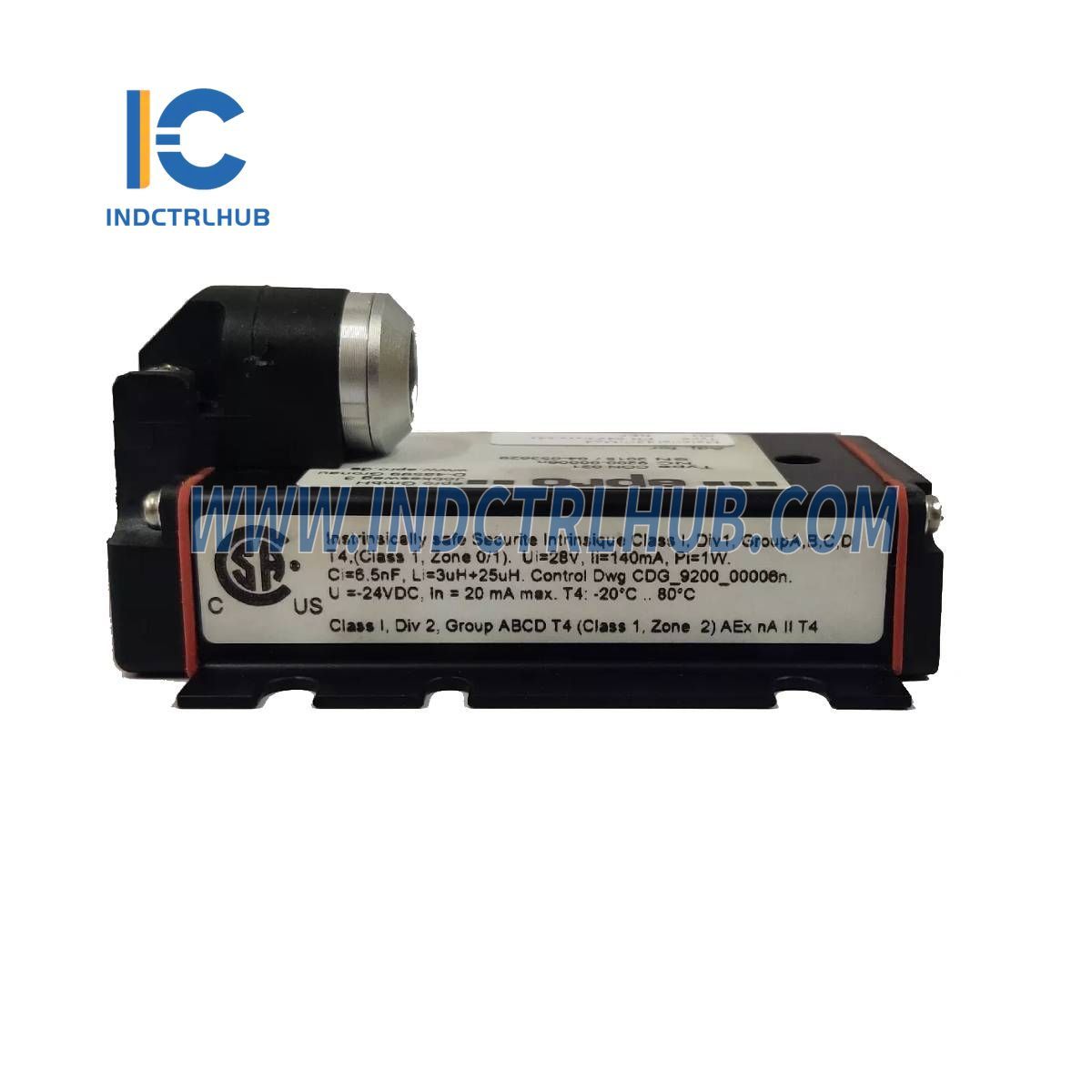

The Emerson CON021 is an Eddy Current Signal Converter designed for use with PR6422, PR6423, PR6424, PR6425, PR6426, and PR6453 series sensors. It provides precise signal conditioning and extended measurement capabilities for vibration and displacement monitoring in industrial applications.
Key Features
• Wide frequency range from 0 to 20,000 Hz
• Fast response time with <15 µs rise time
• Supports multiple sensor models with standard and extended ranges
• Rugged design with IP20 protection
• Operating temperature up to 100°C (212°F)
• Compatible with extended range sensors for larger measuring distances
Technical Specifications
Dynamic Performance
|
Parameter |
Specification |
|---|---|
|
Frequency Range (-3 dB) |
0 to 20,000 Hz |
|
Rise Time |
<15 µs |
|
Compatible Sensors |
PR6422, PR6423, PR6424, PR6425, PR6426, PR6453 |
|
Extended Range Compatibility |
Use CON021/91x-xxx models |
Environmental Specifications
|
Parameter |
Specification |
|---|---|
|
Operating Temperature Range |
-30 to 100°C (-22 to 212°F) |
|
Shock & Vibration |
5g @ 60 Hz @ 25°C (77°F) |
|
Protection Class |
IP20 |
Power & Electrical
|
Parameter |
Specification |
|---|---|
|
Supply Voltage Range |
-23V to -32V (Output: -4V to -20V) -21V to -32V (Output: -2V to -18V) |
Physical Specifications
|
Parameter |
Specification |
|---|---|
|
Housing Material |
LMgSi 0.5 F22 |
|
Weight |
~120 grams (4.24 oz) |
|
Mounting |
4 Screws M5x20 (Included in Delivery) |
|
Connections |
Transducer: Self-locking Lemo-Plug Supply/Output: Screw Terminal Type (Max 1.5mm² wire) |
Ordering Information
|
Model Number |
Sensor Type |
Measuring Range |
Linearity Error |
|---|---|---|---|
|
CON021 |
PR6422, PR6423, PR6424, PR6426 |
1.0mm (Standard) |
≤ 1.5% |
|
2.0mm (Standard) |
≤ 1.0% |
||
|
4.0mm (Standard) |
≤ 1.5% |
||
|
8.0mm (Standard) |
≤ 1.5% |
||
|
CON021/912-015 |
PR6422 |
1.5mm (Extended) |
≤ 2.0% |
|
CON021/913-030 |
PR6423 |
3.0mm (Extended) |
≤ 1.5% |
|
CON021/913-040 |
PR6423 |
4.0mm (Extended) |
≤ 2.0% |
|
CON021/914-060 |
PR6424 |
6.0mm (Extended) |
≤ 1.0% |
|
CON021/914-080 |
PR6424 |
8.0mm (Extended) |
≤ 1.5% |
|
CON021/914-100 |
PR6424 |
10.0mm (Extended) |
≤ 2.0% |
|
CON021/915-040 |
PR6425 |
4.0mm (Standard) |
≤ 1.5% |
|
CON021/915-060 |
PR6425 |
6.0mm (Extended) |
≤ 2.0% |
|
CON021/915-080 |
PR6425 |
8.0mm (Extended) |
≤ 3.0% |
|
CON021/915-100 |
PR6425 |
10.0mm (Extended) |
≤ 4.0% |
|
CON021/916-120 |
PR6426 |
12.0mm (Extended) |
≤ 1.5% |
|
CON021/916-160 |
PR6426 |
16.0mm (Extended) |
≤ 2.0% |
|
CON021/916-200 |
PR6426 |
20.0mm (Extended) |
≤ 2.5% |
|
CON021/916-240 |
PR6426 |
24.0mm (Extended) |
≤ 3.5% |
