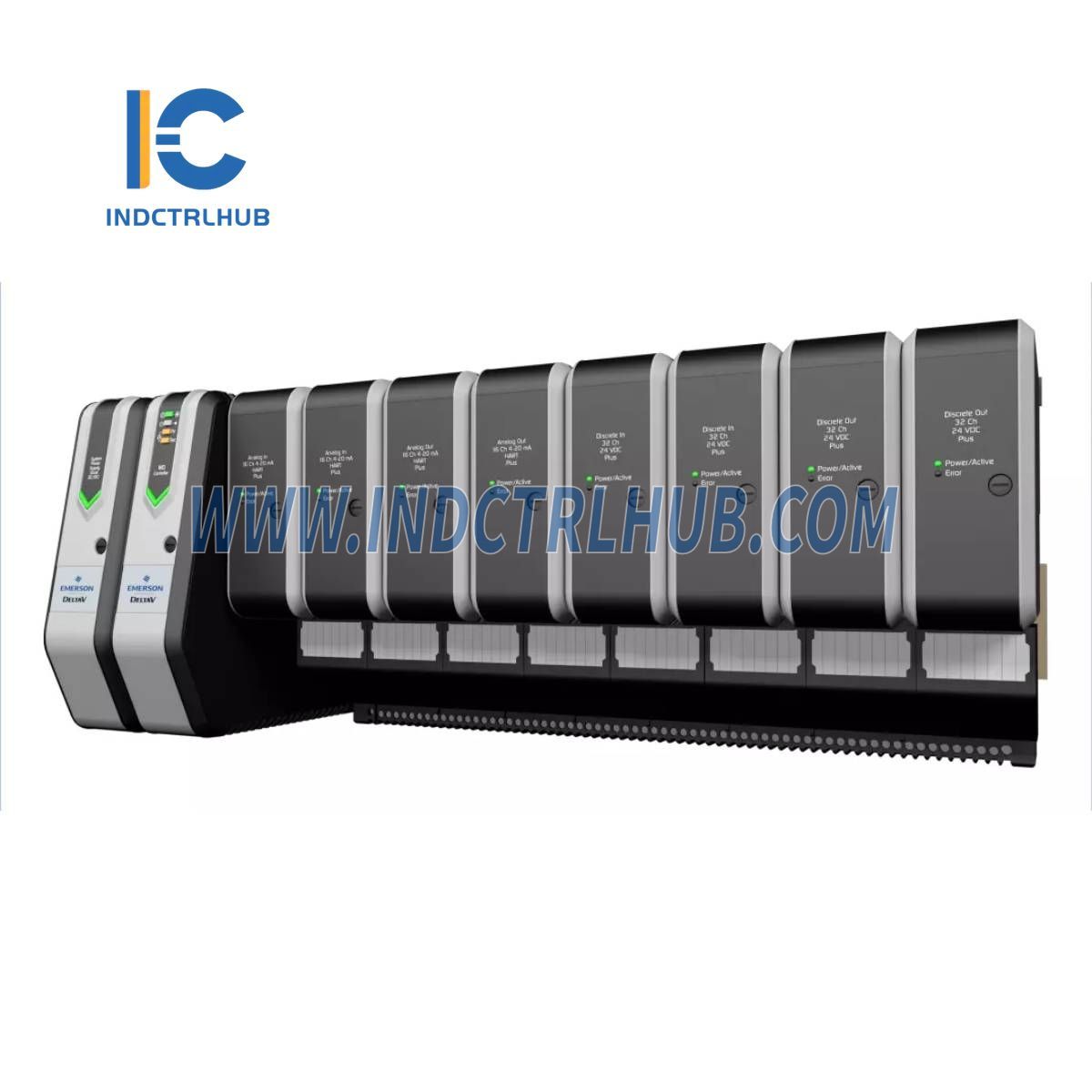

Emerson ‎‎VE5109 DC to DC System Power Supply

Emerson ‎‎VE5109 DC to DC System Power Supply

  • Manufacturer: Emerson

  • Product No.: VE5109

  • Condition:1000 in stock

  • Product Type: DC to DC System Power Supply

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Overview

The Emerson VE5109 DC to DC System Power Supply is designed to power DeltaV controllers and I/O interfaces using either 12V DC or 24V DC bulk power. It supplies the required 5V and 3.3V DC power to controllers and delivers 12V DC power to I/O interfaces. This high-efficiency power supply supports flexible mounting configurations and robust environmental tolerances for industrial applications.

Key Features

 Supports both 12V DC and 24V DC bulk power inputs.

 Provides stable power output to DeltaV controllers and I/O interfaces.

 Built-in protection against overvoltage, inrush current, and internal faults.

 Compact and flexible mounting options for different DeltaV power carriers.

 LED indicators for real-time power and error status.

Technical Specifications

Power Specifications

Parameter

Specification

Input Power

12V DC (-4% to +5%) at 14.8 A  24V DC (±20%) at 6.1 A

Inrush Current (Soft Start)

12 A peak for 5 ms (12V DC input, excluding 12V DC output)  20 A peak for 5 ms (24V DC input, including 12V DC output)

Output Power Rating (at -40 to 60°C)

+12V DC at 13 A (12V DC Input)  +12V DC at 8.0 A (24V DC Input)  +5V DC at 2.0 A  +3.3V DC at 2.0 A (10 W total for combined 5V DC & 3.3V DC outputs)

Output Power Rating (at 60 to 70°C)

+12V DC at 10 A (12V DC Input)  +12V DC at 6.0 A (24V DC Input)  +5V DC at 2.0 A  +3.3V DC at 2.0 A (10 W total for combined 5V DC & 3.3V DC outputs)

Input Protection

Internally fused, non-replaceable

Overvoltage Protection

Output protected at 110% to 120%

Performance and Environmental Ratings

Parameter

Specification

Hold-up Time

Output remains within 5% of nominal at full load and minimum input voltage for 5 ms (excluding 12V DC current with 12V DC input)

Operating Temperature

-40°C to 60°C (-40°F to 140°F) without de-rating  60°C to 70°C (140°F to 158°F) with de-rating

Storage Temperature

-40°C to 70°C (-40°F to 158°F)

Relative Humidity

5% to 95%, non-condensing

Airborne Contaminants

ISA-S71.04-1985 Class G3 (Conformal coating)

Shock Resistance

10 g ½-sine wave for 11 ms

Vibration Resistance

1 mm peak-to-peak (5 Hz to 16 Hz)  0.5 g (16 Hz to 150 Hz)

Mounting Options

Mounting Location

Compatibility

2-wide power/controller carrier

Either slot

VerticalPlus 4-wide carrier

Power slot

4-wide power carrier

Any slot

LED Indicators

LED Status

Description

Green – DC Power Input

DC power is applied and internal fuse/diode is intact

Red – Error

+5V DC and +3.3V DC outputs are out of tolerance

External Connectors

Connector

Function

Primary Power Input

2-wire DC input

Alarm Contact

2-wire normally open relay (closed when 3.3V and 5V DC outputs are within ±4% of nominal)  Rated: 2.0 A at 30V DC, 2.0 A at 250V AC



View full details

Product Description

Product Overview

The Emerson VE5109 DC to DC System Power Supply is designed to power DeltaV controllers and I/O interfaces using either 12V DC or 24V DC bulk power. It supplies the required 5V and 3.3V DC power to controllers and delivers 12V DC power to I/O interfaces. This high-efficiency power supply supports flexible mounting configurations and robust environmental tolerances for industrial applications.

Key Features

 Supports both 12V DC and 24V DC bulk power inputs.

 Provides stable power output to DeltaV controllers and I/O interfaces.

 Built-in protection against overvoltage, inrush current, and internal faults.

 Compact and flexible mounting options for different DeltaV power carriers.

 LED indicators for real-time power and error status.

Technical Specifications

Power Specifications

Parameter

Specification

Input Power

12V DC (-4% to +5%) at 14.8 A  24V DC (±20%) at 6.1 A

Inrush Current (Soft Start)

12 A peak for 5 ms (12V DC input, excluding 12V DC output)  20 A peak for 5 ms (24V DC input, including 12V DC output)

Output Power Rating (at -40 to 60°C)

+12V DC at 13 A (12V DC Input)  +12V DC at 8.0 A (24V DC Input)  +5V DC at 2.0 A  +3.3V DC at 2.0 A (10 W total for combined 5V DC & 3.3V DC outputs)

Output Power Rating (at 60 to 70°C)

+12V DC at 10 A (12V DC Input)  +12V DC at 6.0 A (24V DC Input)  +5V DC at 2.0 A  +3.3V DC at 2.0 A (10 W total for combined 5V DC & 3.3V DC outputs)

Input Protection

Internally fused, non-replaceable

Overvoltage Protection

Output protected at 110% to 120%

Performance and Environmental Ratings

Parameter

Specification

Hold-up Time

Output remains within 5% of nominal at full load and minimum input voltage for 5 ms (excluding 12V DC current with 12V DC input)

Operating Temperature

-40°C to 60°C (-40°F to 140°F) without de-rating  60°C to 70°C (140°F to 158°F) with de-rating

Storage Temperature

-40°C to 70°C (-40°F to 158°F)

Relative Humidity

5% to 95%, non-condensing

Airborne Contaminants

ISA-S71.04-1985 Class G3 (Conformal coating)

Shock Resistance

10 g ½-sine wave for 11 ms

Vibration Resistance

1 mm peak-to-peak (5 Hz to 16 Hz)  0.5 g (16 Hz to 150 Hz)

Mounting Options

Mounting Location

Compatibility

2-wide power/controller carrier

Either slot

VerticalPlus 4-wide carrier

Power slot

4-wide power carrier

Any slot

LED Indicators

LED Status

Description

Green – DC Power Input

DC power is applied and internal fuse/diode is intact

Red – Error

+5V DC and +3.3V DC outputs are out of tolerance

External Connectors

Connector

Function

Primary Power Input

2-wire DC input

Alarm Contact

2-wire normally open relay (closed when 3.3V and 5V DC outputs are within ±4% of nominal)  Rated: 2.0 A at 30V DC, 2.0 A at 250V AC



Download PDF file here:

Click to Download PDF
