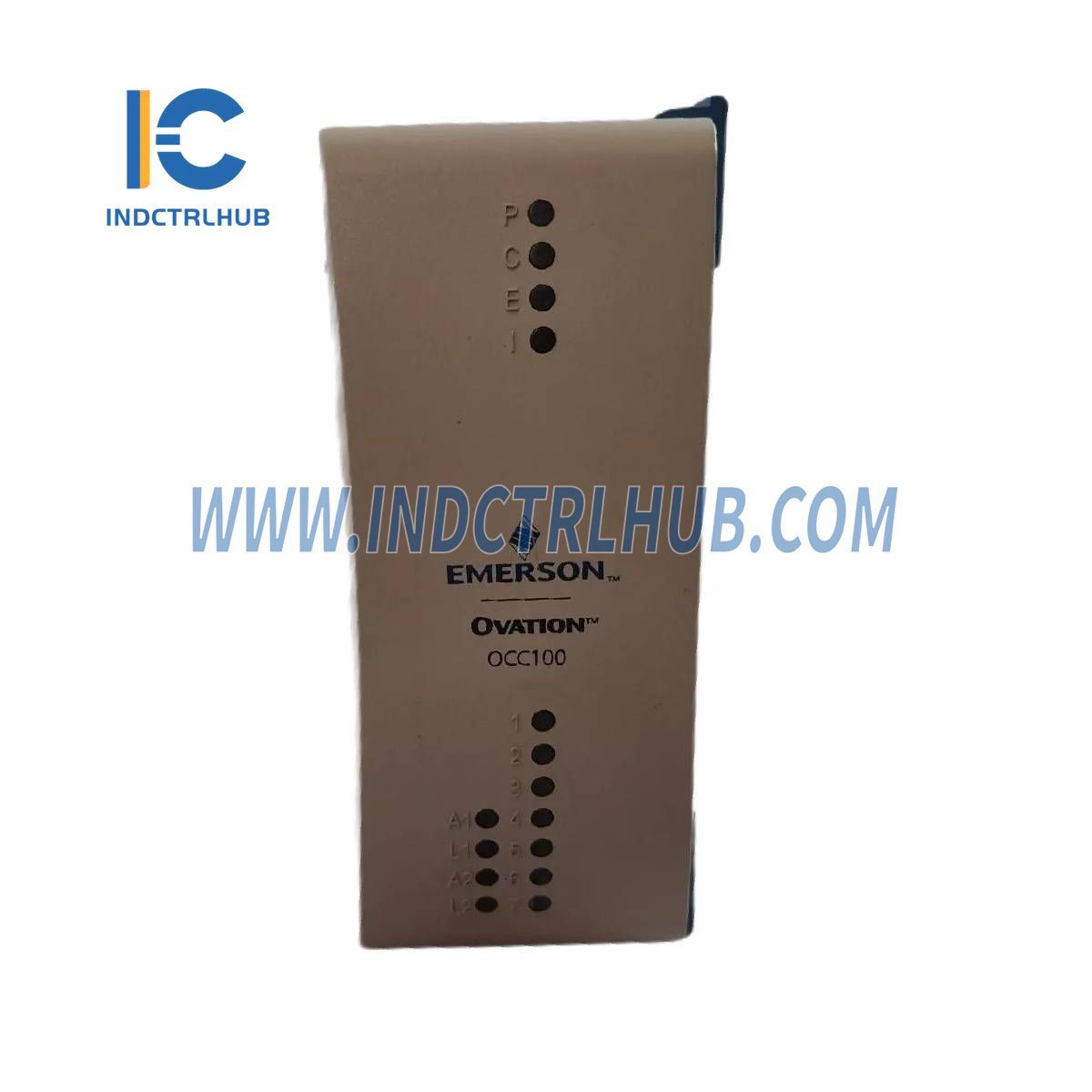

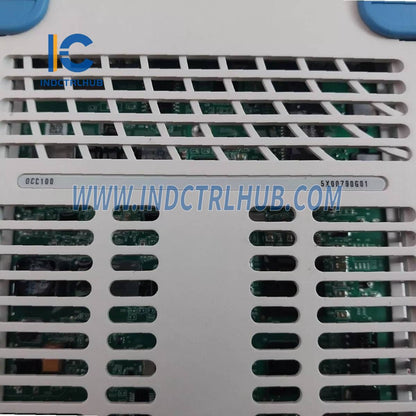

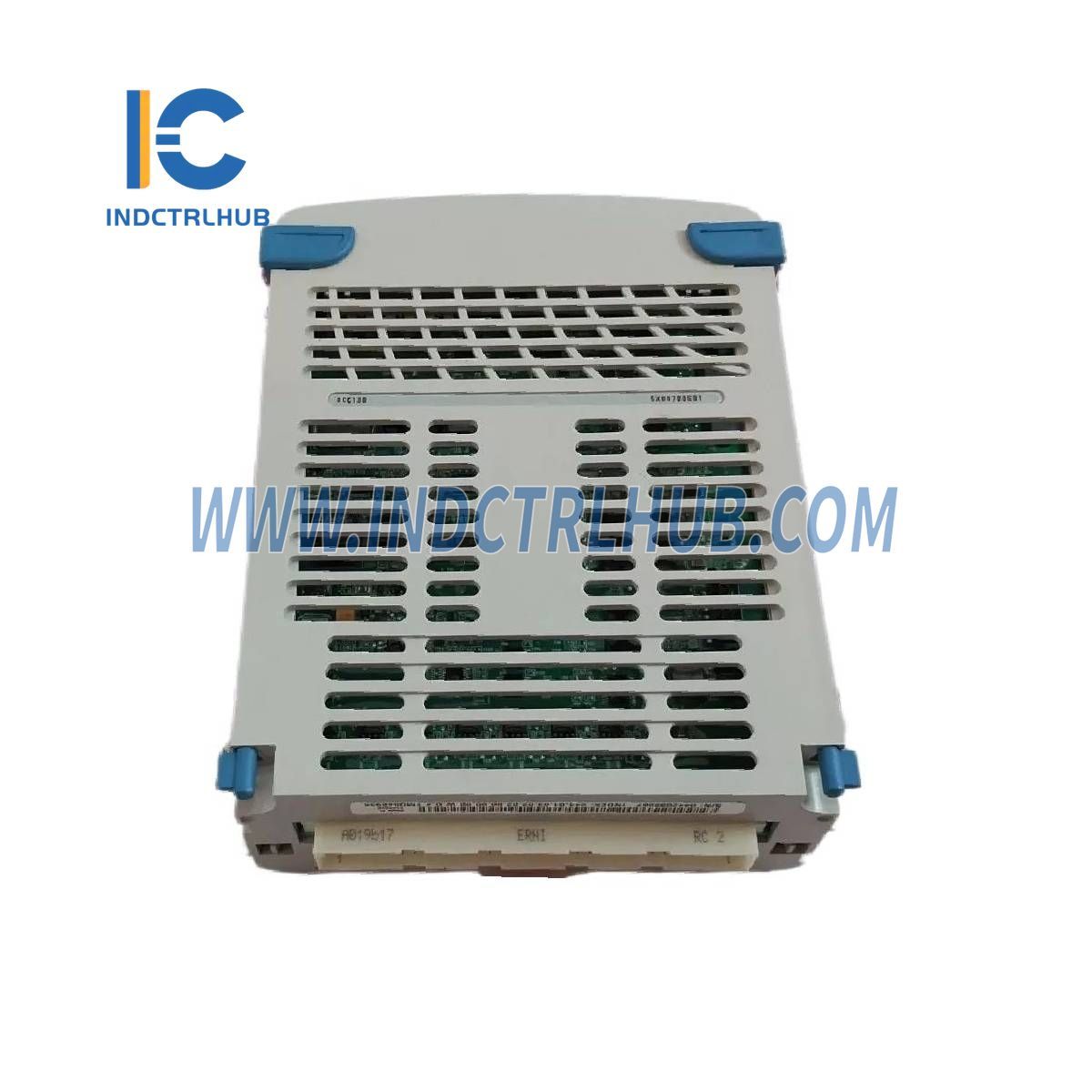

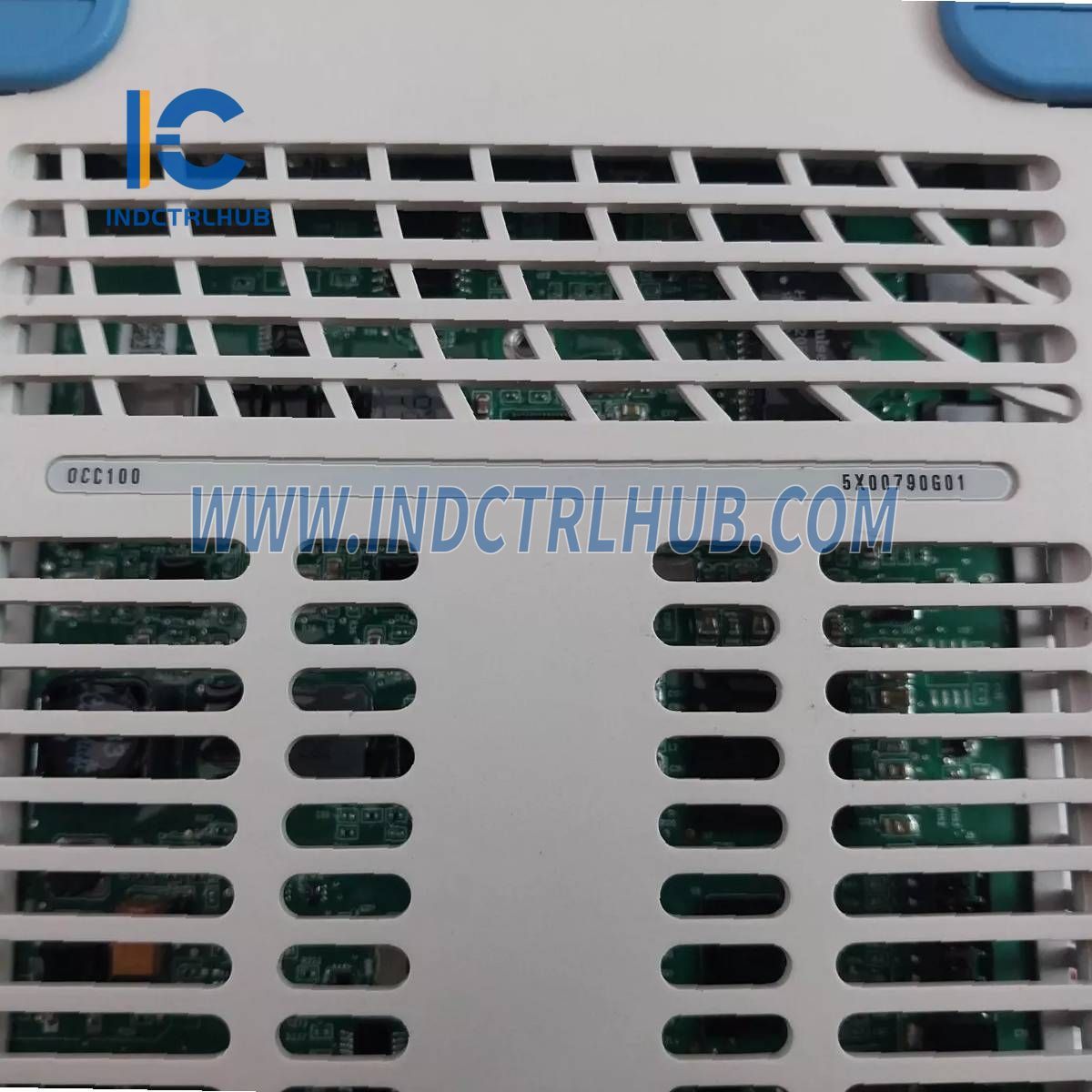

Emerson ‎‎Ovation OCC100 Ovation Compact Controller Model

Emerson ‎‎Ovation OCC100 Ovation Compact Controller Model

  • Manufacturer: Emerson

  • Product No.: OCC100

  • Condition:1000 in stock

  • Product Type: Ovation Compact Controller Model

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details - Emerson 5X00481G04

 Manufacturer: Emerson

 Model/Part Number: 5X00481G04

 Description: Ovation Controller CPU Card


Ovation Controller OCR1100 - Specifications


General Specifications

Item

Capability

Bus Structure

CompactPCI standard

Originated Points

Up to 32,000 points

Process Control Tasks

Up to 5 with different loop execution rates

Control Task Loop Execution Time

2 predefined at 1s & 100ms, 3 user-defined (10ms-30s)

Processor Base Frequency

1.1 GHz

Memory

1 GB Flash & 256 MB RAM

NIC Ports

4 x 10/100 Mb Ethernet (Options: 4 x RJ45 or 1 x RJ45 + 3 SFP Fiber)

Temperature

Ambient: 0-60°C (4x RJ45) / 0-50°C (1x RJ45 + 3 SFP Fiber)

Power

24 VDC, 40W

Humidity

0-95% RH

Size

20” W x 8” H x 7” D

Certifications

CE Mark

BootROM

OCR1100 only

Replacement

OCR400 replacement/OCR1100

Security

Achilles Level 1 certification

I/O Specifications

Item

Capability

Local Ovation I/O

Up to 16 branches (8 modules per branch, total 128 modules)

Local Q-Line I/O

1 node of 48 Q-line I/O cards

Extended Q-Line I/O

1 additional node of 48 Q-line I/O cards

Remote Node Interface

Up to 16 remote nodes (64 I/O modules per node)

Remote Ovation I/O

Up to 8 nodes (64 I/O modules per node)

Remote Q-Line I/O

Up to 8 nodes of 48 Q-line I/O cards

Smart Device Capability

FOUNDATION™ fieldbus, PROFIBUS, DeviceNet, Modbus/TCP, GE Mark V/VI GSM, Allen-Bradley DF-1

Cabinet Specifications

Item

Standard Controller Cabinet

Expansion Cabinet

Size (H x W x D)

79” x 24” x 24” (2006.6 x 609.6 x 609.6 mm)

79” x 24” x 24” (2006.6 x 609.6 x 609.6 mm)

Weight (Fully Configured)

426.25 lbs (191.81 kg)

396.25 lbs (178.31 kg)

Operating Temp.

0-50°C (4x RJ45) / 0-40°C (1x RJ45, 3x SFP)

0-60°C

Storage Temp.

-40 to 70°C (-40 to 158°F)

-40 to 70°C (-40 to 158°F)

Operating Humidity

0 - 95% (Non-condensing)

0 - 95% (Non-condensing)

Capacity

Redundant controllers, 32 I/O modules, 2 power supplies

Space for spares, 32 I/O modules, 2 power supplies






Product Details - Emerson OCC100

 Manufacturer: Emerson

 Model/Part Number: OCC100

 Description: Ovation Compact Controller Model


Ovation Compact Controller OCC100 - Specifications


Controller Module

Feature

Details

Processor

Xilinx Zynq SoC Dual Core 667 MHz Cortex A9 CPU

Memory

256 MB DDR3 SDRAM

Storage

1 GB USB Flash Drive with onboard clear & format capability

Hot-Swappable

Yes

Temperature Monitoring

Integrated

Controller Bases

Type

Features

Simplex Controller Base

8-pin terminal block, 1 x 9-pin D connector, DIN-rail mountable

Redundant Controller Base

Supports simplex/redundant configurations, 20-pin terminal block, 3 x 9-pin D connectors, DIN-rail mountable

I/O Bases

Type

Features

Two-Position Horizontal I/O Base

Accommodates 2 Ovation I/O modules, Cable-end plug-to-header connections, 20-pin terminal block for power

Four-Position Horizontal I/O Base

Accommodates 4 Ovation I/O modules, Heavy-duty screw clamp terminations, 20-pin terminal block for power

Remote Node Interface

Feature

Details

Max Remote Nodes

16

Max I/O Modules per Node

64

I/O Licensing Options

Tier

I/O Points

Tier 1

0 - 25

Tier 2

26 - 50

Tier 3

51 - 100

Tier 4

101 - 250

Tier 5

Unlimited

Smart Device Compatibility


Supports multiple protocols including:

 Allen-Bradley CSP/PCCC, DF1, EIP/PCCC

 DNP3, BACnet, Modbus, Siemens S7, GE Mark GSM

 IEC 61850 MMS, IEC 60870-5-101/103/104

 OPC UA, LoggerNet, Winteligence Server


Environmental Specifications

Feature

Details

Operating Temperature

-20°C to +70°C

Certifications

IEC61131-2, CE Mark

Ethernet & Power

Feature

Details

Ethernet Ports

2 per module, 10/100/1000 Base-T, RJ45

Power (Simplex Controller)

24V Main Power: 5.8W (typical), 6.4W (max)

Power Supply Assemblies

5-amp units (Simplex, Redundant, Auxiliary options)



View full details
