Product Description
Product Overview

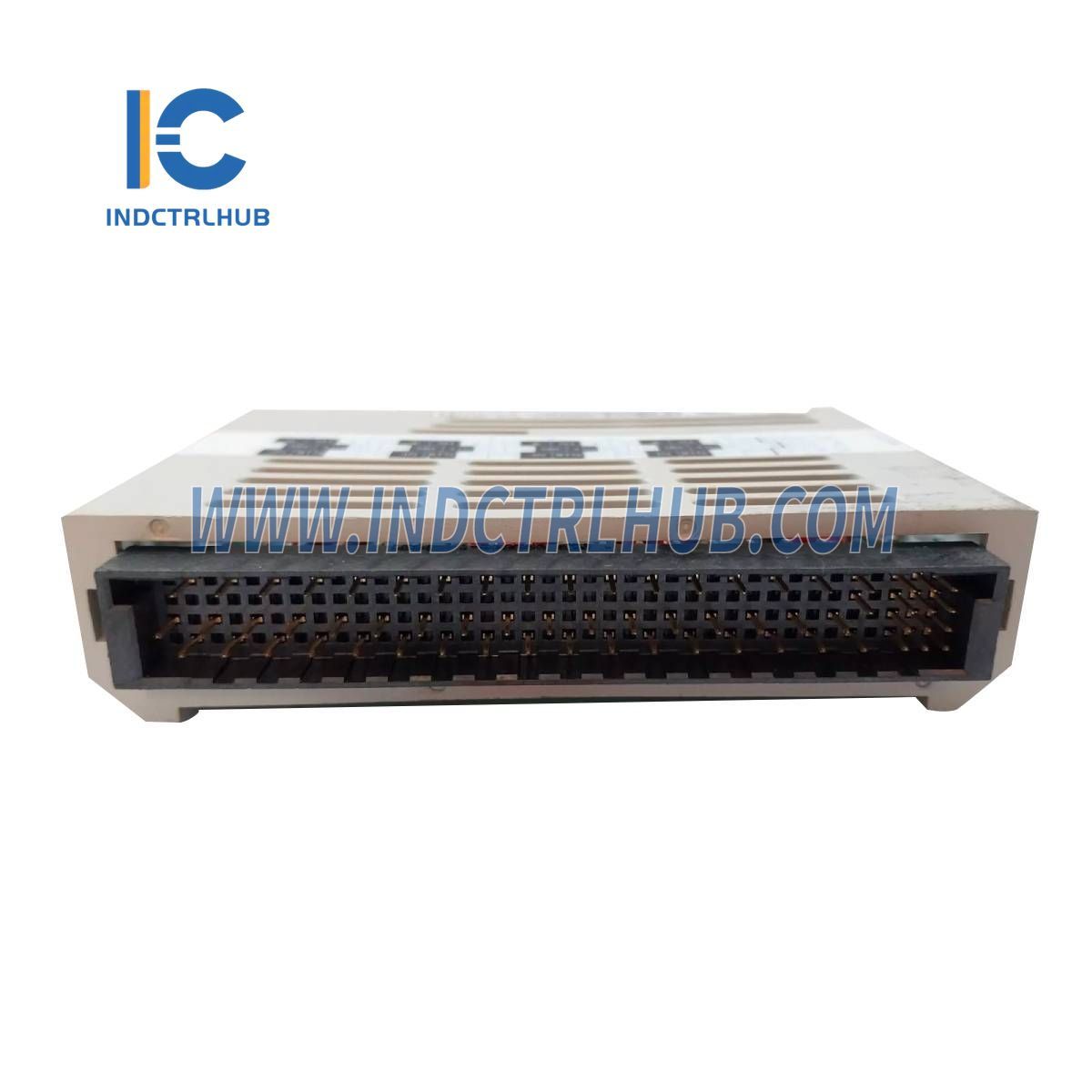

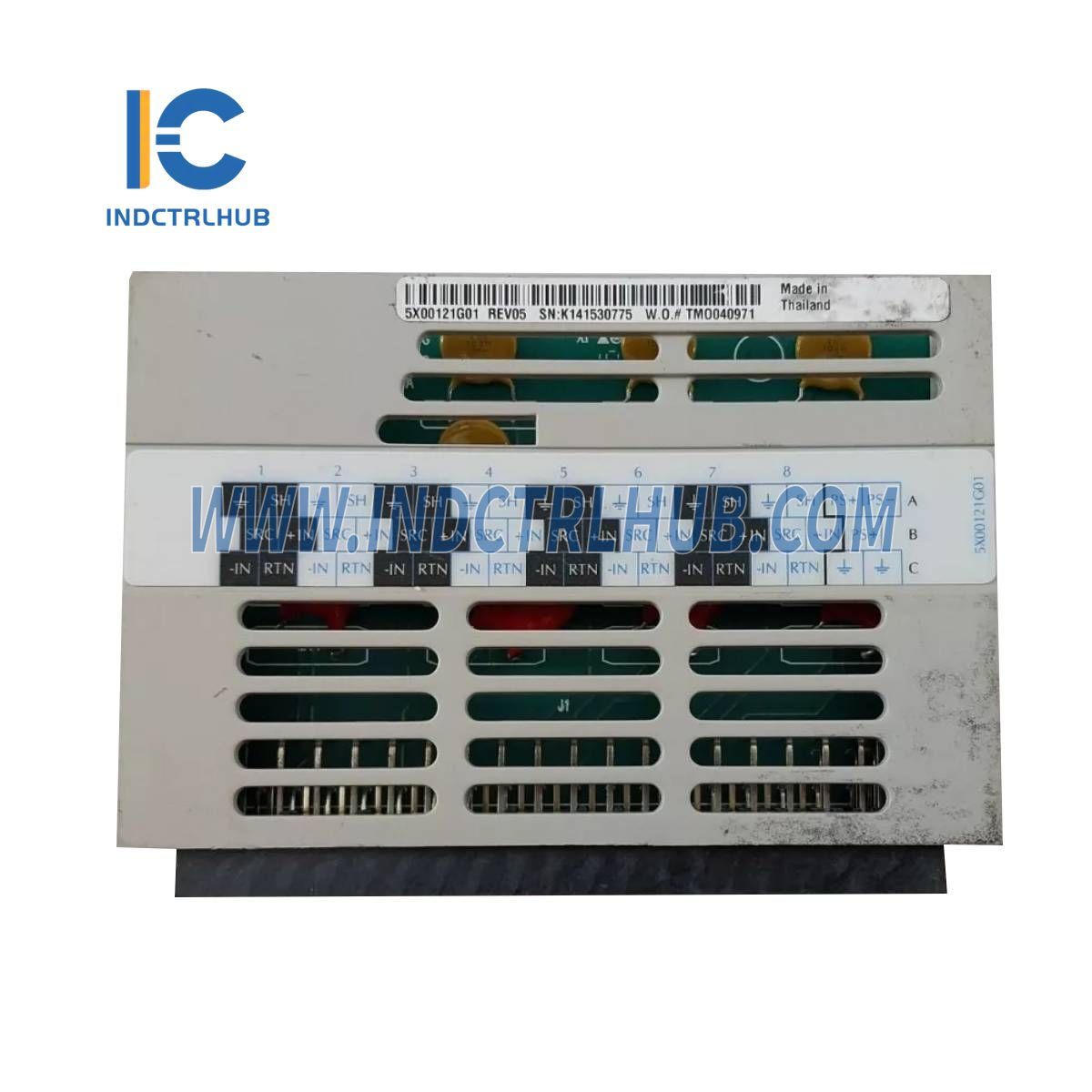

The Emerson 5X00121G01 is an 8-Channel RTD Input Module designed for the Ovation Distributed Control System (DCS) by Emerson. This module functions as a personality module paired with an electronics module (typically 5X00119G01) to convert resistance temperature detector (RTD) inputs into digital data for process monitoring. It supports eight independent channels, making it suitable for precise temperature measurement in industrial applications such as power generation, oil & gas, and chemical processing.
Technical Specifications
The 5X00121G01 has the following specifications based on standard characteristics for this model:
| Item | Specification |
|---|---|
| Model/Part Number | 5X00121G01 |
| Manufacturer | Emerson |
| Description | 8-Channel RTD Input Personality Module |
| Series | Ovation DCS |
| Input Channels | 8 RTD inputs |
| Input Type | RTD (2-wire, 3-wire, or 4-wire; e.g., Pt100, Pt200) |
| Temperature Range | -200°C to 850°C (-328°F to 1562°F) |
| Resolution | 16 bits |
| Power Supply | Supplied via Ovation electronics module (5 VDC typical) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | 0.25 kg |
Additional Details
The 5X00121G01 includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Converts RTD resistance signals to digital data |
| Mounting | Installs with Ovation electronics module in I/O rack |
| Compatibility | Ovation electronics module 5X00119G01, Ovation controllers |
| Features | Supports multiple RTD types, high accuracy (±0.1% full scale), fault detection |
| Certifications | Meets UL and CE standards (non-CE Mark systems) |
| Part Type | New, surplus, or refurbished (depending on supplier) |
