Product Description
Product Overview

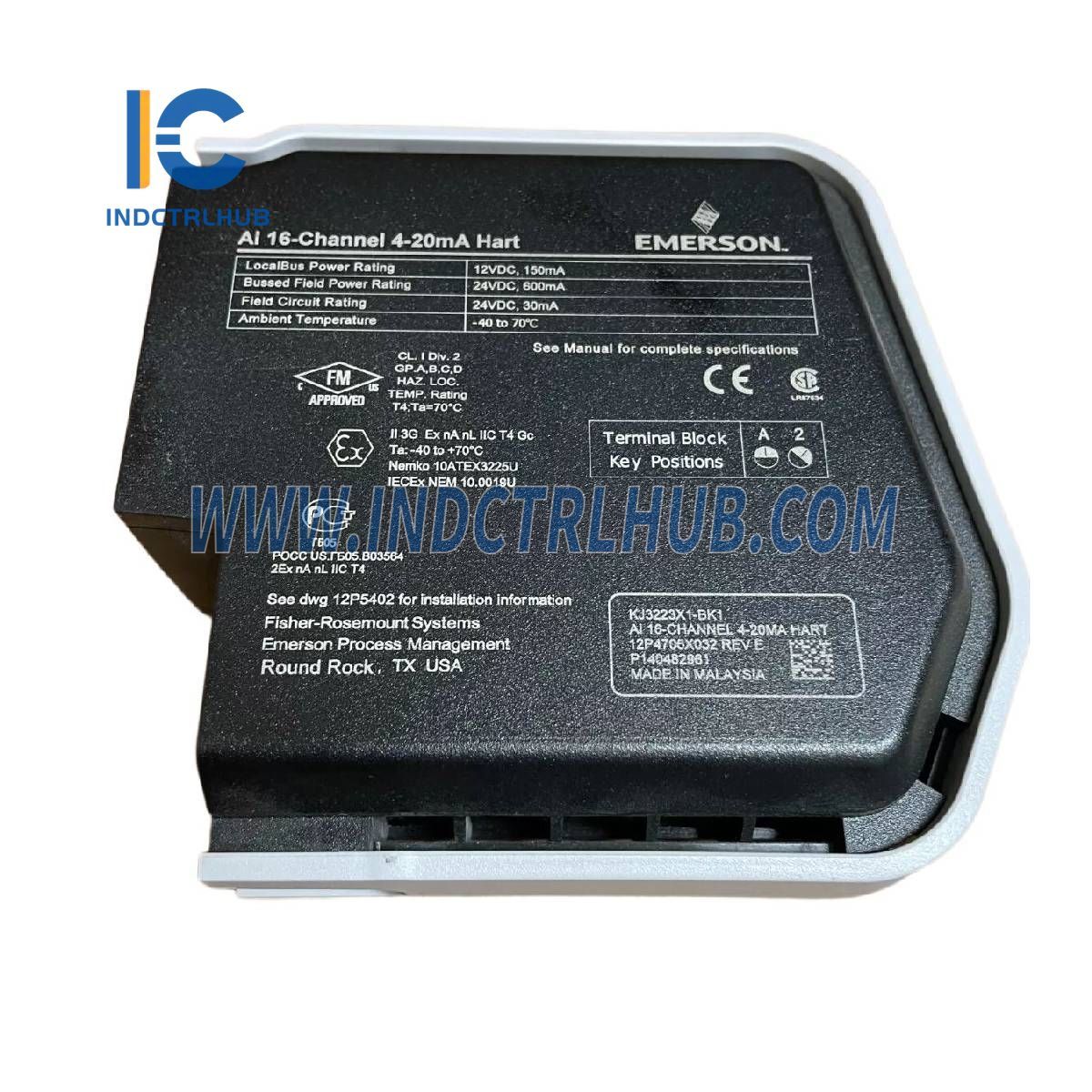

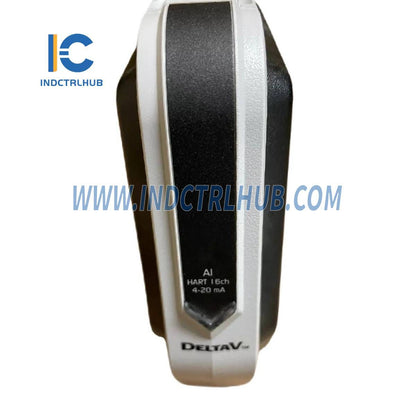

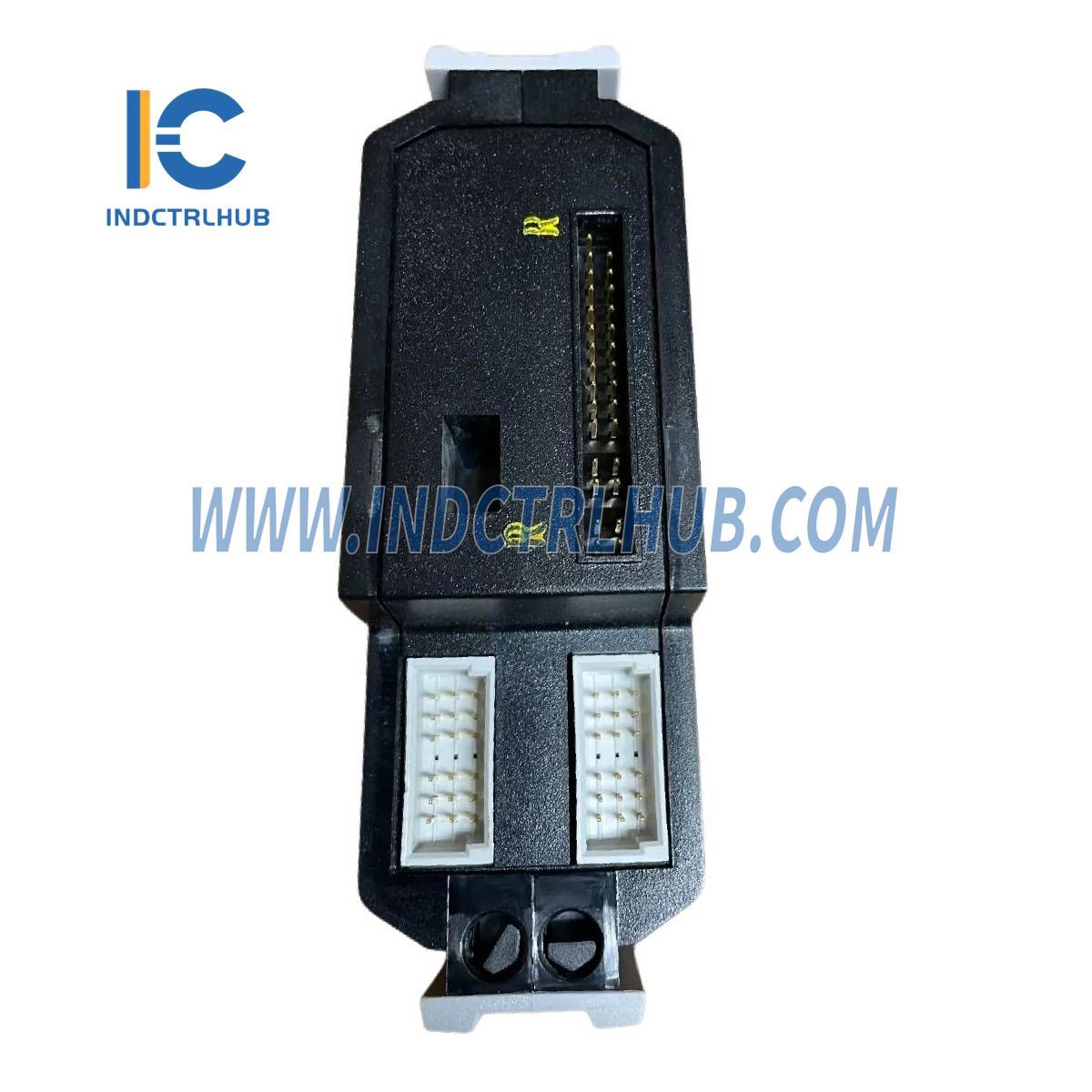

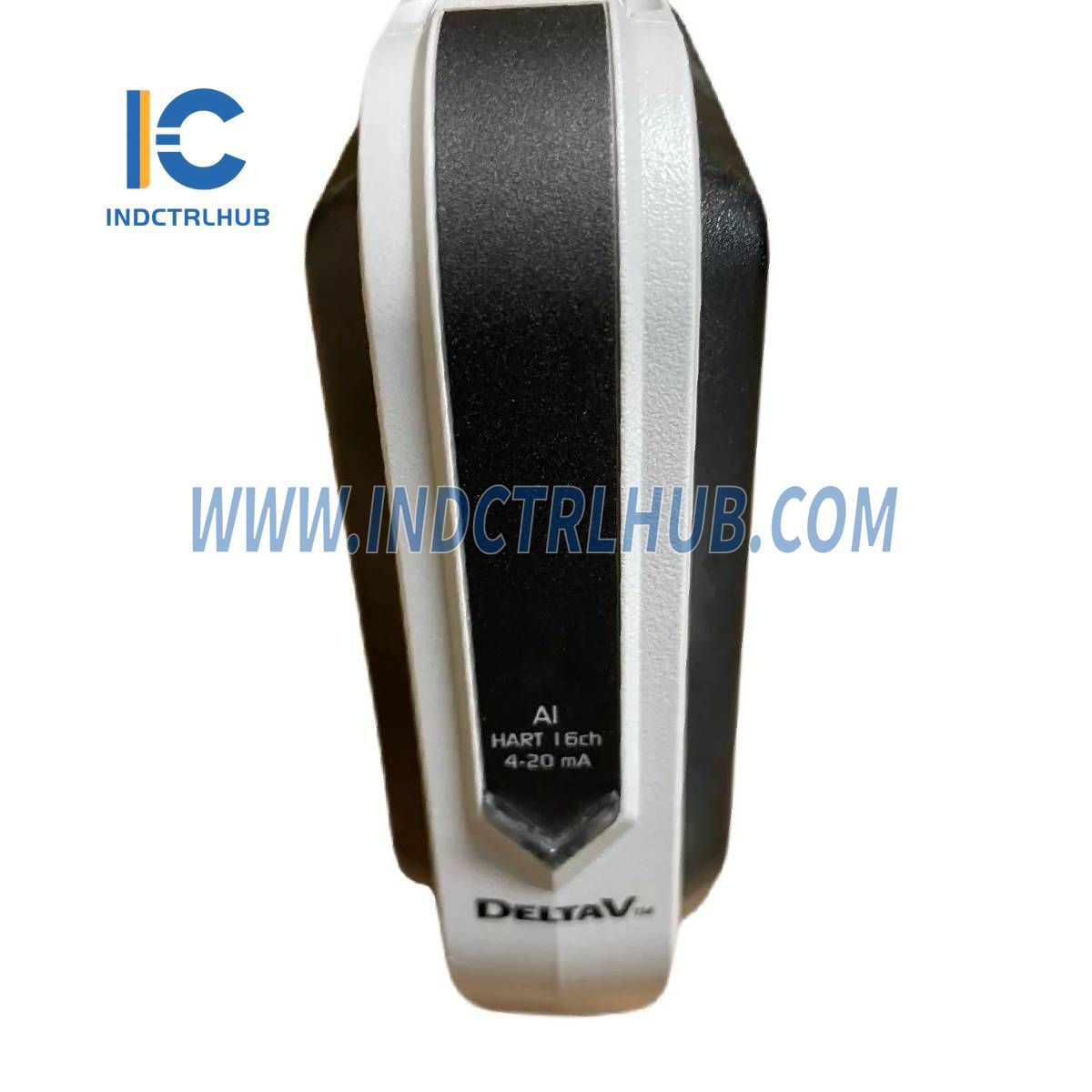

The Emerson KJ3223X1-BK1 is an S-Series Analog Input (AI) Module with 16 channels, supporting 4-20mA HART communication. It is designed for high-accuracy process control applications in industrial environments.
Key Features
• 16-channel analog input for precise signal measurement.
• Supports 4-20mA HART communication for enhanced device diagnostics.
• Designed for operation in harsh industrial environments.
Technical Specifications
Power Specifications
|
Parameter |
Specification |
|---|---|
|
Local Bus Power |
12 VDC at 150 mA |
|
Bussed Field Power |
24 VDC at 600 mA |
|
Field Circuit |
24 VDC at 30 mA/Channel |
Environmental Specifications
|
Parameter |
Specification |
|---|---|
|
Ambient Temperature |
-40°C to +70°C |
|
Shock Resistance |
10g half-sine wave for 11 ms |
|
Vibration Resistance |
1mm Peak to Peak (2–13.2Hz), 0.7g (13.2–150Hz) |
|
Airborne Contaminants |
ISA-S71.04-1985 Class G3 |
|
Relative Humidity |
5% to 95% Non-Condensing |
|
Terminal Block Key Position |
A2 |
