Product Description
Product Overview

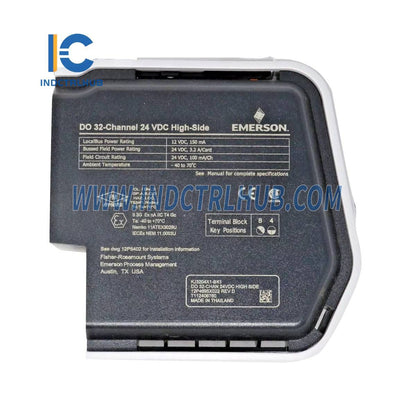

The Emerson KJ3204X1-BK1 is an S-Series DO 32-Channel 24 VDC Module, designed to provide high-performance digital output (DO) capabilities for industrial automation systems.
Key Features
• 32-channel digital output module for efficient process control.
• High-current handling per channel, ensuring reliable field device operation.
• Designed for harsh industrial environments with robust environmental specifications.
Technical Specifications
Power Specifications
|
Parameter |
Specification |
|---|---|
|
Local Bus Power |
12V DC at 150mA |
|
Bussed Field Power |
24V DC at 3.2A per card |
|
Field Circuit Power |
24V DC at 100mA per channel |
Environmental Specifications
|
Parameter |
Specification |
|---|---|
|
Ambient Temperature |
-40°C to +70°C |
|
Shock Resistance |
10g half-sine wave for 11 ms |
|
Vibration Resistance |
1mm Peak to Peak (2–13.2Hz), 0.7g (13.2–150Hz) |
|
Airborne Contaminants |
ISA-S71.04-1985 Class G3 |
|
Relative Humidity |
5% to 95% Non-Condensing |
|
Terminal Block Key Position |
B4 |
