Product Description
Product Overview

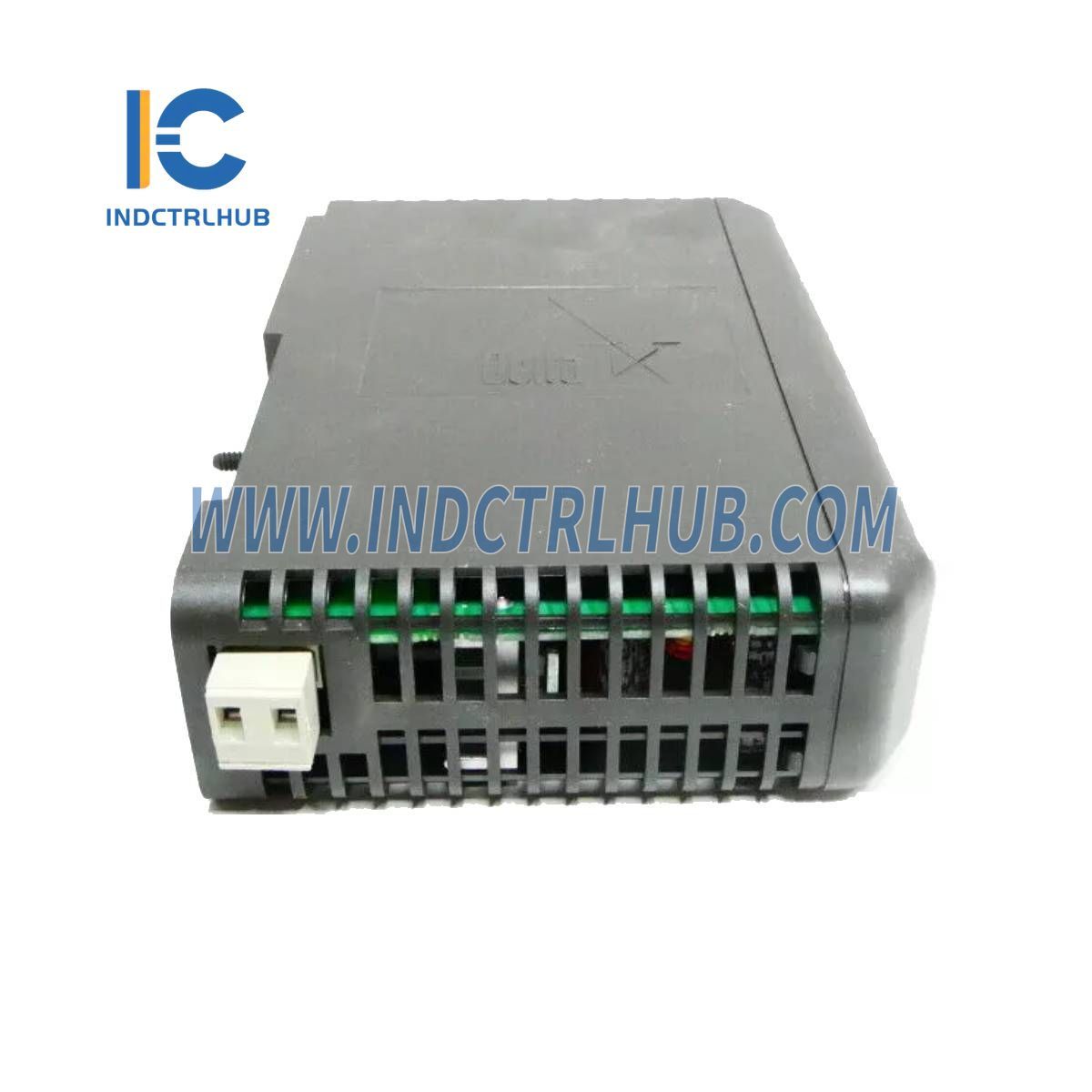

The Emerson KJ1501X1-BA2 System DC Power Supply S-Series (DC/DC) is designed to provide reliable power conversion and distribution for industrial automation systems. It supports multiple output voltage levels and is built to withstand harsh environmental conditions, making it an ideal solution for Emerson’s DeltaV S-Series control systems.
Key Features
• Multiple output voltages to support various system components.
• Robust environmental resistance, including shock, vibration, and airborne contaminants.
• Designed for continuous operation in industrial environments.
• Compact form factor for seamless integration into control systems.
Technical Specifications
Power Specifications
|
Parameter |
Specification |
|---|---|
|
Input Rating |
24 VDC at 4.5 A |
|
Output Power (at -40°C to +60°C) |
12 VDC at 8 A 5.1 VDC at 2.0 A 3.4 VDC at 2.0 A |
|
Output Power (at -40°C to +70°C) |
12 VDC at 6 A |
Environmental Specifications
|
Parameter |
Specification |
|---|---|
|
Ambient Temperature |
-40°C to +60°C (full operation) -40°C to +70°C (with output de-rating) |
|
Shock Resistance |
10g ½ sine wave for 11 ms |
|
Vibration Resistance |
1 mm peak-to-peak from 2 Hz to 13.2 Hz 0.7g from 13.2 Hz to 150 Hz |
|
Airborne Contaminants |
ISA-S71.04-1985 Class G3 (Conformal coating) |
|
Relative Humidity |
5% to 95%, non-condensing |
