Product Description
Product Details
General Information
|
Manufacturer |
Emerson |
|---|---|
|
Model/Part Number |
PR6423/010-110-CN |
|
Description |

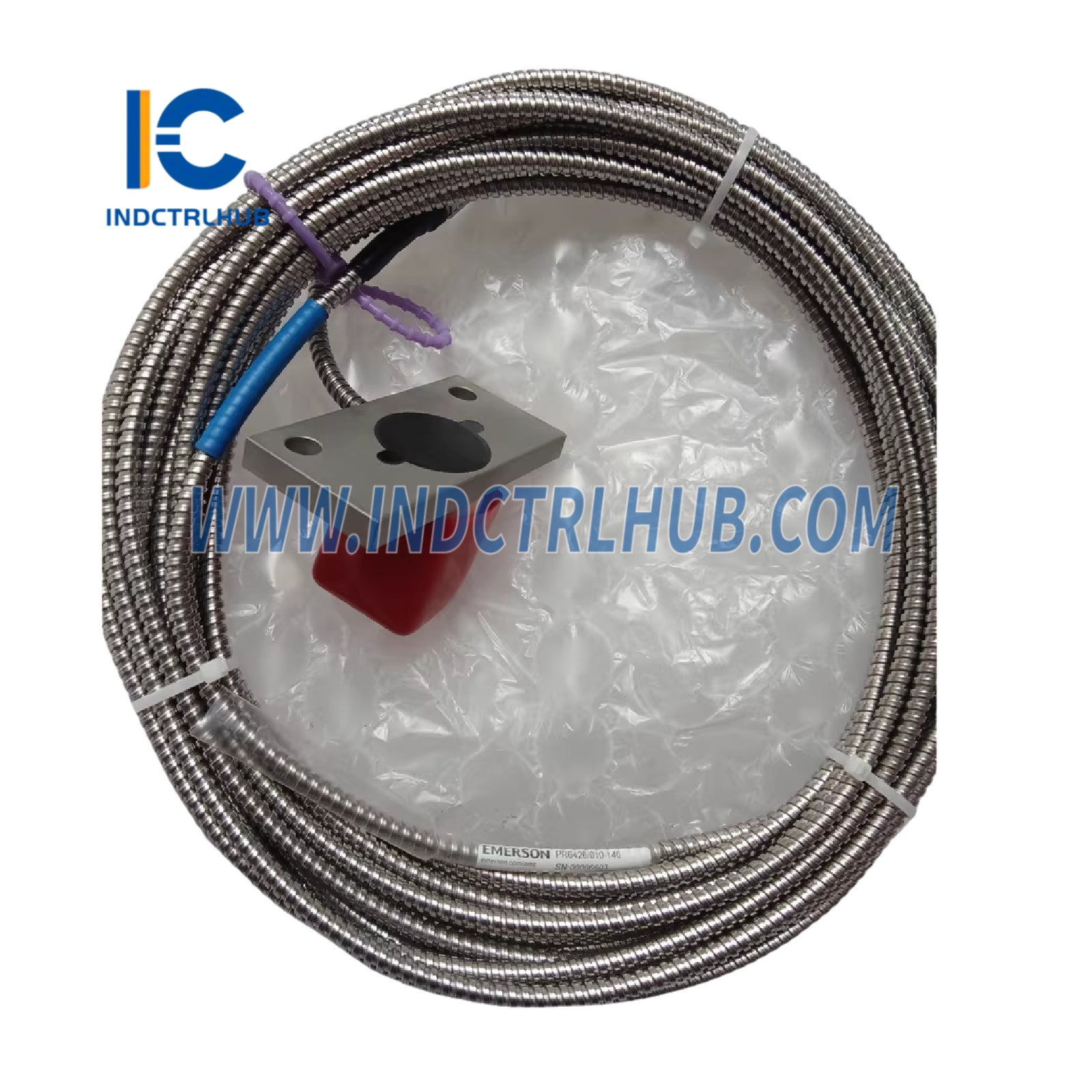

8mm Eddy Current Sensor |
Technical Data
Performance
|
Feature |
Specification |
|---|---|
|
Linear Measurement Range |
2 mm (80 mils) |
|
Initial Air Gap |
0.5 mm (20 mils) |
|
Incremental Scale Factor (ISF) |
ISO: 8 V/mm (203.2 mV/mil) ± 5% @ 0 to 45°C (+32 to +113°F) |
|
Deviation from Best Fit Straight Line (DSL) |
± 0.025 mm (± 1 mil) @ 0 to 45°C (+32 to +113°F) |
Measuring Target
|
Feature |
Specification |
|---|---|
|
Minimum Shaft Diameter |
25 mm (0.79”) |
|
Target Material |
Ferromagnetic Steel (42CrMo4 / AISI 4140) |
|
Other Material Options |
Available on request |
Environmental & General
|
Feature |
Specification |
|---|---|
|
Protection Class |
IP66 (IEC 60529) |
|
Operating Temperature - Sensor (incl. 1m Cable) |
-35 to +180°C (-31 to 356°F) |
|
Operating Temperature - Cable & Connector |
-35 to +150°C (-31 to 302°F) |
|
Sensor Tip Material |
PEEK (Polyether Ether Ketone) |
|
Case Material |
Stainless Steel |
|
Cable Material |
PTFE (Polytetrafluoroethylene) |
|
Connector Material |
Brass, Nickel-plated |
|
Weight (Sensor with 1m Cable) |
Approx. 100 grams (3.53 oz) |
Ordering Information
Model Selection Based on Thread and Armored Cable
|
Tip Diameter |
Case Threads |
Armored Cable |
Model Number |
|---|---|---|---|
|
8mm |
M10x1 |
No |
PR6423/00 |
|
8mm |
M10x1 |
Yes |
PR6423/01 |
|
8mm |
M10x1 |
Yes (Reverse Mount) |
PR6423/03* |
|
8mm |
3/8”-24 UNF |
No |
PR6423/10 |
|
8mm |
3/8”-24 UNF |
Yes |
PR6423/11 |
|
8mm |
3/8”-24 UNF |
Yes (Reverse Mount) |
PR6423/13* |
*Armored cable option for Reverse Mount, if Adapter Plug is chosen.
Configuration Options
|
Model No. |
Case Thread (X) |
Adapter Plug (X) |
Cable Length (X) |
Cable End (X) |
|---|---|---|---|---|
|
PR6423/00 |
0 (25mm) |
0 (With) |
0 (4.0m) |
0 (Lemo*) |
|
PR6423/01 |
1 (35mm) |
1 (Without) |
1 (5.0m) |
1 (Open) |
|
PR6423/10 |
2 (45mm) |
X |
3 (8.0m) |
X |
|
PR6423/11 |
3 (55mm) |
X |
F (9.0m) |
X |
|
PR6423/03 |
4 (65mm) |
X |
4 (10.0m) |
X |
|
PR6423/13 |
5 (75mm) |
X |
X |
X |
|
Reverse Mount Options |
R |
X |
X |
X |
