Product Description
General Information
|
Manufacturer |
Emerson |
|---|---|
|
Model/Part Number |
CON041+PR6423/00R-111 |
|
Description |

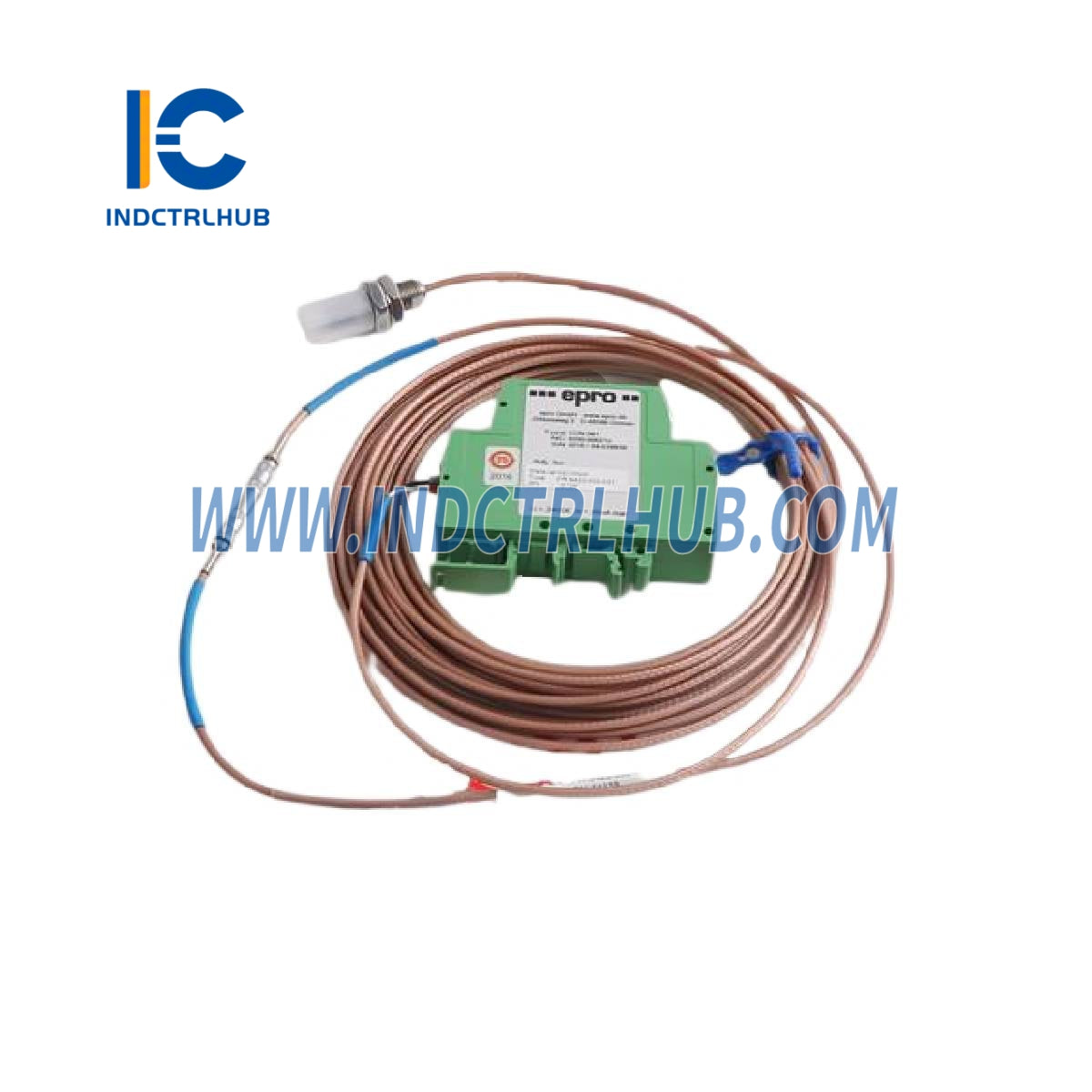

Eddy Current Signal Converter with Sensor |
CON041 Eddy Current Signal Converter
Dynamic Performance
|
Parameter |
Value |
|---|---|
|
Frequency Range (-3 dB) |
0 to 20,000 Hz |
|
Rise Time |
<15µs |
|
Compatible Sensors |
PR6422, PR6423, PR6424, PR6425, PR6426 |
|
Extended Range Use |
CON041/91x-xxx (PR6425 Requires Extended Range Converter) |
Environmental
|
Parameter |
Value |
|---|---|
|
Operating Temperature Range |
-30 to 100°C (-22 to 212°F) |
|
Shock and Vibration |
5g @ 60Hz @ 25°C (77°F) |
|
Protection Class |
IP20 |
Power & Electrical
|
Parameter |
Value |
|---|---|
|
Supply Voltage Range |
-23V to -32V (Output Range: -4V to -20V) |
|
Alternative Supply Voltage Range |
-21V to -32V (Output Range: -2V to -18V) |
Physical
|
Parameter |
Value |
|---|---|
|
Housing Material / Weight |
PA 6.6 / ~60 grams (2.12 oz) |
|
Mounting |
DIN Rail |
|
Connections |
Screw Terminal (Max. 1.5mm², Wire-end Sleeves) |
Ordering Information for CON041
|
Model Number |
Sensor Type |
Measuring Range |
Linearity Error |
|---|---|---|---|
|
CON041 |
PR6422, PR6423, PR6424, PR6426 |
1.0mm to 8.0mm (Standard Range) |
≤ 1.5% |
|
CON041/913-030 |
PR6423 |
3.0mm (Extended Range) |
≤ 1.5% |
|
CON041/913-040 |
PR6423 |
4.0mm (Extended Range) |
≤ 2.0% |
PR6423 8mm Eddy Current Sensor
Performance
|
Parameter |
Value |
|---|---|
|
Linear Measurement Range |
2 mm (80 mils) |
|
Initial Air Gap |
0.5 mm (20 mils) |
|
Incremental Scale Factor (ISF) |
8 V/mm (203.2 mV/mil) ± 5% @ 0 to 45°C |
|
Deviation from Best Fit Straight Line (DSL) |
± 0.025 mm (± 1 mil) @ 0 to 45°C |
Measuring Target
|
Parameter |
Value |
|---|---|
|
Minimum Shaft Diameter |
25 mm (0.79”) |
|
Target Material |
42CrMo4 (AISI/SAE 4140) Standard (Others on Request) |
Environmental, General
|
Parameter |
Value |
|---|---|
|
Protection Class |
IP66, IEC 60529 |
|
Operating Temperature (Sensor incl. 1m Cable) |
-35 to +180°C (-31 to 356°F) |
|
Operating Temperature (Cable & Connector) |
-35 to +150°C (-31 to 302°F) |
Material
|
Component |
Material |
|---|---|
|
Sensor Tip |
PEEK (Polyether Ether Ketone) |
|
Case |
Stainless Steel |
|
Cable |
PTFE (Polytetrafluoroethylene) |
|
Connector |
Brass, Nickel-plated |
Physical
|
Parameter |
Value |
|---|---|
|
Weight (Sensor with 1m Cable) |
Approx. 100 grams (3.53 oz) |
Ordering Information for PR6423
|
Tip Diameter |
Case Threads |
Armored Cable |
Model No. |
|---|---|---|---|
|
8mm |
M10x1 |
No |
PR6423/00 |
|
8mm |
M10x1 |
Yes |
PR6423/01 |
|
8mm |
3/8”-24 UNF |
No |
PR6423/10 |
|
8mm |
3/8”-24 UNF |
Yes |
PR6423/11 |
Additional Options:
• Reverse Mount Option: Available
• Cable Lengths: 4.0m, 5.0m, 8.0m, 9.0m, 10.0m
• Cable End Types: Lemo Connector, Open End
