Product Description
General Information
|
Manufacturer |
Emerson |
|---|---|
|
Model/Part Number |
CON041+PR6423/004-030 |
|
Description |

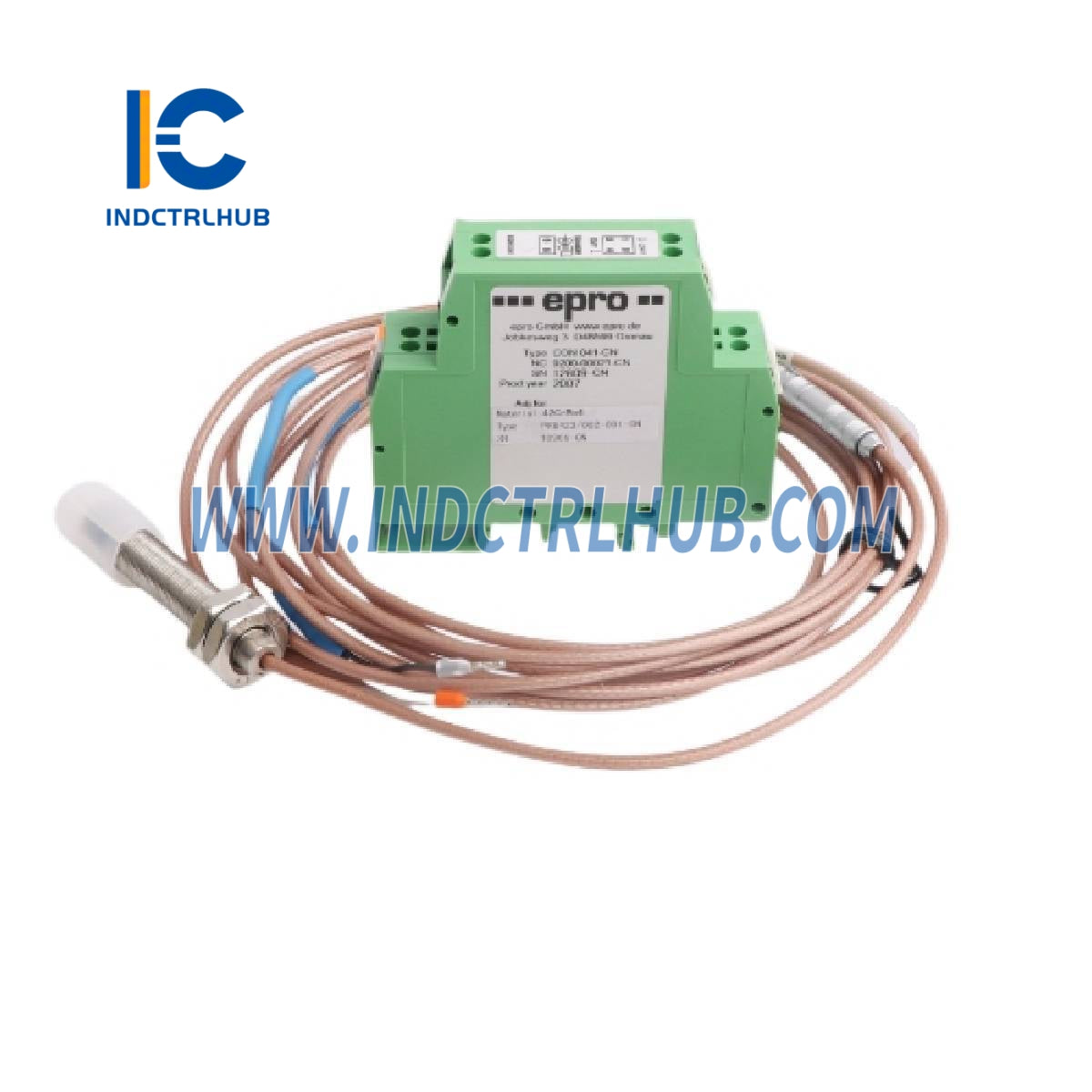

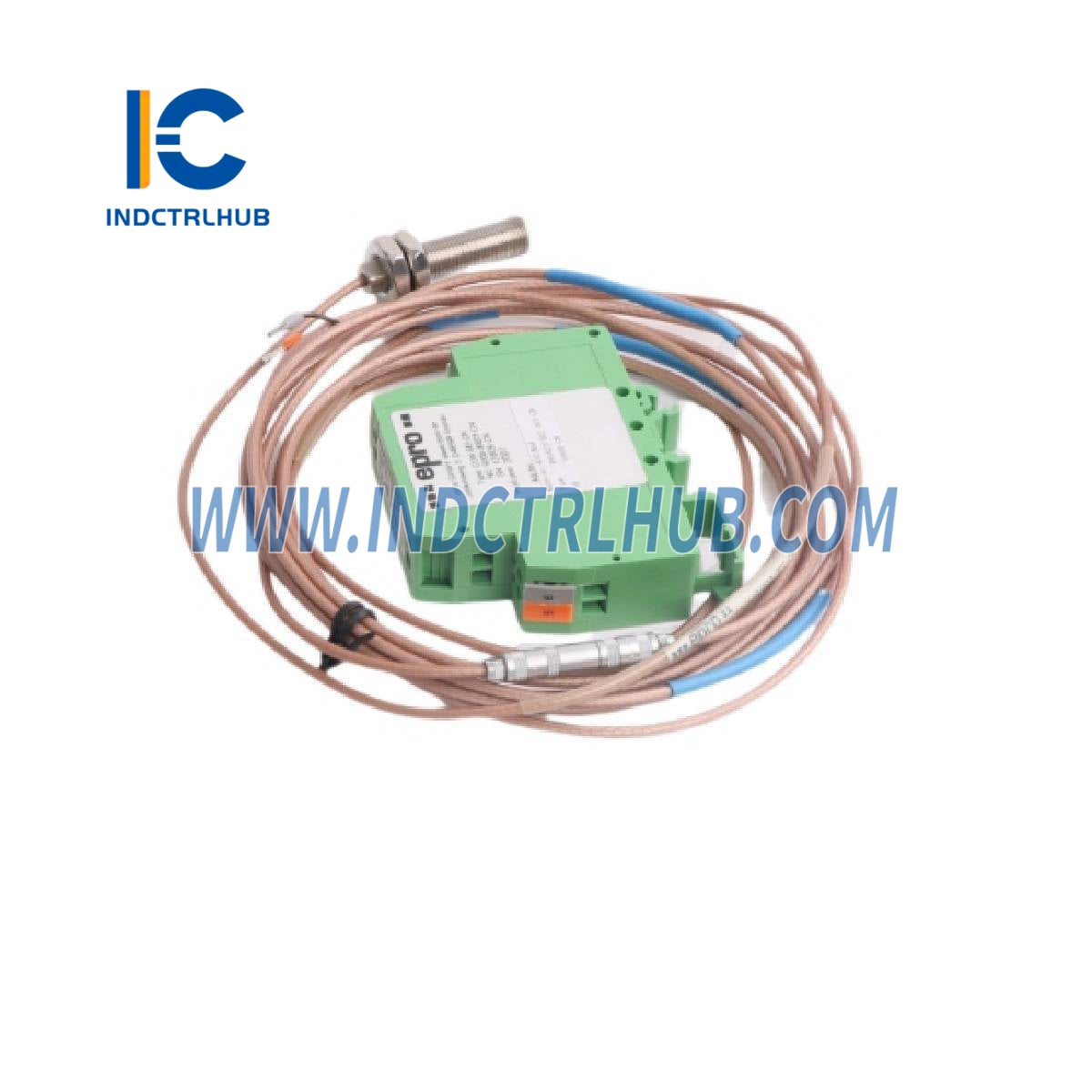

Eddy Current Signal Converter with Sensor |
CON041 Eddy Current Signal Converter
Dynamic Performance
|
Parameter |
Value |
|---|---|
|
Frequency Range (-3 dB) |
0 to 20,000 Hz |
|
Rise Time |
<15µs |
|
Compatible Sensors |
PR6422, PR6423, PR6424, PR6425, PR6426 |
|
Extended Range Use |
CON041/91x-xxx |
|
PR6425 Requirement |
Requires Extended Range Converter |
Environmental Limits
|
Parameter |
Value |
|---|---|
|
Operating Temperature Range |
-30 to 100°C (-22 to 212°F) |
|
Shock and Vibration |
5g @ 60Hz @ 25°C (77°F) |
|
Protection Class |
IP20 |
Power & Electrical
|
Parameter |
Value |
|---|---|
|
Supply Voltage Range |
-23V to -32V (Output Range: -4V to -20V) -21V to -32V (Output Range: -2V to -18V) |
Physical Characteristics
|
Parameter |
Value |
|---|---|
|
Housing Material |
PA 6.6 |
|
Weight |
~60 grams (2.12 oz) |
|
Mounting |
DIN Rail |
|
Connections |
Screw Terminal (Max. 1.5mm², Wire-end Sleeves) |
Ordering Information for CON041
|
Model Number |
Sensor Type |
Measuring Range |
Linearity Error |
|---|---|---|---|
|
CON041 |
PR6422, PR6423, PR6424, PR6426 |
1.0mm - 8.0mm (Standard Range) |
≤ 1.0% - 1.5% |
|
CON041/913-030 |
PR6423 |
3.0mm (Extended Range) |
≤ 1.5% |
|
CON041/913-040 |
PR6423 |
4.0mm (Extended Range) |
≤ 2.0% |
PR6423 - 8mm Eddy Current Sensor
Performance
|
Parameter |
Value |
|---|---|
|
Linear Measurement Range |
2 mm (80 mils) |
|
Initial Air Gap |
0.5 mm (20 mils) |
|
Sensitivity/ISF |
8 V/mm (203.2 mV/mil) ± 5% |
|
Deviation from Best Fit Straight Line (DSL) |
± 0.025 mm (± 1 mil) |
Measuring Target
|
Parameter |
Value |
|---|---|
|
Minimum Shaft Diameter |
25 mm (0.79”) |
|
Target Material |
Ferromagnetic Steel (42CrMo4 / AISI/SAE 4140) |
Environmental Limits
|
Parameter |
Value |
|---|---|
|
Protection Class |
IP66 (IEC 60529) |
|
Operating Temperature - Sensor & 1m Cable |
-35 to 180°C (-31 to 356°F) |
|
Operating Temperature - Cable & Connector |
-35 to 150°C (-31 to 302°F) |
Physical Characteristics
|
Parameter |
Value |
|---|---|
|
Material |
Sensor Tip - PEEK (Polyether Ether Ketone) Case - Stainless Steel Cable - PTFE (Polytetrafluoroethylene) Connector - Brass (Nickel-plated) |
|
Weight (Sensor with 1m Cable) |
~100 grams (3.53 oz) |
Ordering Information for PR6423
|
Tip Diameter |
Case Threads |
Armored Cable |
Model No. |
|---|---|---|---|
|
8mm |
M10x1 |
No |
PR6423/00 |
|
8mm |
M10x1 |
Yes |
PR6423/01, PR6423/03* |
|
8mm |
3/8”-24 UNF |
No |
PR6423/10 |
|
8mm |
3/8”-24 UNF |
Yes |
PR6423/11, PR6423/13* |
*Armored cable option for Reverse Mount, if Adapter Plug is chosen.
Additional Customization Options
|
Model No. |
Case Thread |
Adapter Plug |
Cable Length |
Cable End |
|---|---|---|---|---|
|
PR6423/00, PR6423/01, PR6423/10, PR6423/11 |
Various (25mm - 195mm) |
With / Without |
4m - 10m |
LEMO / Open |
