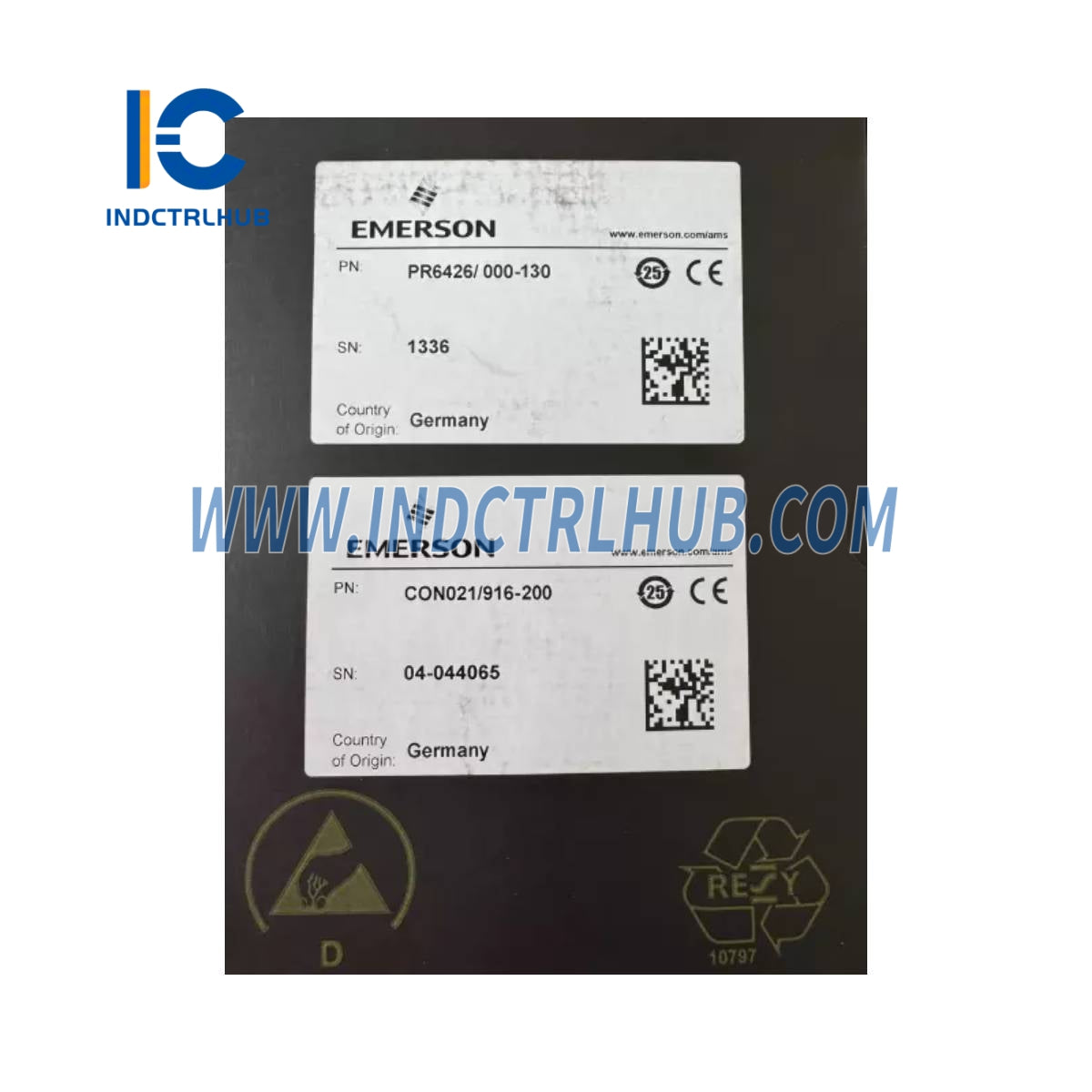

Emerson EPRO ‎‎CON021/916-200+PR6426/000-130 Eddy Current Signal Converter with Sensor

Frequency Range (-3 dB)

0 to 20000 Hz

Rise Time

<15 µs

Supported Sensor Models

PR6422, PR6423, PR6424, PR6425, PR6426, PR6453

Extended Range Converter

Required for PR6425

Operating Temperature Range

-30 to 100°C (-22 to 212°F)

Shock and Vibration

5g @ 60 Hz @ 25°C (77°F)

Protection Class

IP20

Supply Voltage Range

-23V to -32V (Output: -4V to -20V)

-21V to -32V (Output: -2V to -18V)

Housing Material

LMgSi 0.5 F22

Weight

~120 grams (4.24 oz)

Mounting

4 Screws M5x20 (Included)

Connections

Self-Locking Lemo-Plug (Transducer)

Supply/Output Connections

Screw Terminal Type (max. 1.5mm² wire)

CON021

PR6422

1.0mm (Standard)

≤ 1.5%

PR6423

2.0mm (Standard)

≤ 1.0%

PR6424

4.0mm (Standard)

≤ 1.5%

PR6426

8.0mm (Standard)

≤ 1.5%

CON021/916-200

PR6426

20.0mm (Extended)

≤ 2.5%

Sensitivity

2 V/mm (50.8 mV/mil) ≤ ±1.5% max

Air Gap (Center)

Approx. 5.5 mm (0.22”) Nominal

Long Term Drift

< 0.3%

Static Range

±4.0 mm (0.157”)

Target/Surface Material

Ferromagnetic Steel (42 Cr Mo 4 Standard)

Maximum Surface Speed

2,500 m/s (98,425 ips)

Shaft Diameter

≥200 mm (7.87”)

Operating Temperature Range

-35 to 175°C (-31 to 347°F)

Temperature Excursions (<4 Hours)

200°C (392°F)

Maximum Cable Temperature

200°C (392°F)

Temperature Error

-0.3%/100°K Zero Point <0.15%/10°K Sensitivity

Pressure Resistance

6,500 hpa (94 psi)

Shock and Vibration

5g (49.05 m/s²) @ 60Hz @ 25°C (77°F)

Material

Sleeve – Stainless Steel, Cable – PTFE

Weight (Sensor & 1M Cable)

~800 grams (28.22 oz)

Sleeve Thread

No Thread (0)

Armored Cable

With (1) / Without (0)

Sensor Length

80 mm x 40 mm (0)

Adaptor Plug

With (0) / Without (1)

Total Cable Length

0 (4m), 1 (5m), 2 (6m), 3 (8m), 4 (10m)

Cable End

LEMO (0) / Open (1)
