Product Description
Product Overview

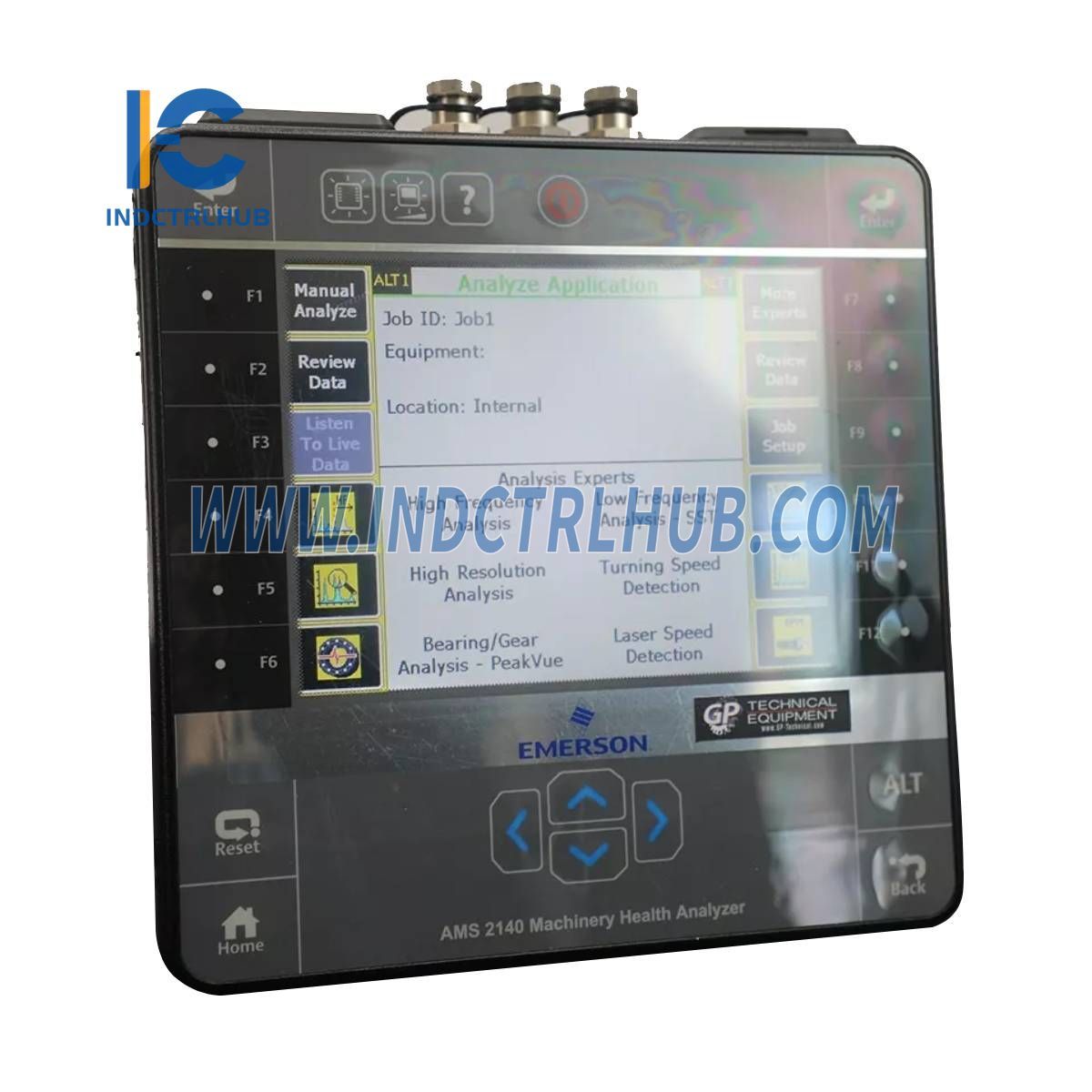

The Emerson CSI 2140 Machinery Health Analyzer is a portable vibration analyzer designed for fast and accurate data collection from rotating equipment in process plants. It enables on-site analysis and seamless integration with AMS Suite: Machinery Health Manager software. Featuring PeakVue™ technology, the device supports up to four channels for enhanced efficiency.
Technical Specifications
Physical Specifications
|
Specification |
Details |
|---|---|
|
Dimensions |
248 mm x 226 mm x 40 mm (8.8” x 8.9” x 1.57”) |
|
Weight |
1.79 kg (3.95 lbs) |
|
Display |
6” x 4.5” color TFT LCD, 640 x 480 resolution, LED backlight, touchscreen (XY resistive) |
|
Keypad |
12 backlit tactile dome buttons, electroluminescent panel illumination |
|

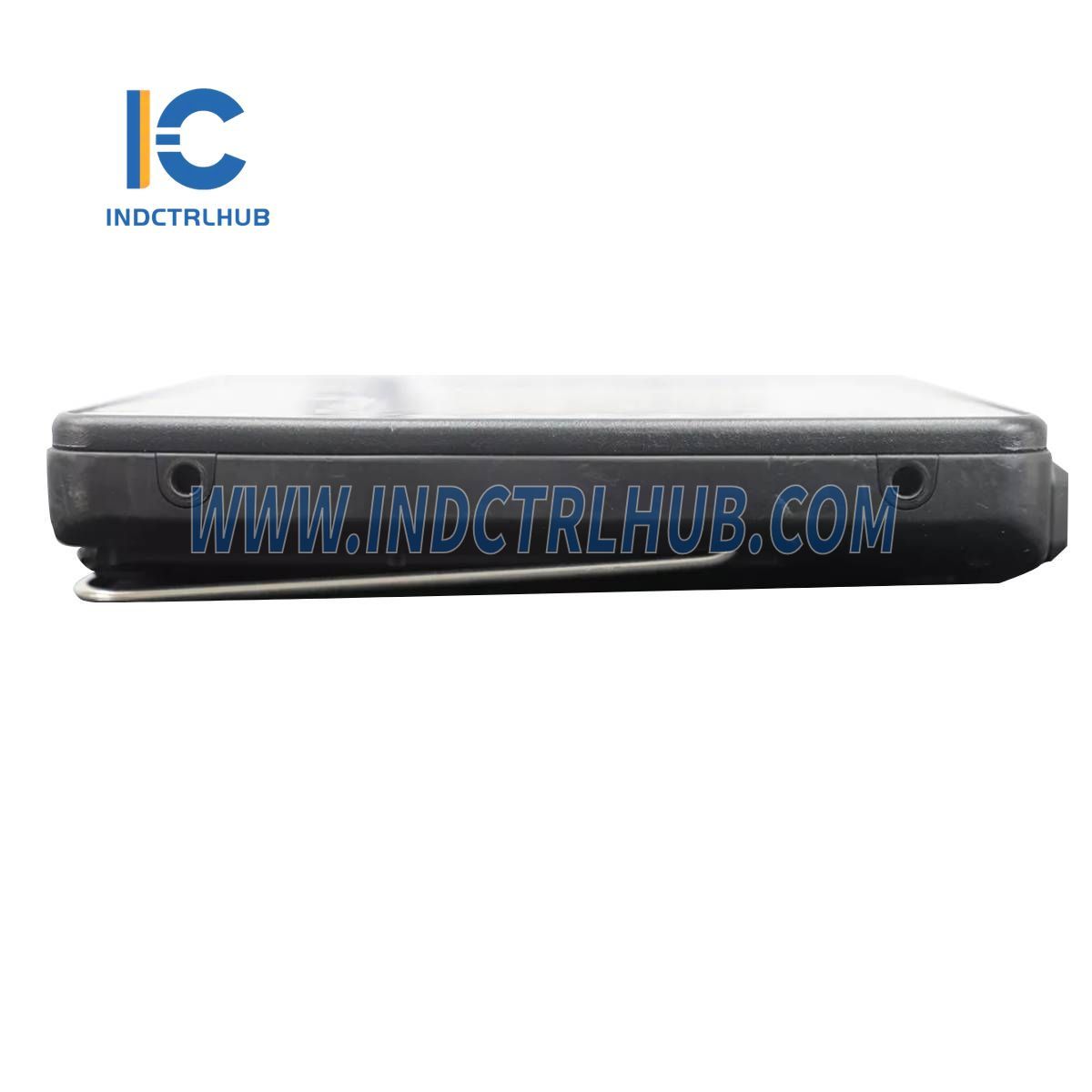

Built-in Stand |
Yes |
Environmental Limits
|
Specification |
Details |
|---|---|
|
Operating Temperature |
-20°C to 50°C (-4°F to 122°F) |
|
Storage Temperature (with battery) |
-20°C to 35°C (-4°F to 95°F) |
|
Storage Temperature (without battery) |
-40°C to 65°C (-40°F to 150°F) |
|
Sealing |
IP-65 rated enclosure for moisture and dust protection |
Key Features
• High-Resolution Touchscreen: 6” x 4.5” color TFT LCD with 640 x 480 resolution and LED backlight.
• Multi-Channel Data Collection: Supports up to four channels for faster data acquisition.
• Advanced Vibration Analysis: Uses PeakVue™ technology for precise diagnostics.
• Rugged & Portable Design: IP-65 rated sealed enclosure for harsh environments.
