Product Description
Product Overview

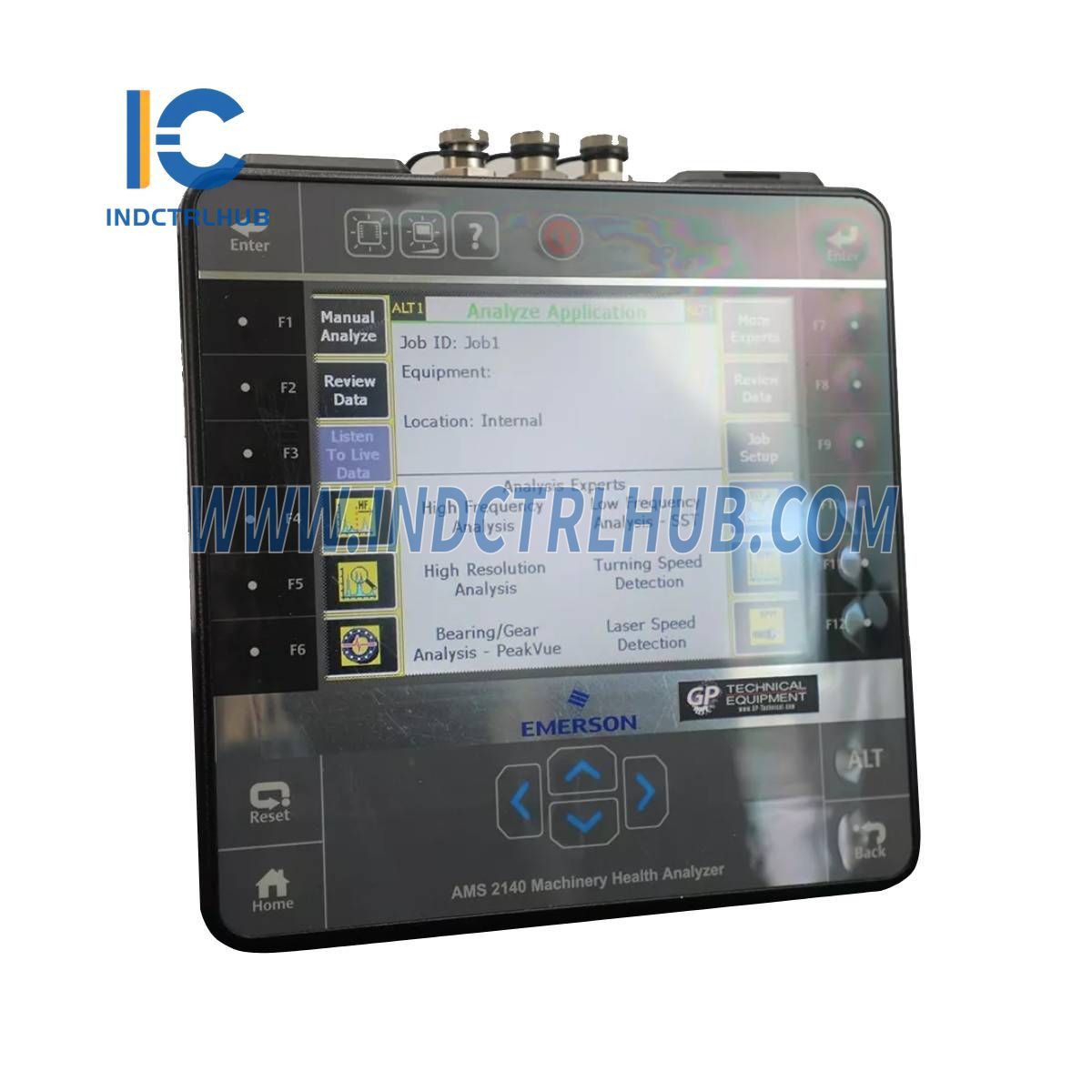

The Emerson AMS 2140 Machinery Health Analyzer is a high-performance diagnostic tool designed to help maintenance teams efficiently detect and analyze machinery faults. It enables users to quickly identify root causes and prevent costly breakdowns.
Key Features
• Advanced Frequency Analysis with a 24-bit A/D converter and up to 12800 lines of resolution.
• Four-Channel Simultaneous Data Collection for dynamic, DC, and phase input.
• Wireless Connectivity via Bluetooth 2.0 and Wi-Fi 802.11 b/g for seamless data transfer.
• Rugged Design with an IP-65 rated enclosure and a built-in stand for field use.
• Long Battery Life with 10+ hours of continuous operation using a rechargeable lithium-ion battery.
Technical Specifications
Physical & Display
|
Specification |
Details |
|---|---|
|
Dimensions |
248 mm x 226 mm x 40 mm |
|
Weight |
1.79 kg (3.95 lbs) |
|
Display |
6” color TFT, 640x480 resolution, touchscreen |
|
Keypad |
12-key backlit tactile dome buttons |
Environmental Limits
|
Specification |
Details |
|---|---|
|
Operating Temperature |
-10°C to 50°C |
|
Storage Temperature |
-20°C to 65°C (without battery) |
|
Sealing |
IP-65 rated enclosure for dust and water protection |
Battery & Power
|
Specification |
Details |
|---|---|
|
Battery Type |
Rechargeable lithium-ion |
|
Nominal Output |
7.2V |
|
Usage Time |
10+ hours of continuous operation |
|
Recharge Time |
4 hours |
|
Charging Temperature |
10°C to 35°C |
Measurement Capabilities
|
Specification |
Details |
|---|---|
|
Dynamic Range |
120 dB |
|
Frequency Range |
DC to 80 kHz |
|
Resolution |
Up to 12800 lines, True Zoom up to 300,000 lines |
|
Full-Scale Vibration Level |
±90 g’s with 100 mV/g accelerometer |
|
RPM Measurement |
1 to 100,000 RPM |
Input & Sensor Compatibility
• Channels: Four-channel simultaneous data acquisition
• Input Impedance: Greater than 125K ohms
• Supported Sensors:
• Accelerometers
• Velocity probes
• Tachometers
• Temperature sensors
• Impact hammers
• Other vibration or dynamic sensors with voltage output
Data Storage & Connectivity
|
Specification |
Details |
|---|---|
|
Internal Memory |
1 GB |
|
External Memory |
Supports SDHC cards up to 32 GB |
|
Wireless Communication |
Bluetooth 2.0, Wi-Fi 802.11 b/g |
