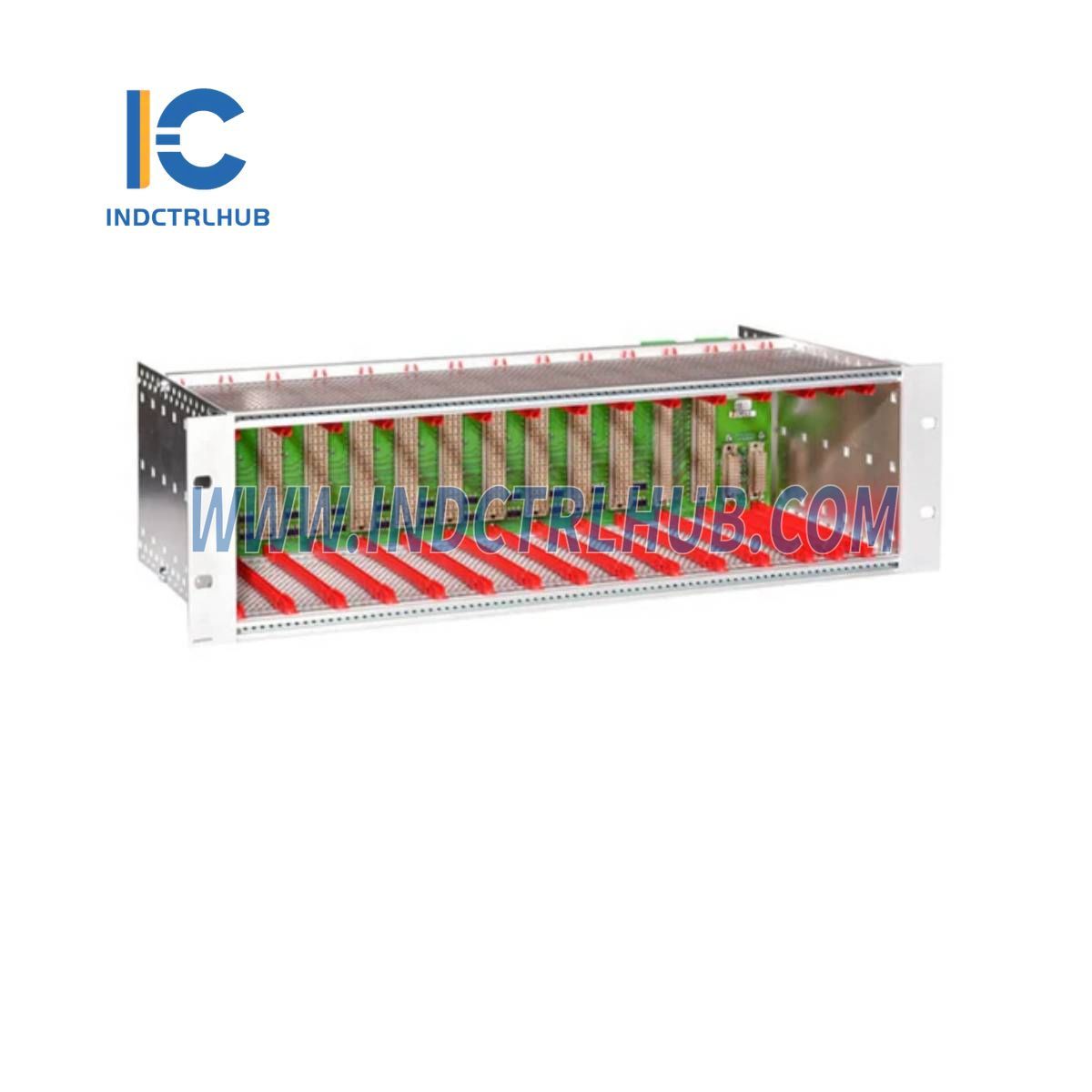

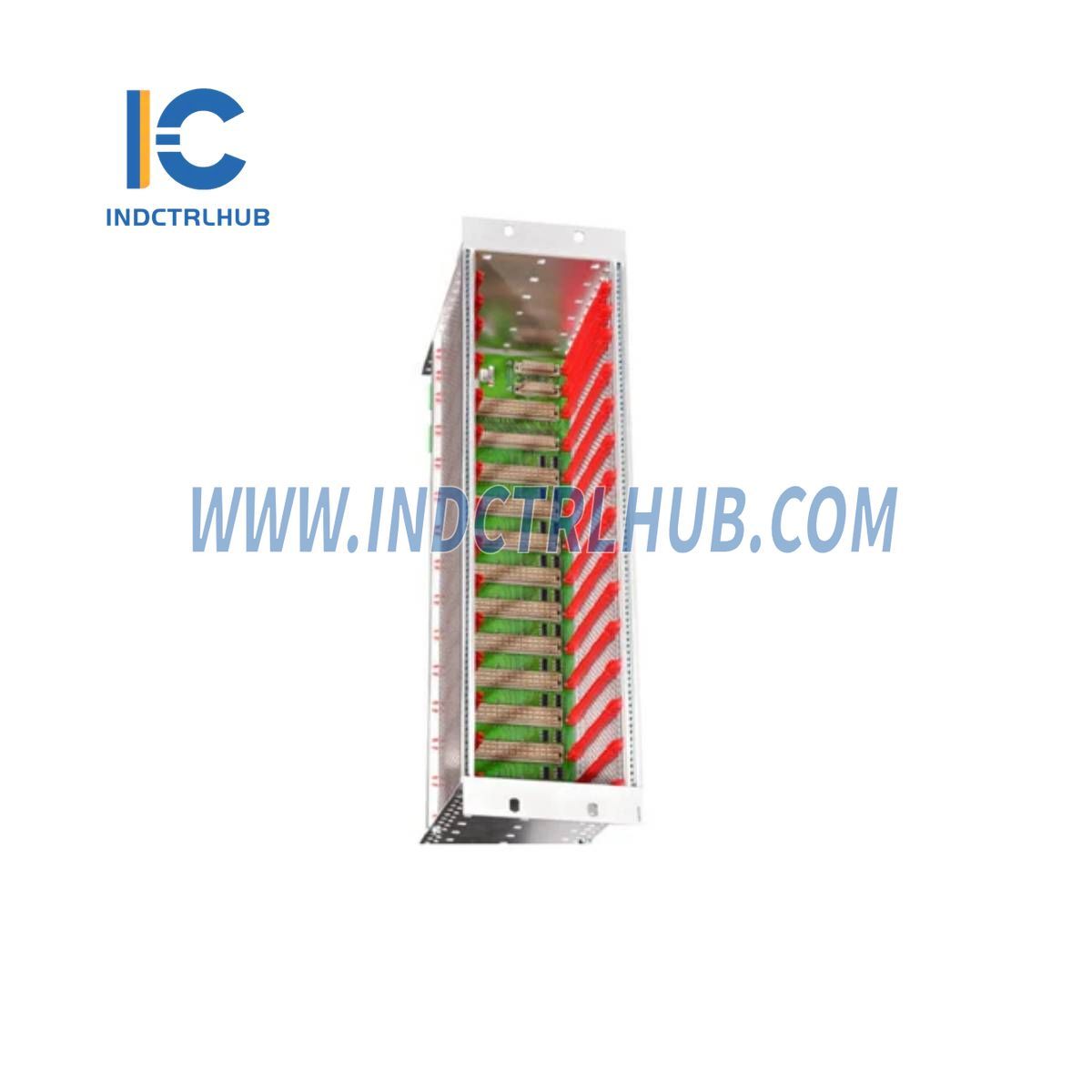

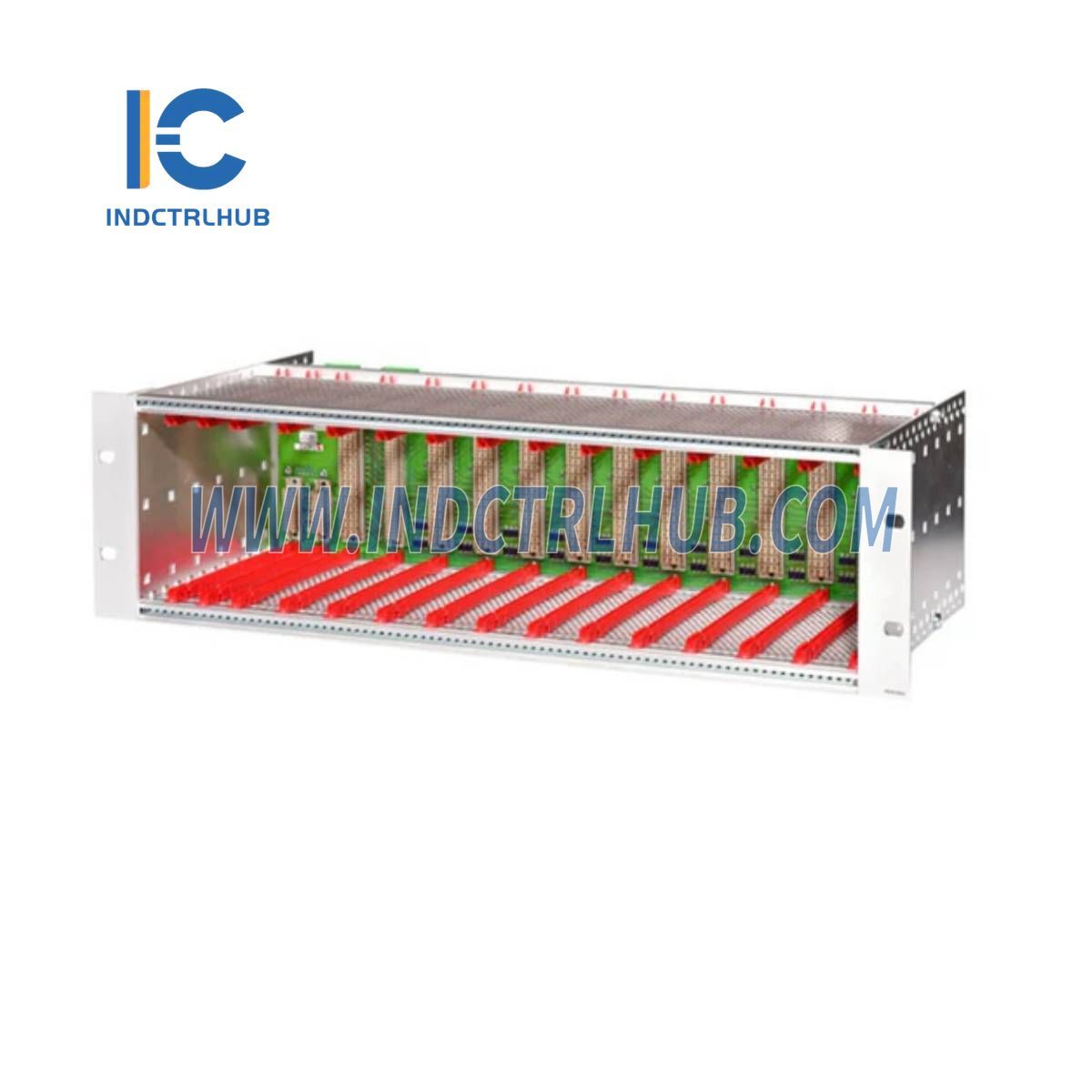

Emerson ‎‎A6500-SR System Rack

Emerson ‎‎A6500-SR System Rack

  • Manufacturer: Emerson

  • Product No.: A6500-SR

  • Condition:1000 in stock

  • Product Type: System Rack

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 2400g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Overview

The Emerson A6500-SR is a System Rack designed for use within the AMS 6500 ATG machinery protection system. It is a 19” rack (84HP width and 3RU height) that supports the installation of multiple protection and communication cards, making it a robust and scalable solution for industrial machinery monitoring.

Key Features

 Supports up to 11 protection cards (A6500-UM & A6500-TP)

 Dedicated slots for relay (A6500-RC) and communication (A6500-CC) cards

 Redundant power supply for increased reliability

 Rugged design with IP20 protection

 Conformal coating for resistance to airborne contaminants

 Designed for industrial environments with high vibration and shock resistance

Technical Specifications

Power Supply

Parameter

Specification

Nominal Supply Voltage

+24V DC redundant

Voltage Limits

+19V to +32V DC

Power Consumption (Slots)

<100W for installed cards

Power Consumption (Outputs)

<150W for external digital outputs

Slot Distribution

Slot Type

Capacity

Slot Size

Measurement Card Slots (A6500-UM & A6500-TP)

11 slots

6HP each

Relay Card Slot (A6500-RC)

1 slot

10HP

Communication Card Slots (A6500-CC)

2 slots (for redundancy)

4HP each

Environmental & General Specifications

Parameter

Specification

Protection Class

IP20 (rack-mounted), IP00 otherwise

Conformal Coating

HumiSeal® 1B31 EPA (ISA-S71.04-1985 class G3)

Operating Temperature

-20°C to +70°C (-4°F to 158°F) with forced cooling  -20°C to +55°C (-4°F to 131°F) without forced cooling

Storage Temperature

-40°C to +85°C (-40°F to 185°F)

Relative Humidity

5% to 95% non-condensing

Vibration Resistance

0.15mm (10-55 Hz), 20m/s² (55-150 Hz) (IEC 60068-2-6)

Shock Resistance

150m/s², 4000 shocks per axis (IEC 60068-2-27)

Operating Altitude

<2000m above sea level

Connector & Terminal Specifications

Component

Type & Standard

Measurement Card Slot

F48 female (IEC 60603-2)

Relay Card Slot

C96 female & F48 female (IEC 60603-2)

Communication Card Slot

C30 female (IEC 60603-2)

Power Supply Terminals

2.5mm² pluggable push-in spring cage connection

I/O Terminals

1.5mm² pluggable push-in spring cage connection

SUB-D Connector

SUB-D 9 shielded, UNC 4-40 screw lock

Physical Specifications

Parameter

Specification

Dimensions

3RU/84HP (IEC 60297)

Weight

~2400g (5.291 lbs) (excluding packaging)



View full details

Product Description

Product Overview

The Emerson A6500-SR is a System Rack designed for use within the AMS 6500 ATG machinery protection system. It is a 19” rack (84HP width and 3RU height) that supports the installation of multiple protection and communication cards, making it a robust and scalable solution for industrial machinery monitoring.

Key Features

 Supports up to 11 protection cards (A6500-UM & A6500-TP)

 Dedicated slots for relay (A6500-RC) and communication (A6500-CC) cards

 Redundant power supply for increased reliability

 Rugged design with IP20 protection

 Conformal coating for resistance to airborne contaminants

 Designed for industrial environments with high vibration and shock resistance

Technical Specifications

Power Supply

Parameter

Specification

Nominal Supply Voltage

+24V DC redundant

Voltage Limits

+19V to +32V DC

Power Consumption (Slots)

<100W for installed cards

Power Consumption (Outputs)

<150W for external digital outputs

Slot Distribution

Slot Type

Capacity

Slot Size

Measurement Card Slots (A6500-UM & A6500-TP)

11 slots

6HP each

Relay Card Slot (A6500-RC)

1 slot

10HP

Communication Card Slots (A6500-CC)

2 slots (for redundancy)

4HP each

Environmental & General Specifications

Parameter

Specification

Protection Class

IP20 (rack-mounted), IP00 otherwise

Conformal Coating

HumiSeal® 1B31 EPA (ISA-S71.04-1985 class G3)

Operating Temperature

-20°C to +70°C (-4°F to 158°F) with forced cooling  -20°C to +55°C (-4°F to 131°F) without forced cooling

Storage Temperature

-40°C to +85°C (-40°F to 185°F)

Relative Humidity

5% to 95% non-condensing

Vibration Resistance

0.15mm (10-55 Hz), 20m/s² (55-150 Hz) (IEC 60068-2-6)

Shock Resistance

150m/s², 4000 shocks per axis (IEC 60068-2-27)

Operating Altitude

<2000m above sea level

Connector & Terminal Specifications

Component

Type & Standard

Measurement Card Slot

F48 female (IEC 60603-2)

Relay Card Slot

C96 female & F48 female (IEC 60603-2)

Communication Card Slot

C30 female (IEC 60603-2)

Power Supply Terminals

2.5mm² pluggable push-in spring cage connection

I/O Terminals

1.5mm² pluggable push-in spring cage connection

SUB-D Connector

SUB-D 9 shielded, UNC 4-40 screw lock

Physical Specifications

Parameter

Specification

Dimensions

3RU/84HP (IEC 60297)

Weight

~2400g (5.291 lbs) (excluding packaging)
