Product Description
Product Overview

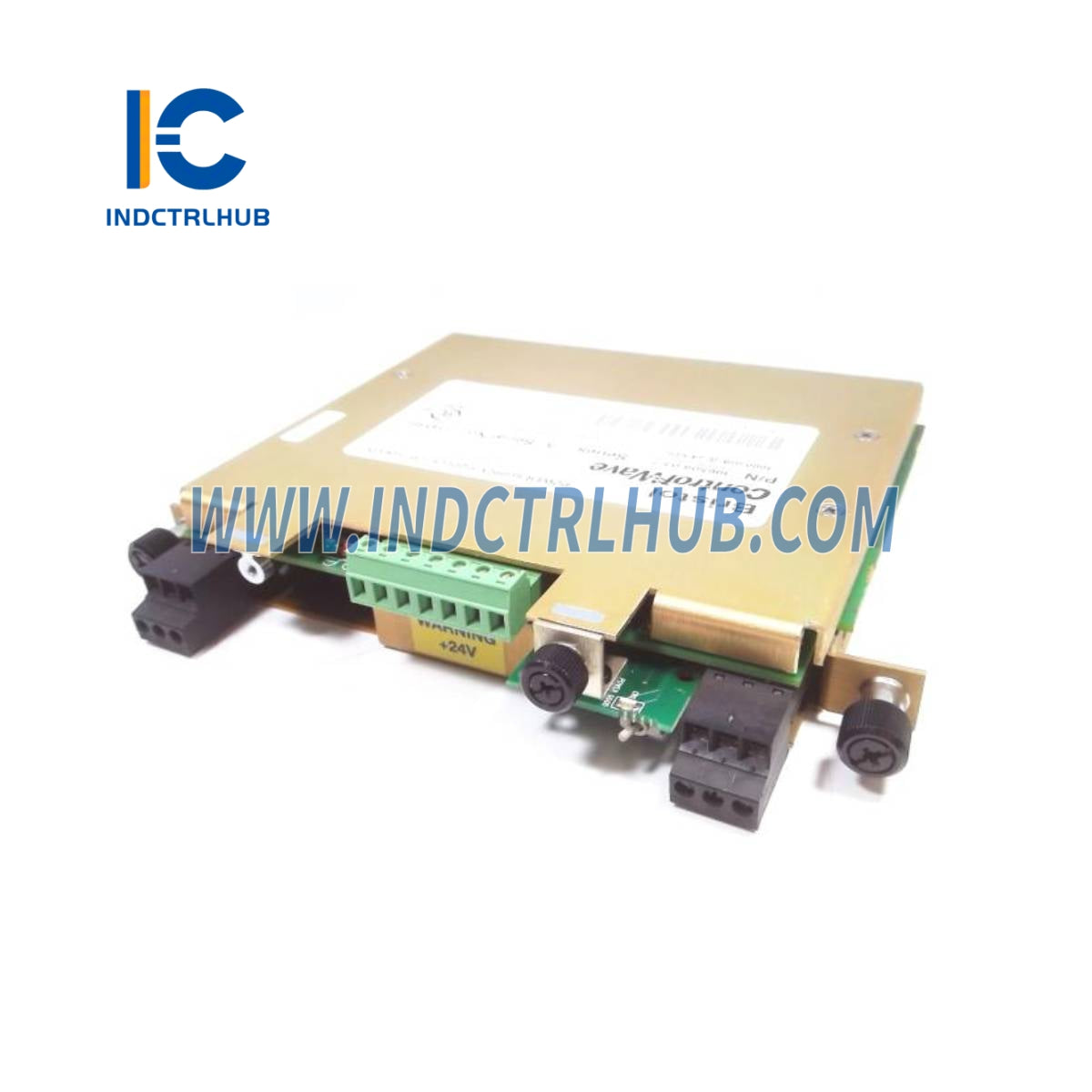

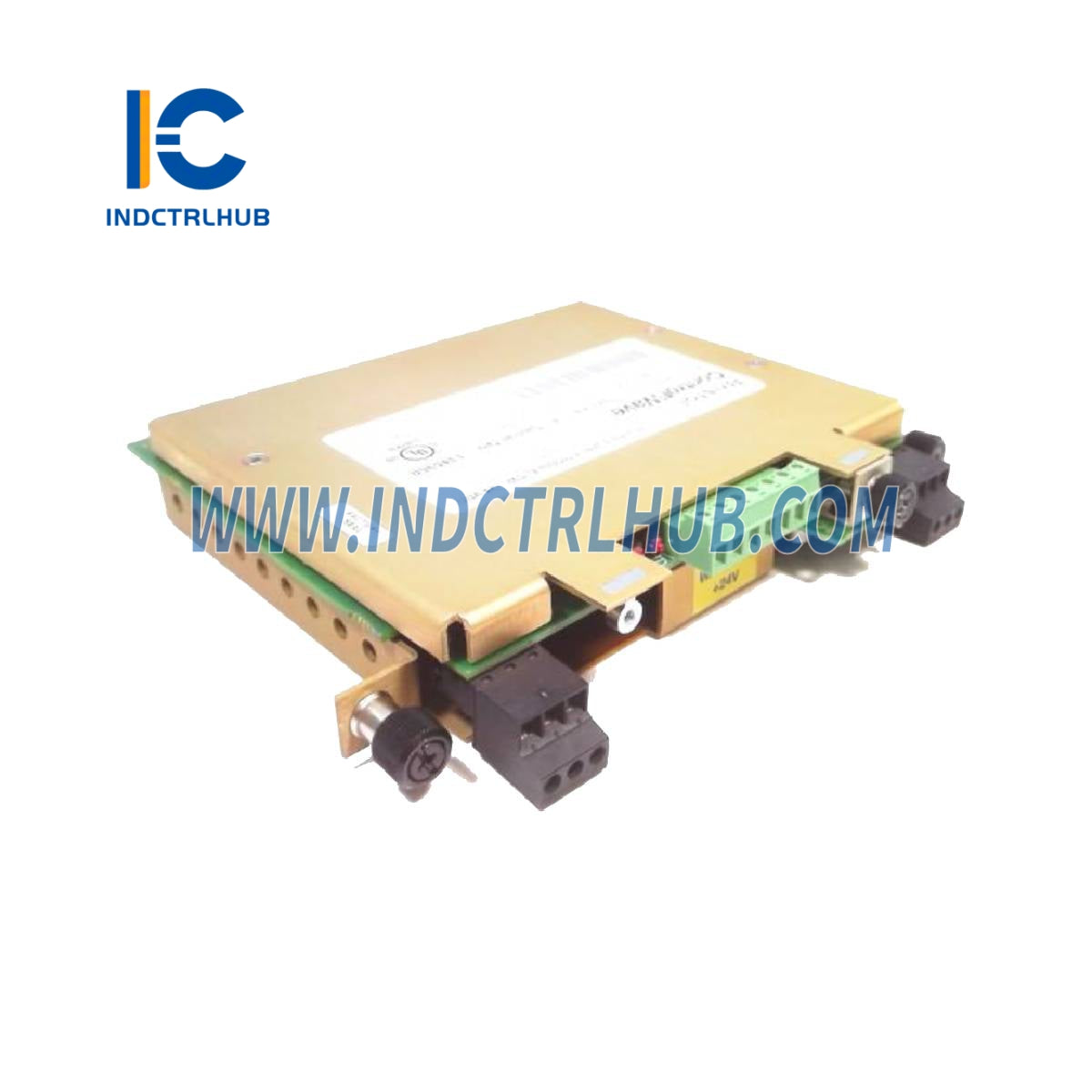

The Emerson 396509-03-7 is a ControlWave Micro CPU Module, a high-performance central processing unit designed for the ControlWave Micro series of hybrid PLC/RTU controllers. Manufactured by Emerson, a global leader in automation technologies, this module serves as the core processor for the ControlWave Micro, enabling advanced process control, data acquisition, and communication in industrial applications. It is optimized for rugged environments such as oil and gas, water management, and industrial control, offering low power consumption and robust performance. The 396509-03-7 integrates seamlessly with ControlWave I/O modules, supporting real-time automation and monitoring tasks.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | Emerson |
| Series | ControlWave Micro |
| Model/Part Number | 396509-03-7 |
| Description | ControlWave Micro CPU Module |
| Processor | 150 MHz ARM microprocessor |
| Memory | 1 MB SRAM, 4 MB SDRAM, 16 MB Flash |
| Communication Ports | 2 RS-232, 1 RS-485 |
| Power Supply | 6-30 Vdc (via ControlWave backplane) |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Dimensions | 114 mm H x 114 mm W x 45 mm D (4.5 in x 4.5 in x 1.77 in) |
| Weight | 0.68 kg (1.5 lb) |
