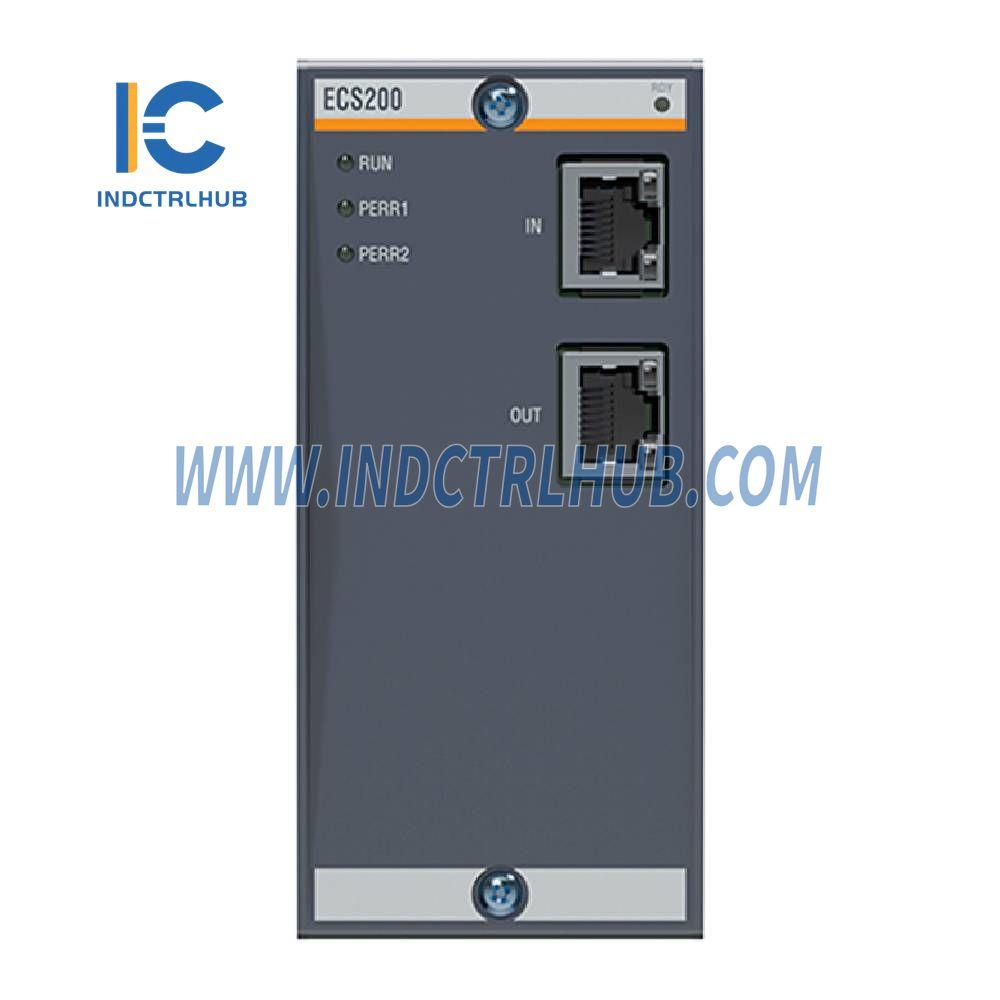

ECS200 Bachmann EtherCAT Slave Module

ECS200 Bachmann EtherCAT Slave Module

  • Manufacturer: BACHMANN

  • Product No.: ECS200

  • Condition:1000 in stock

  • Product Type: EtherCAT Slave Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Manufacturer: BACHMANN
Model/Part Number: ECS200
Description: EtherCAT Slave Module

Item Information

Item Item No.
ECS200 00018548-00
ECS200❄ 00019206-00

EtherCAT Data

Parameter Specification
EtherCAT Device Type Module device
Object Dictionary Static (depends on slave station configuration)
PDO Mapping Static or dynamic
Distributed Clock Available
EtherCAT Data Types BOOL, BIT, USINT, SINT, UINT, INT, UDINT, DINT, REAL, ULINT, LINT, LREAL
Number of Cyclic Data Max. 700 Byte in Tx and Rx
Cycle Time ≥ 125 µs (depends on CPU and data volume), max. 10 ms

Configuration

Parameter Specification
SolutionCenter Setting of object directories via UFB channel configurator

System Requirements

Parameter Specification
M-Base V3.80 or higher
Processor Module Recommended MX207 or higher

Electrical Data

Parameter Specification
Number of EtherCAT Ports 2 (In/Out)
Supply (Internal) Via bus rail BS2xx
Current Consumption 270 mA
Galvanic Isolation 500 V (from system)

Operating Conditions

Parameter Specification
Operating Temperature -30 .. +60°C
Relative Humidity (Operation) 5 .. 95% (without condensation)
Storage Temperature -40 .. +85°C
Relative Humidity (Storage) 5 .. 95% (with or without condensation)

Model Variants

  • ECS200: EtherCAT slave module
    • 2× Eth100 (In/Out)
    • Operation only with CPU module
  • ECS200❄: Like ECS200, but ColdClimate (❄) version
