Product Description
Manufacturer: BACHMANN
Model/Part Number: DPM200

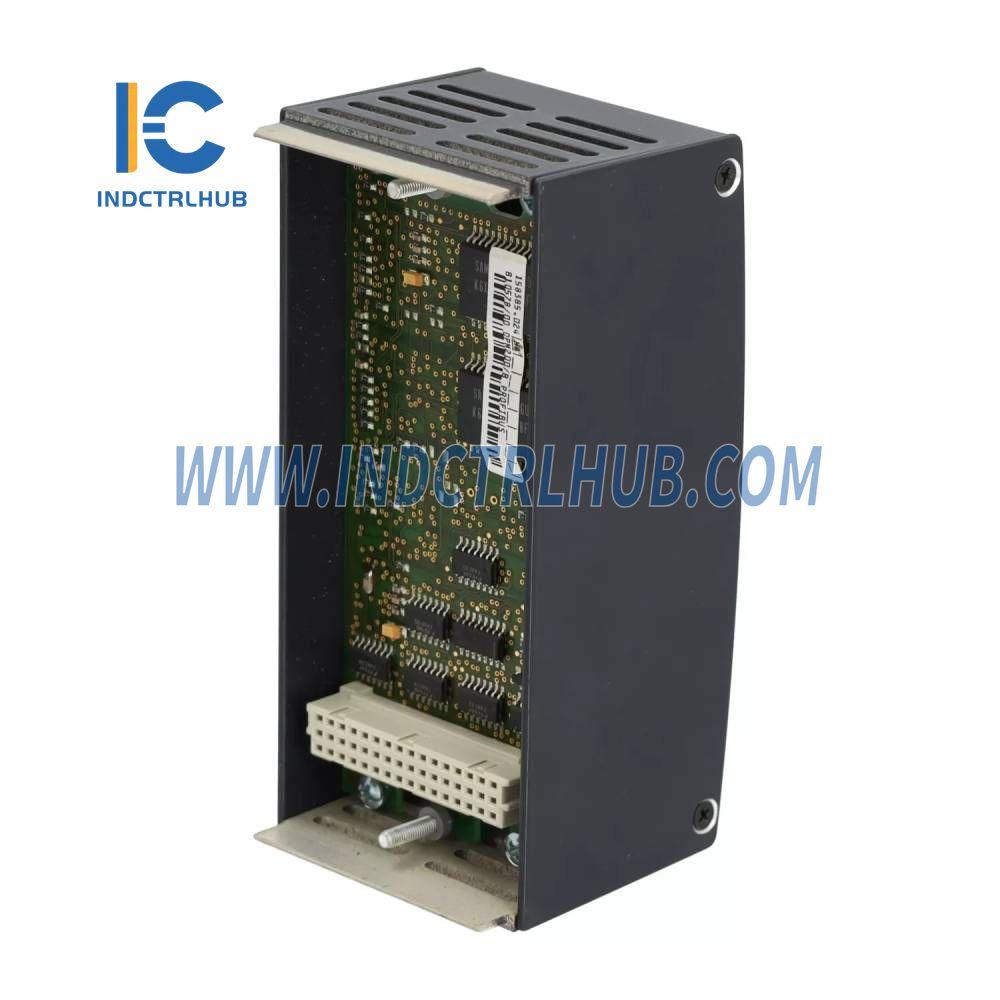

Description: PROFIBUS DP Master Module
Item Numbers:
-
DPM200: 00010555-00
-
DPM200❉: 00018032-00
Features:
-
PROFIBUS DP master with large process image (8 KB x 16 DPM)
-
Firmware update possible via SolutionCenter
-
Supports up to 3 masters per M1 controller
-
Supports up to 32 slaves without a repeater, 125 slaves with a repeater
-
Complies with PROFIBUS Standard V0
-
Data length: 732 bytes per slave
-
Current consumption: 400 mA / 5 V DC
Interface Specifications:
| Feature | Specification |
|---|---|
| Transfer Rate | 9.6 kbaud to 12 Mbaud |
| Connection | 2x 9-pin D-Sub female connectors |
| Pin Assignment | In accordance with EN 50170 |
| Signal Level | In accordance with RS485 standard |
| Galvanic Isolation | 500 V |
Environmental Conditions:
| Condition | Standard | ColdClimate❉ |
| Operating Temperature | -30 to +60°C | -30 to +60°C |
| Relative Humidity (Operation) | 5% to 95% (without condensation) | 5% to 95% (with condensation) |
| Storage Temperature | -40 to +85°C | -40 to +85°C |
| Relative Humidity (Storage) | 5% to 95% (with condensation) | 5% to 95% (with condensation) |
Model Variants:
-
DPM200: PROFIBUS master/slave module; 12 Mbit/s; PROFIBUS V0; isolated.
-
DPM200❉: Same as DPM200, but designed for ColdClimate conditions (❉).
