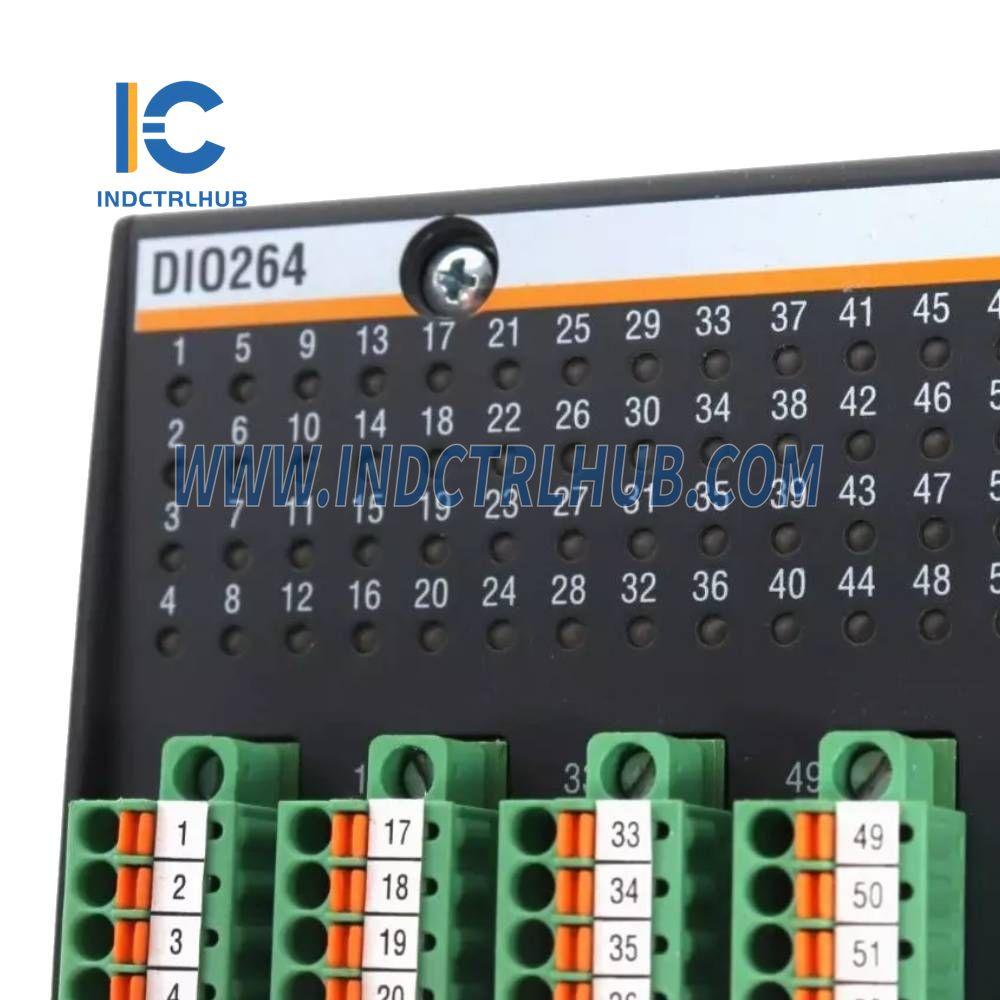

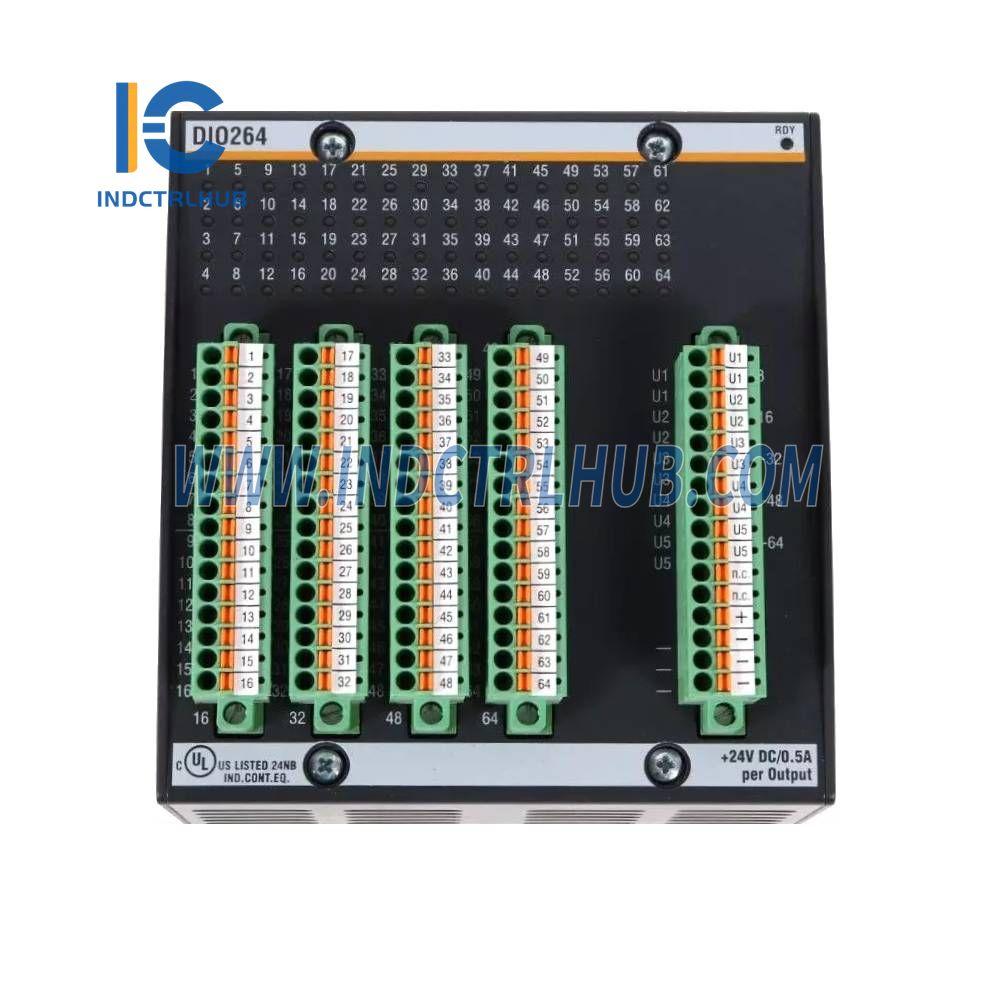

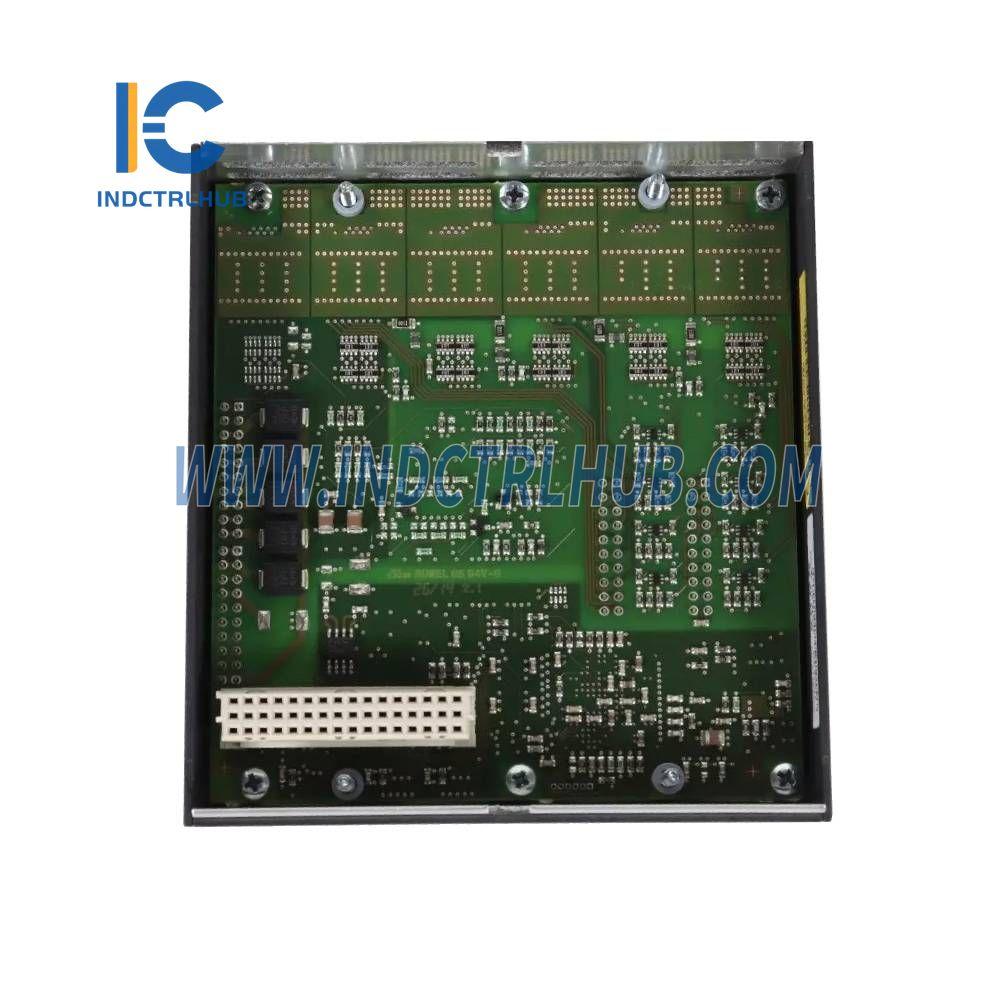

DIO264-C Bachmann Digital input/output modules

DIO264-C Bachmann Digital input/output modules

  • Manufacturer: Bachmann

  • Product No.: DIO264 00009205-00

  • Condition:1000 in stock

  • Product Type: Digital input/output modules

  • Product Origin: Austria

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

  • Manufacturer: BACHMANN
  • Model/Part Number: DIO264-C 00009205-00
  • Description: Digital input/output modules

Inputs

  • Quantity: max. 64
  • Input Delay: < 3.5 ms
  • Internal Resistance: 6 kΩ
  • Status Display: Green LED

Outputs

Feature Specification
Quantity Max. 32
Supply Voltage 18 – 34 V DC
Isolated Output Blocks 1-16, 17-32
Nominal Output Current 1 A
Output Current (Sum/Block) Max. 12 A
Switching Frequency Max. 500 Hz
Short-Circuit Proof Yes
Status Display Green LED

CAN Interface

  • Transfer Rate: 10 Kbaud – 1 Mbaud
  • Connection: 2x 9-pin D-Sub
  • Module ID: 1 – 254
  • Galvanic Isolation: 500 V
  • Terminating Resistance: 123 Ω (External)

External Power Supply

  • Voltage Range: 18 – 34 V DC
  • Current Consumption (Without I/O): Typically 100 mA at 24 V DC
  • Reverse Polarity Protection: Yes

CAN Protocols

  • Supported Protocols:
    • CAL / CANopen DS 301 (Communication Profile)
    • CANopen DS 401 (Device Profile)

Status LEDs

  • Indicators: RUN (Guarding), INIT, ERROR

CANopen Features

Feature Specification
CANopen Master No
CANopen Slave Yes
Communication Profile CANopen DS 301
Device Profile CANopen DS 401
Galvanic Isolation 500 V
Terminating Resistance 123 Ω (External)
Transfer Rate 10 Kbaud – 1 Mbaud
Module ID Range 1 – 254

Environmental Conditions

  • Operating Temperature: -30°C to +60°C
  • Storage Temperature: -40°C to +85°C
  • Humidity (Operation): 5% – 95% (without condensation) / 5% – 95% (with condensation)
  • Humidity (Storage): 5% – 95% (with condensation)

Model Variant

  • CAN Slave - Digital IO module; 32x DI; 32x DIO, 24V / 1A; 2 groups;
    CAN/CANopen; 2x DSUB 9 (In/Out); up to 1Mbit/s; isolated
View full details

Product Description

General Information

  • Manufacturer: BACHMANN
  • Model/Part Number: DIO264-C 00009205-00
  • Description: Digital input/output modules

Inputs

  • Quantity: max. 64
  • Input Delay: < 3.5 ms
  • Internal Resistance: 6 kΩ
  • Status Display: Green LED

Outputs

Feature Specification
Quantity Max. 32
Supply Voltage 18 – 34 V DC
Isolated Output Blocks 1-16, 17-32
Nominal Output Current 1 A
Output Current (Sum/Block) Max. 12 A
Switching Frequency Max. 500 Hz
Short-Circuit Proof Yes
Status Display Green LED

CAN Interface

  • Transfer Rate: 10 Kbaud – 1 Mbaud
  • Connection: 2x 9-pin D-Sub
  • Module ID: 1 – 254
  • Galvanic Isolation: 500 V
  • Terminating Resistance: 123 Ω (External)

External Power Supply

  • Voltage Range: 18 – 34 V DC
  • Current Consumption (Without I/O): Typically 100 mA at 24 V DC
  • Reverse Polarity Protection: Yes

CAN Protocols

  • Supported Protocols:
    • CAL / CANopen DS 301 (Communication Profile)
    • CANopen DS 401 (Device Profile)

Status LEDs

  • Indicators: RUN (Guarding), INIT, ERROR

CANopen Features

Feature Specification
CANopen Master No
CANopen Slave Yes
Communication Profile CANopen DS 301
Device Profile CANopen DS 401
Galvanic Isolation 500 V
Terminating Resistance 123 Ω (External)
Transfer Rate 10 Kbaud – 1 Mbaud
Module ID Range 1 – 254

Environmental Conditions

  • Operating Temperature: -30°C to +60°C
  • Storage Temperature: -40°C to +85°C
  • Humidity (Operation): 5% – 95% (without condensation) / 5% – 95% (with condensation)
  • Humidity (Storage): 5% – 95% (with condensation)

Model Variant

  • CAN Slave - Digital IO module; 32x DI; 32x DIO, 24V / 1A; 2 groups;
    CAN/CANopen; 2x DSUB 9 (In/Out); up to 1Mbit/s; isolated
