Product Description
Product Details
Manufacturer: BACHMANN

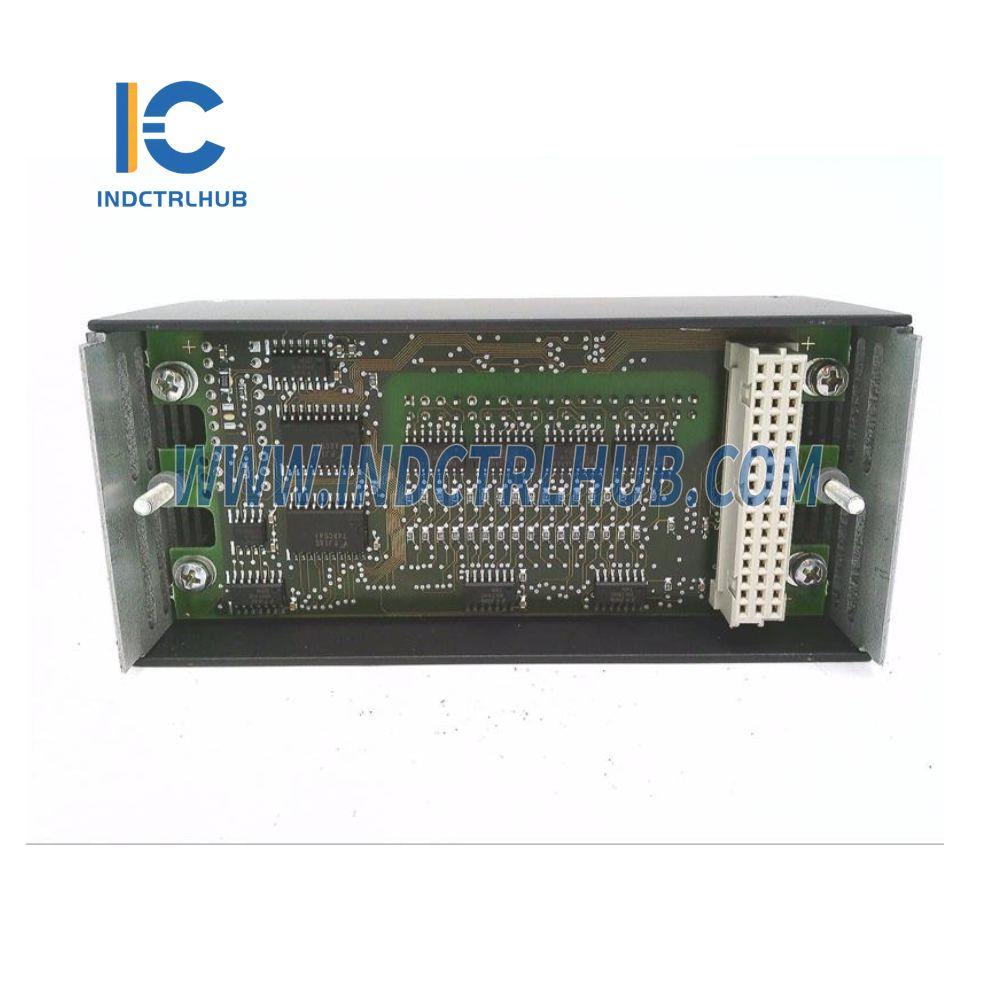

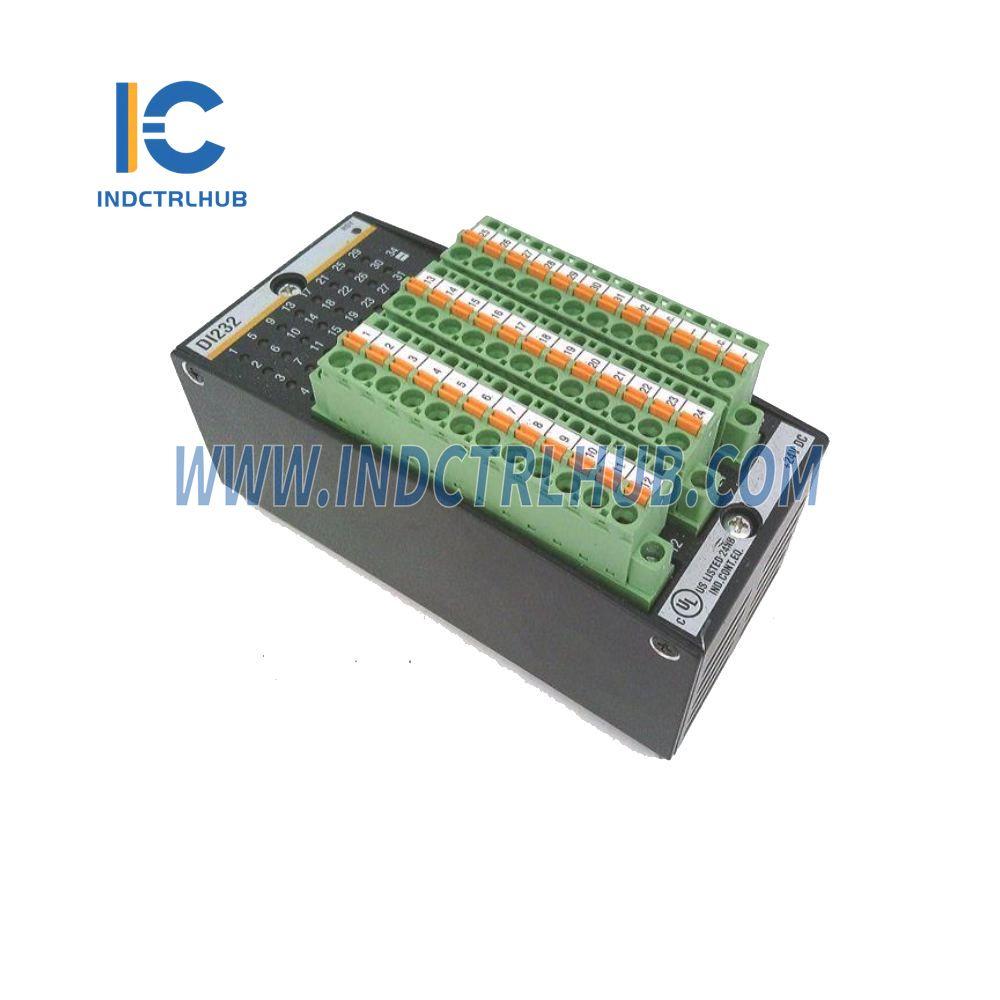

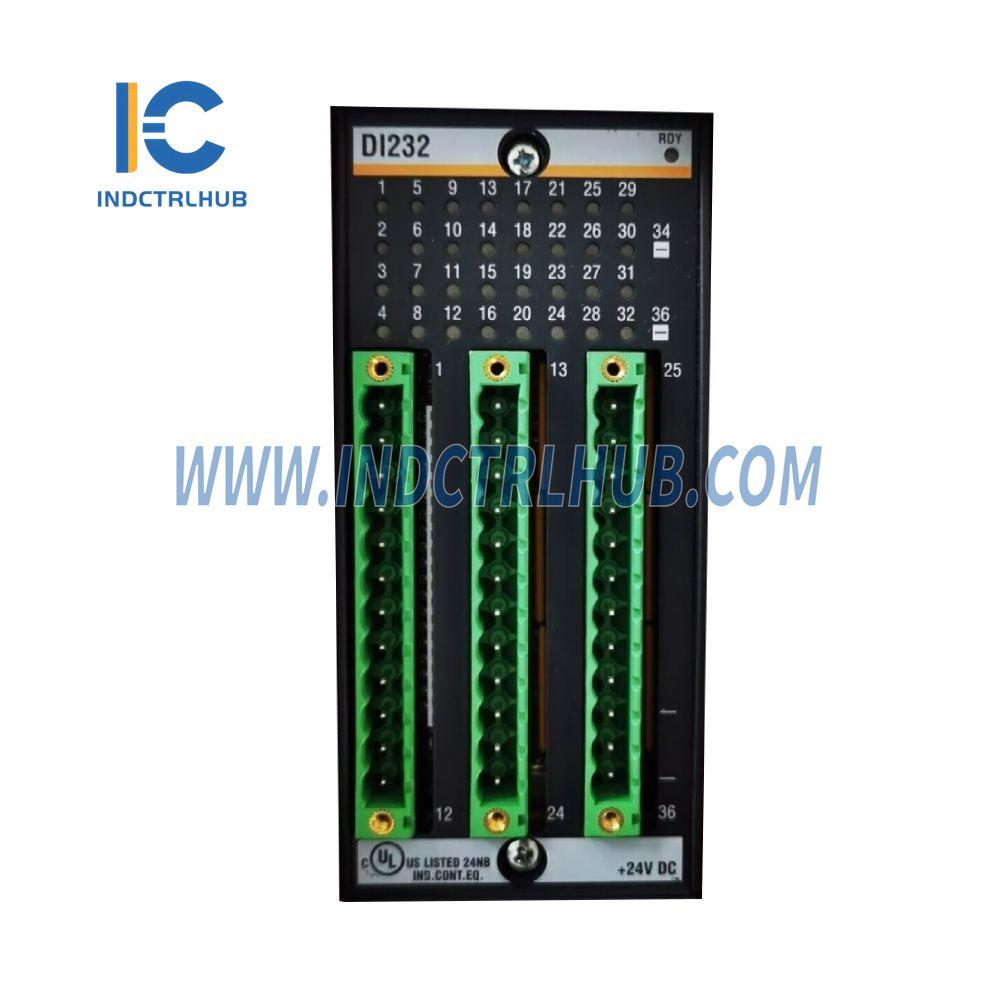

Model/Part Number: DI232
Description: Digital input/output modules
Inputs
| Property | Details |
|---|---|
| Number of Inputs |
32
|
| Isolated Input Groups |
2 (1-16 / 17-32)
|
| Input Voltage | 24 V DC |
| Internal Resistance | Approx. 6 kΩ |
| Low Level | -34 V .. +5 V |
| High Level | +15 V .. +34 V |
| Input Delay (Filter) | 3 ms |
| Interrupt Inputs | Max. 2 |
| Input Delay (Normally) | 50 µs |
| Galvanic Isolation | 300 V (from system) |
Ambient Conditions
| Condition | Details |
|---|---|
| Operating Temperature | -30°C to +60°C |
| Relative Humidity (Operation) | 5–95% (with or without condensation) |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity (Storage) | 5–95% with condensation |
Execution Variants
Digital input module; 32x 24V; 3ms filter; 2 groups; 2 interrupt
channels; 50µs delay; isolated
