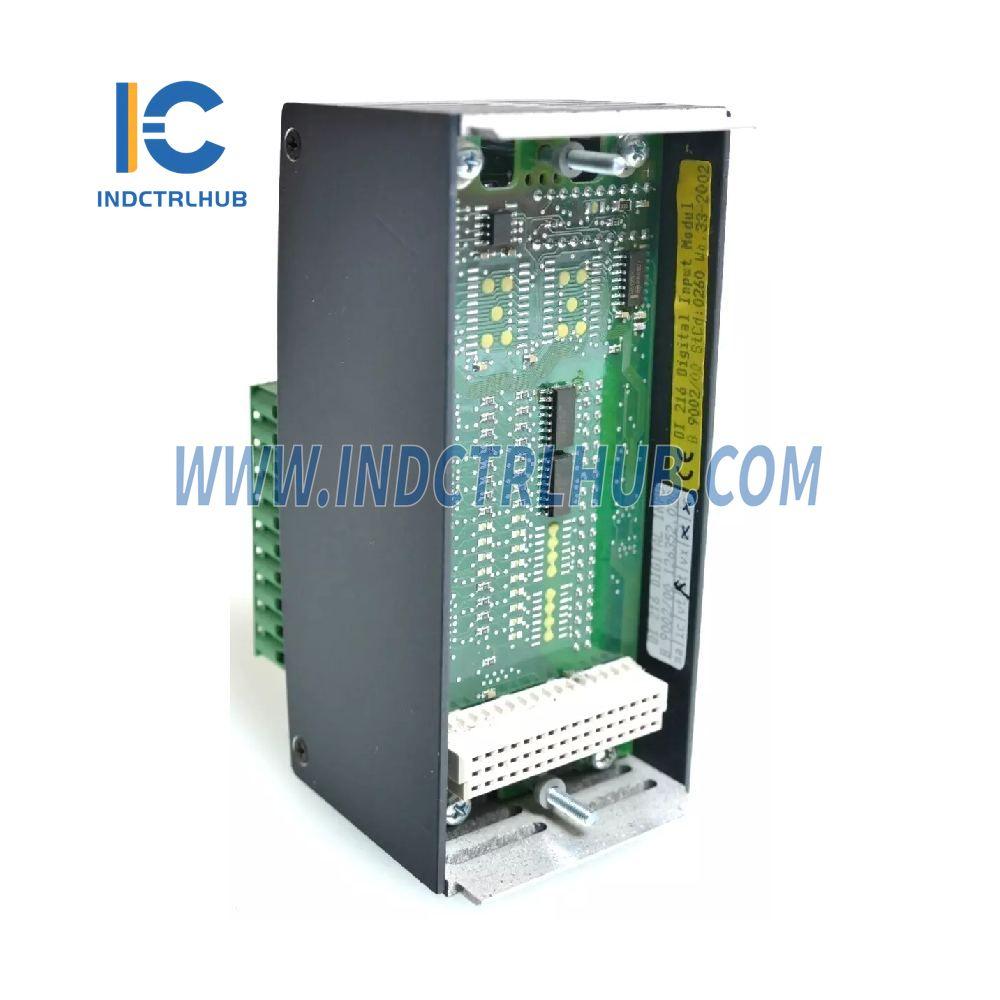

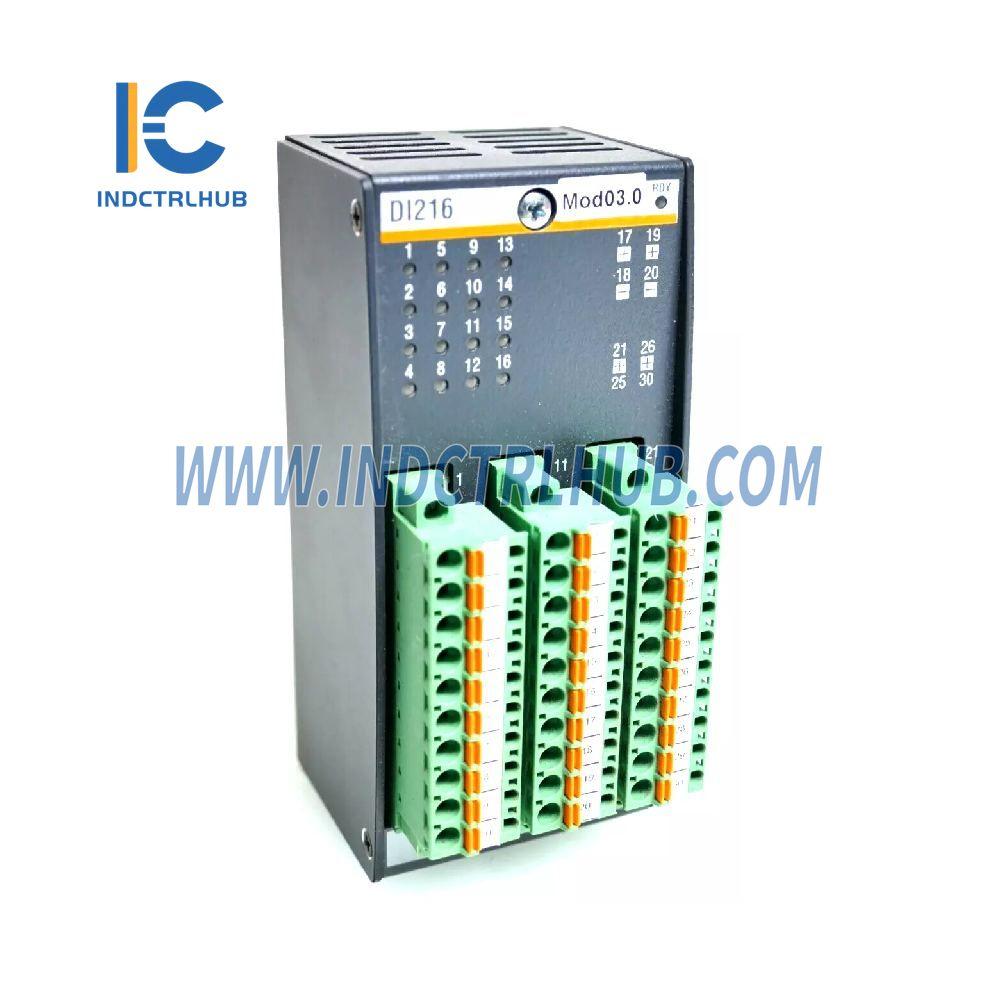

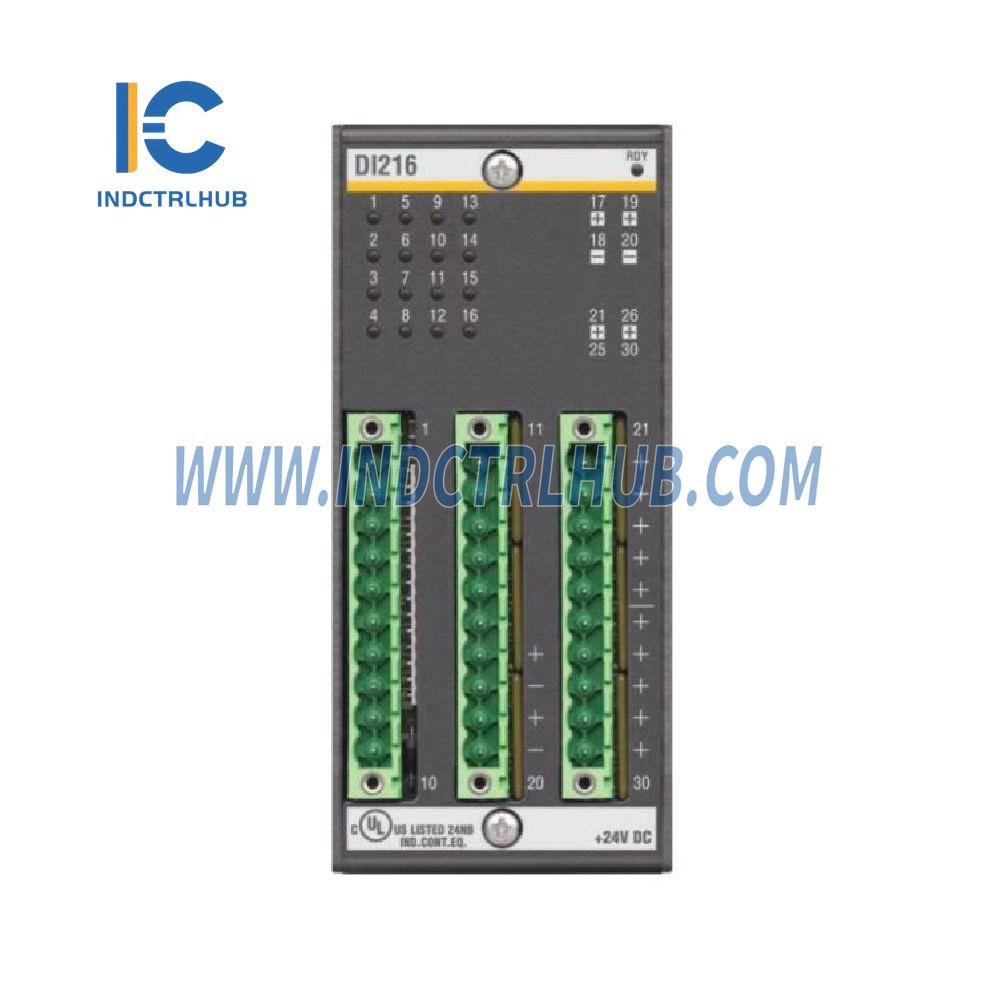

DI216 BACHMANN Digital input/output modules

Product Details
Manufacturer: BACHMANN
Model/Part Number: DI216
Description: Digital input/output modules

Inputs

• Number of Inputs: 16
• Isolated Input Groups: 2 (1-8 / 9-16)
• Input Voltage: 24 V DC
• Internal Resistance: Approx. 6 kΩ
• Low Level: -34 V .. +5 V
• High Level: +15 V .. +34 V
• Input Delay (Filter): 3 ms
• Interrupt Inputs: Max. 2
• Input Delay (Normally): 50 µs
• Galvanic Isolation: 300 V (from system)

Ambient Conditions

• Operating Temperature: -30°C to +60°C
• Relative Humidity (Operation): 5–95% (with or without condensation)
• Storage Temperature: -40°C to +85°C
• Relative Humidity (Storage): 5–95% with condensation

Execution Variants

• Digital input module: 16x 24V; 3 ms filter; 2 groups; 2 interrupt channels; 50 µs delay; isolated
