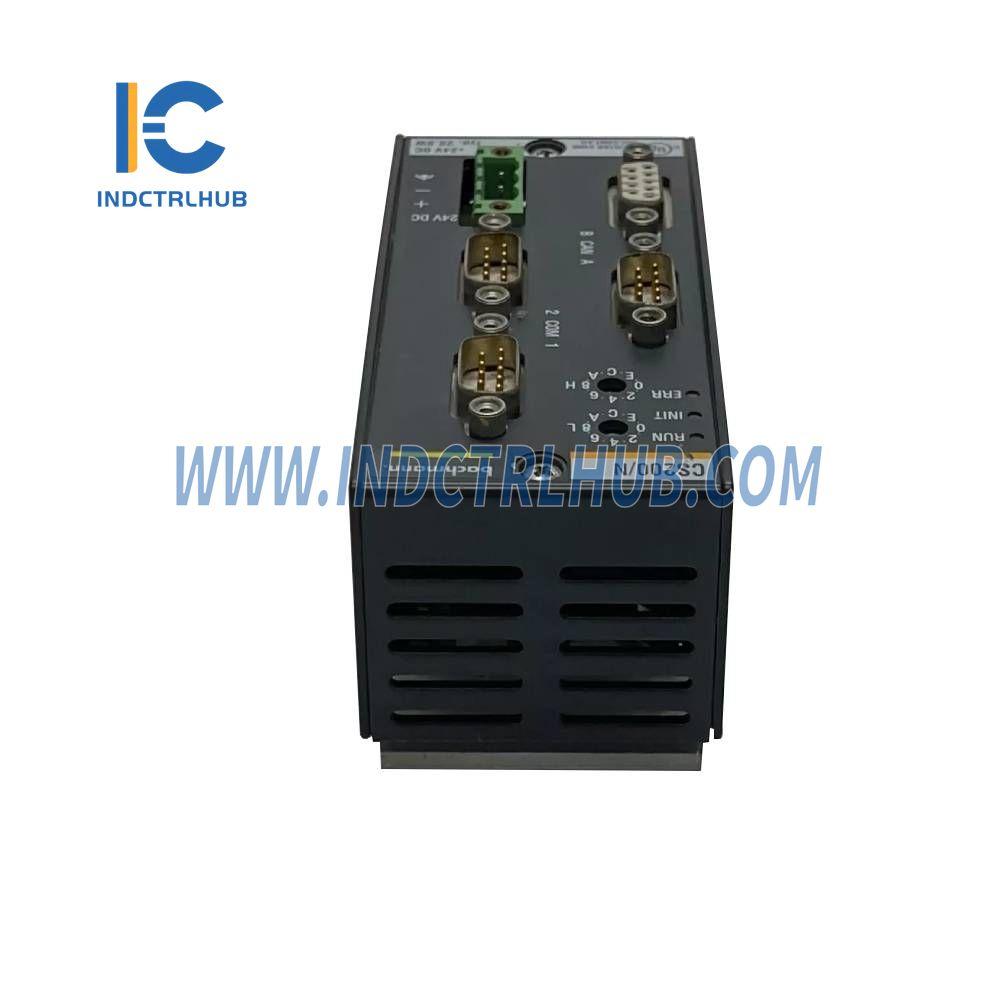

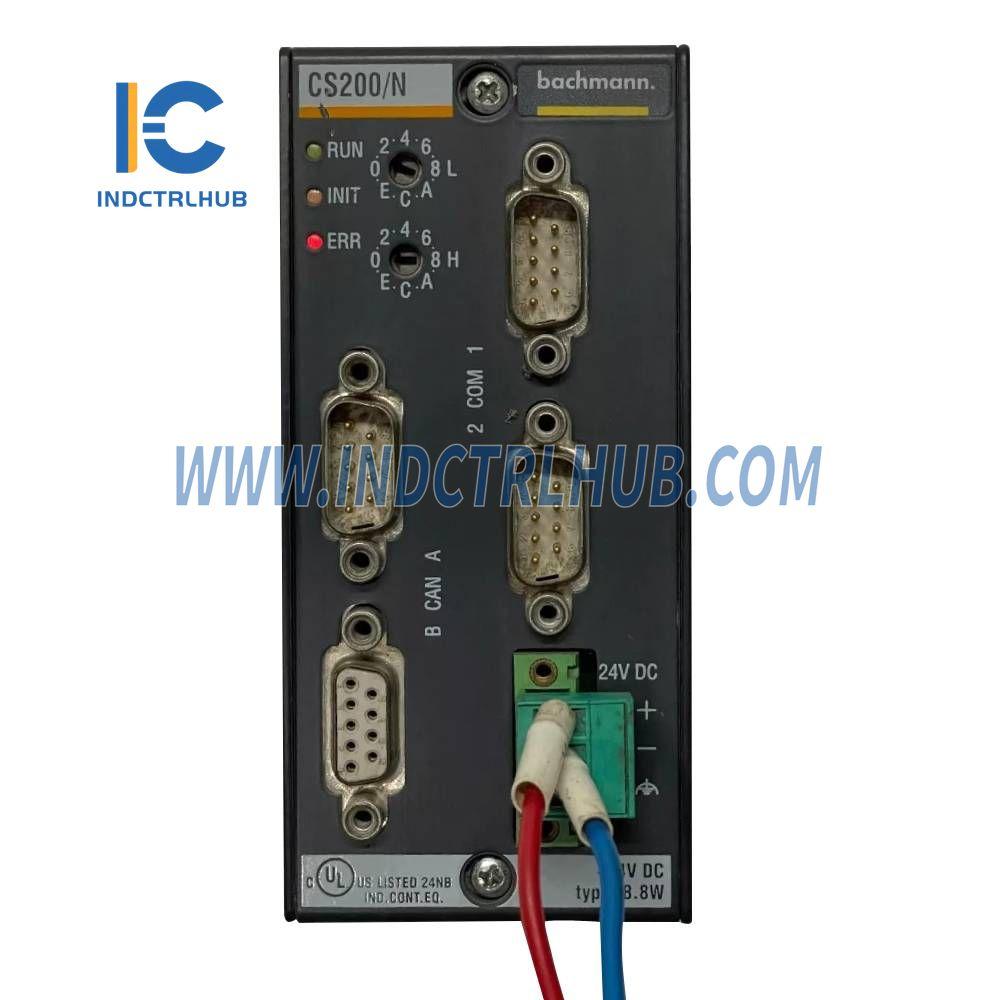

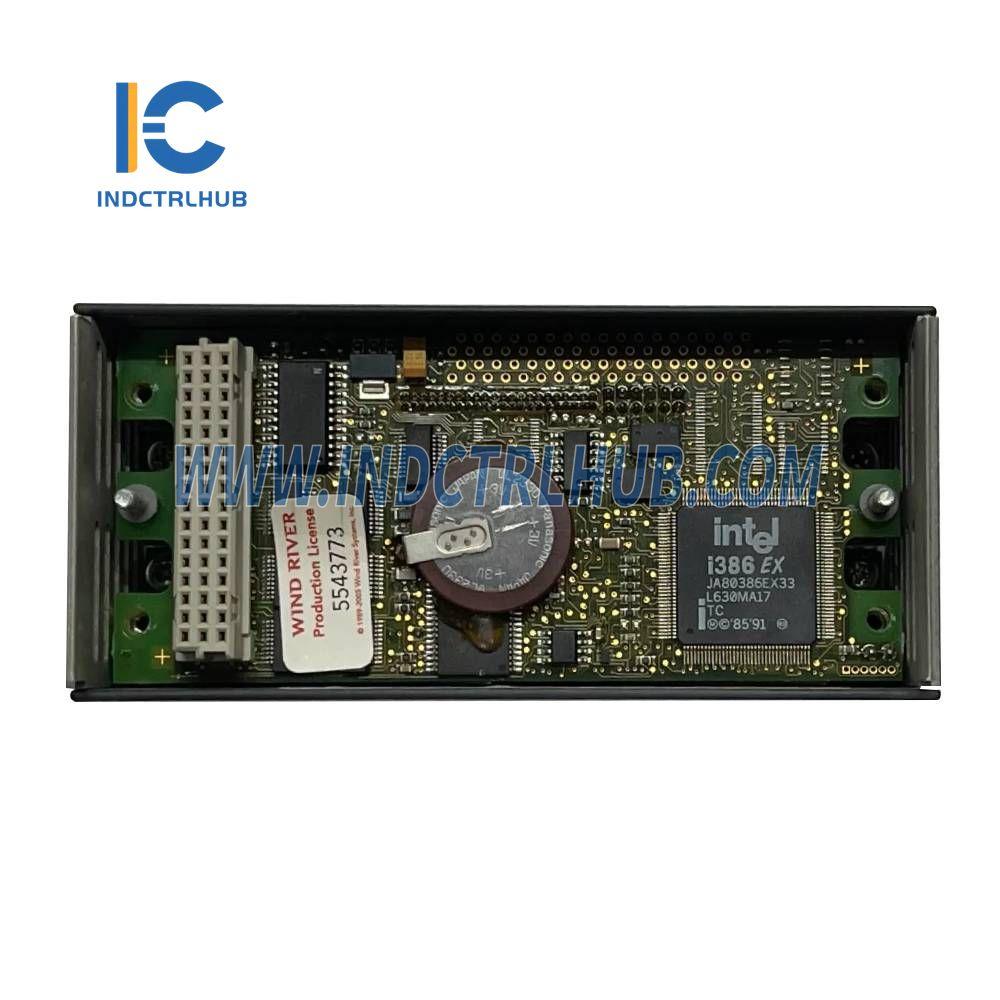

CS200 BACHMANN CANopen slave modules

CS200 BACHMANN CANopen slave modules

  • Manufacturer: BACHMANN

  • Product No.: CS200

  • Condition:1000 in stock

  • Product Type: CANopen slave modules

  • Product Origin: Austria

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

  • Manufacturer: BACHMANN
  • Model/Part Number: CS200
  • Description: CANopen Slave Module

Item Numbers

Model Item No.
CS200 00013178-00
CS200 / N 00013179-00

CANopen Slave Features

  • Node ID: 1 – 254 (Selectable via rotary switch)
  • Protocol: CANopen (CiA DS 301 V3.0)
  • Device Profile: CiA DS 401 (I/O), CiA DS 402 (ACR)
  • Firmware: Reloadable (FLASH technology)
  • Number of I/O Modules: 15 per station, 30 using bus extension modules (BES/BEM or FASTBUS)
  • Current Consumption: 600 mA / 5 V, 15 mA / +15 V, 40 mA / -15 V
  • Serial Interfaces:
    • COM1: RS232
    • COM2: RS232 / 422 / 485

CAN Interface

  • Transfer Rate: 10 Kbaud – 1 Mbaud
  • Bus Length: Up to 5000 m
  • Connection: 2x 9-pin D-Sub female connectors
  • Pin Assignment: In accordance with CiA DS 102 / 4
  • Signal Level: In accordance with CiA DS 102 / 4
  • Terminating Resistance: 123 ohm (external)
  • Galvanic Isolation: 500 V

CANopen Features

Feature Specification
CANopen Master No
CANopen Slave Yes
Extended Boot-up No
Minimum Boot-up Yes
COB ID Distribution Per SDO, no DBT
Node ID Distribution No (no LMT)
No. of TxPDOs / RxPDOs 128 / 128
PDO Modes Sync, Async, RTR, Event-driven
Variable PDO Mapping Yes
Emergency Messages Yes
Life Guarding Yes (Heartbeat and/or Node Guarding)
No. of SDOs 4 Servers
Device Profiles 301, 401, 402

Optional Integrated Power Supply (CS200/N Only)

  • Voltage Range: 18 – 34 V DC
  • Current Consumption: Max. 1.2 A at 24 V
  • Nominal Power: 17 W
  • Current Consumption at +5 V: 2000 mA
  • Current Consumption at +15 V: 250 mA
  • Current Consumption at -15 V: 200 mA

Environmental Conditions

  • Operating Temperature: -30°C to +60°C
  • Storage Temperature: -40°C to +85°C
  • Humidity (Operation): 5% – 95% (without condensation)
  • Humidity (Storage): 5% – 95% (without condensation)

Model Variants

  • CS200: CAN bus master, 1 line, 1 Mbit/s, processor system, isolated
  • CS200 / N: CAN fieldbus slave module, 1x CAN/CANopen, 1 Mbit/s, isolated, integrated power supply (17W)
View full details

Product Description

General Information

  • Manufacturer: BACHMANN
  • Model/Part Number: CS200
  • Description: CANopen Slave Module

Item Numbers

Model Item No.
CS200 00013178-00
CS200 / N 00013179-00

CANopen Slave Features

  • Node ID: 1 – 254 (Selectable via rotary switch)
  • Protocol: CANopen (CiA DS 301 V3.0)
  • Device Profile: CiA DS 401 (I/O), CiA DS 402 (ACR)
  • Firmware: Reloadable (FLASH technology)
  • Number of I/O Modules: 15 per station, 30 using bus extension modules (BES/BEM or FASTBUS)
  • Current Consumption: 600 mA / 5 V, 15 mA / +15 V, 40 mA / -15 V
  • Serial Interfaces:
    • COM1: RS232
    • COM2: RS232 / 422 / 485

CAN Interface

  • Transfer Rate: 10 Kbaud – 1 Mbaud
  • Bus Length: Up to 5000 m
  • Connection: 2x 9-pin D-Sub female connectors
  • Pin Assignment: In accordance with CiA DS 102 / 4
  • Signal Level: In accordance with CiA DS 102 / 4
  • Terminating Resistance: 123 ohm (external)
  • Galvanic Isolation: 500 V

CANopen Features

Feature Specification
CANopen Master No
CANopen Slave Yes
Extended Boot-up No
Minimum Boot-up Yes
COB ID Distribution Per SDO, no DBT
Node ID Distribution No (no LMT)
No. of TxPDOs / RxPDOs 128 / 128
PDO Modes Sync, Async, RTR, Event-driven
Variable PDO Mapping Yes
Emergency Messages Yes
Life Guarding Yes (Heartbeat and/or Node Guarding)
No. of SDOs 4 Servers
Device Profiles 301, 401, 402

Optional Integrated Power Supply (CS200/N Only)

  • Voltage Range: 18 – 34 V DC
  • Current Consumption: Max. 1.2 A at 24 V
  • Nominal Power: 17 W
  • Current Consumption at +5 V: 2000 mA
  • Current Consumption at +15 V: 250 mA
  • Current Consumption at -15 V: 200 mA

Environmental Conditions

  • Operating Temperature: -30°C to +60°C
  • Storage Temperature: -40°C to +85°C
  • Humidity (Operation): 5% – 95% (without condensation)
  • Humidity (Storage): 5% – 95% (without condensation)

Model Variants

  • CS200: CAN bus master, 1 line, 1 Mbit/s, processor system, isolated
  • CS200 / N: CAN fieldbus slave module, 1x CAN/CANopen, 1 Mbit/s, isolated, integrated power supply (17W)

Download PDF file here:

Click to Download PDF
