Manufacturer: BACHMANN
Model/Part Numbers: BS200,BS201, BS202, BS216
Description:

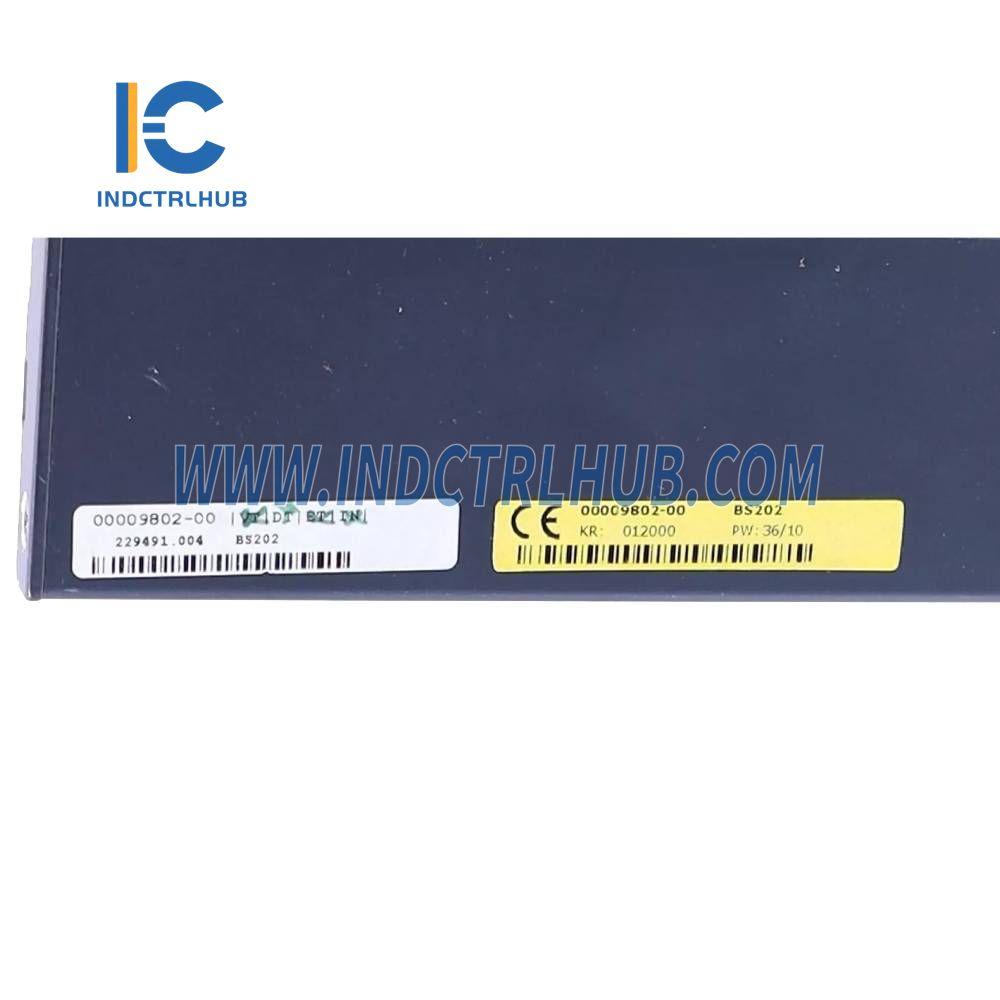

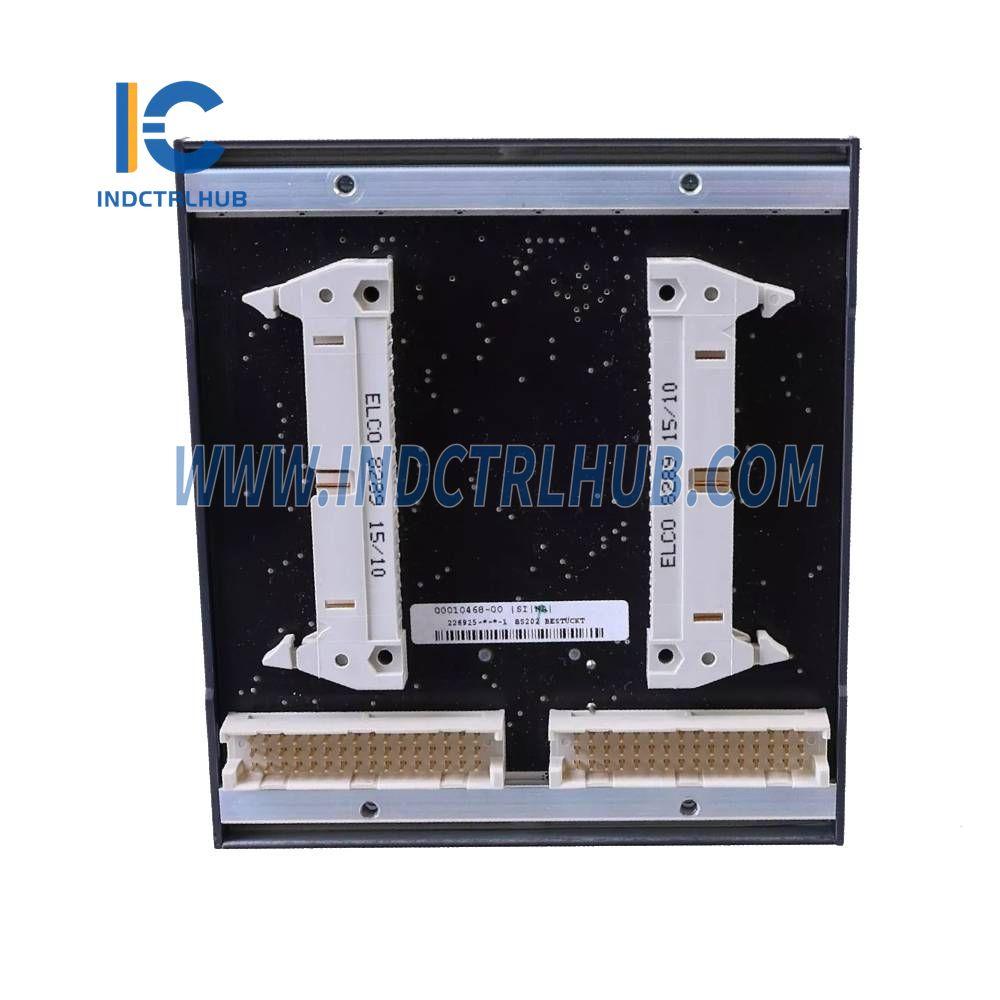

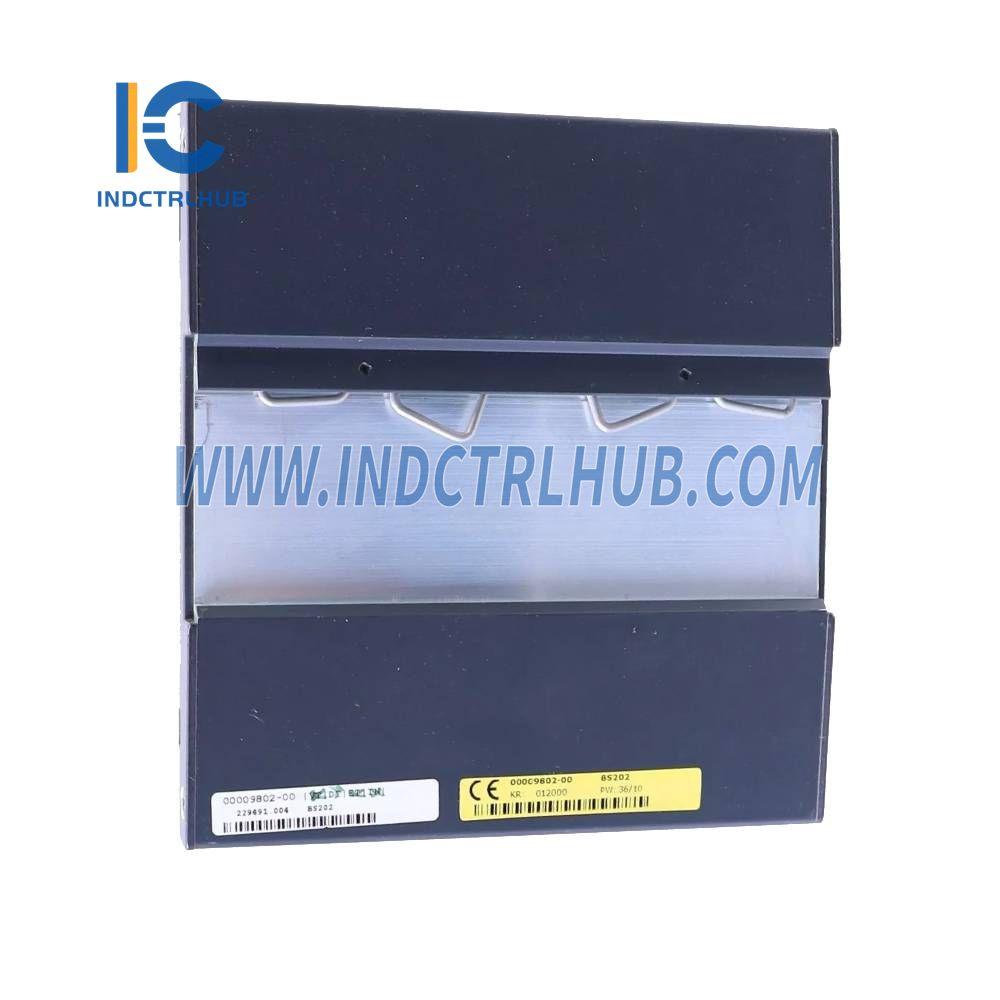

The BS201 to BS216 backplanes form the backbone of the M1 controller system, interconnecting hardware modules such as power supplies, CPU modules, and input/output modules both mechanically and electrically.
- Available with 1 to 16 module slots
- Seamless connections for module extensions
- Stable mechanics and compact design
- Vibration-proof fixing of modules
- Easily snapped onto an EN 60715 DIN rail
Dimensions:
| Parameter | Specification |
|---|---|
| Number of module slots | 1 to 16 |
| Width | 55 mm × number of module slots |
| Depth | 23 mm (including connector) |
| Height | 119 mm |
Ambient Conditions:
- Operating temperature: -30°C to +60°C (vertical installation: -30°C to +55°C)
- Relative humidity (operation): 5% to 95% (non-condensing)
- Storage temperature: -40°C to +85°C
- Relative humidity (storage): 5% to 95% (non-condensing)
Execution Variants:
| Model | Description |
|---|---|
| BS201 | Backplane with 1 module slot |
| BS202 | Backplane with 2 module slots |
| BS216 | Backplane with 16 module slots |
| S201 | Backplane with 1 module slot, without a circuit board |
