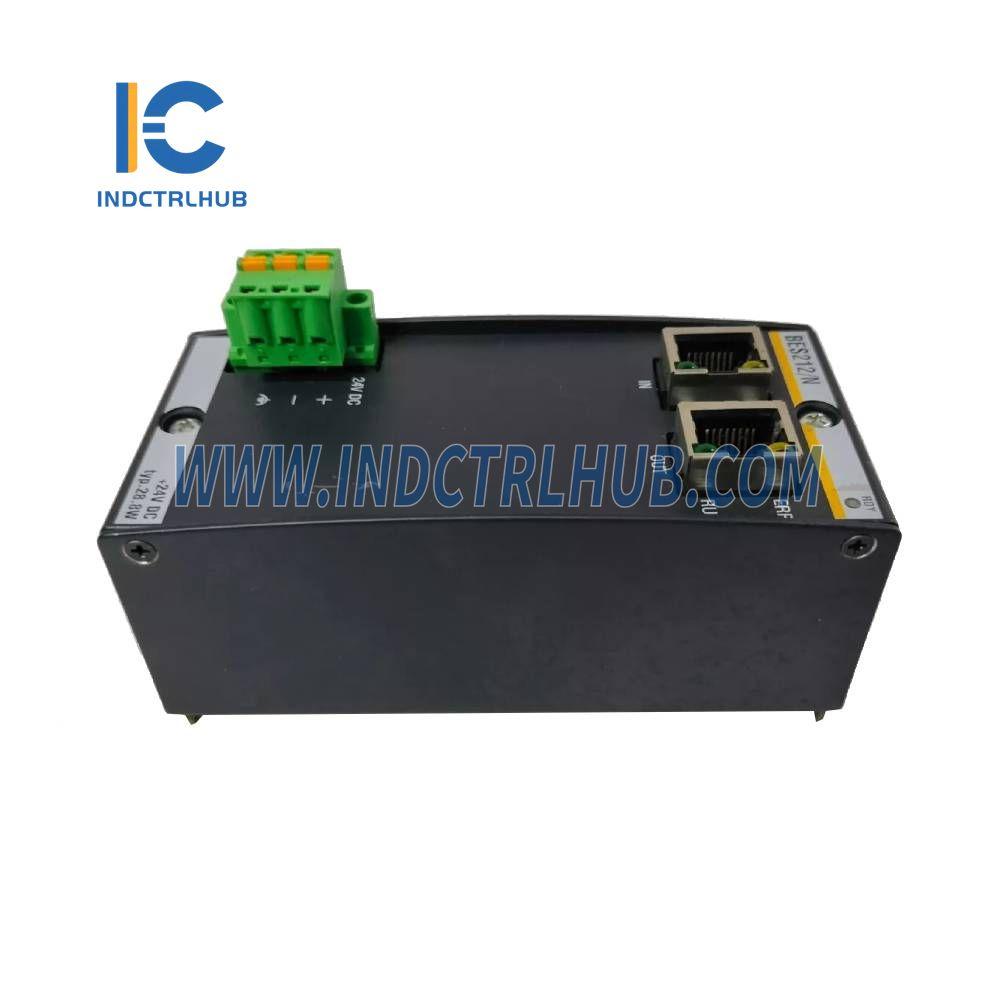

BES222 BES222/N Bachmann Bus expansion modules

BES222 BES222/N Bachmann Bus expansion modules

  • Manufacturer: Bachmann

  • Product No.: BES222 BES222/N

  • Condition:1000 in stock

  • Product Type: Bus expansion modules

  • Product Origin: AUSTRALIA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

Manufacturer: BACHMANN
Model/Part Numbers: BES222, BES222/N
Description: Bus Expansion Modules

The BES222 series enables high-performance signal conditioning for up to 15 substations, ensuring efficient and minimal delay communication across distributed stations. With its modular and scalable design, these bus expansion modules support flexible installation with up to 3 m distances between stations. The BES222/N variant includes an integrated power supply for added convenience and functionality.

Key Features:

Feature Details
High-Performance Signal Conditioning Supports up to 15 substations
Interfaces Bus expansion master module: 1 interface
Bus expansion slave module: 2 interfaces
Topology Daisy chain
Signal Delay Minimal
Distance Between Stations Up to 3 m
Integrated Power Supply Optional (BES222/N)
Watchdog Integrated on slave modules

Bus Expansion Interface:

Specification Details
Line Length 3 m
Transmission Medium CAT7 special cable
Max. Number of Stations 15 (BES222/x)

Integrated Power Supply (Optional):

Specification Details
Voltage Range 18–34 V DC
Current Consumption Max. 1.2 A at 24 V
Nominal Power 17 W
Output Current (+5 V) 2 A
Output Current (+15 V) 250 mA
Output Current (-15 V) 200 mA
Reverse Polarity Protection Yes

Ambient Conditions:

Condition Details
Operating Temperature -30°C to +60°C
Rel. Humidity Operation 5–95% without condensation
Storage Temperature -40°C to +85°C
Rel. Humidity Storage 5–95% without condensation

Model Variants:

Model Description
BES222 Bus extension slave module with 2 interfaces (up to 15 stations).
BES222/N Bus extension slave module with 2 interfaces and integrated power supply 17W (up to 15 stations).
View full details
