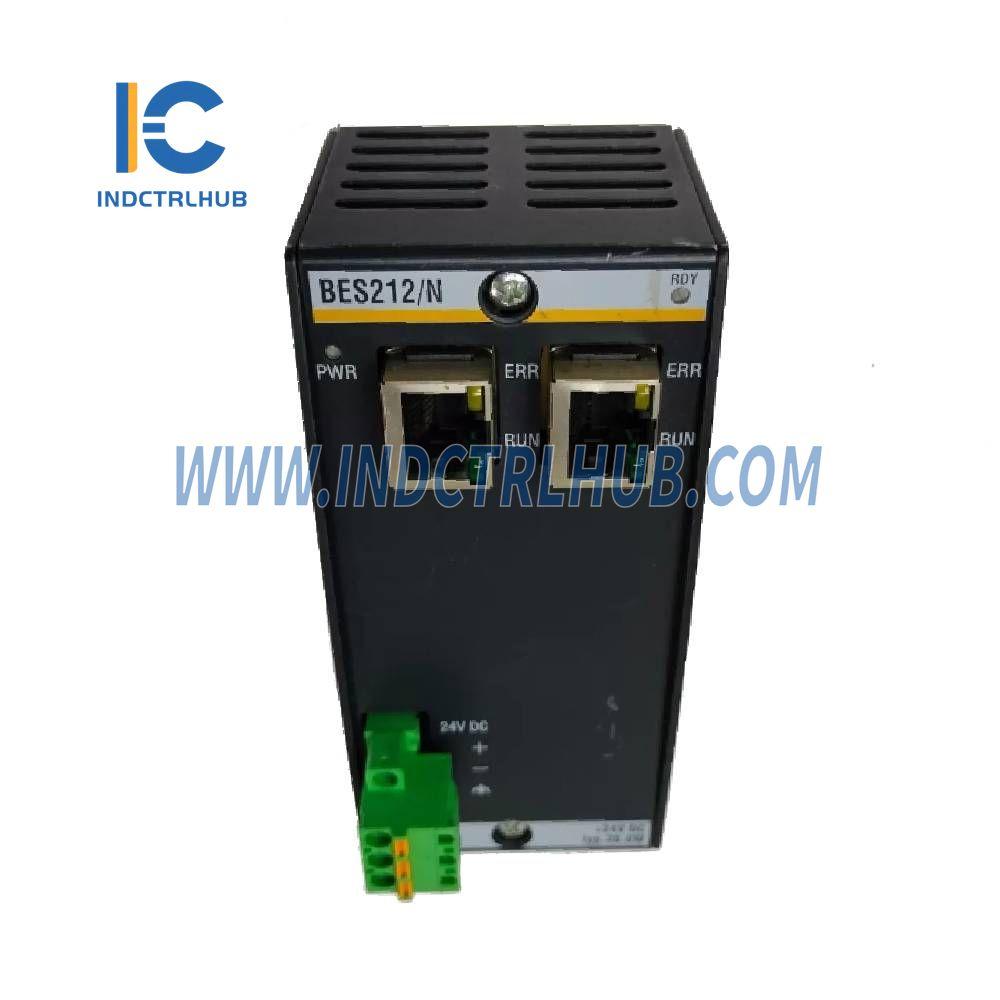

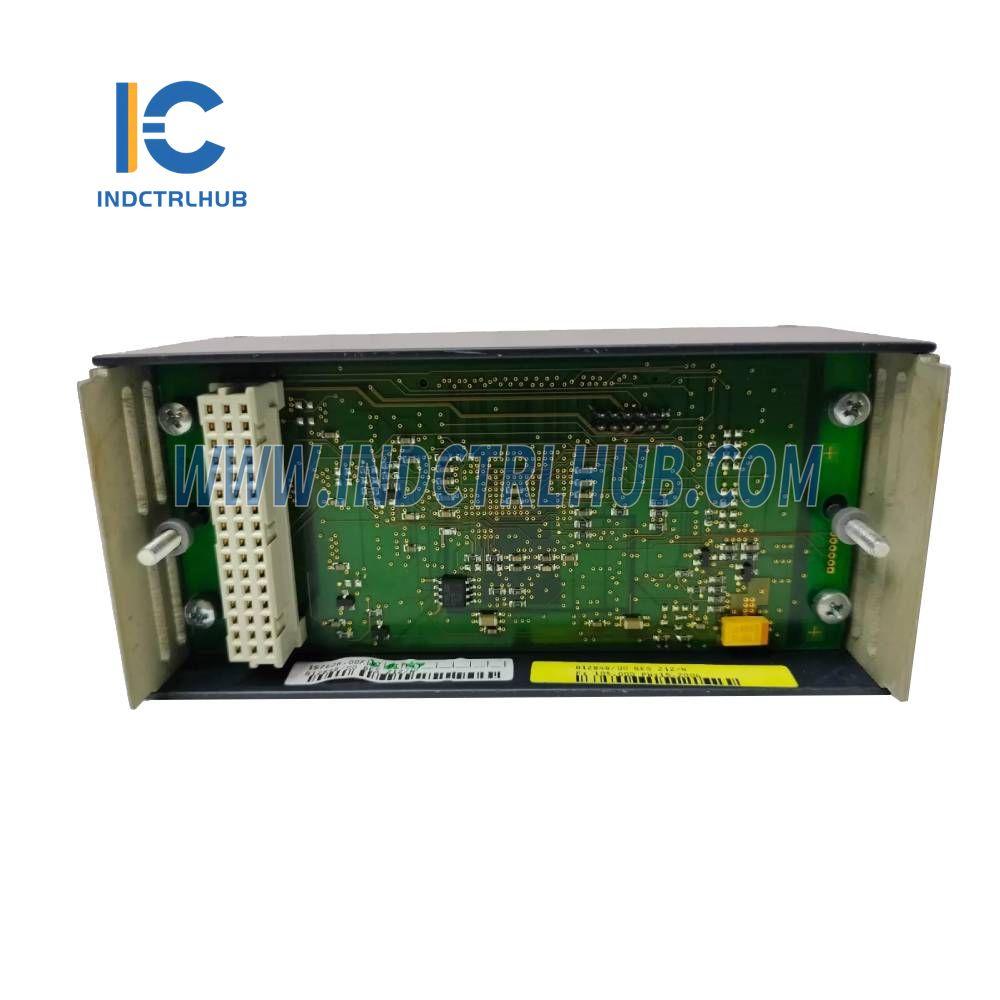

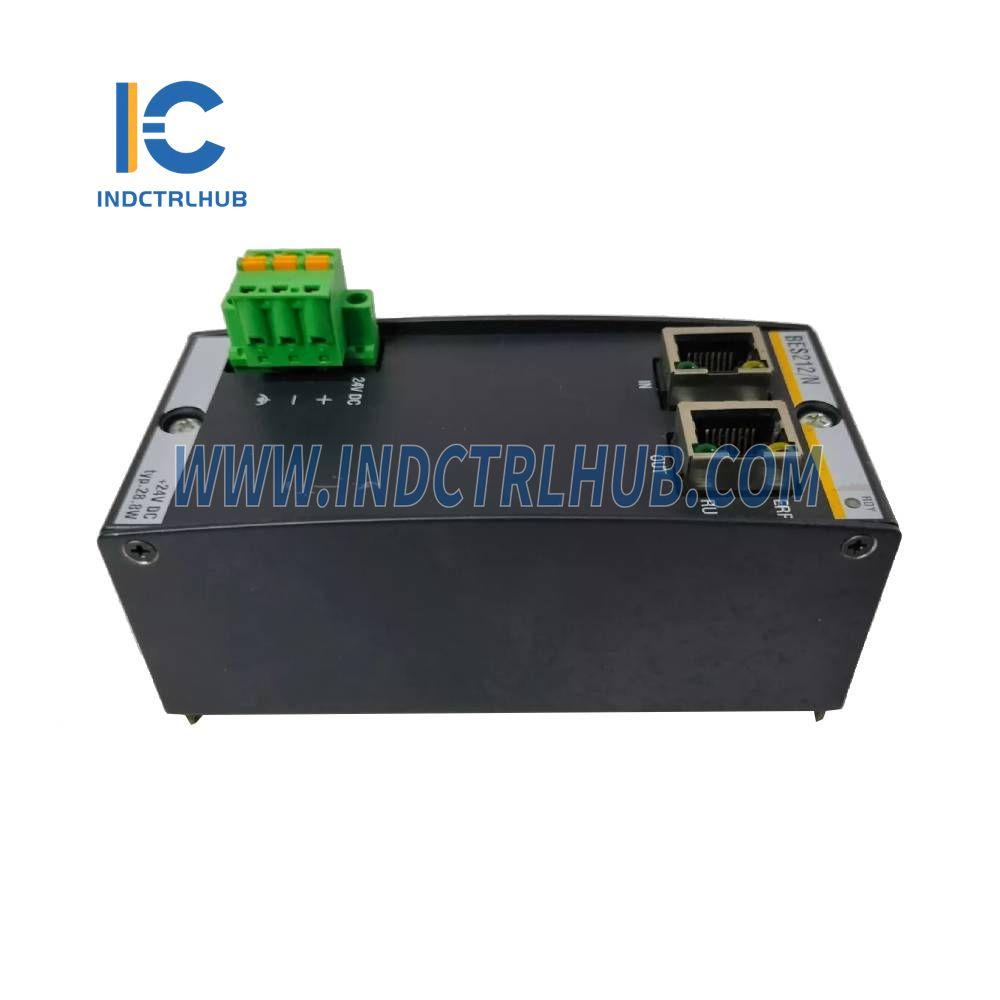

BES212 BES212/N Bachmann Bus expansion modules

BES212 BES212/N Bachmann Bus expansion modules

  • Manufacturer: Bachmann

  • Product No.: BES212 BES212/N

  • Condition:1000 in stock

  • Product Type: Bus expansion modules

  • Product Origin: AUSTRALIA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

Manufacturer: BACHMANN
Model/Part Numbers: BES212, BES212/N
Description: Bus Expansion Modules

The BES212 series bus expansion modules enable a high-speed connection with minimal signal delay (less than 1.5 µs). These modules support up to six substations in a daisy chain topology, with each substation handling up to 15 M1 standard modules. For applications requiring additional substations

Key Features:

Feature Details
High-Speed Connection Up to 3 m distance with <1.5 µs access time
Topology Daisy chain, up to 6 substations
Module Handling per Substation Up to 15 M1 standard modules
Wiring RJ45 connectors
Integrated Power Supply Optional (BES212/N)
Protocol Not required for I/O access

Bus Expansion Interface:

Specification Details
Line Length 3 m
Transmission Medium CAT7 special cable
Max. Number of Stations 6 (BES212/x) or 15 (BES222/x)

Integrated Power Supply (Optional):

Specification Details
Voltage Range 18–34 V DC
Current Consumption Max. 1.2 A at 24 V
Nominal Power 17 W
Output Current (+5 V) 2 A
Output Current (+15 V) 250 mA
Output Current (-15 V) 200 mA
Reverse Polarity Protection Yes

Ambient Conditions:

Condition Details
Operating Temperature -30°C to +60°C
Rel. Humidity Operation 5–95% without condensation
Storage Temperature -40°C to +85°C
Rel. Humidity Storage 5–95% without condensation

Model Variants:

Model Description
BES212 Bus extension slave module with 2 interfaces (up to 6 stations).
BES212/N Bus extension slave module with 2 interfaces and integrated power supply 17W (up to 6 stations).
View full details

Product Description

Product Details

Manufacturer: BACHMANN
Model/Part Numbers: BES212, BES212/N
Description: Bus Expansion Modules

The BES212 series bus expansion modules enable a high-speed connection with minimal signal delay (less than 1.5 µs). These modules support up to six substations in a daisy chain topology, with each substation handling up to 15 M1 standard modules. For applications requiring additional substations

Key Features:

Feature Details
High-Speed Connection Up to 3 m distance with <1.5 µs access time
Topology Daisy chain, up to 6 substations
Module Handling per Substation Up to 15 M1 standard modules
Wiring RJ45 connectors
Integrated Power Supply Optional (BES212/N)
Protocol Not required for I/O access

Bus Expansion Interface:

Specification Details
Line Length 3 m
Transmission Medium CAT7 special cable
Max. Number of Stations 6 (BES212/x) or 15 (BES222/x)

Integrated Power Supply (Optional):

Specification Details
Voltage Range 18–34 V DC
Current Consumption Max. 1.2 A at 24 V
Nominal Power 17 W
Output Current (+5 V) 2 A
Output Current (+15 V) 250 mA
Output Current (-15 V) 200 mA
Reverse Polarity Protection Yes

Ambient Conditions:

Condition Details
Operating Temperature -30°C to +60°C
Rel. Humidity Operation 5–95% without condensation
Storage Temperature -40°C to +85°C
Rel. Humidity Storage 5–95% without condensation

Model Variants:

Model Description
BES212 Bus extension slave module with 2 interfaces (up to 6 stations).
BES212/N Bus extension slave module with 2 interfaces and integrated power supply 17W (up to 6 stations).

Download PDF file here:

Click to Download PDF
