Product Description

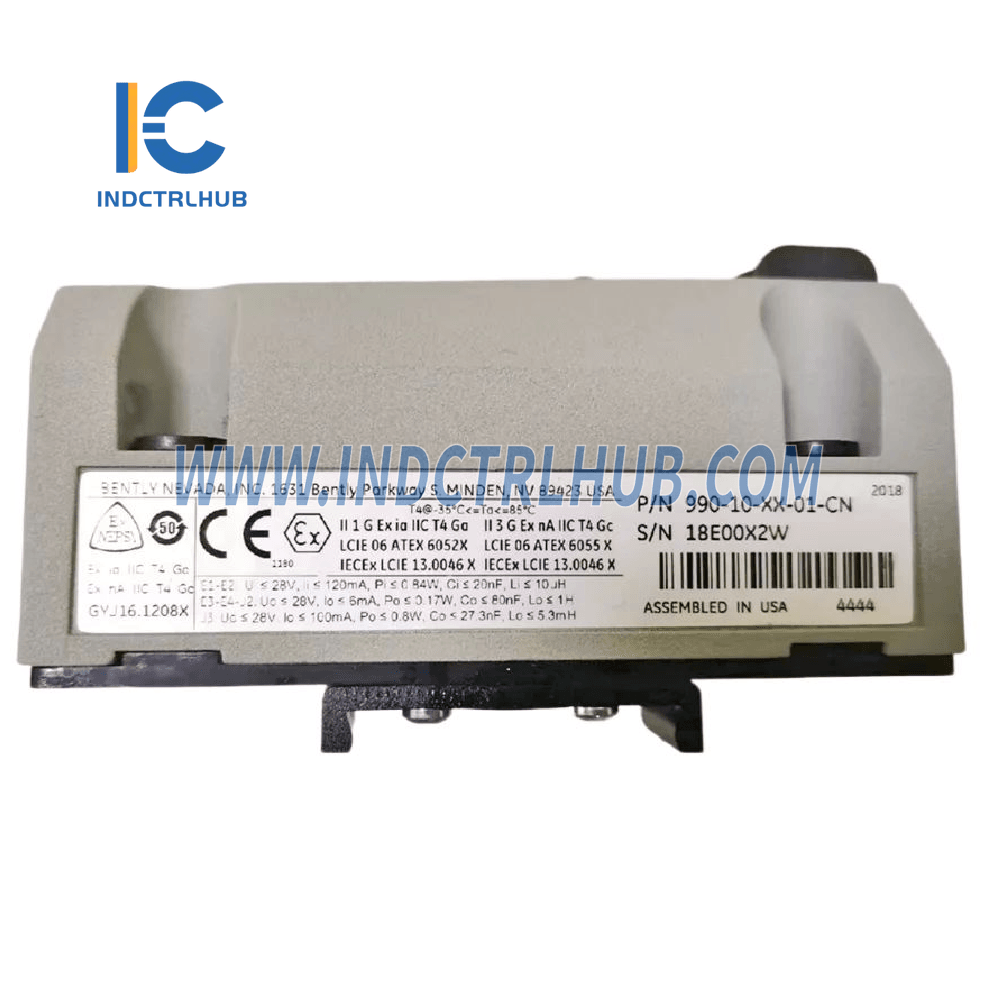

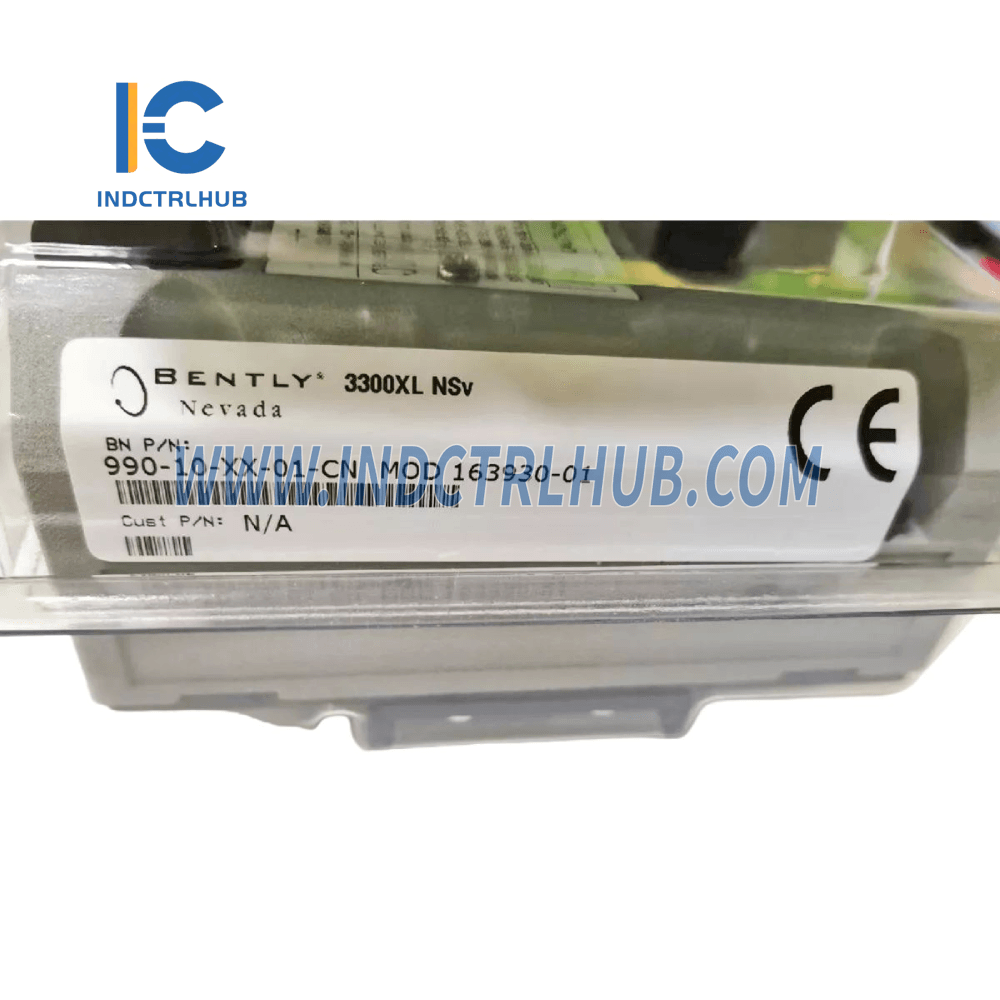

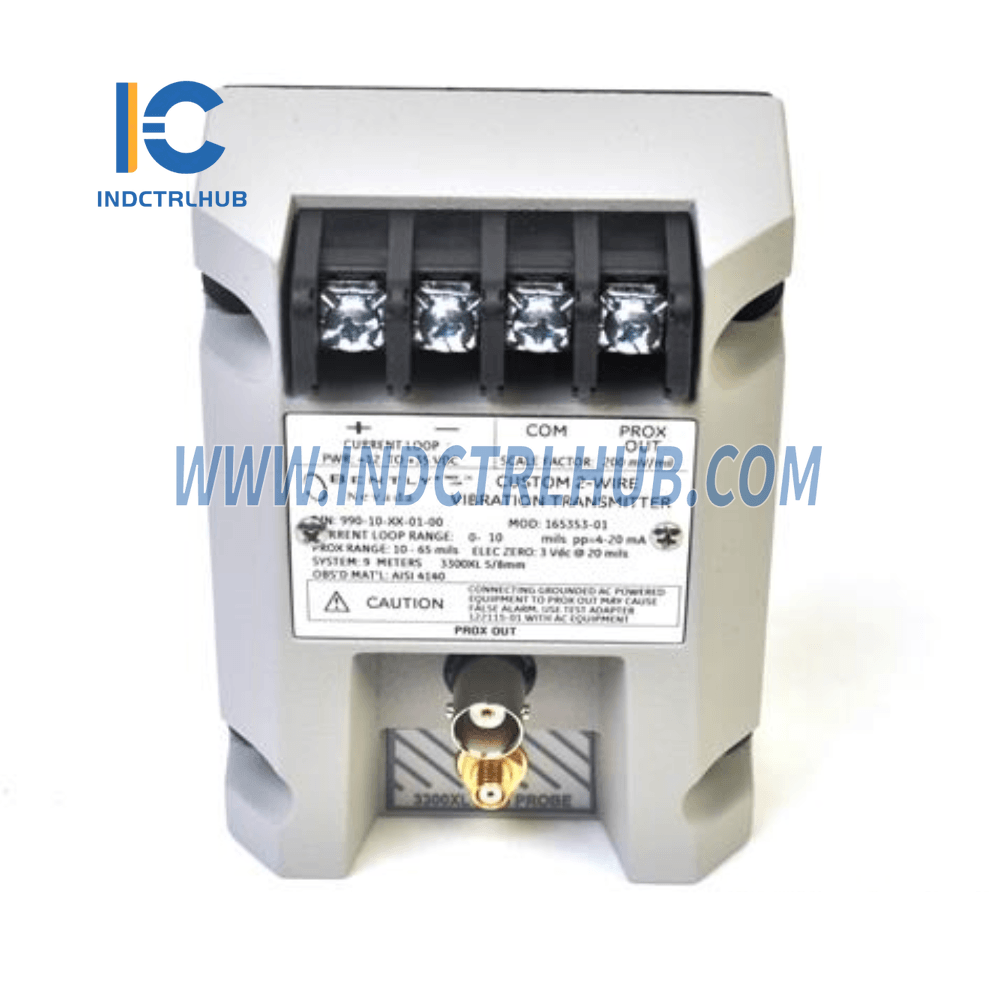

Product Details: Bently Nevada 990 Vibration Transmitter (Model: 990-10-XX-01-00)
General Information
- Manufacturer: Bently Nevada
- Model/Part Number: 990-10-XX-01-00 3300 XL 5/8MM
-
Description:
- The 990 Vibration Transmitter provides vibration measurement and monitoring solutions for industrial machinery. It is used with a 3300 NSv Probe and extension cable and provides high-precision vibration analysis, ensuring the efficient operation of rotating equipment.
- These specifications also apply to the 990 Vibration Transmitter with modifications:
- 147202-01 (RMOD 4140 3300XL 8MM 5M)
- 165335-01 (MOD 4140 3300 XL 8MM 9M)
Environmental Specifications
| Parameter | Details |
|---|---|
| Operating Temperature (Transmitter) | -35°C to +85°C (-31°F to +185°F) |
| Storage Temperature (Transmitter) | -52°C to +100°C (-62°F to +212°F) |
| Operating Temperature (Probe) | -52°C to +177°C (-62°F to +351°F) |
| Storage Temperature (Probe) | -52°C to +177°C (-62°F to +351°F) |
| Relative Humidity | 100% condensing, non-submerged (with coaxial connector protection) |
Mechanical Specifications
| Parameter | Details |
|---|---|
| Transducer Tip Material | Polyphenylene sulfide (PPS) |
| Transducer Case Material | AISI 303 or 304 Stainless Steel (SST) |
| Probe Cable | 75Ω coaxial, fluoroethylene propylene (FEP) insulated |
| Cable Armor | Flexible AISI 302 SST with optional FEP outer jacket |
| Tensile Strength | 222 N (50 lbf) probe case to probe lead, maximum |
| Transmitter Weight | 0.43 kg (0.9 lbm) |
| Total System Weight | 0.82 kg (1.8 lbm) typical |
Configuration Options
| Option | Description |
|---|---|
| A: Full-Scale Option | 04: 0-4 mils pp (0-100 μm pp) 05: 0-5 mils pp (0-125 μm pp) 08: 0-8 mils pp (0-200 μm pp) 10: 0-10 mils pp (0-250 μm pp) |
| B: System Length Option | 50: 5.0 meters (16.4 feet) 70: 7.0 meters (23.0 feet) |
| C: Mounting Option | 01: 35 mm DIN rail clips 02: Bulkhead screws 03: DIN clips and screws |
| D: Agency Approval Option | 00: Not required 01: CSA Division 2 05: CSA Division 2, ATEX Zone 0, ATEX Zone 2, and ABS maritime approval |
Key Features
- Versatile Temperature Range: The 990 Vibration Transmitter can operate in harsh environmental conditions, with both transmitter and probe having wide operating temperature ranges.
- High Durability: The transducer tip is made from Polyphenylene sulfide (PPS), and the case is made from AISI 303 or 304 stainless steel, ensuring durability and resistance to harsh conditions.
- Flexible Mounting and Cable Options: Mounting options include DIN rail clips, bulkhead screws, and combination mounting systems. Cable length options range from 5.0 meters to 7.0 meters for customized installations.
- High Humidity Resistance: The transmitter is designed to work in environments with 100% relative humidity and is protected from condensation when the coaxial connectors are properly protected.
- Full-Scale Sensitivity Options: This unit comes with a range of full-scale options (0-4 mils pp to 0-10 mils pp), enabling precise vibration measurements in various machinery types.
- Optional Agency Approvals: Available with CSA Division 2, ATEX Zone 0, and ATEX Zone 2 approvals, making it suitable for hazardous areas and maritime applications.
