Product Description
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Bently Nevada |
|
Series |
Not specified |
|
Model/Part Number |

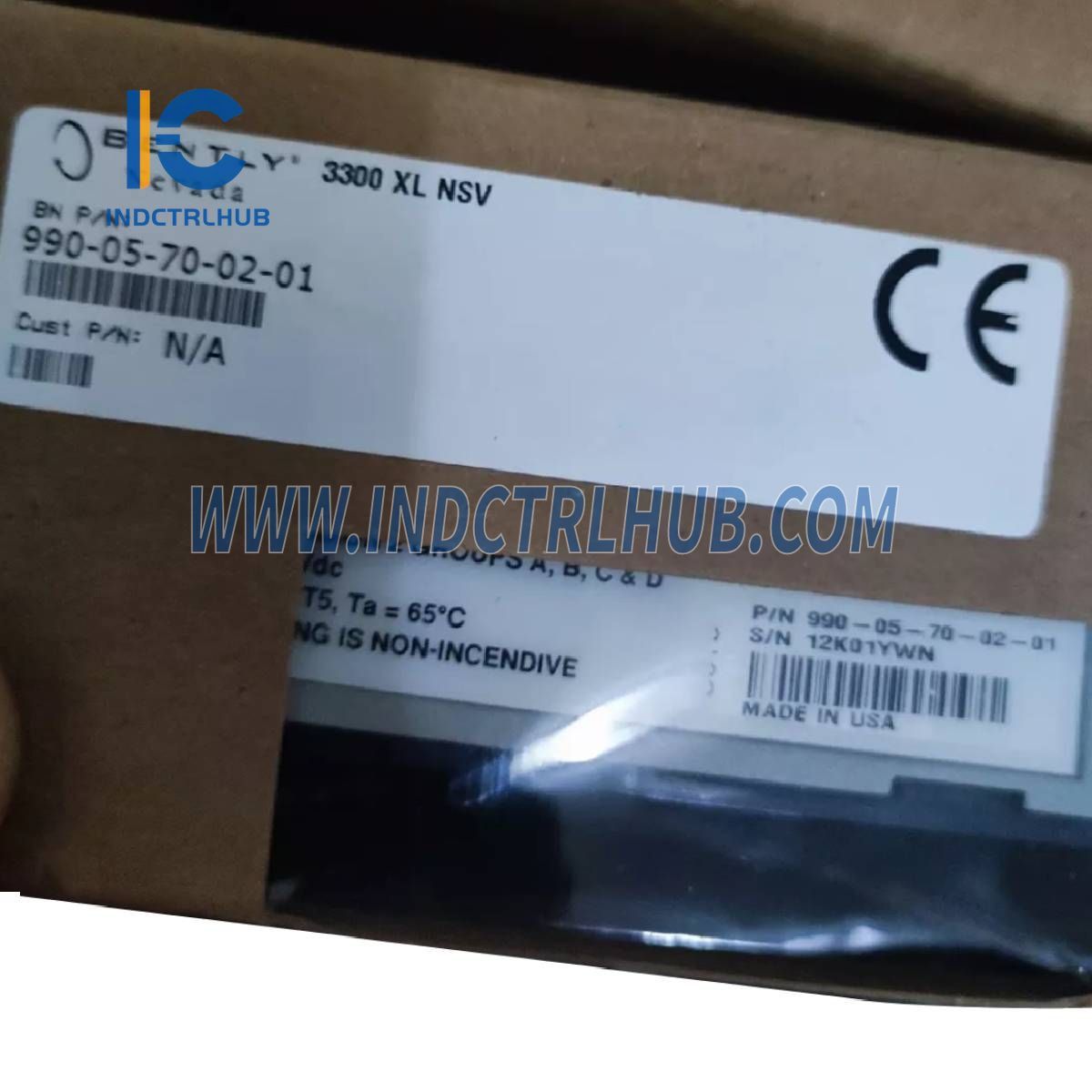

990-05-70-02-01 |
|
Model Type |

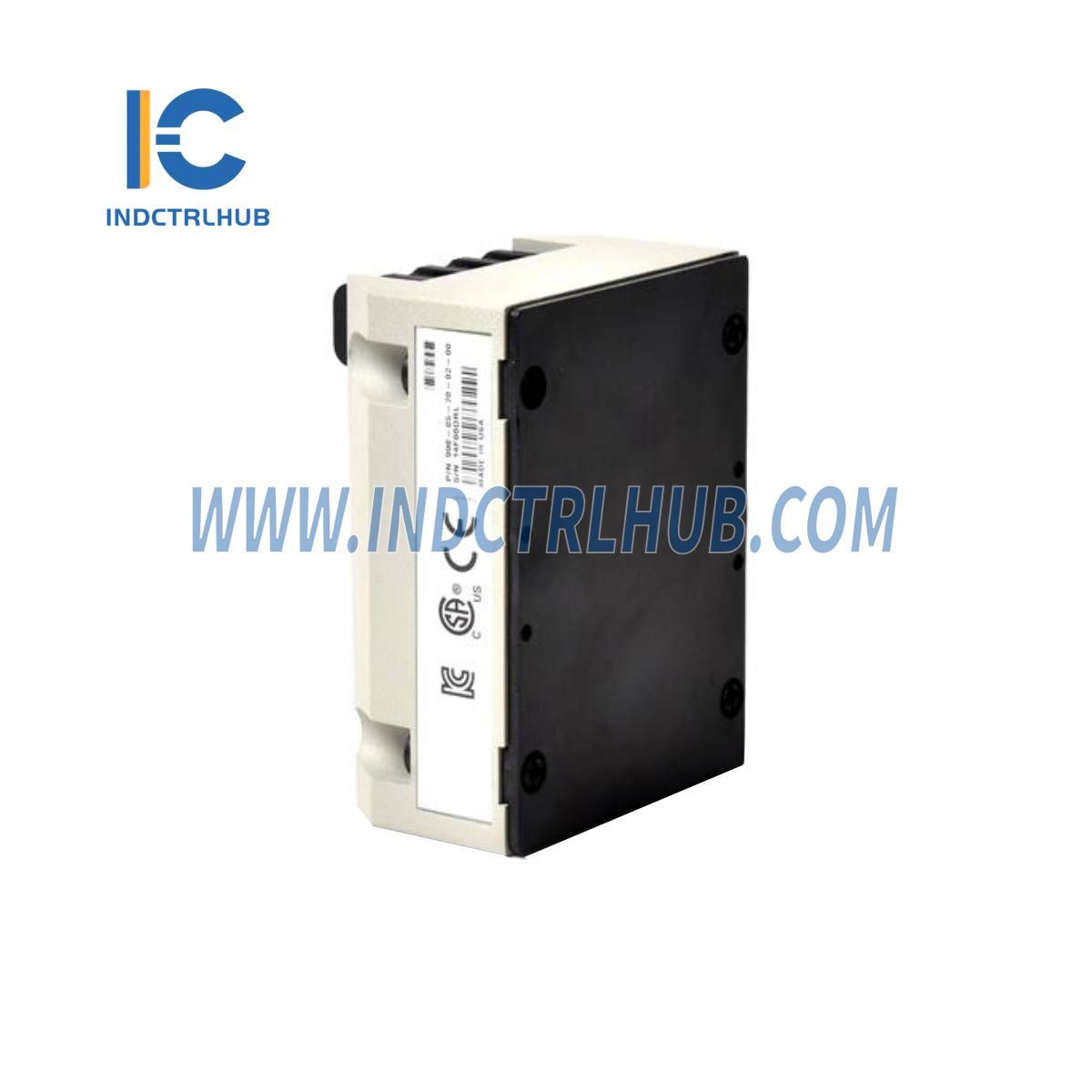

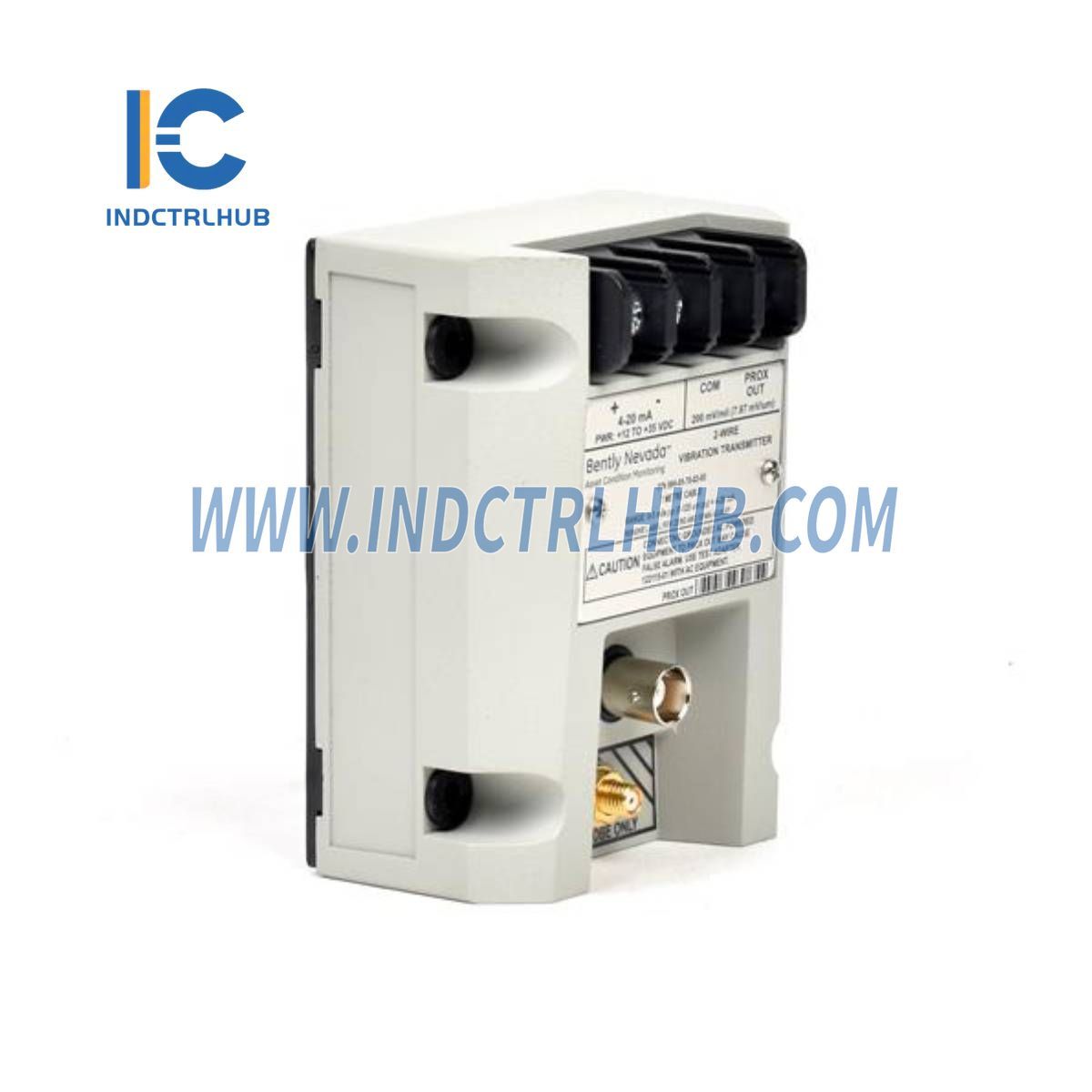

Vibration Transmitter |
Mechanical Specifications
|
Component |
Material/Description |
|---|---|
|
Transducer Tip Material |
Polyphenylene sulfide (PPS) |
|
Transducer Case Material |
AISI 303 or 304 Stainless Steel (SST) |
|
Probe Cable |
75Ω coaxial, fluoroethylene propylene (FEP) insulated |
|
Cable Armor (Optional) |
Flexible AISI 302 SST with optional FEP outer jacket |
|
Tensile Strength |
222 N (50 lbf) probe case to probe lead, maximum |
|
Transmitter Weight |
0.43 kg (0.9 lbm) |
|
Total System Weight |
0.82 kg (1.8 lbm) typical |
Environmental Limits
|
Component |
Condition |
Temperature Range |
|---|---|---|
|
Transmitter |
Operating Temperature |
-35°C to +85°C (-31°F to +185°F) |
|
Storage Temperature |
-52°C to +100°C (-62°F to +212°F) |
|
|
Probe |
Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
|
Relative Humidity |
100% condensing, non-submerged, with protection of coaxial connectors |
Ordering Information
|
Part Number |
Description |
|---|---|
|
990-AA-BB-CC-DD |
Configuration Options for 990 Series Vibration Transmitter |
Configuration Options
|
Option |
Description |
|---|---|
|
A: Full-Scale Option |
04: 0-4 mils pp (0-100 μm pp) 05: 0-5 mils pp (0-125 μm pp) 08: 0-8 mils pp (0-200 μm pp) 10: 0-10 mils pp (0-250 μm pp) |
|
B: System Length Option |
50: 5.0 meters (16.4 feet) 70: 7.0 meters (23.0 feet) |
|
C: Mounting Option |
01: 35 mm DIN rail clips 02: Bulkhead screws 03: DIN clips and screws |
|
D: Agency Approval Option |
00: Not required 01: CSA Division 2 05: CSA Division 2, ATEX Zone 0, ATEX Zone 2 and includes ABS maritime approval |
