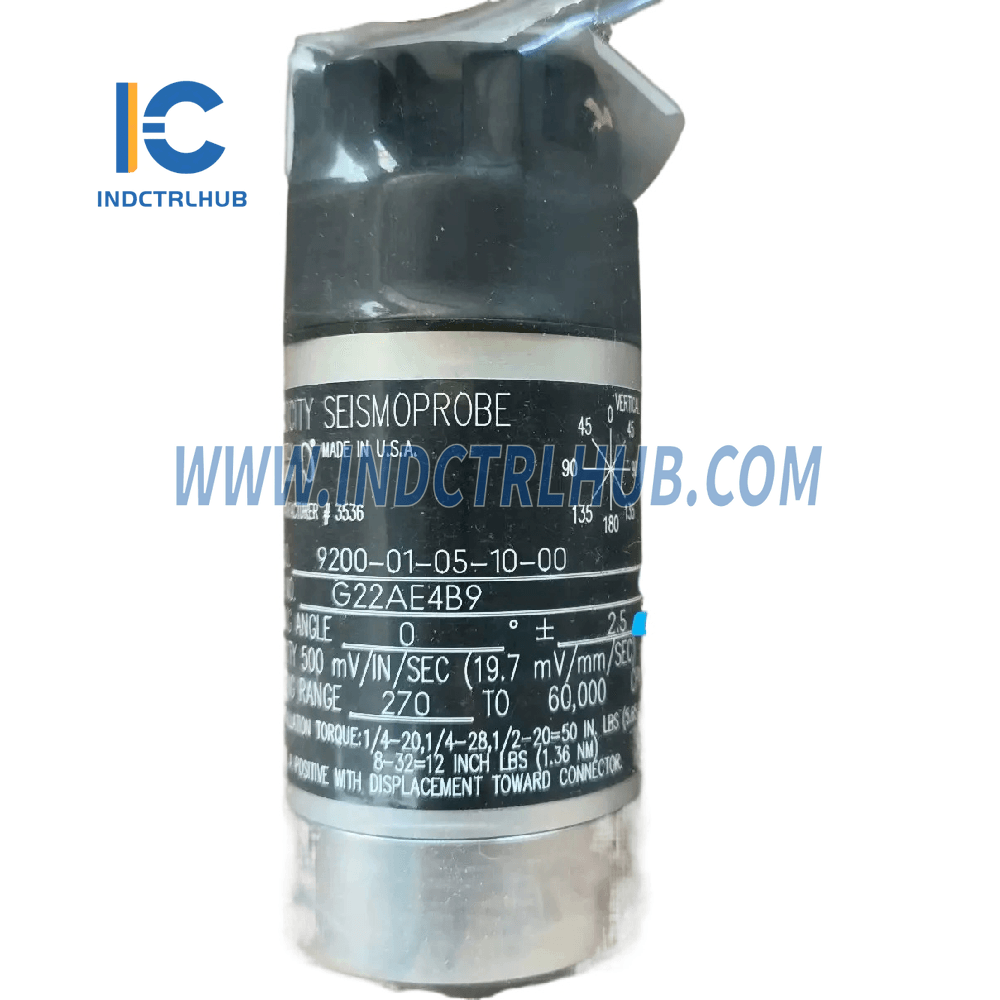

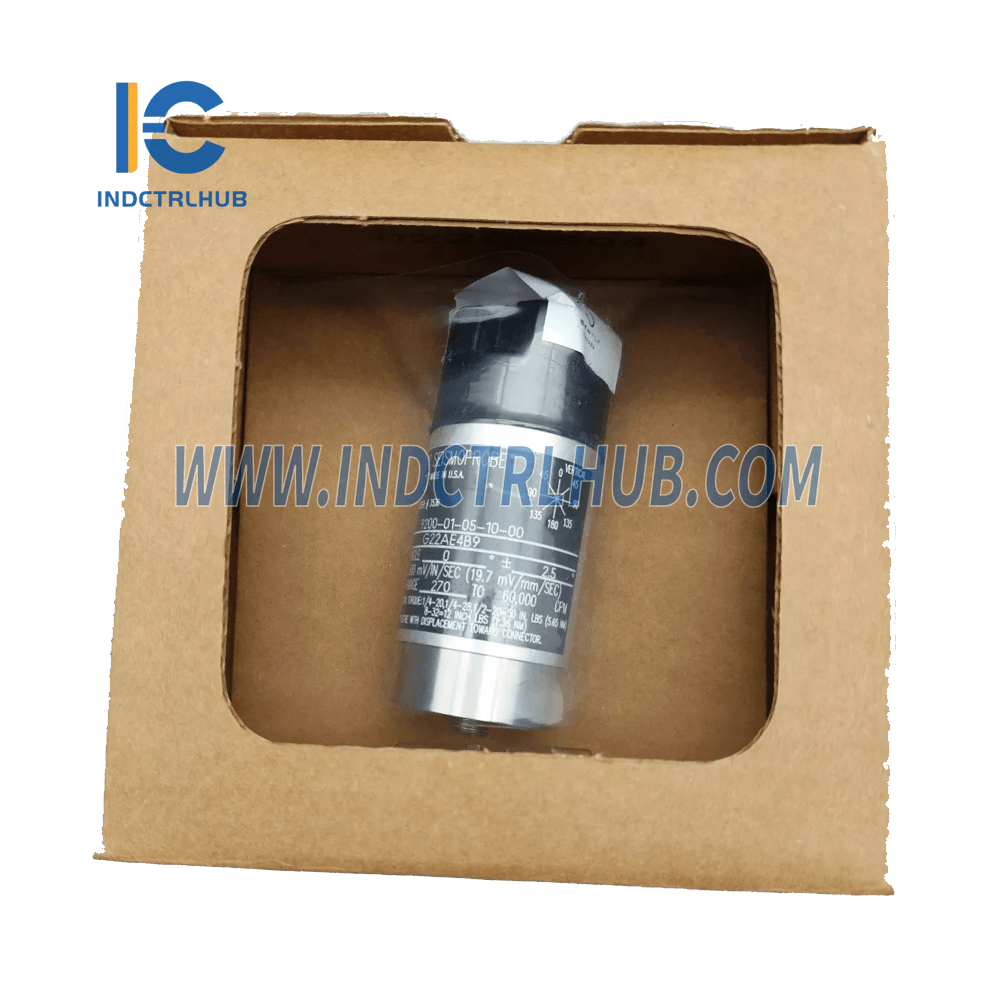

BENTLY NEVADA 9200-01-05-10-00 Two-wire Transducer 9200 Seismoprobe Velocity Transducers

BENTLY NEVADA 9200-01-05-10-00 Two-wire Transducer 9200 Seismoprobe Velocity Transducers

  • Manufacturer: Bently Nevada

  • Product No.: 9200-01-05-10-00

  • Condition:1000 in stock

  • Product Type: 9200 Seismoprobe Velocity Transducers

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 297g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

  • Manufacturer: Bently Nevada
  • Model/Part Number: 9200-01-05-10-00
  • Description: Two-wire Transducer Seismoprobe Transducer

Key Features

  1. Electrical Sensitivity:
    • 20 mV/mm/s (500 mV/in/s), ±5% when properly terminated and oriented at the angle of calibration.
  2. Calibration Load:
    • 10 kΩ Terminal "A" to "B" (Output taken across pins "A" and "B").
  3. Sensitivity Temperature Coefficient:
    • 0.2%/°C.
  4. Frequency Response:
    • 4.5 to 1000 Hz (270 to 60,000 CPM), +0, -3dB typical.
    • 10 to 1000 Hz (600 to 60,000 CPM), +0, -3dB typical.
    • 15 to 1000 Hz (900 to 60,000 CPM), +0, -3dB typical.
    • From minimum operating frequency (see Ordering Information) to 1 kHz (60,000 cpm), +0, -3dB typical.
  5. Dynamic Operating Range:
    • 2.54 mm (0.100 in) peak-to-peak maximum displacement.
  6. Velocity Range:
    • 25 mm/s (1 in/s) at +22°C of casing vibration at 100 Hz with a 10 kΩ load.
  7. Coil Resistance:
    • 1.25 kΩ ±5%.
  8. Locked Coil Inductance:
    • 125 mH, typical.
  9. Amplitude Linearity:
    • ±5% from 0.01 to 5.0 in/s (0.254 to 127 mm/s) at 100 Hz (6000 CPM).
  10. Shock Resistance:
    • Withstands 50 g peak maximum acceleration along non-sensitive axis.
  11. Transverse Sensitivity:
    • ±10% maximum of the sensitive axis sensitivity at 100 Hz and 1.0 in/s (2.54 cm/s).
  12. Polarity of Output Signal:
    • Pin A goes positive with respect to Pin B when the transducer case velocity is towards the connector.

Physical Specifications

  • Lead Wire Length:
    • Maximum of 305 meters (1,000 feet) between Seismoprobe Velocity Transducer and 3300 or 3500 Monitor.
    • Consult manual for frequency roll-off at longer lengths.
  • Mounting Options:
    • Height: 102 mm (4 in) typical (depending on connector option).
    • Diameter: 41 mm (1.6 in) typical.
  • Weight:
    • 9200: 300 grams (10.5 ounces) typical.
    • 74712: 480 grams (17 ounces) typical.

Environmental Limits

  • Operating and Storage Temperature:
    • 9200: -29°C to +121°C (-20°F to +250°F).
    • 74712: -29°C to +204°C (-20°F to +400°F).
  • Environment:
    • Dust and moisture resistant. Contact Sales for operation in radiation environments.
  • Relative Humidity:
    • Up to 95%, non-condensing.
    • 100%, non-submerged, when ordered with integral cable.

Ordering Options

Transducer Mounting Angle/Minimum Operating Frequency (A)

Code Description
01 0 ±2.5, 4.5 Hz (270 cpm)
02 45 ±2.5, 4.5 Hz (270 cpm)
03 90 ±2.5, 4.5 Hz (270 cpm)
06 0 ±100, 10 Hz (600 cpm)
09 0 ±180, 15 Hz (900 cpm)

Connector/Cable Option (B)

Code Description
01 Top Mount (no cable)
02 Side Mount (no cable)
05 Terminal block top mount (no cable)
10-50 Integral hardline cable (length in feet). See below for standard lengths:
- 10: 10 feet (3.0 m)
- 15: 15 feet (4.6 m)
- 22: 22 feet (6.7 m)
- 32: 32 feet (9.8 m)
- 50: 50 feet (15.2 m)
Custom cable lengths may be available.

Mounting Base Option (C)

Code Description
01 Circular; 1/4-20 UNC stud
02 Circular; 1/4-28 UNF stud
03 Rectangular flange
04 Circular; 3 threaded studs on a 44 mm (1.75 in) bolt circle
05 No base; 1/2-20 UNF-3A stud
06 Isolated circular 1/4-20 UNC stud
07 Isolated circular 1/4-28 UNF stud
08 Isolated rectangular flange
09 Isolated circular 5/8-18 UNF stud
10 Circular; M10X1 stud
11 Isolated circular M10X1
12 Isolated circular 1/2-20 UNF-2A

Agency Approval Option (D)

Code Description
00 No Approvals
01 CSA
04 ATEX/IECEx
View full details

Product Description

Product Details

  • Manufacturer: Bently Nevada
  • Model/Part Number: 9200-01-05-10-00
  • Description: Two-wire Transducer Seismoprobe Transducer

Key Features

  1. Electrical Sensitivity:
    • 20 mV/mm/s (500 mV/in/s), ±5% when properly terminated and oriented at the angle of calibration.
  2. Calibration Load:
    • 10 kΩ Terminal "A" to "B" (Output taken across pins "A" and "B").
  3. Sensitivity Temperature Coefficient:
    • 0.2%/°C.
  4. Frequency Response:
    • 4.5 to 1000 Hz (270 to 60,000 CPM), +0, -3dB typical.
    • 10 to 1000 Hz (600 to 60,000 CPM), +0, -3dB typical.
    • 15 to 1000 Hz (900 to 60,000 CPM), +0, -3dB typical.
    • From minimum operating frequency (see Ordering Information) to 1 kHz (60,000 cpm), +0, -3dB typical.
  5. Dynamic Operating Range:
    • 2.54 mm (0.100 in) peak-to-peak maximum displacement.
  6. Velocity Range:
    • 25 mm/s (1 in/s) at +22°C of casing vibration at 100 Hz with a 10 kΩ load.
  7. Coil Resistance:
    • 1.25 kΩ ±5%.
  8. Locked Coil Inductance:
    • 125 mH, typical.
  9. Amplitude Linearity:
    • ±5% from 0.01 to 5.0 in/s (0.254 to 127 mm/s) at 100 Hz (6000 CPM).
  10. Shock Resistance:
    • Withstands 50 g peak maximum acceleration along non-sensitive axis.
  11. Transverse Sensitivity:
    • ±10% maximum of the sensitive axis sensitivity at 100 Hz and 1.0 in/s (2.54 cm/s).
  12. Polarity of Output Signal:
    • Pin A goes positive with respect to Pin B when the transducer case velocity is towards the connector.

Physical Specifications

  • Lead Wire Length:
    • Maximum of 305 meters (1,000 feet) between Seismoprobe Velocity Transducer and 3300 or 3500 Monitor.
    • Consult manual for frequency roll-off at longer lengths.
  • Mounting Options:
    • Height: 102 mm (4 in) typical (depending on connector option).
    • Diameter: 41 mm (1.6 in) typical.
  • Weight:
    • 9200: 300 grams (10.5 ounces) typical.
    • 74712: 480 grams (17 ounces) typical.

Environmental Limits

  • Operating and Storage Temperature:
    • 9200: -29°C to +121°C (-20°F to +250°F).
    • 74712: -29°C to +204°C (-20°F to +400°F).
  • Environment:
    • Dust and moisture resistant. Contact Sales for operation in radiation environments.
  • Relative Humidity:
    • Up to 95%, non-condensing.
    • 100%, non-submerged, when ordered with integral cable.

Ordering Options

Transducer Mounting Angle/Minimum Operating Frequency (A)

Code Description
01 0 ±2.5, 4.5 Hz (270 cpm)
02 45 ±2.5, 4.5 Hz (270 cpm)
03 90 ±2.5, 4.5 Hz (270 cpm)
06 0 ±100, 10 Hz (600 cpm)
09 0 ±180, 15 Hz (900 cpm)

Connector/Cable Option (B)

Code Description
01 Top Mount (no cable)
02 Side Mount (no cable)
05 Terminal block top mount (no cable)
10-50 Integral hardline cable (length in feet). See below for standard lengths:
- 10: 10 feet (3.0 m)
- 15: 15 feet (4.6 m)
- 22: 22 feet (6.7 m)
- 32: 32 feet (9.8 m)
- 50: 50 feet (15.2 m)
Custom cable lengths may be available.

Mounting Base Option (C)

Code Description
01 Circular; 1/4-20 UNC stud
02 Circular; 1/4-28 UNF stud
03 Rectangular flange
04 Circular; 3 threaded studs on a 44 mm (1.75 in) bolt circle
05 No base; 1/2-20 UNF-3A stud
06 Isolated circular 1/4-20 UNC stud
07 Isolated circular 1/4-28 UNF stud
08 Isolated rectangular flange
09 Isolated circular 5/8-18 UNF stud
10 Circular; M10X1 stud
11 Isolated circular M10X1
12 Isolated circular 1/2-20 UNF-2A

Agency Approval Option (D)

Code Description
00 No Approvals
01 CSA
04 ATEX/IECEx

Download PDF file here:

Click to Download PDF
