Product Description

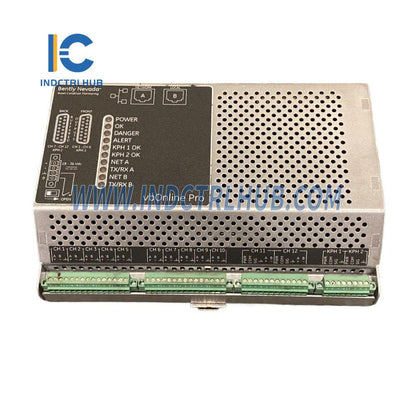

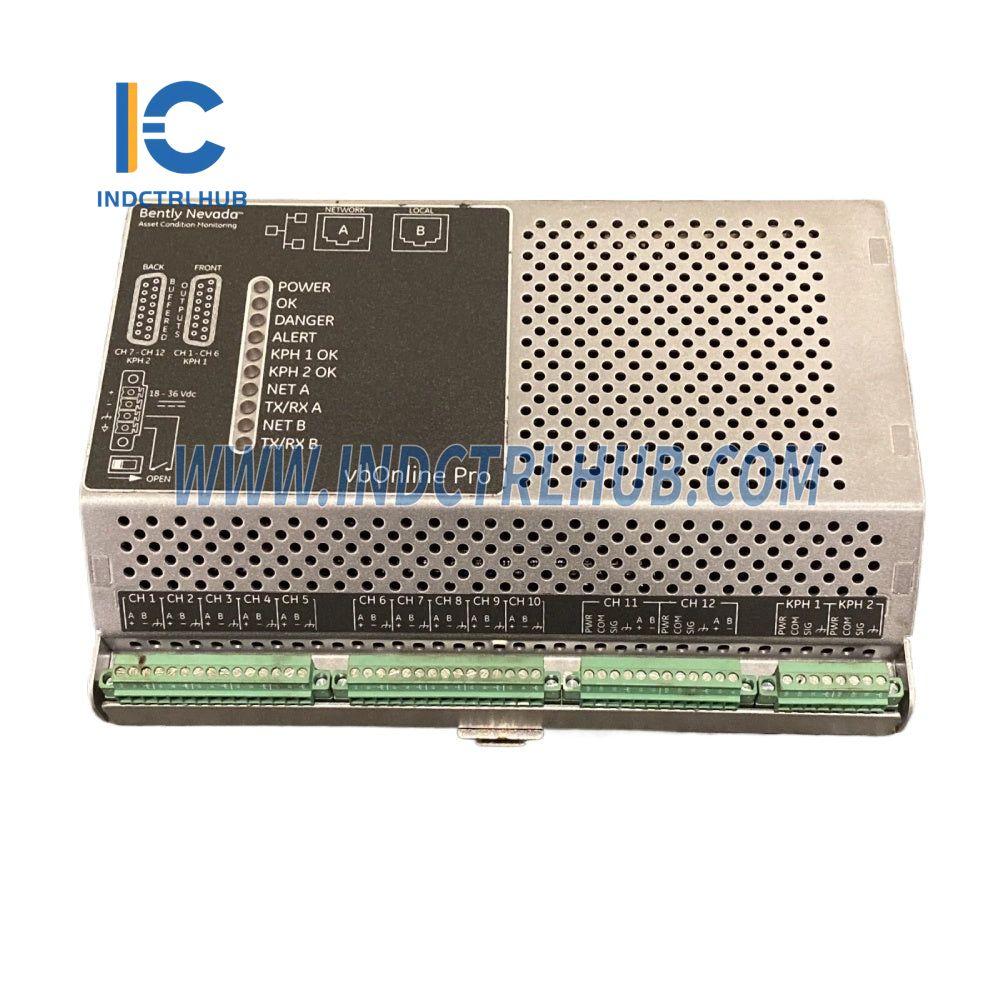

Product Details: Bently Nevada 60M500-05-00 vbOnline Pro Condition Monitoring System
General Information
- Manufacturer: Bently Nevada
- Model/Part Number: 60M500-05-00
-
Description:
- The vbOnline Pro Condition Monitoring System is designed to monitor the health of rotating equipment.
- It provides high-fidelity measurements and enables real-time condition monitoring.
Electrical Specifications
| Parameter | Details |
|---|---|
| Minimum Input Power | 18 Vdc |
| Maximum Input Power | 36 Vdc |
| Maximum Current | 1.7 A |
| Maximum Inrush Current | 2.7 A (Less than 5 ms) |
| Maximum Inputs | 12 dynamic signals, 2 Keyphasor signals |
| Dynamic Range | 110 dB @ fs = 102.4 ksps |
| Signal/Noise Ratio | 110 dB @ fs = 102.4 ksps |
| A/D Conversion | Sigma-Delta 24 bits nominal |
| Bandwidth | 0 to 40 kHz |
Physical Dimensions
| Parameter | Details |
|---|---|
| Dimensions | 8.88 x 5.89 x 2.17 inches (225 x 150 x 55 mm) |
| Weight | 1.4 kg (3 lbs) |
| Mounting | DIN Rail Mounting |
Environmental Specifications
| Parameter | Details |
|---|---|
| Operating Temperature Range | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature Range | -45 °C to +85 °C (-49 °F to +185 °F) |
| Relative Humidity | 0% to 95% non-condensing for operation and storage |
| Pollution Degree | Pollution Degree 2 |
| Working Voltage | < 30 Vrms or 60 Vdc |
Configuration Options
| Option | Description |
|---|---|
| A: Agency Approvals | 00: None 05: Multi Approvals (CSA, IECEx, ATEX) |
| B: System License | 00: None 01: One License |
Key Features
- High Dynamic Range: 110 dB dynamic range for precise signal measurement.
- Advanced A/D Conversion: 24-bit Sigma-Delta A/D conversion ensures high-resolution data.
- Wide Bandwidth: Operates in a wide frequency range up to 40 kHz, ideal for monitoring high-speed machinery.
- Flexible Input Configuration: Supports up to 12 dynamic signals and 2 Keyphasor signals for comprehensive monitoring.
- Environmental Robustness: Designed to perform in harsh industrial environments with a wide operating temperature range and resistance to humidity.
