Product Description
Product Details
| Manufacturer |
Bently Nevada |
| Model/Part Number |
190214-01 |
| Description |

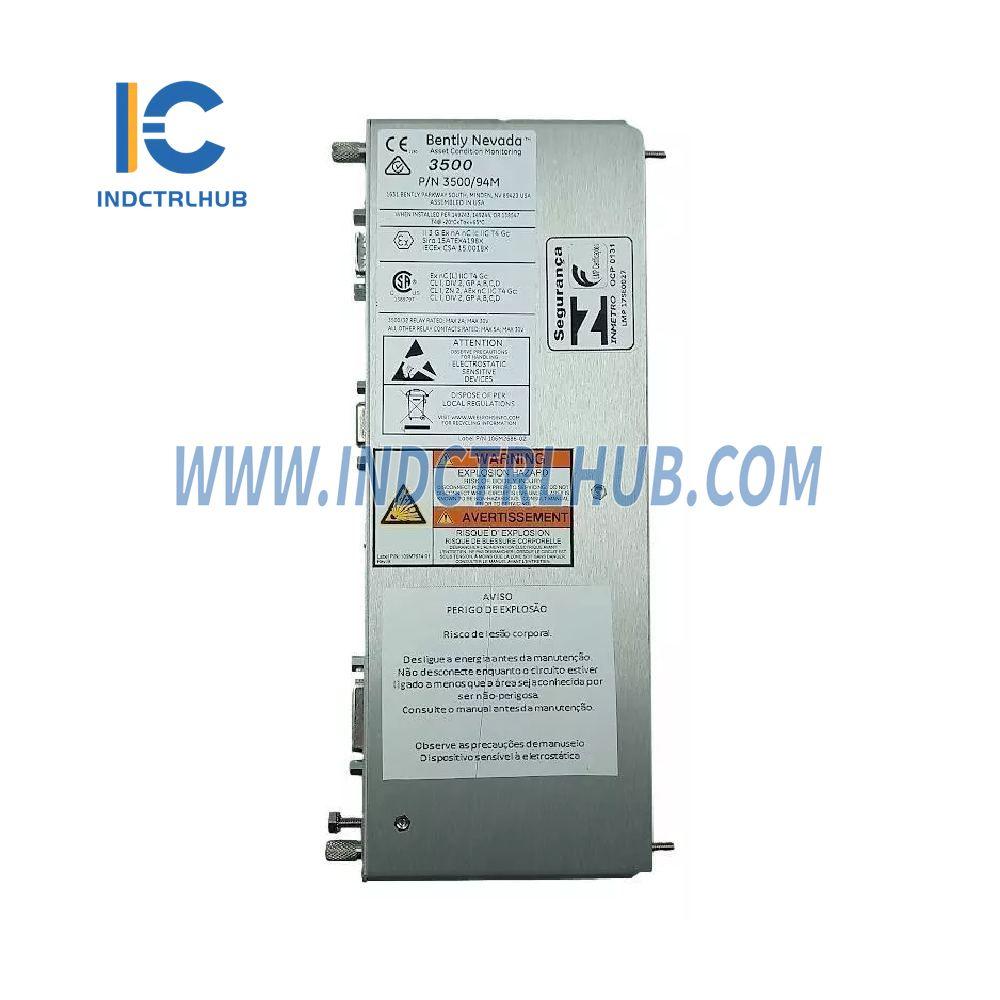

3500/94M Normal I/O Module |
Description
The 3500/94M VGA Module is a vital component of the 3500 Machinery Protection System, offering a detailed VGA interface for real-time monitoring and diagnostics. It allows operators to review system events, alarms, and performance metrics comprehensively.
Features and Display Capabilities
| Feature |
Description |
| System Event List |
Records all system events for review and analysis. |
| Alarm Event List |
Provides detailed history of alarm events. |
| Module and Channel Data |
Displays operational data for all system modules and channels. |
| Alarm and OK Status |
Real-time indicators of alarm conditions and system health. |
| Custom Display Options |
Offers up to nine customizable layouts for tailored monitoring. |
System Components
- 3500/94M VGA Module
- I/O Module
- 10-inch or 15-inch VGA Touch Screen Display
Physical Characteristics
| Attribute |
Details |
| I/O Module Dimensions |
241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in) |
| I/O Module Weight |
0.34 kg (0.75 lbs.) |
| Rack Space Requirement |
1 full-height rear slot |
Environmental Limits
| Parameter |
Range |
| Operating Temperature |
-20°C to 65°C (-22°F to 149°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Humidity |
Up to 95%, non-condensing |
Applications
The 3500/94M Normal I/O Module is widely utilized in industries such as oil and gas, power generation, and manufacturing, enabling real-time monitoring of machinery conditions to enhance performance and minimize downtime.
