Product Description
Product Overview

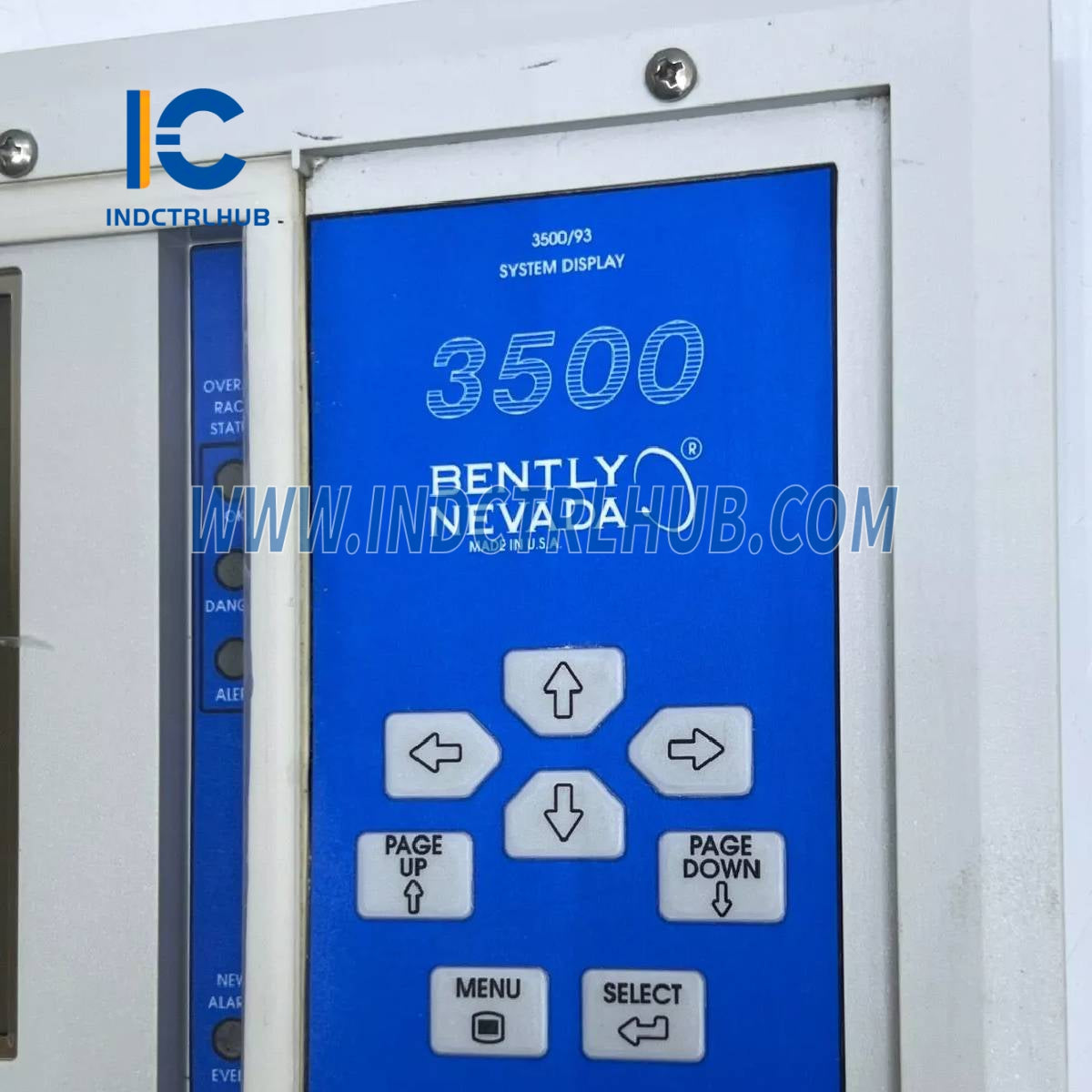

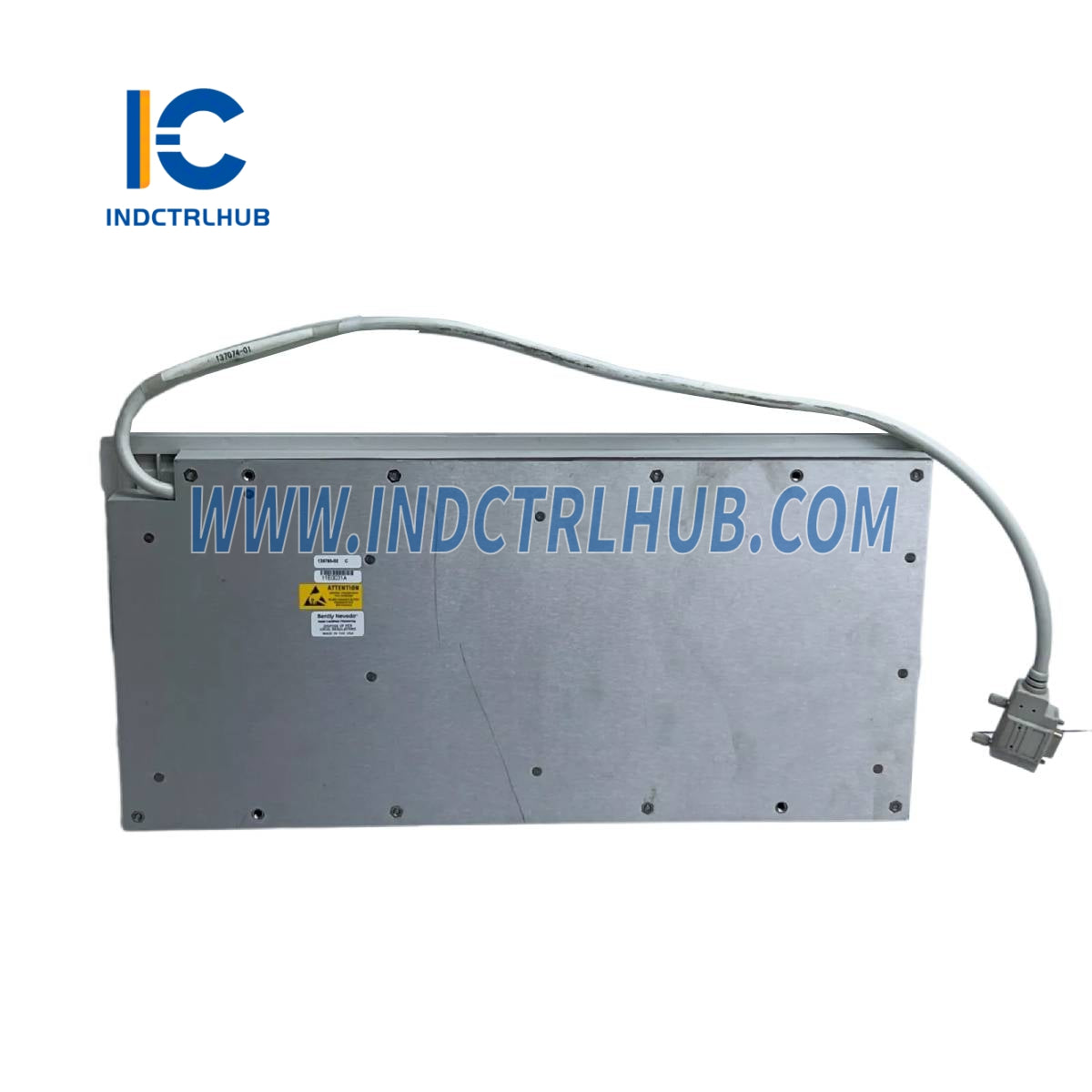

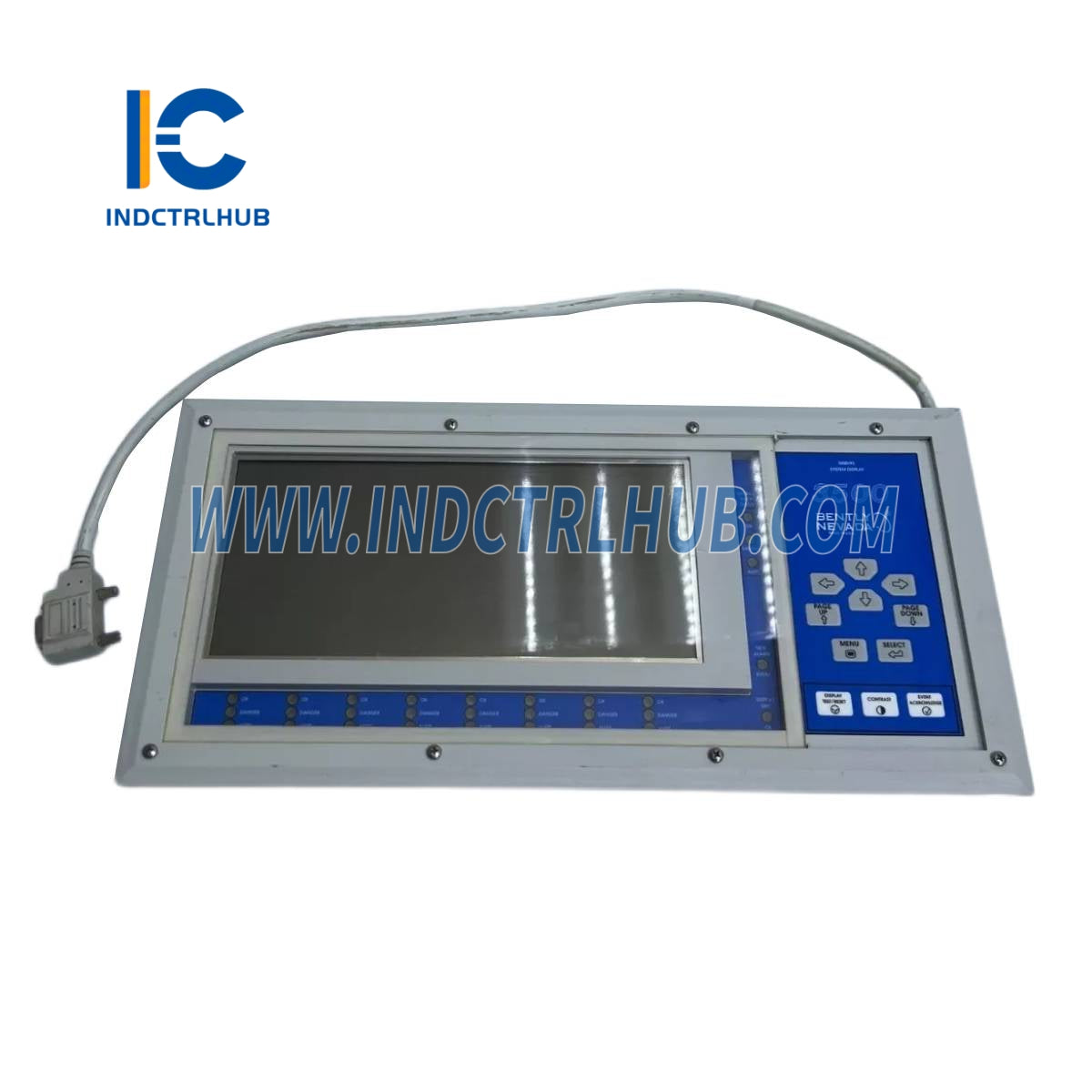

The Bently Nevada 3500/93 is a System Display Interface I/O Module designed for use within the Bently Nevada 3500 Series Machinery Monitoring System, a distributed control system (DCS) renowned for condition monitoring and machinery protection. Manufactured by Bently Nevada, a Baker Hughes company, this module facilitates communication between the 3500 rack and external display units, providing local or remote visual indication of critical machinery data. It is widely used in industrial applications such as power generation, oil and gas, and petrochemical plants, where real-time monitoring of turbines, compressors, and other rotating equipment is essential (Web ID 0). The 3500/93 supports the 3500 Series’ robust architecture, meeting American Petroleum Institute (API) Standard 670 requirements, and integrates seamlessly with System 1 software for comprehensive asset management.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 3500 Series |
| Model/Part Number | 3500/93 |
| Description | System Display Interface I/O Module |
| Input Signal | -10 VDC to +10 VDC |
| Power Consumption | 10.5 W |
| Ethernet | 100Base-FX Fiber-Optic |
| Communication Protocols | RS422, Modbus (supported via display) |
| Operating Temperature | -30 °C to +65 °C (-22 °F to +150 °F) |
| Mounting Type | Rack-mounted (3500 rack slot for DIM) |
| Dimensions | 241 mm H x 24.4 mm W x 99.1 mm D (9.50 in x 0.96 in x 3.90 in) |
| Weight | 0.38 kg (0.85 lb) |
