Product Description
Product Overview

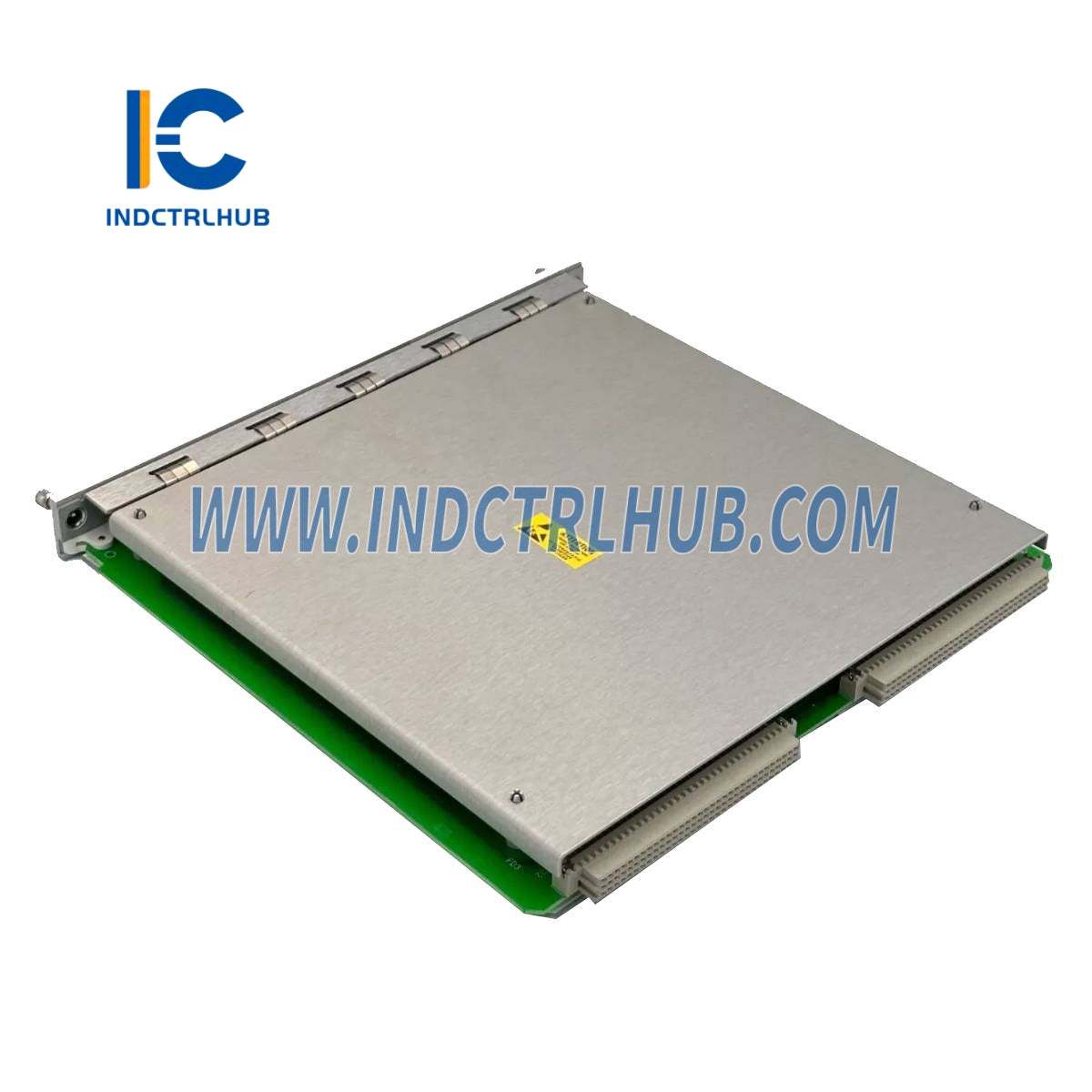

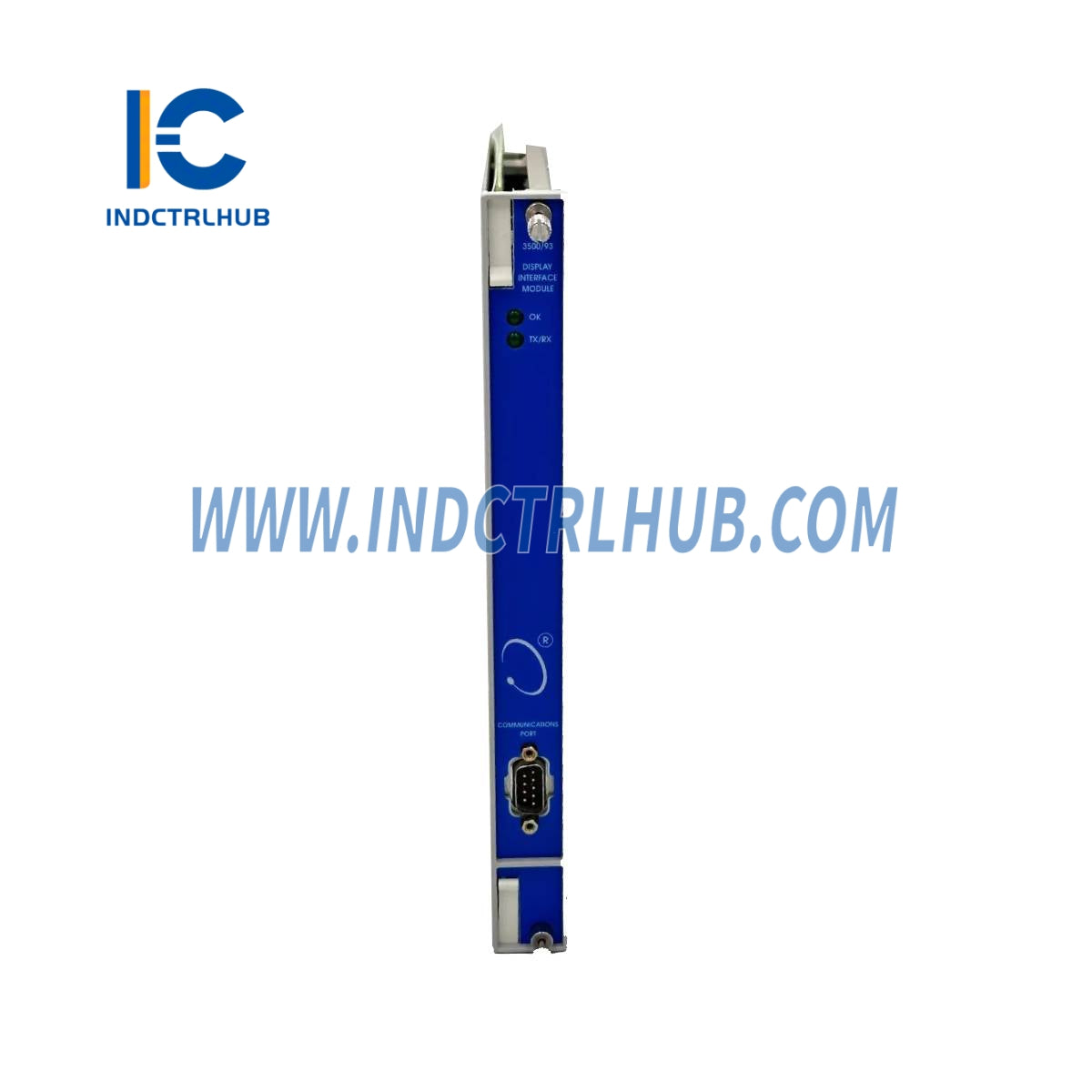

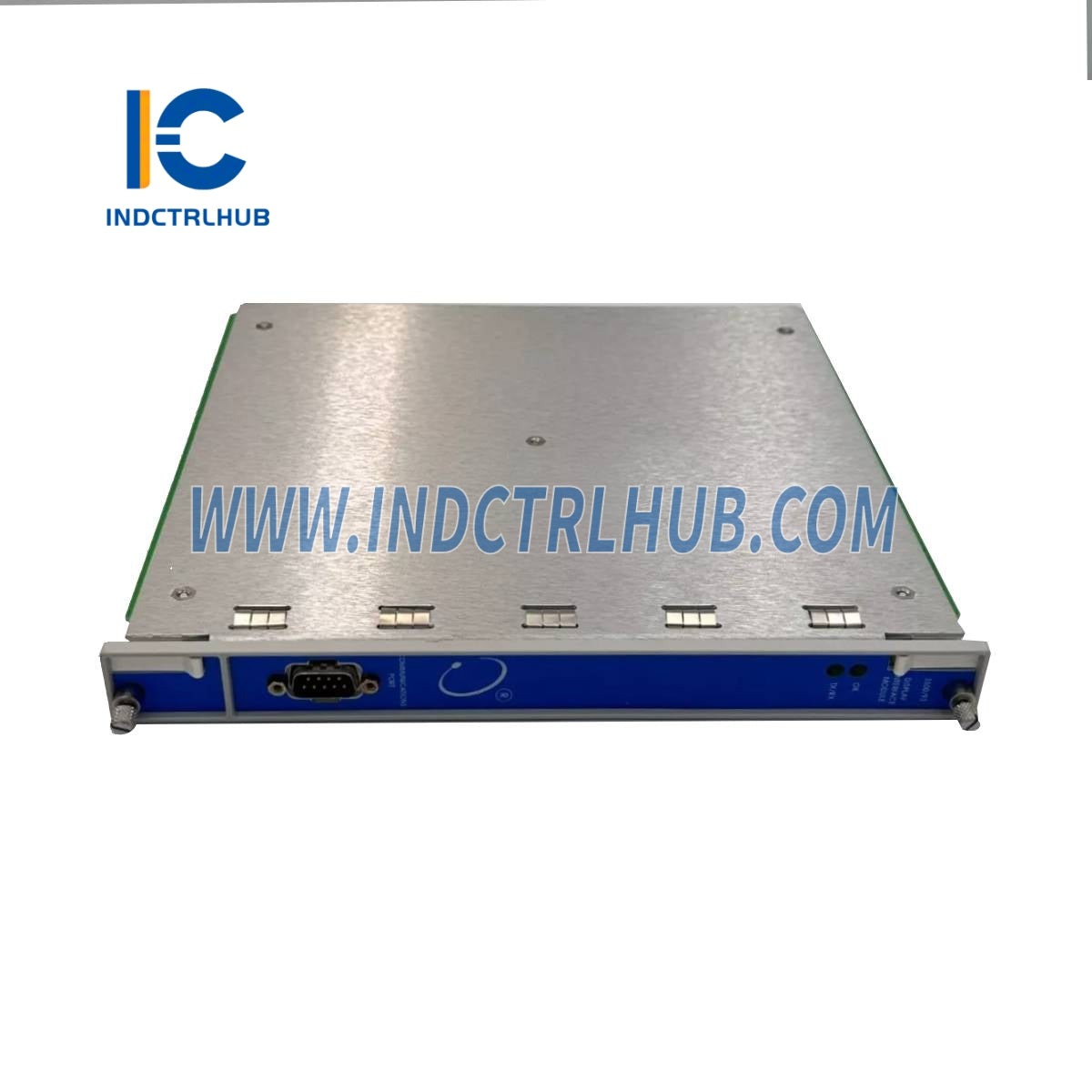

The Bently Nevada 135799-01 is a Display Interface Module from the 3500/93 series, designed to provide local or remote visual indication of machinery protection data within the Bently Nevada 3500 monitoring system. Manufactured by Bently Nevada, a Baker Hughes company renowned for condition monitoring solutions, this module integrates with the 3500 rack to display critical information such as system event lists, alarm event lists, and data from channels, monitors, relay modules, Keyphasor modules, and tachometer modules. It meets American Petroleum Institute (API) Standard 670 requirements, making it suitable for industrial applications in oil and gas, power generation, and manufacturing. The 135799-01 supports up to two displays per 3500 rack, requiring one empty slot for its installation, and is configured using the 3500 Rack Configuration Software.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 3500/93 |
| Model/Part Number | 135799-01 |
| Model Type | Display Interface Module |
| Function | Interfaces display with 3500 rack for data visualization |
| Compatibility | 3500 Machinery Protection System (up to 2 displays per rack) |
| Configuration | 3500 Rack Configuration Software |
| Operating Temperature | -30 °C to +65 °C (-22 °F to +149 °F) |
| Dimensions | 241 mm H x 24.4 mm W x 99.1 mm D (9.5 in x 0.96 in x 3.90 in) |
| Weight | 0.8 kg (1.76 lb) |
