Product Description

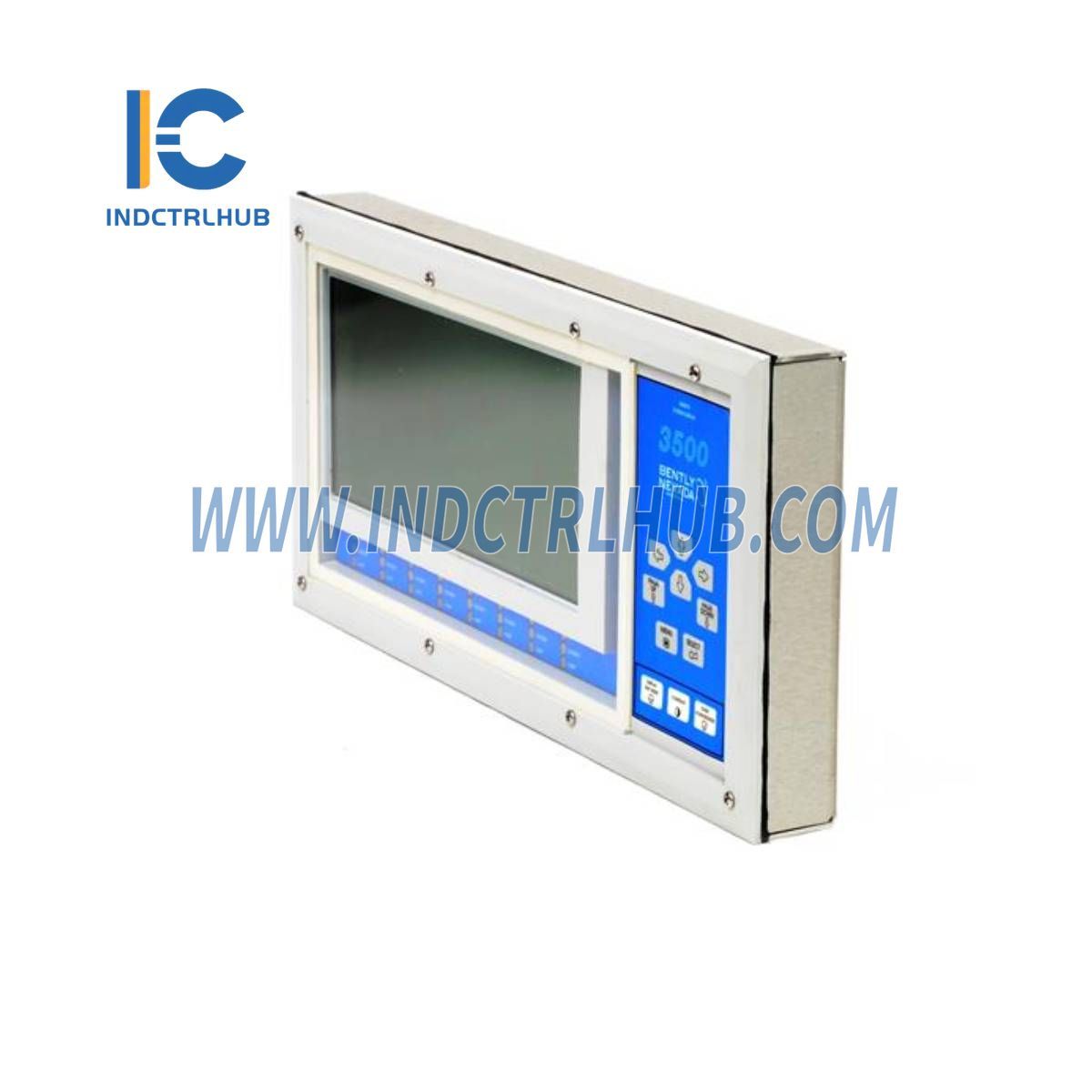

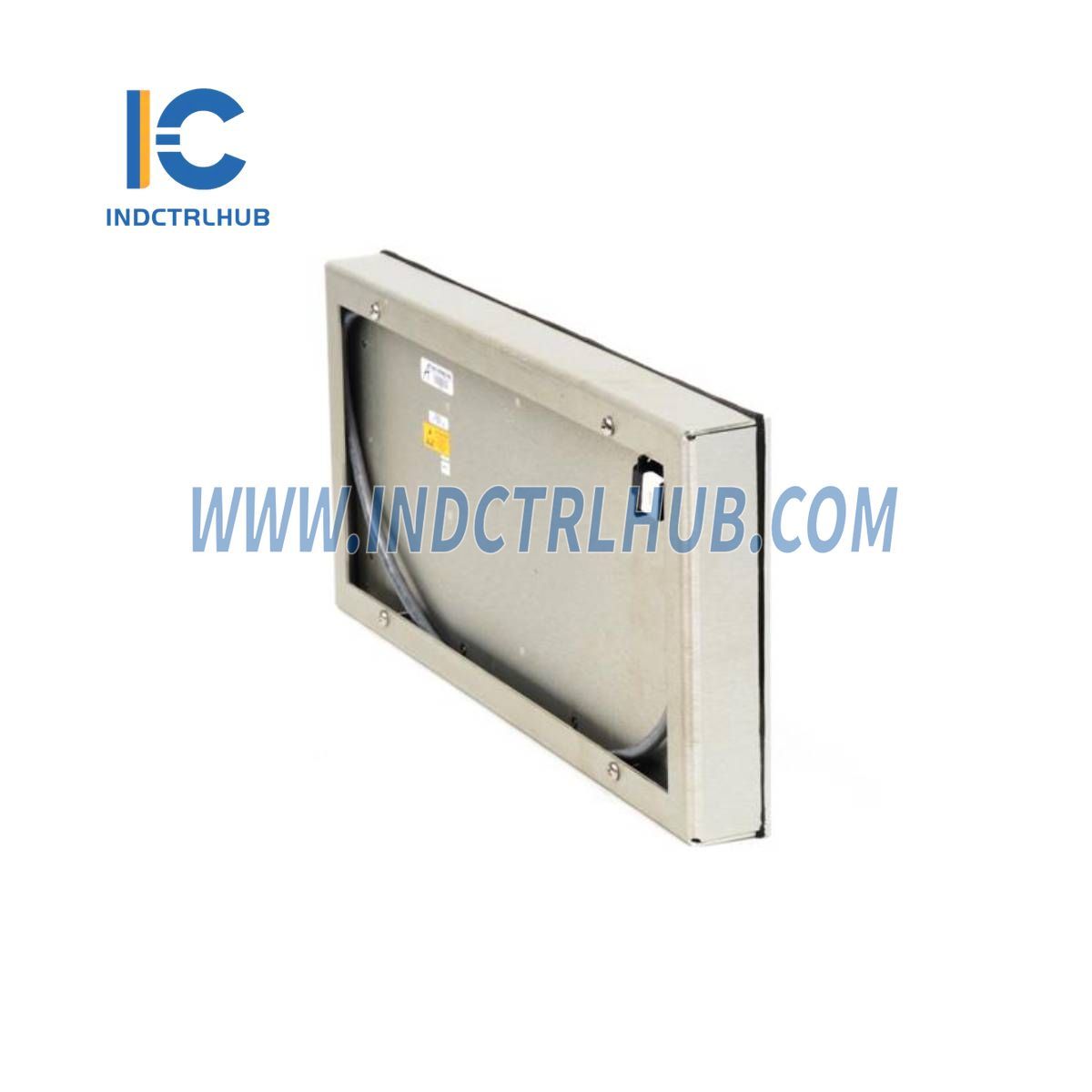

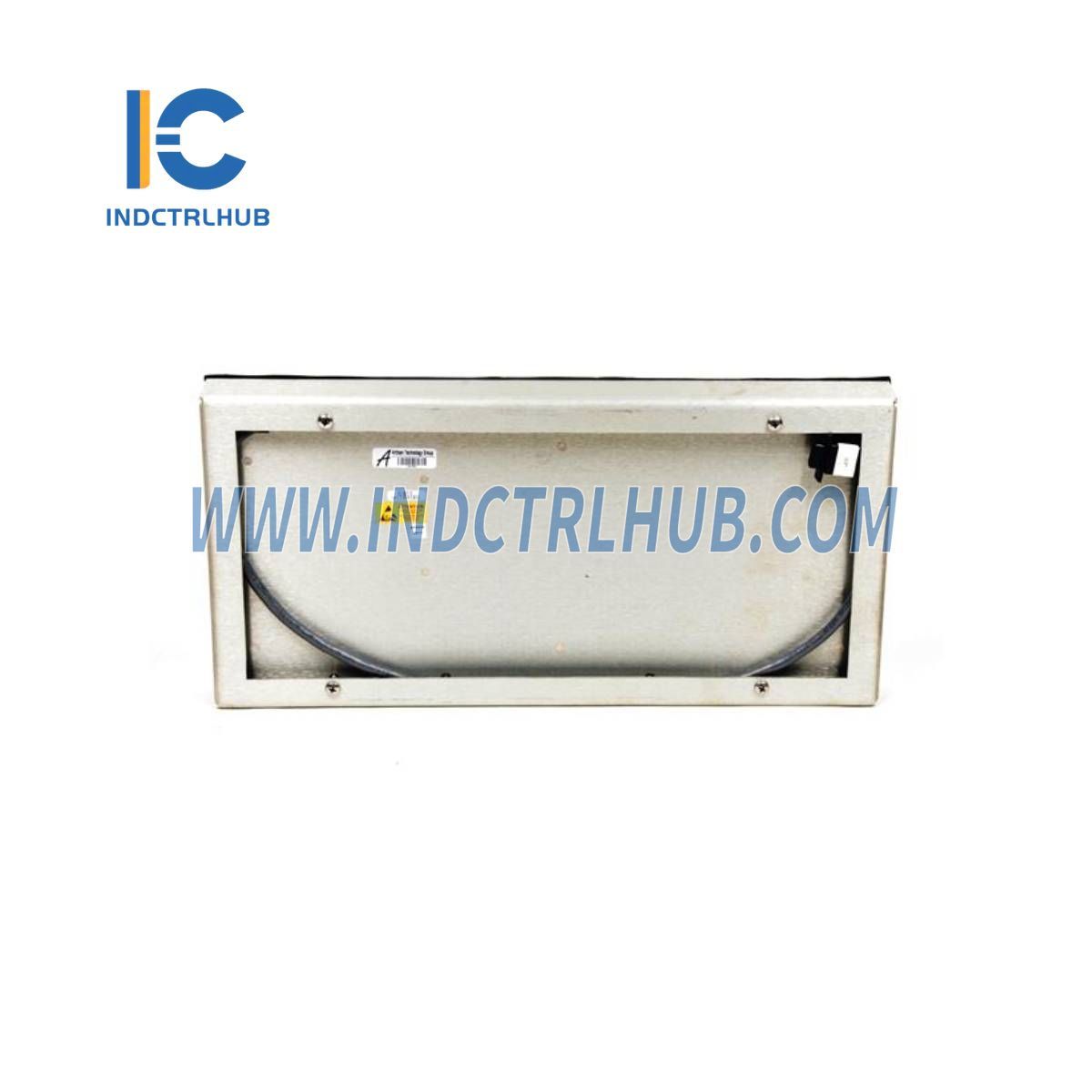

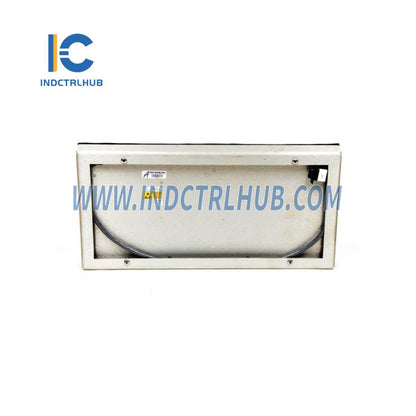

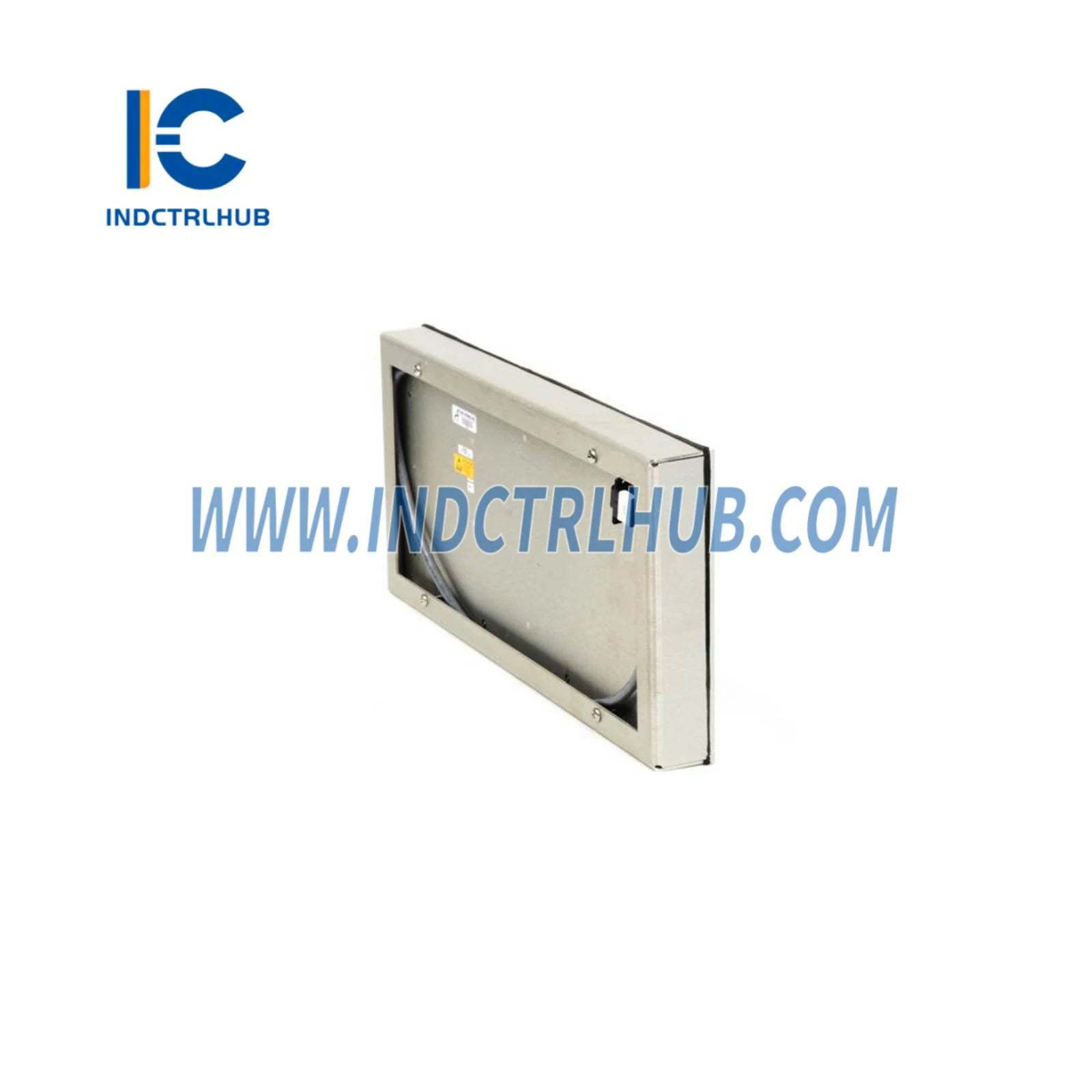

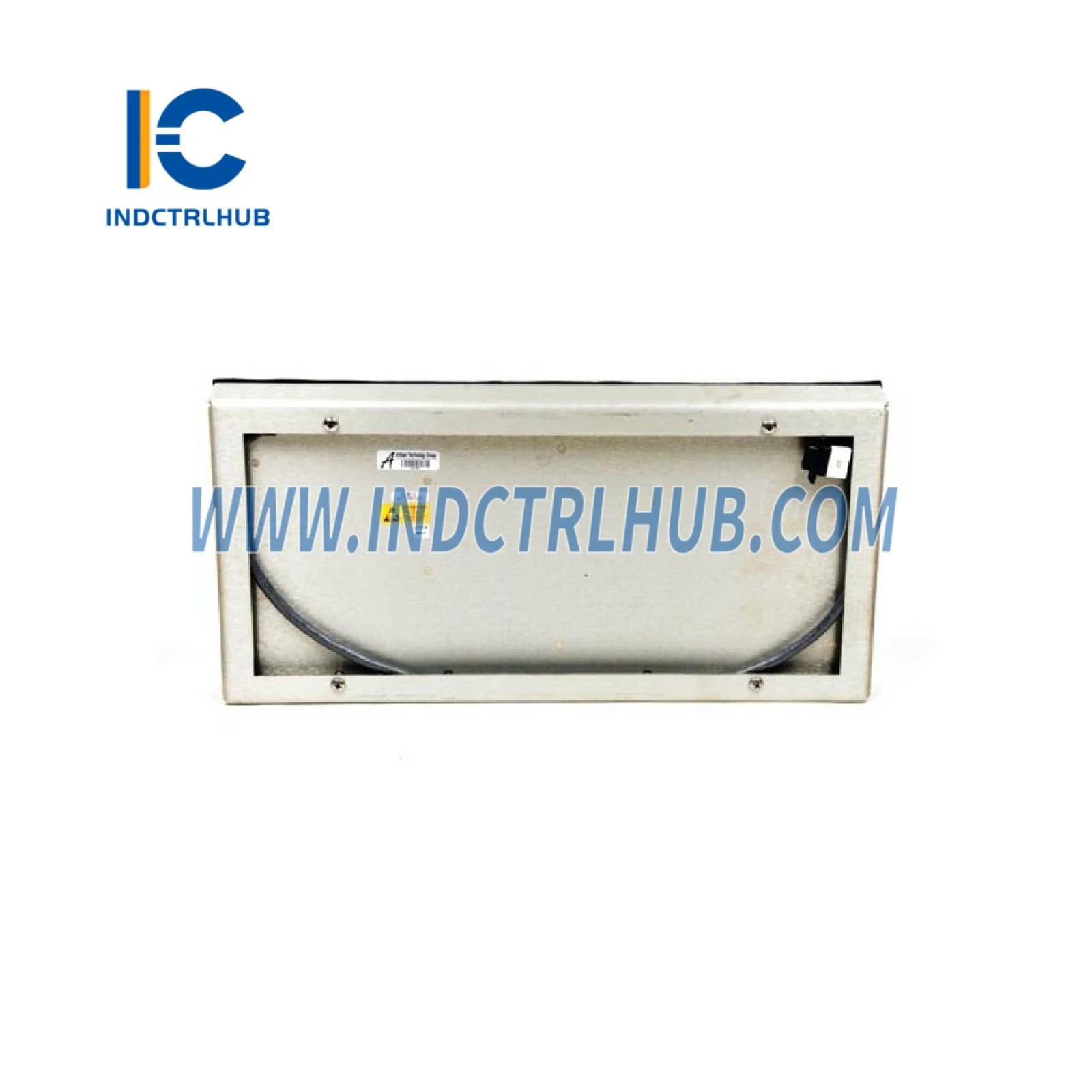

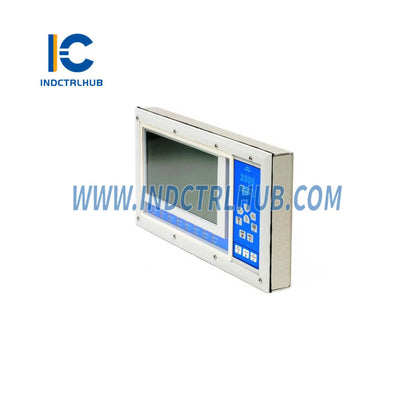

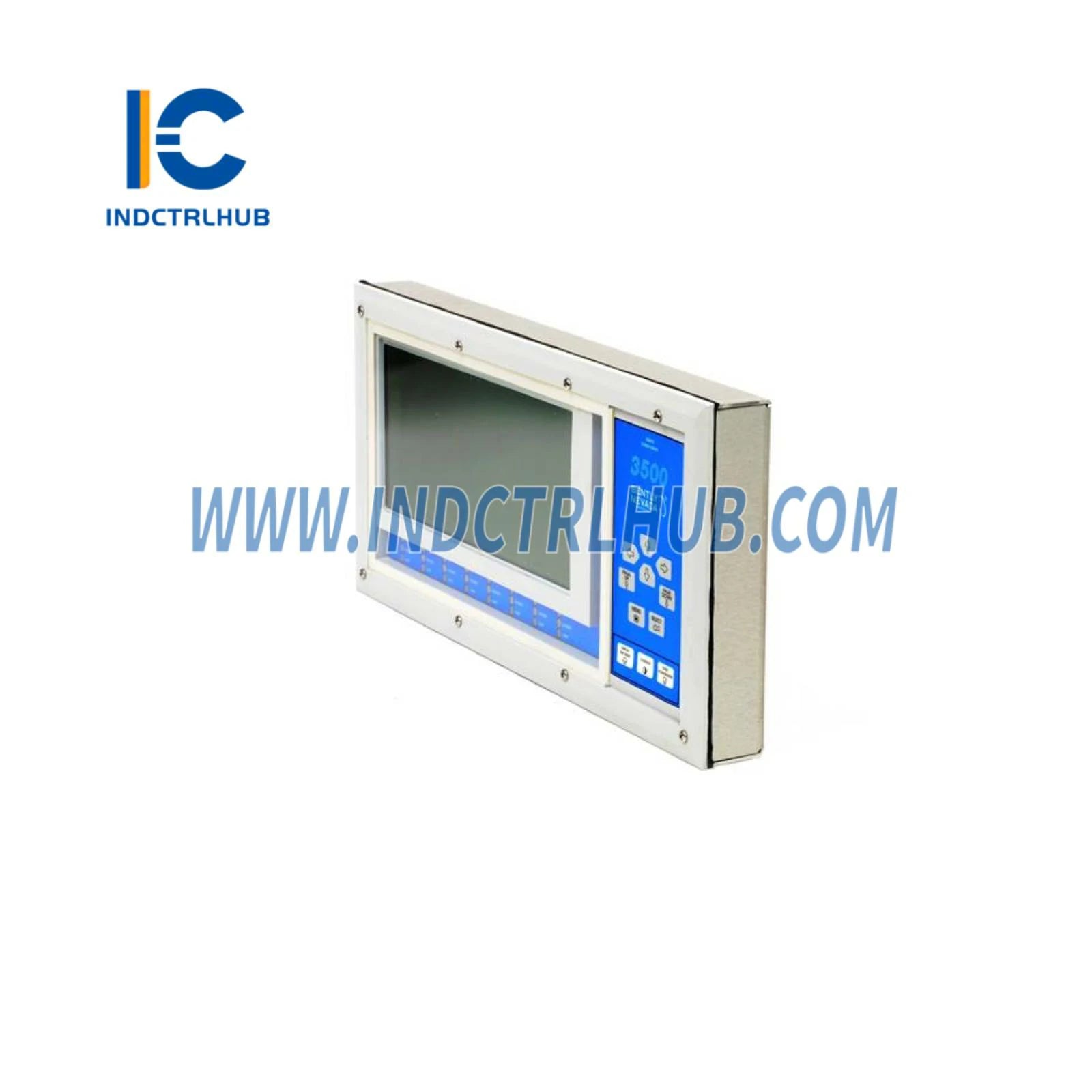

Product Information: Bently Nevada 3500/93 System Display
| Manufacturer | Bently Nevada (A Baker Hughes Business) |
|---|---|
| Series | 3500/93 |
| Model/Part Number | 3500/93-07-04-02-00 |
| Model Type | System Display |
General Description
The 3500/93 System Display is an advanced graphical interface used for real-time monitoring and control of machine vibration and condition monitoring systems. It is part of the 3500 Series from Bently-Nevada and provides a reliable, user-friendly solution to visualize and interact with machine health data. The system display is designed to work with Bently-Nevada’s condition monitoring system to help operators monitor critical data, enabling proactive maintenance and minimizing downtime in industrial operations.
Technical Specifications
| Specification | Details |
|---|---|
| Display Type | 10.4-inch TFT LCD Touchscreen |
| Resolution | 1024 x 768 pixels |
| Power Supply | 24V DC ±10% |
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature Range | -20°C to 70°C (-4°F to 158°F) |
| Humidity Range | 5% to 95% non-condensing |
| Mounting Options | Rack mount or panel mount |
| Dimensions (WxHxD) | 13.5 in x 12.8 in x 3.6 in (343 mm x 325 mm x 92 mm) |
| Weight | 3.8 kg (8.4 lbs) |
| Communication Protocols | Ethernet, Modbus, RS-232, RS-485 (varies by system configuration) |
| Input Types | Supports multiple input types from Bently-Nevada sensors and other condition monitoring devices |
| Alarm Indicators | Visual and audible alarms with customizable thresholds for various machine health parameters |
| Approvals | CE, UL, and other industrial certifications |
| Display Features | Multi-screen view, digital and analog trend graphs, alarms, system health status, and historical data review |
