Product Description
Product Details
-

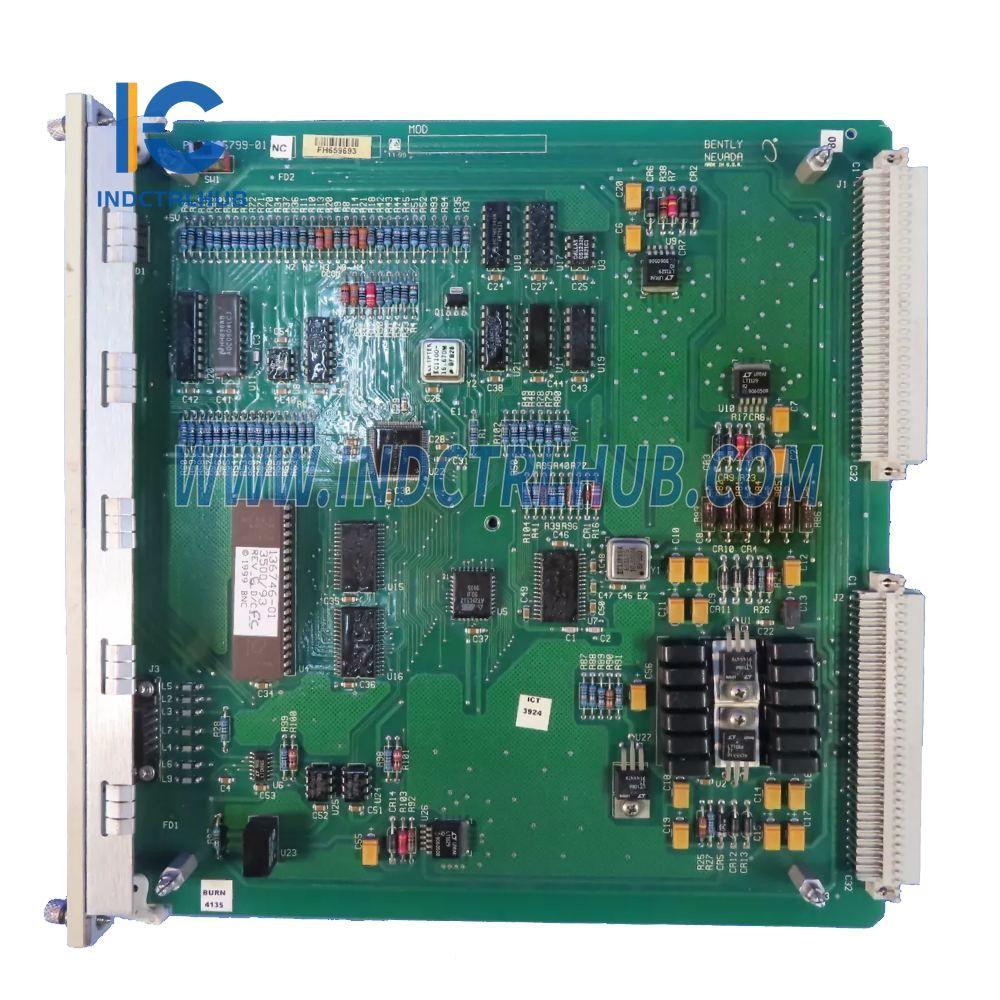

Manufacturer: Bently Nevada
-
Model/Part Number: 3500/93-07-01-02-00 135799-01
-
Description: 3500/93 Display Interface Module
Functionality
The 3500/93 Display Interface Module provides a local or remote display of all 3500 system information.
It is configurable using 3500 Rack Configuration Software and displays the following:
- System Event List
- Alarm Event Lists
-
Channel Data: Includes all channels, monitors, relay modules, keyphasor modules, and tachometer modules.
Technical Specifications
Physical
| Attribute |
Details |
| Dimensions |
241.3 mm x 24.4 mm x 241.8 mm
(9.50 in x 0.96 in x 9.52 in) |
| Weight |
0.82 kg (1.82 lb.) |
Electrical
| Attribute |
Details |
| Power Supply |
24 VDC |
| Power Consumption |
10 W |
Environmental
| Attribute |
Details |
| Operating Temperature |
0°C to 55°C (32°F to 131°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Humidity |
0% to 95% (non-condensing) |
| Vibration |
2 g peak-to-peak, 10 Hz to 500 Hz |
| Shock |
15 g, 11 ms half-sine |
