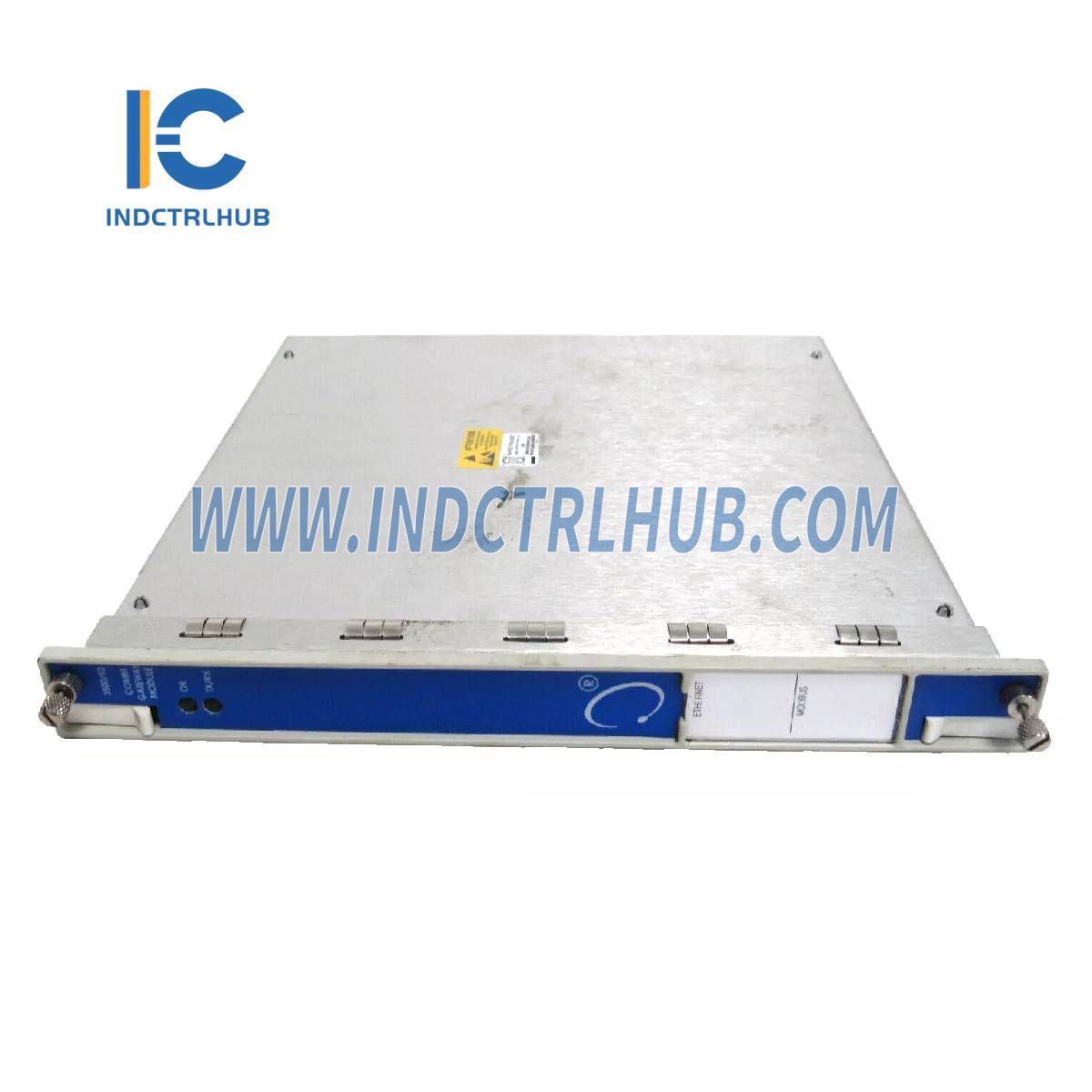

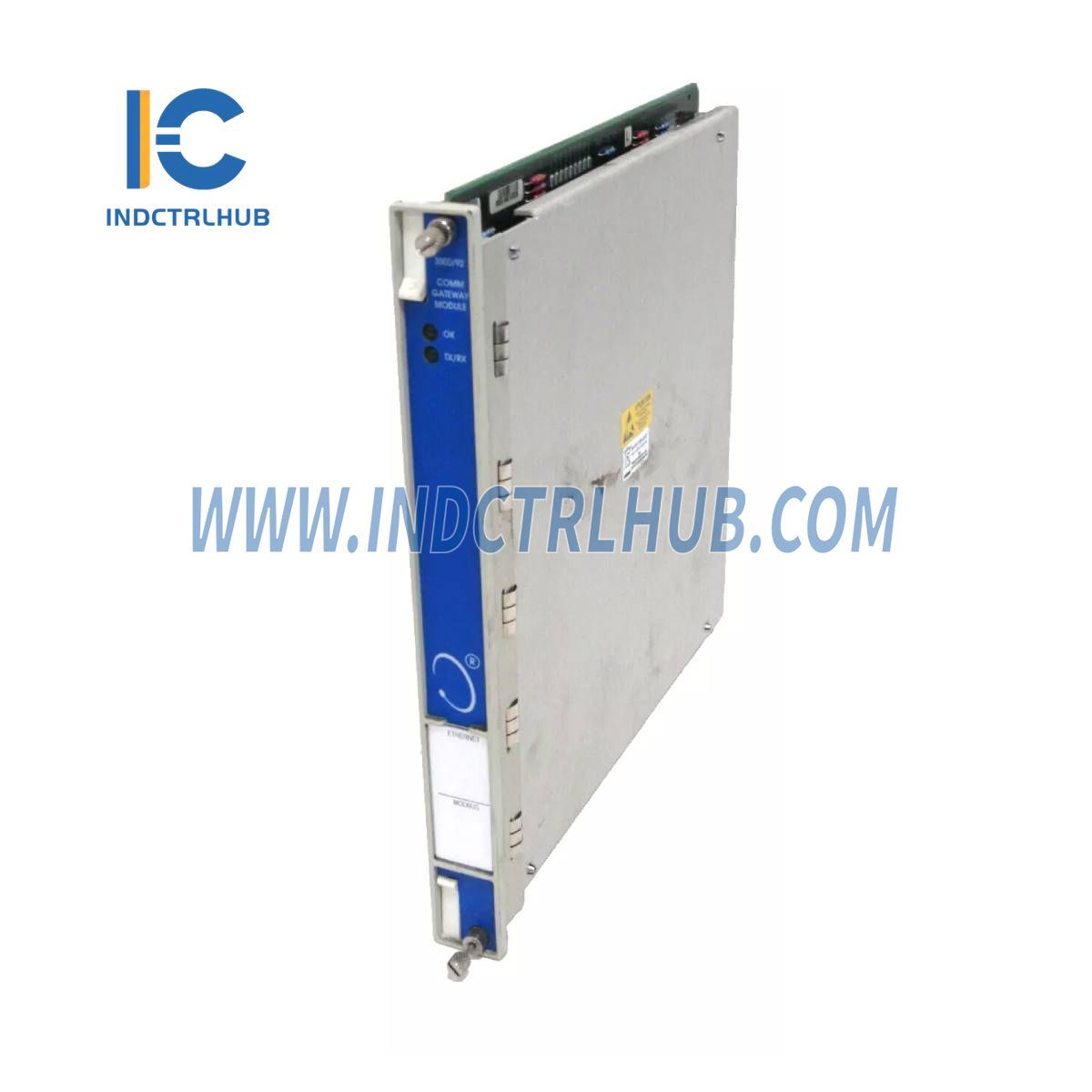

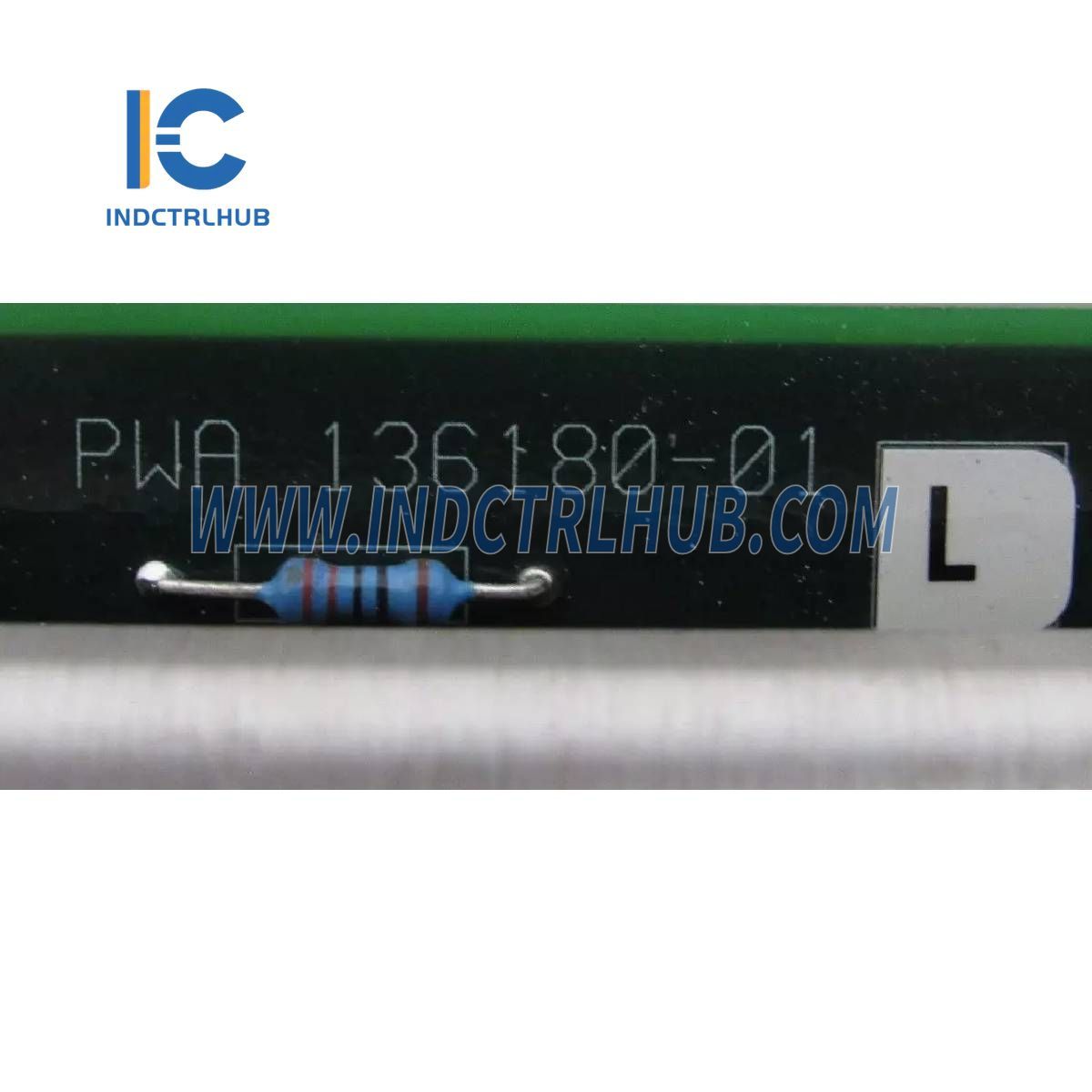

Product Information: Bently Nevada 3500/92 Communication Gateway Module
| Manufacturer |
Bently Nevada (A Baker Hughes Business) |
| Series |
3500/92 |
| Model/Part Number |
3500/92 136180-01 |
| Model Type |
Communication Gateway Module |
General Description
The 3500/92 Communication Gateway Module facilitates extensive communication capabilities, allowing integration of all monitored values and statuses from the 3500 Series into process control and other automation systems. It supports Ethernet TCP/IP and serial communication (RS232/RS422/RS485), making it suitable for a wide range of industrial environments. Additionally, it enables Ethernet communication with 3500 Rack Configuration Software and Data Acquisition Software.
Key Specifications
| Specification |
Details |
| Power Consumption |
5.0 Watts typical with Modbus RS232/RS422 I/O Module
5.6 Watts typical with Modbus RS485 I/O Module |
| Environmental Limits |
|
| Operating Temperature |
-30°C to +65°C (-22°F to +149°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Humidity |
95%, non-condensing |
Physical Dimensions
| Specification |
Details |
| Main Board Dimensions (Height x Width x Depth) |
241 mm x 24.4 mm x 242 mm (9.50 in x 0.96 in x 9.52 in) |
| Weight (Main Board) |
0.82 kg (1.8 lb.) |
| I/O Module Dimensions (Height x Width x Depth) |
241 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in) |
| Weight (I/O Module) |
0.44 kg (0.96 lb.) |
Ordering Information
| Option |
Details |
| A: I/O Module Type |
|
| 01 |
Modbus RS232/RS422 I/O Module |
| 02 |
Modbus RS485 I/O Module |
| 03 |
Ethernet/RS232 Modbus I/O Module |
| 04 |
Ethernet/RS485 Modbus I/O Module |
| B: Memory Type |
|
| 01 |
Low Memory |
| C: Agency Approval Option |
|
| 00 |
None |
| 01 |
CSA/NRTL/C |
| 02 |
CSA/ATEX/IECEx |
