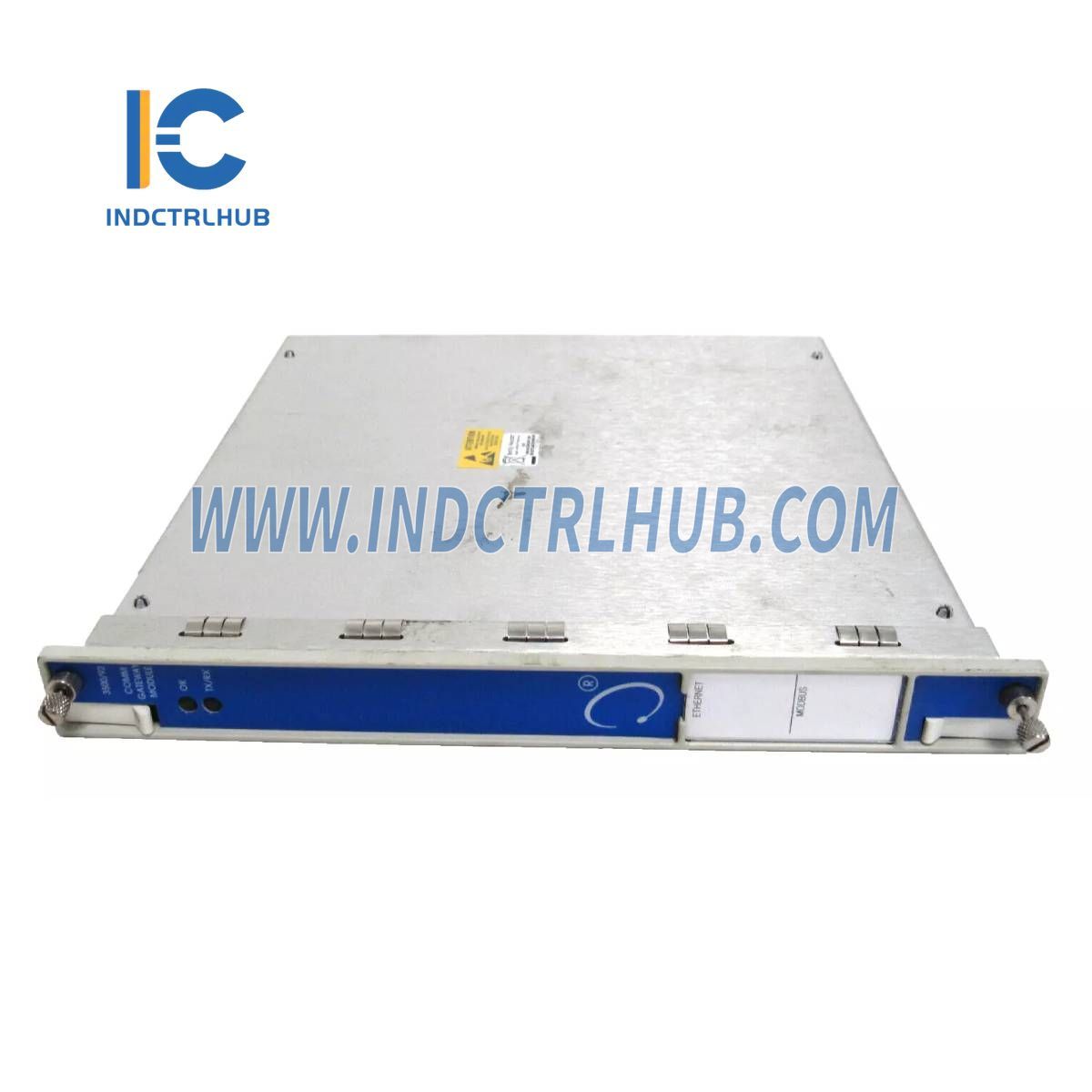

Bently Nevada 3500/92 136180-01+133323-01 Communication Gateway Module

Bently Nevada 3500/92 136180-01+133323-01 Communication Gateway Module

  • Manufacturer: Bently Nevada

  • Product No.: 3500/92 136180-01+133323-01

  • Condition:1000 in stock

  • Product Type: Communication Gateway Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 820g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

  • Manufacturer: Bently Nevada
  • Series: 3500/92
  • Model/Part Numbers: 3500/92 136180-01 + 133323-01
  • Model Type: Communication Gateway Module

Description

The 3500/92 Communication Gateway module provides extensive communication capabilities for integrating rack-monitored values and statuses with process control and other automation systems. It supports both Ethernet TCP/IP and serial (RS232/RS422/RS485) communication protocols. The module also enables Ethernet communications with 3500 Rack Configuration Software and Data Acquisition Software.


Specifications

  • Power Consumption:

    • 5.0 Watts typical with Modbus RS232/RS422 I/O Module
    • 5.6 Watts typical with Modbus RS485 I/O Module
  • Data Types:
    The module collects data from other modules in the rack, including:

    • Current measured values with timestamp
    • Module statuses
    • Current alarm statuses
    • Data collection rate depends on rack configuration but will not exceed 1 second for all modules in the 3500 rack.
  • Update Time:
    The data collection rate will not exceed 1 second for all modules in the rack.


Environmental Limits

  • Operating Temperature:

    • -30°C to +65°C (-22°F to +149°F)
  • Storage Temperature:

    • -40°C to +85°C (-40°F to +185°F)
  • Humidity:

    • 95%, non-condensing

Physical Specifications

  • Main Board Dimensions (Height x Width x Depth):

    • 241 mm x 24.4 mm x 242 mm (9.50 in x 0.96 in x 9.52 in)
  • Main Board Weight:

    • 0.82 kg (1.8 lb.)
  • I/O Module Dimensions (Height x Width x Depth):

    • 241 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
  • I/O Module Weight:

    • 0.44 kg (0.96 lb.)

Ordering Information

  • 3500/92 Communication Gateway
    • A: I/O Module Type
      • 01: Modbus RS232/RS422 I/O Module
      • 02: Modbus RS485 I/O Module
      • 03: Ethernet/RS232 Modbus I/O Module
      • 04: Ethernet/RS485 Modbus I/O Module
    • B: Memory Type
      • 01: Low Memory
    • C: Agency Approval Option
      • 00: None
      • 01: CSA/NRTL/C
      • 02: CSA/ATEX/IECEx

Spares

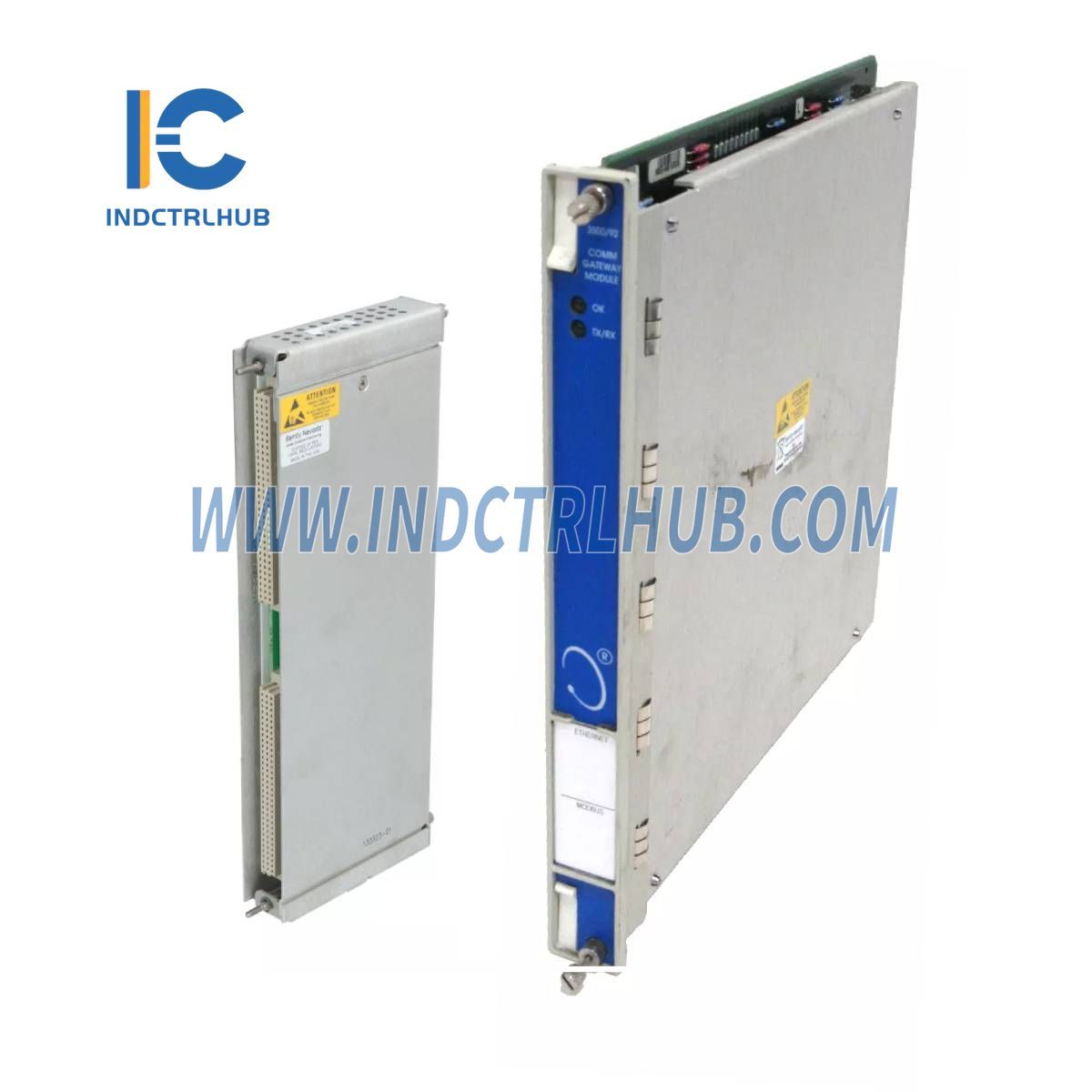

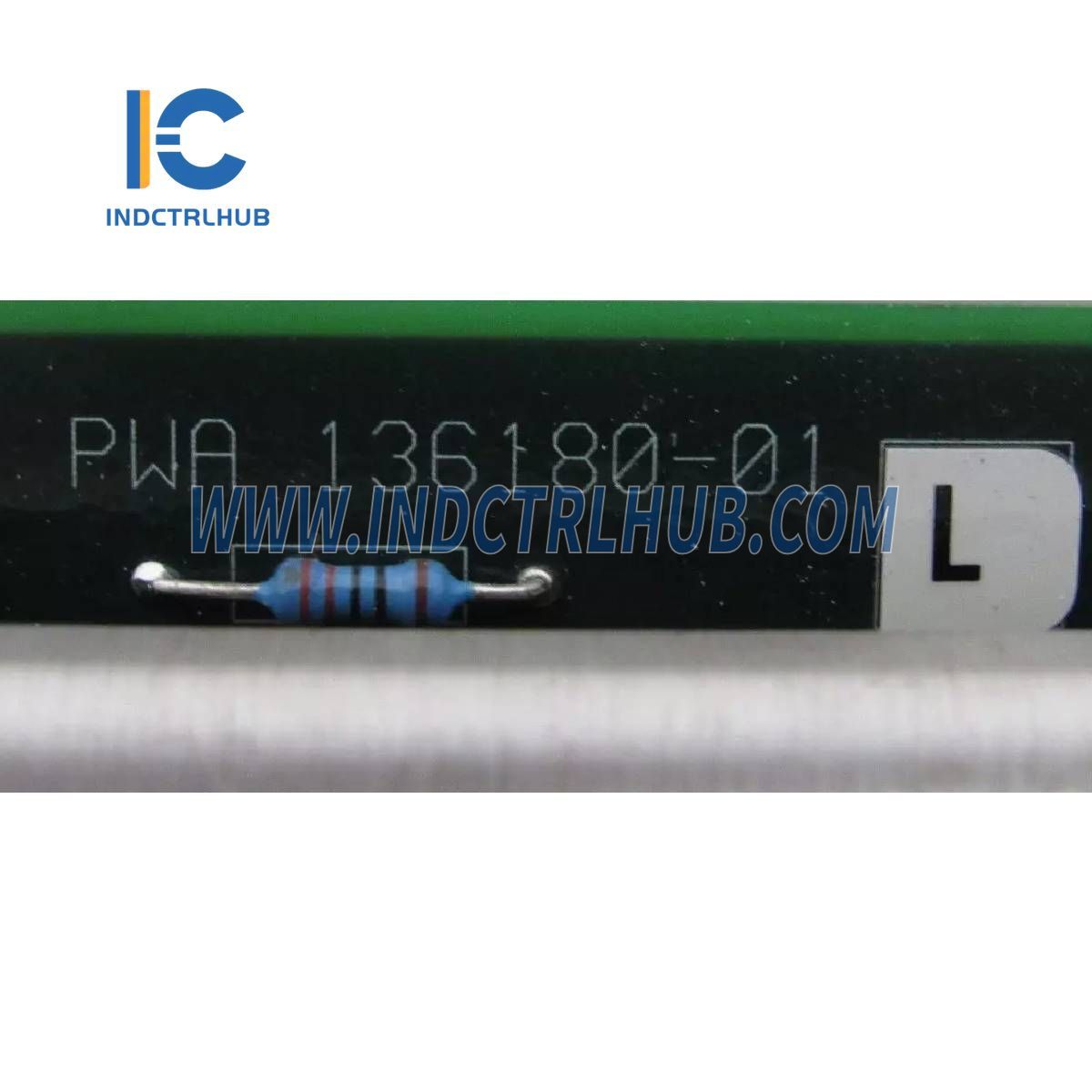

  • 136180-01: 3500/92 Communication Gateway Module
  • 133323-01: Modbus RS485 I/O Module
