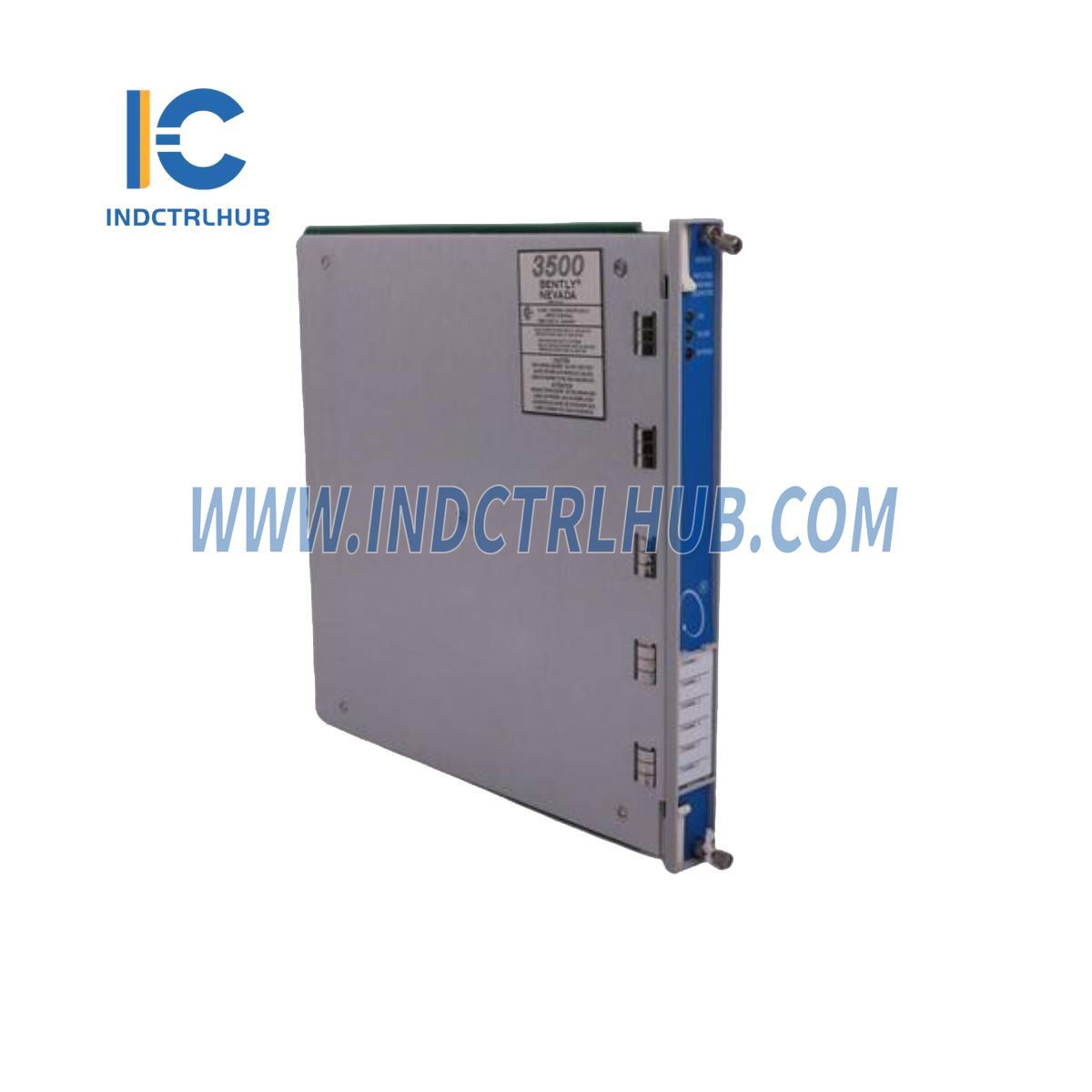

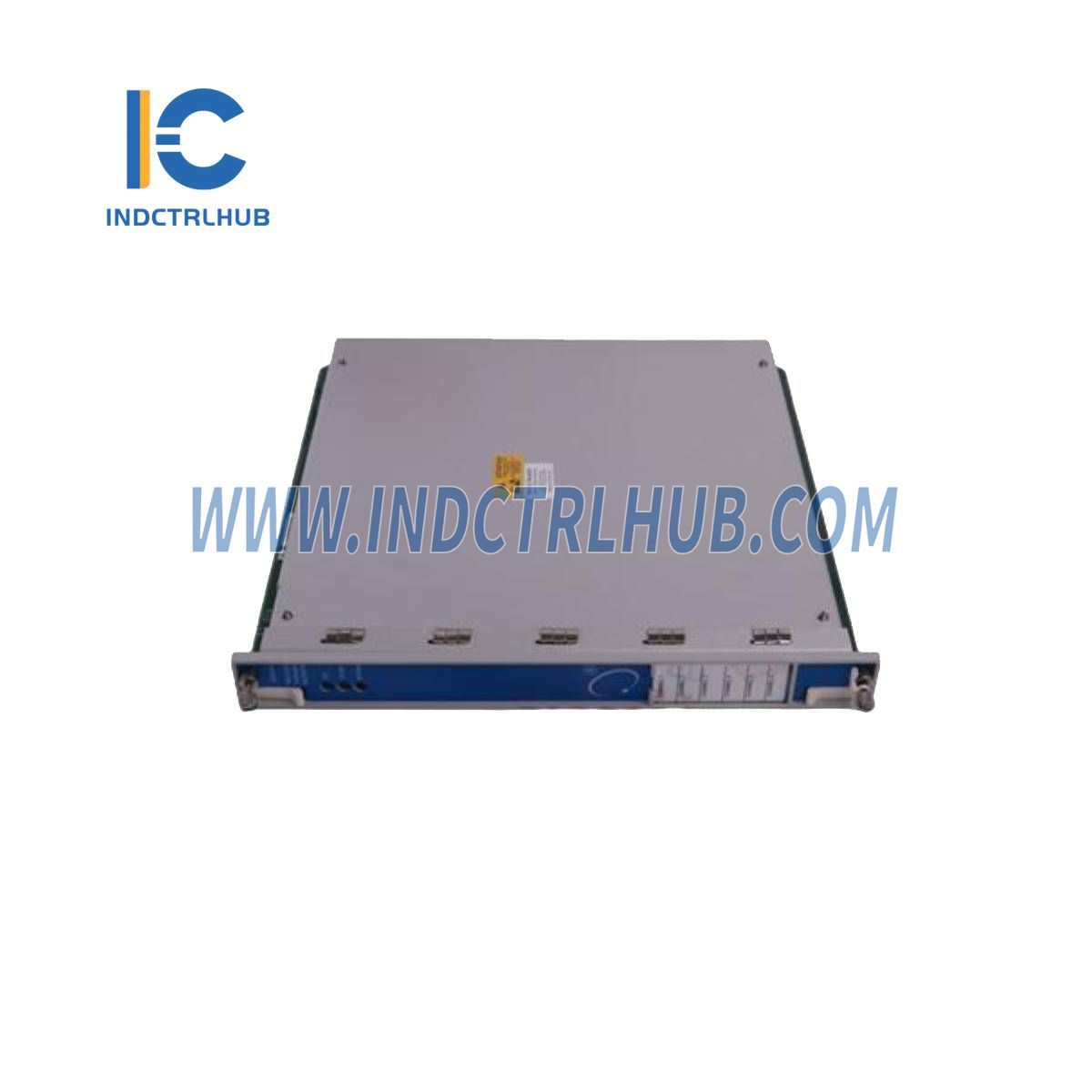

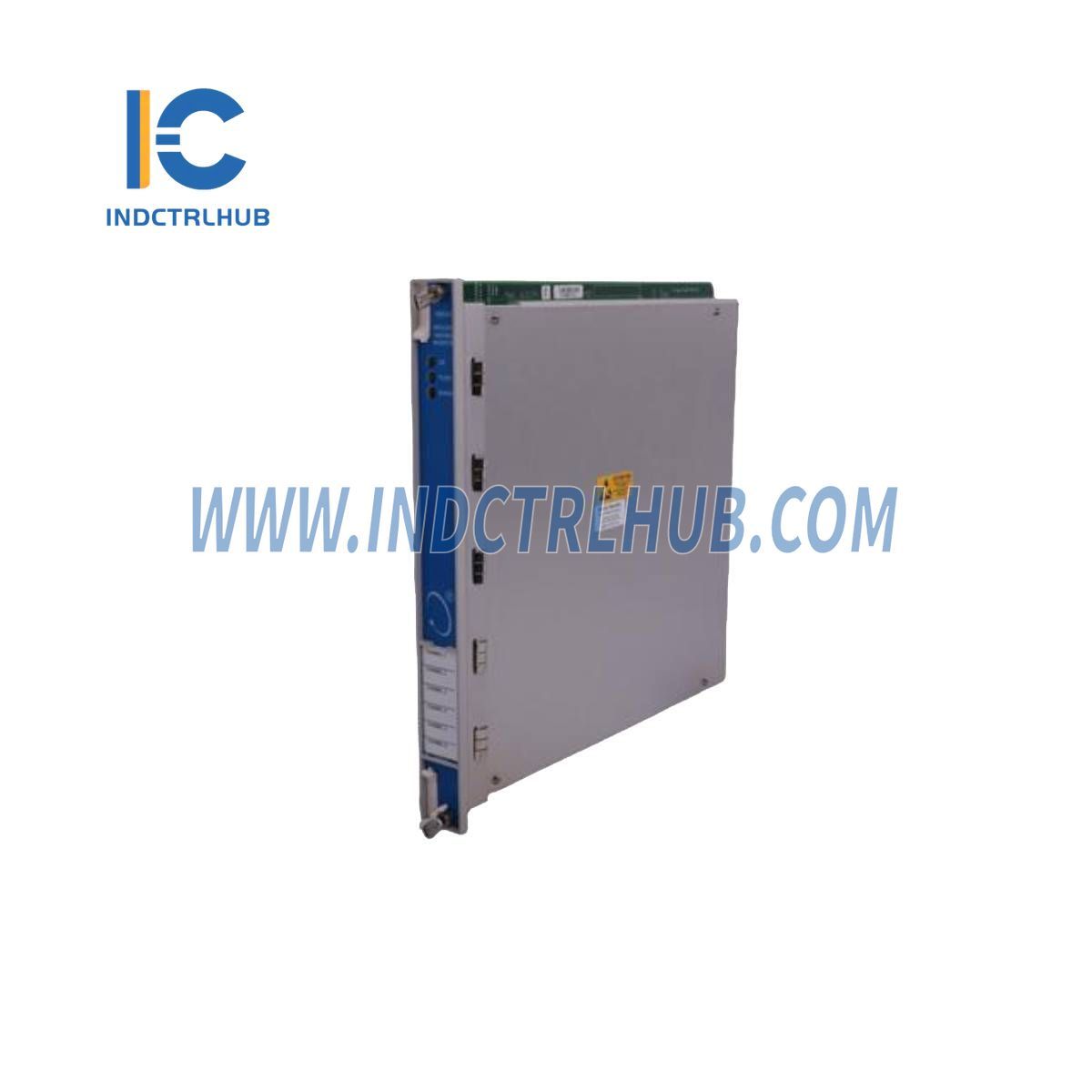

BENTLY NEVADA 3500/62 133811-03 Process Variable Monitor

BENTLY NEVADA 3500/62 133811-03 Process Variable Monitor

  • Manufacturer: Bently Nevada

  • Product No.: 3500/62 133811-03

  • Condition:1000 in stock

  • Product Type: Process Variable Monitor

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 5440g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

  • Manufacturer: Bently Nevada
  • Series: 3500/62
  • Model/Part Number: 3500/62 133811-03
  • Model Type: Process Variable Monitor

Description

The 3500/62 Process Variable Monitor is a 6-channel monitor designed for continuous monitoring of critical machine parameters such as:

  • Pressures
  • Flows
  • Temperatures
  • Levels

It accepts:

  • +4 to +20 mA current inputs
  • Any proportional voltage inputs between -10 Vdc and +10 Vdc

The monitor conditions these input signals and compares them against user-programmable alarm setpoints.


Environmental Limits

  • Operating Temperature:
    • -30°C to +65°C (-22°F to +149°F) when used with Internal/External Termination I/O Module
    • 0°C to +65°C (+32°F to +149°F) when used with Internal Barrier I/O Module (Internal Termination)
  • Storage Temperature:
    • -40°C to +85°C (-40°F to +185°F)
  • Humidity:
    • 95%, non-condensing

Physical Specifications

Monitor Module Dimensions:

  • Height x Width x Depth:

    • 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in)
  • Weight:

    • 0.82 kg (1.8 lb.)

I/O Modules (without barriers) Dimensions:

  • Height x Width x Depth:

    • 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
  • Weight:

    • 0.20 kg (0.44 lb.)

I/O Module (with barriers) Dimensions:

  • Height x Width x Depth:

    • 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
  • Weight:

    • 0.46 kg (1.01 lb.)

Ordering Information

  • Process Variable Monitor Model: 3500/62-AA-BB
    • A: I/O Module Type:
      • 01: -10 to +10 Vdc I/O Module with Internal Terminations
      • 02: -10 to +10 Vdc I/O Module with External Terminations
      • 03: Isolated +4 to +20 mA I/O Module with Internal Terminations
      • 04: Isolated +4 to +20 mA I/O Module with External Terminations
      • 05: Non-Isolated +4 to +20 mA I/O Module with Internal Barriers and Internal Terminations
    • B: Agency Approval Option:
      • 00: None
      • 01: cNRTLus
      • 02: ATEX/CSA (Class 1, Zone 2)

Additional Specifications

  • Part Number: 133811-03
  • Category: PLCs/Machine Control
  • Subcategory: PLC Module/Rack
  • Weight: 5.44 kg
