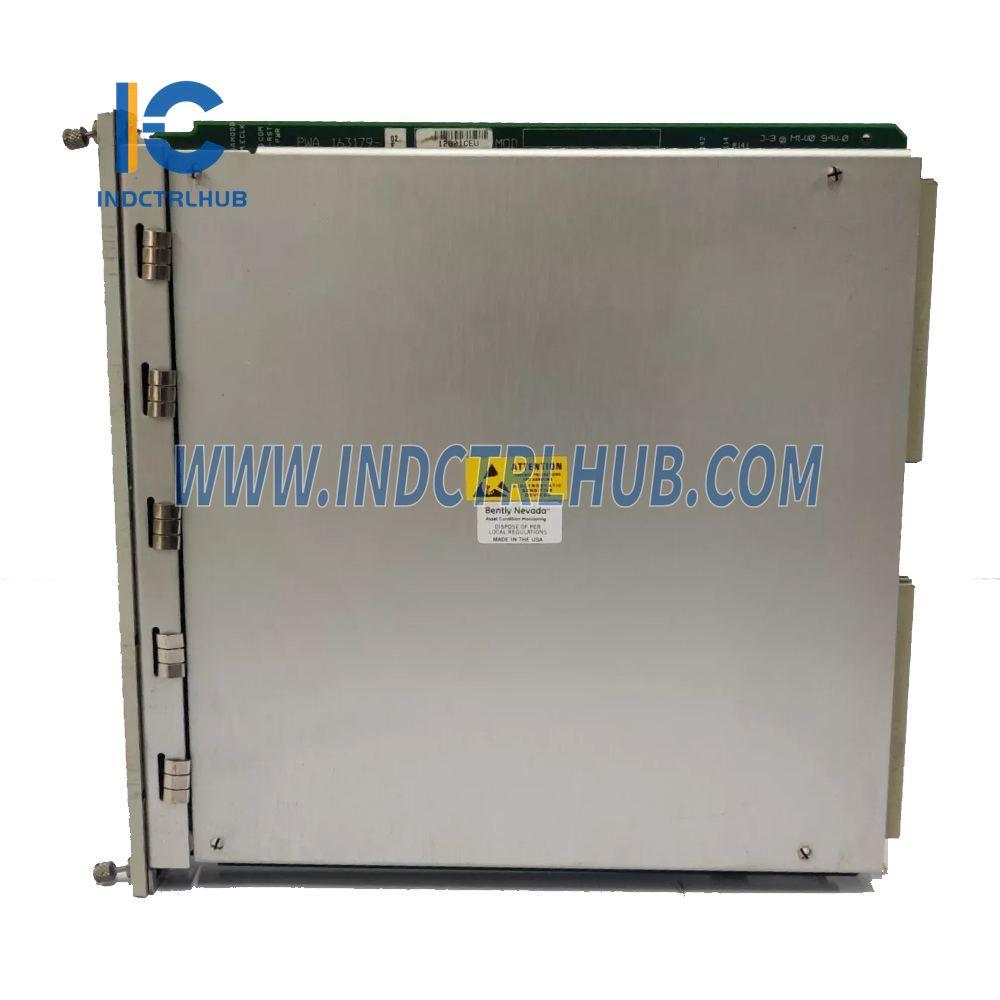

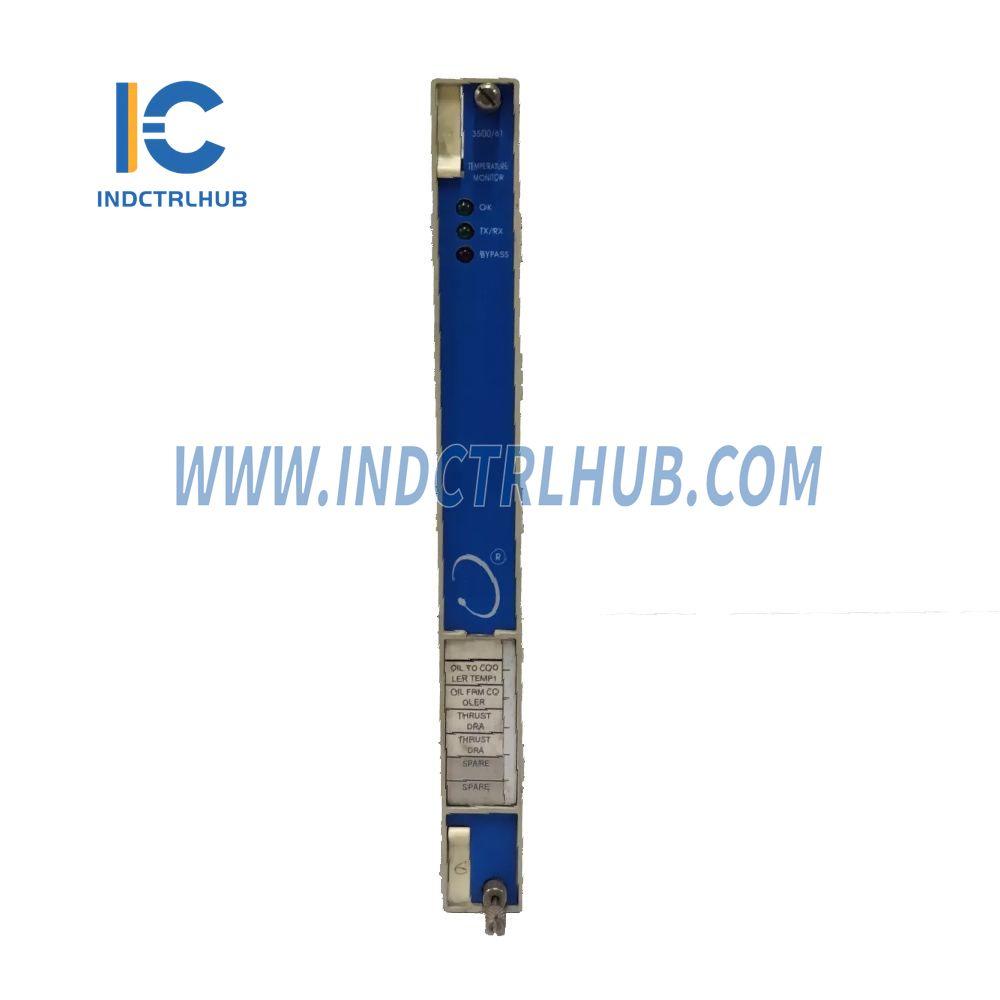

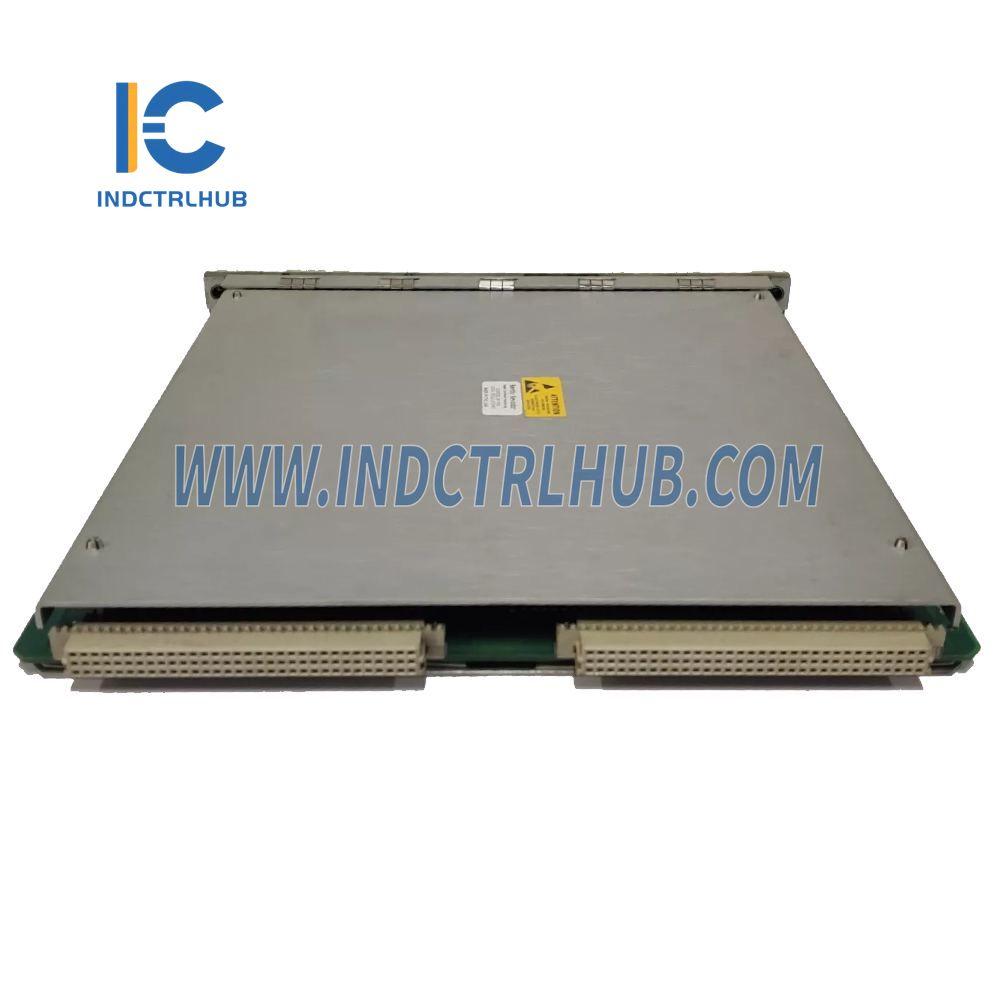

- Description: 3500/61 Temperature Monitor Module
Description
The 3500/60 & 61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels, while the 3500/60 does not.
Specifications
Inputs
| Attribute | Details |
|---|---|
| Signal | Accepts from 1 to 6 RTD or TC transducer signals |
| Input Impedance | 10 MΩ for each lead input |
| Power Consumption | 3500/60: Nominal consumption of 7 watts 3500/61: Nominal consumption of 9 watts |
Outputs
| Attribute | Details |
|---|---|
| Front Panel LEDs |
OK LED: Indicates when the monitor is operating properly TX/RX LED: Indicates communication with other modules Bypass LED: Indicates when the monitor is in Bypass Mode |
| Alarms |
Alarm Setpoints: User-programmable Alert and Danger setpoints for each measured value. Alarm accuracy is within 0.13% of the desired value. Adjustable from 0 to 100% of full-scale for each measured value (limited by the sensor range). Both under and over alarm setpoints available. |
Environmental Limits
| Attribute | Details |
|---|---|
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) with Internal/External Termination I/O Modules 0°C to +65°C (32°F to +150°F) with Internal Barrier I/O Modules (Internal Termination) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
Physical
| Attribute | Details |
|---|---|
| Monitor Module Dimensions | 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in) |
| Weight | 0.91 kg (2.0 lb) |
Ordering Information
| Attribute | Details |
|---|---|
| A: I/O Module Type | 01: RTD/TC Non-isolated I/O Module with Internal Terminations 02: RTD/TC Non-isolated I/O Module with External Terminations 03: TC Isolated I/O Module with Internal Terminations 04: TC Isolated I/O Module with External Terminations 05: RTD/TC Non-isolated I/O Module with Internal Barriers |
| B: Agency Approval Option | 00: None 01: CSA/NRTL/C (Class 1, Div 2) 02: ATEX/IECEx/CSA (Class 1, Zone 2) |
